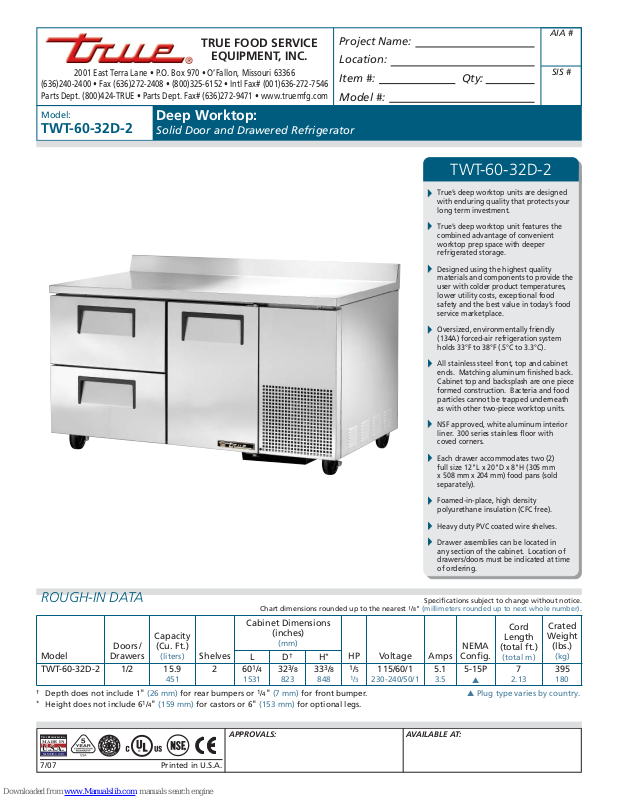

True TWT-60-32D-2 Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TWT-60-32D-2

Deep Worktop:

Solid Door and Drawered Refrigerator

TWT-60-32D-2

True’s deep worktop units are designed
with enduring quality that protects your
long term investment.

True’s deep worktop unit features the
combined advantage of convenient
worktop prep space with deeper
refrigerated storage.

Designed using the highest quality
materials and components to provide the
user with colder product temperatures,
lower utility costs, exceptional food
safety and the best value in today’s food
service marketplace.

Oversized, environmentally friendly
(134A) forced-air refrigeration system
holds 33°F to 38°F (.5°C to 3.3°C).

All stainless steel front, top and cabinet
ends. Matching aluminum fi nished back.
Cabinet top and backsplash are one piece
formed construction. Bacteria and food
particles cannot be trapped underneath
as with other two-piece worktop units.

NSF approved, white aluminum interior
liner. 300 series stainless fl oor with
coved corners.

Each drawer accommodates two (2)
full size 12"L x 20"D x 8"H (305 mm
x 508 mm x 204 mm) food pans (sold
separately).

Foamed-in-place, high density
polyurethane insulation (CFC free).

Heavy duty PVC coated wire shelves.

Drawer assemblies can be located in
any section of the cabinet. Location of
drawers/doors must be indicated at time
of ordering.

ROUGH-IN DATA

Model

Drawers

TWT-60-32D-2 1/2 15.9

†

Depth does not include 1" (26 mm) for rear bumpers or 1/4" (7 mm) for front bumper. ▲ Plug type varies by country.

*

Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

7/07

Doors/

Capacity

(Cu. Ft.)

(liters) Shelves

451

®

Printed in U.S.A.

R

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

*

LD†H

260

1

1531

/4

323/8

823

333/8

848

HP Voltage Amps

1

/5

115/60/1

1

/3

230-240/50/1

APPROVALS: AVAILABLE AT:

Specifi cations subject to change without notice.

Crated

Weight

(lbs.)

(kg)

395

180

5.1

3.5

NEMA

Confi g.

5-15P

▲

Cord

Length

(total ft.)

(total m)

7

2.13

Model:

TWT-60-32D-2

Deep Worktop:

Solid Door and Drawered Refrigerator

STANDARD FEATURES

DESIGN

• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.

REFRIGERATION SYSTEM

• Factory engineered, self-contained capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.

• Oversized, factory balanced refrigeration
system with guided airfl ow to provide
uniform product temperatures.

• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C) for the best
in food preservation.

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True worktop units a more
effi cient low velocity, high volume airfl ow
design. This unique design ensures
faster temperature recovery and shorter
run times in the busiest of food service
environments.

• Condensing unit is accessed from behind
front grill; slides out for easy maintenance

CABINET CONSTRUCTION

• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum fi nished
back. Cabinet top and backsplash are one
piece formed construction.

• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless fl oor
with coved corners.

• Insulation - entire cabinet structure, solid
door and drawer facings are foamed­in-place using high density, CFC free,
polyurethane insulation.

• 5" (127 mm) diameter stem castors - locks
provided on front set. 36" (915 mm) work
surface height.

DOOR/DRAWERS

• Door and drawers have stainless steel
exterior with white aluminum liner to
match cabinet interior.

• Each door and drawers fi tted with 12"
(305 mm) long recessed handle that
is foamed-in-place with a sheet metal
interlock to ensure permanent attachment.

• Door section - door swings within cabinet
dimensions.

• Magnetic drawer/door gaskets of one piece
construction, removable without tools for
ease of cleaning.

• Drawer assemblies can be located in
any section of the cabinet. Location of
drawers/doors must be indicated at time of
ordering.

• Drawer section - heavy-duty stainless steel
drawer slides and rollers.

SHELVING

• Two (2) adjustable, heavy duty PVC coated
wire shelves 171/4"L x 28"D (439 mm x
712 mm). Four (4) chrome plated shelf clips
included per shelf.

• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.

PAN CAPACITY

• Each drawer accommodates two (2) full
size 12"L x 20"W x 8"D (305 mm x 508 mm
x 204 mm), four (4) 1/2 pans, or six (6) 1/3
food pans not included.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate
the potential of corrosion.

• Drawers will support a wide variety of
incremental pan size confi gurations;
divider bars available.

• NSF-7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 230-240V/50Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.
❒ 21/2" (64 mm) diameter castors.
❒ 3" (85 mm) diameter castors.
❒ Single utility shelf.
❒ Double utility shelf.
❒ 30" (762 mm) deep, 1/2" (13 mm) thick,

white polyethylene cutting board.
Requires “L” brackets.

❒ 30" (762 mm) deep, 1/2" (13 mm) thick,

composite cutting board. Requires “L”
brackets.

❒ Heavy duty 16 gauge tops.

❒ Heavy duty package (16 gauge tops, 20

gauge door, sides and back with stainless
interior).

❒ Exterior round digital temperature display

(factory installed).

❒ Remote cabinets (condensing unit supplied

by others; system comes standard with
404A expansion valve and requires R404A

PLAN VIEW

587/8"

1

/4"

(7 mm)

(1496 mm)

323/8"

(823 mm)

131/32"

(50 mm)

RIGHT VIEW

1"

(26 mm)

25/8"

(67 mm)

39/16"

(91 mm)

183/4"

(477 mm)

3515/16"

(913 mm)

335/16"

(847 mm)

5"

(127 mm)

WARRANTY

One year warranty on all parts

& labor and an additional 4 year

warranty on compressor.

(U.S.A. only)

601/4"

(1531 mm)

259/16"

(650 mm)

123/4"

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

SPECIFICATIONS SUBJECT TO CHANGE

(324 mm)

NEAREST WHOLE MILLIMETER

WITHOUT NOTICE

81/4"

(210 mm)

39/16"

(91 mm)

(1004 mm)

293/4"

(756 mm)

63/16"

(158 mm)

391/2"

KCL

251/2"

(648 mm)

181/4"

(464 mm)

Model Elevation Right Plan 3D

TWT-60-32D-2 TFPY33E TFPY33S TFPY33P TFPY333
