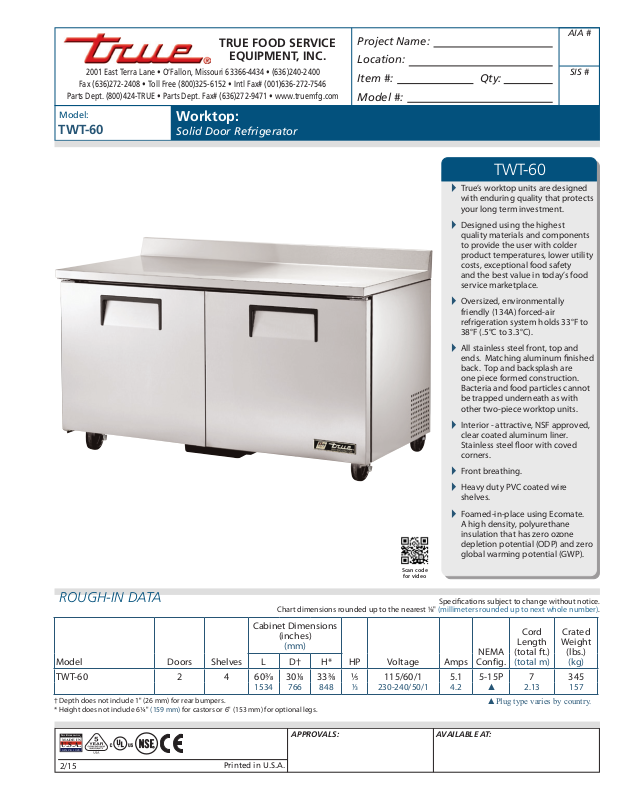

True TWT-60 User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TWT-60

Worktop:

Solid Door Refrigerator

Scan cod e

for vide o

TWT-60

True’s worktop units are designed



with enduring quality that protects
your long term investment.

Designed using the highest



quality materials and components
to provide the user with colder
product temperatures, lower utility
costs, exceptional food safety
and the best value in today’s food
service marketplace.

Oversized, environmentally



friendly (134A) forced-air
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).

All stainless steel front, top and



ends. Matching aluminum nished
back. Top and backsplash are
one piece formed construction.
Bacteria and food particles cannot
be trapped underneath as with
other two-piece worktop units.

Interior - attractive, NSF approved,



clear coated aluminum liner.
Stainless steel oor with coved
corners.

Front breathing.



Heavy duty PVC coated wire



shelves.

Foamed-in-place using Ecomate.



A high density, polyurethane
insulation that has zero ozone
depletion potential (ODP) and zero
global warming potential (GWP).

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H*

TWT-60 2 4 60⁄ 30⁄ 33⁄ ⁄ 115/60/1 5.1 5-15P 7 345

1534 766 848 ⁄ 230-240/50/1 4.2 ▲ 2.13 157

†Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 6¼" (159 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

2/15

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

▲Plug type varies by country.

Model:

TWT-60

Worktop:

Solid Door Refrigerator

STANDARD FEATURES

DESIGN

True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Oversized, factory balanced refrigeration system

•

with guided airow to provide uniform product
temperatures.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser;
maintains cabinet temperatures of 33°F to 38°F
(.5°C ot 3.3°C) for the best in food preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motors and larger fan blades give True
worktop units a more ecient, low velocity,
high volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
Condensing unit access in back of cabinet, slides

•

out for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends.

•

Matching aluminum nished back. Top and
backsplash are one piece formed construction.
Bacteria and food particles cannot be trapped
underneath as with other two-piece worktop
units.

Interior - attractive, NSF approved, clear coated

•

aluminum liner. Stainless steel oor with coved
corners.
Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using Ecomate. A
high density, polyurethane insulation that has
zero ozone depletion potential (ODP) and zero
global warming potential (GWP).
5" (127 mm) diameter stem castors - locks

•

provided on front set. 36" (915 mm) work
surface height.

DOORS

Stainless steel exterior with white aluminum

•

liner to match cabinet interior.
Each door tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing doors with 90°stay

•

open feature. Doors swing within cabinet
dimensions.
Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

Four (4) adjustable, heavy duty PVC coated wire

•

shelves 27 ½ "L x 16"D (699 mm x 407 mm). Four
(4) chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material

•

as cabinet interior; shelves are adjustable on ½ "
(13 mm) increments.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½" (64 mm) diameter castors.
❑ Barrel locks (factory installed). Requires one per

door.
❑ Front breathing.
❑ Double overshelf.
❑ 28 ¼" (718 mm) deep, ½ " (13 mm) thick, white

polyethylene cutting board. Requires “L”

brackets.
❑ 28 ¼" (718 mm) deep, ½ " (13 mm) thick,

composite cutting board. Requires “L” brackets.
❑ Heavy duty, 16 gauge tops.
❑ Exterior rectangular digital thermometer

(factory installed).
❑ ADA compliant models with 34" (864 mm) work

surface height.

Beginning in October of 2014, True Manufacturing began the

process of changing the standard interior nishes on select

products. The interior liners of these units have changed from the

traditional NSF-approved white aluminum to an NSF-approved clear

coated aluminum that is silver in color. In addition, the traditional
white PVC coated shelves have been switched to a gray PVC coating.
There are no functional dierences created by any of these changes,
the dierence is only in the appearance. The following product lines

are aected by this change: T-Series, TUC, TWT, TSSU, TFP, TPP, TMC,

TRCB. A sticker will be placed on the outside packaging so that units

*CABINET INTERIOR

with this change can be identied in inventory.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TWT-60 TFPY03E TFPY78S TFPY03P TFPY033
