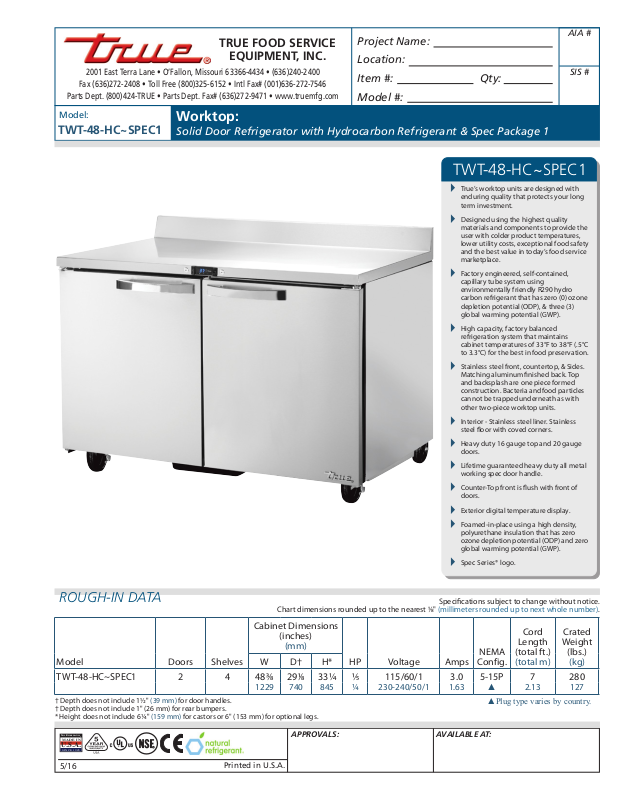

True TWT-48-HC User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TWT-48-HC~SPEC1

Worktop:

Solid Door Refrigerator with Hydrocarbon Refrigerant & Spec Package 1

TWT-48-HC~SPEC1

True’s worktop units are designed with



enduring quality that protects your long
term investment.

Designed using the highest quality



materials and components to provide the
user with colder product temperatures,
lower utility costs, exceptional food safety
and the best value in today’s food service
marketplace.

Factory engineered, self-contained,



capillary tube system using
environmentally friendly R290 hydro
carbon refrigerant that has zero (0) ozone
depletion potential (ODP), & three (3)
global warming potential (GWP).

High capacity, factory balanced



refrigeration system that maintains
cabinet temperatures of 33°F to 38°F (.5°C
to 3.3°C) for the best in food preservation.

Stainless steel front, countertop, & Sides.



Matching aluminum nished back. Top
and backsplash are one piece formed
construction. Bacteria and food particles
cannot be trapped underneath as with
other two-piece worktop units.

Interior - Stainless steel liner. Stainless



steel oor with coved corners.

Heavy duty 16 gauge top and 20 gauge



doors.

Lifetime guaranteed heavy duty all metal



working spec door handle.

Counter-Top front is ush with front of



doors.

Exterior digital temperature display.



Foamed-in-place using a high density,



polyurethane insulation that has zero
ozone depletion potential (ODP) and zero
global warming potential (GWP).

Spec Series® logo.



ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)W D† H*

TWT-48-HC~SPEC1 2 4 48⁄ 29⁄ 33¼ ⁄ 115/60/1 3.0 5-15P 7 280

1229 740 845 ¼ 230-240/50/1 1.63 ▲ 2.13 127

† Depth does not include 1½" (39 mm) for door handles.
† Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 6¼" (159 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

5/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

▲Plug type varies by country.

Model:

TWT-48-HC~SPEC1

Worktop:

Solid Door Refrigerator with Hydrocarbon
Refrigerant & Spec Package 1

STANDARD FEATURES

DESIGN

True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder
product temperatures, lower utility costs,
exceptional food safety and the best value in
today’s food service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
R290 hydro carbon refrigerant that has zero
(0) ozone depletion potential (ODP), & three
(3) global warming potential (GWP).
Energy ecient, factory balanced

•

refrigeration system with guided airow to
provide uniform product temperatures.
High capacity, factory balanced refrigeration

•

system that maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C) for the best in
food preservation.
State of the art, electronically commutated

•

evaporator and condenser fan motors. ECM
motors operate at higher peak eciencies
and move a more consistent volume of air
which produces less heat, reduces energy
consumption and provides greater motor
reliability.
Condensing unit access in back of cabinet,

•

slides out for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and

•

ends. Matching aluminum nished back.
Top and backsplash are one piece formed
construction. Bacteria and food particles
cannot be trapped underneath as with other
two-piece worktop units.

Interior - Stainless steel liner. Stainless steel

•

oor with coved corners.
Insulation - entire cabinet structure and

•

solid doors are foamed-in-place using a high
density, polyurethane insulation that has zero
ozone depletion potential (ODP) and zero
global warming potential (GWP).
5" (127 mm) diameter stem castors - locks

•

provided on front set. 36" (915 mm) work
surface height.

DOORS

Stainless steel exterior with clear coated

•

aluminum liner to match cabinet interior.
door lock standard.

•

Lifetime guaranteed heavy duty all metal

•

working spec door handles.
Positive seal self-closing doors with 90° stay

•

open feature. Doors swing within cabinet
dimensions.
Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.

SHELVING

Four (4) adjustable, heavy duty PVC coated

•

wire shelves 21 ⁄ "L x 16"D (548 mm x 407
mm). Four (4) chrome plated shelf clips
included per shelf.
Shelf support pilasters made of same material

•

as cabinet interior; shelves are adjustable on

½" (13 mm) increments.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Heavy duty 16 gauge top and 20 gauge

•

doors.

Counter-Top front is ush with front of doors.

•

Exterior digital temperature display.

•

Spec Series® logo.

•

NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½ " (64 mm) diameter castors.
❑ Single overshelf.
❑ Double overshelf.
❑ 28 ¼ " (718 mm) deep, ½" (13 mm) thick,

white polyethylene cutting board. Requires
“L” brackets.

❑ 28 ¼ " (718 mm) deep, ½" (13 mm) thick,

composite cutting board. Requires “L”
brackets.

❑ ADA compliant models with 34" (864 mm)

work surface height.

PLAN VIEW

527/8"

(1344 mm)

483/8 "

(1229 mm)

31/2"

(89 mm)

331/4"

(845 mm)

5"

(127 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

*

77/8"

(321 mm)

ELEVATION

888

293/4"

(756 mm)

173/16"

(437 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

(1004 mm)

36"

(915 mm)

61/4"

(159 mm)

391/2"

KCL

Model Elevation Right Plan 3D Back

TWT-48-HC~SPEC1

223/4"

(578 mm)

11/2"

(39 mm)

291/8"

(740 mm)

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

3115/16"

(812 mm)

RIGHT VIEW

1"

(26 mm)

111/16"

(43 mm)

37/8"

(99 mm)
