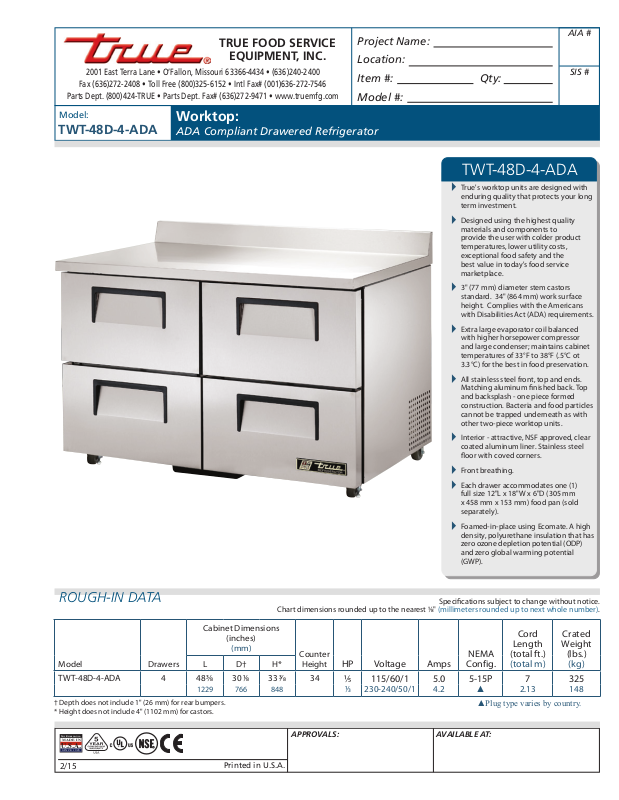

True TWT-48D-4-ADA User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TWT-48D-4-ADA

Worktop:

ADA Compliant Drawered Refrigerator

TWT-48D-4-ADA

True's worktop units are designed with



enduring quality that protects your long
term investment.

Designed using the highest quality



materials and components to
provide the user with colder product
temperatures, lower utility costs,
exceptional food safety and the
best value in today's food service
marketplace.

3" (77 mm) diameter stem castors



standard. 34" (864 mm) work surface
height. Complies with the Americans
with Disabilities Act (ADA) requirements.

Extra large evaporator coil balanced



with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C ot

3.3°C) for the best in food preservation.

All stainless steel front, top and ends.



Matching aluminum nished back. Top
and backsplash - one piece formed
construction. Bacteria and food particles
cannot be trapped underneath as with
other two-piece worktop units.

Interior - attractive, NSF approved, clear



coated aluminum liner. Stainless steel
oor with coved corners.

Front breathing.



Each drawer accommodates one (1)



full size 12"L x 18"W x 6"D (305 mm
x 458 mm x 153 mm) food pan (sold
separately).

Foamed-in-place using Ecomate. A high



density, polyurethane insulation that has
zero ozone depletion potential (ODP)
and zero global warming potential
(GWP).

ROUGH-IN DATA

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Model Drawers

TWT-48D-4-ADA 4 48 ⁄ 30⁄ 33⁄ 34

1229 766 848

†Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 4" (1102 mm) for castors.

T

RUE

R

EFRIGERATION

®

MADE IN

U.S.A.

SINCE 1945

2/15

Printed in U.S.A.

Counter

Height HP Voltage Amps

APPROVALS: AVAILABLE AT:

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H*

⁄ 115/60/1 5.0 5-15P 7 325

⁄ 230-240/50/1 4.2 ▲ 2.13 148

▲Plug type varies by country.

Model:

TWT-48D-4-ADA

Worktop:

ADA Compliant Drawered Refrigerator

STANDARD FEATURES

DESIGN

True's commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today's food
service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Oversized, factory balanced refrigeration

•

system with guided airow to provide uniform
product temperatures.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains cabinet temperatures of
33°F to 38°F (.5°C ot 3.3°C) for the best in food
preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
worktop units a more ecient, low velocity,
high volume airow design. This unique
design ensures faster temperature recovery
and shorter run times in the busiest of
foodservice environments.
Condensing unit access in back of cabinet,

•

slides out for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends.

•

Matching aluminum nished back. Top and
backsplash are one piece formed construction.
Bacteria and food particles cannot be trapped
underneath as with other two-piece worktop
units.

Interior - attractive, NSF approved, clear coated

•

aluminum liner. Stainless steel oor with coved
corners.
Insulation - entire cabinet structure and

•

drawer facings are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
3" (77 mm) diameter stem castors. 34" (864

•

mm) work surface height. Compliant with
American Disablities Act (ADA) requirements.

DRAWERS

Stainless steel exterior drawer facings and

•

liners. Stainless steel drawer frames
Each drawer tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Heavy-duty stainless steel drawer slides and

•

rollers, removable without tools for easy
cleaning.
Magnetic drawer gaskets of one piece

•

construction, removable without tools for ease
of cleaning.

PAN CAPACITY

Each drawer accommodates one (1) full size

•

12"L x 18"W x 6"D (305 mm x 458 mm x 153
mm) food storage box (sold separately) or
one ⁄size and one ½size pan.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1 phase,
15 amp dedicated outlet. Cord and plug set
included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 5" (127 mm) diameter stem casters.
❑ Barrel locks (factory installed).
❑ Single overshelf.
❑ Double overshelf.
❑ 28 ¼" (718 mm) deep,½" (13 mm) thick, white

polyethylene cutting board. Requires "L"
brackets

❑ 28 ¼" (718 mm) deep,½" (13 mm) thick,

composite cutting board. Requires "L"

brackets.
❑ Heavy duty 16 gauge tops.
❑ Exterior rectangular digital temperature

display (factory installed).

Beginning in October of 2014, True Manufacturing began the

process of changing the standard interior nishes on select

products. The interior liners of these units have changed from the

traditional NSF-approved white aluminum to an NSF-approved clear

coated aluminum that is silver in color. In addition, the traditional
white PVC coated shelves have been switched to a gray PVC coating.
There are no functional dierences created by any of these changes,
the dierence is only in the appearance. The following product lines

are aected by this change: T-Series, TUC, TWT, TSSU, TFP, TPP, TMC,

TRCB. A sticker will be placed on the outside packaging so that units

*CABINET INTERIOR

with this change can be identied in inventory.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TWT-48D-4-ADA TFPY39E TFPY26S TFPY07P TFPY393
