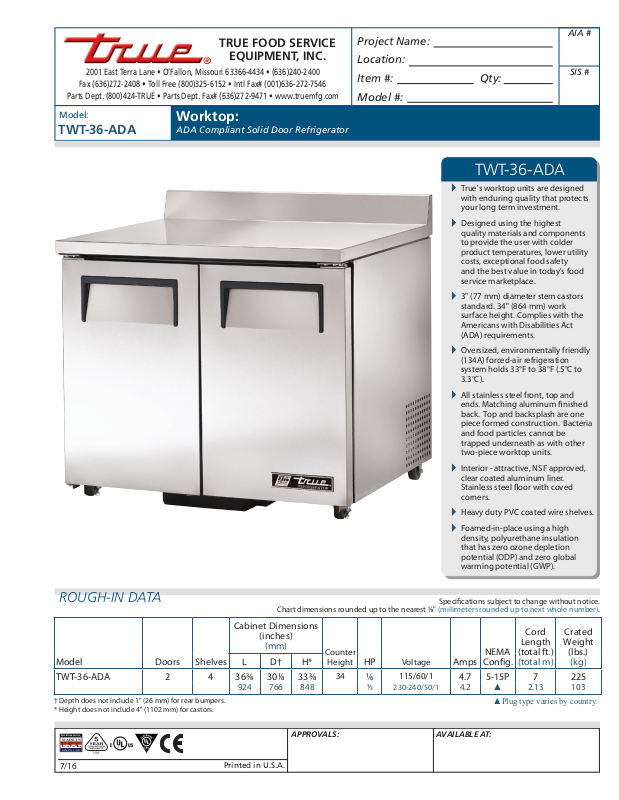

True TWT-36-ADA User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TWT-36-ADA

Worktop:

ADA Compliant Solid Door Refrigerator

TWT-36-ADA

True's worktop units are designed



with enduring quality that protects
your long term investment.

Designed using the highest



quality materials and components
to provide the user with colder
product temperatures, lower utility
costs, exceptional food safety
and the best value in today's food
service marketplace.

3" (77 mm) diameter stem castors



standard. 34" (864 mm) work
surface height. Complies with the
Americans with Disabilities Act
(ADA) requirements.

Oversized, environmentally friendly



(134A) forced-air refrigeration
system holds 33°F to 38°F (.5°C to

3.3°C).

All stainless steel front, top and



ends. Matching aluminum nished
back. Top and backsplash are one
piece formed construction. Bacteria
and food particles cannot be
trapped underneath as with other
two-piece worktop units.

Interior - attractive, NSF approved,



clear coated aluminum liner.
Stainless steel oor with coved
corners.

Heavy duty PVC coated wire shelves.



Foamed-in-place using a high



density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

ROUGH-IN DATA

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Model Doors Shelves

TWT-36-ADA 2 4 36⁄ 30⁄ 33⁄

924 766 848 ⁄

†Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 4" (1102 mm) for castors.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

7/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Specications subject to change without notice.

Counter

Height HP Voltage Amps

34

⁄

115/60/1

230-240/50/1

4.7 5-15P 7 225

4.2 ▲ 2.13 103

Cord

Length

NEMA

Config.

(total ft.)

(total m)

▲Plug type varies by country.

Crated

Weight

(lbs.)

(kg)L D† H*

Model:

TWT-36-ADA

Worktop:

ADA Compliant Solid Door Refrigerator

STANDARD FEATURES

DESIGN

True's commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder
product temperatures, lower utility costs,
exceptional food safety and the best value in
today's food service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Oversized, factory balanced refrigeration

•

system with guided airow to provide
uniform product temperatures.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C ot 3.3°C) for the best in
food preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor and larger fan blades give True
worktop units a more ecient, low velocity,
high volume airow design. This unique
design ensures faster temperature recovery
and shorter run times in the busiest of
foodservice environments.
Condensing unit access in back of cabinet,

•

slides out for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and

•

ends. Matching aluminum nished back.
Top and backsplash are one piece formed
construction. Bacteria and food particles
cannot be trapped underneath as with other
two-piece worktop units.

Interior - attractive, NSF approved, clear

•

coated aluminum liner. Stainless steel oor
with coved corners.
Insulation - entire cabinet structure and

•

solid doors are foamed-in-place using a high
density, polyurethane insulation that has
zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
3" (77 mm) diameter stem castors. 34" (864

•

mm) work surface height. Compliant with
American Disablities Act (ADA) requirements.

DOORS

Stainless steel exterior with clear aluminum

•

liner to match cabinet interior.
Each door tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing doors with 90°stay

•

open feature. Doors swing within cabinet
dimensions.
Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.

SHELVING

Four (4) adjustable, heavy duty PVC coated

•

wire shelves 15 ⁄ "L x 16"D (396 mm x 407
mm). Four (4) chrome plated shelf clips
included per shelf.
Shelf support pilasters made of same

•

material as cabinet interior; shelves are
adjustable on ½ " (13 mm) increments.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 5" (127 mm) diameter stem casters.
❑ Barrel locks (factory installed). Requires one

per door.
❑ Single overshelf.
❑ Double overshelf.
❑ 28 ¼ " (718 mm) deep, ½ " (13 mm) thick,

white polyethylene cutting board. Requires

"L" brackets.
❑ 28 ¼ " (718 mm) deep, ½ " (13 mm) thick,

composite cutting board. Requires "L"

brackets.
❑ Heavy duty 16 gauge tops.
❑ Exterior rectangular digital temperature

display (factory installed).

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TWT-36-ADA TFPY27E TFPY27S TFPY30P TFPY273

TRUE FOOD SERVICE EQUIPMENT
