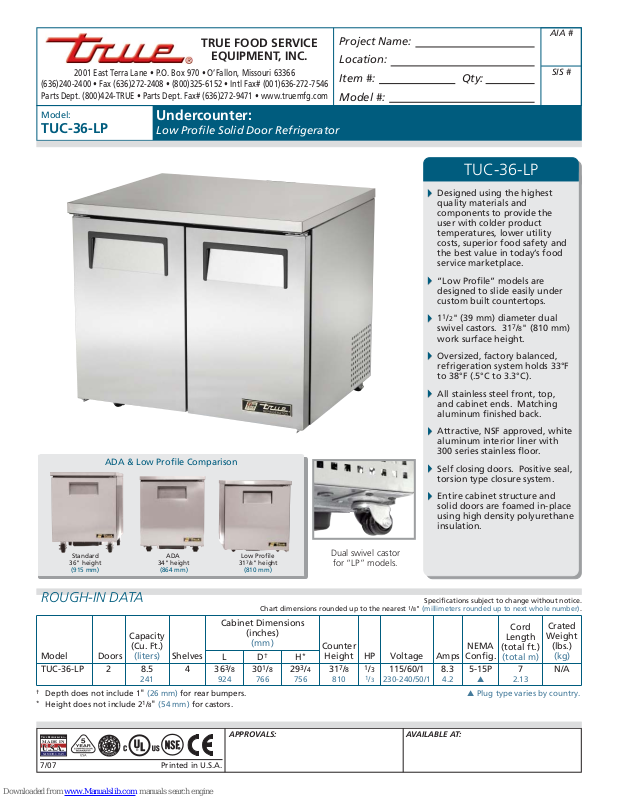

True TUC-36-LP Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TUC-36-LP

Undercounter:

Low Profi le Solid Door Refrigerator

TUC-36-LP

Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, superior food safety and
the best value in today’s food
service marketplace.

“Low Profi le” models are
designed to slide easily under
custom built countertops.

1

1

/2" (39 mm) diameter dual
swivel castors. 31
work surface height.

Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

All stainless steel front, top,
and cabinet ends. Matching
aluminum fi nished back.

7

/8" (810 mm)

Attractive, NSF approved, white
aluminum interior liner with
300 series stainless fl oor.

ADA & Low Profi le Comparison

Self closing doors. Positive seal,
torsion type closure system.

Entire cabinet structure and
solid doors are foamed in-place
using high density polyurethane
insulation.

Standard ADA Low Profi le
36" height 34" height 31

(915 mm) (864 mm) (810 mm)

7

/8" height

ROUGH-IN DATA

Chart dimensions rounded up to the nearest

Cabinet Dimensions

Capacity

(Cu. Ft.)

Model Doors
TUC-36-LP 2 8.5

†

Depth does not include 1" (26 mm) for rear bumpers. ▲ Plug type varies by country.

*

Height does not include 21/8" (54 mm) for castors.

(liters) Shelves

436

241

(inches)

(mm)

LD†H

3

/8

301/8

924

766

293/4

756

Dual swivel castor

for “LP” models.

Counter

*

Height HP Voltage Amps

317/8

810

1

/3

1

/3

230-240/50/1

115/60/1

Specifi cations subject to change without notice.

1

/8" (millimeters rounded up to next whole number).

Crated

Weight

(lbs.)

(kg)

7

N/A

8.3

4.2

NEMA

Confi g.

5-15P

▲

Cord

Length

(total ft.)

(total m)

2.13

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

7/07

®

R

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TUC-36-LP

Undercounter:

Low Profi le Solid Door Refrigerator

STANDARD FEATURES

DESIGN

• True’s undercounters are designed
with enduring quality and value that
protects your long term investment. Our
commitment to using the highest quality
materials and oversized refrigeration
ensures exceptional food preservation.

• “Low Profi le” models are designed
to slide easily under custom built
countertops.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.

• Oversized, factory balanced refrigeration
system with guided airfl ow to provide
uniform product temperatures.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (0.5°C to

3.3°C).

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True undercounter units a
more effi cient low velocity, high volume
airfl ow design. This unique design
ensures faster temperature recovery
and shorter run times in the busiest of
foodservice environments.

• Condensing unit access located in back,
slides out for easy maintenance.

• Electric heated condensate pan.

CABINET CONSTRUCTION

• Exterior - 300 Series stainless steel top,
front and sides with matching aluminum
back.

• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless steel
fl oor with coved corners.

• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.

1

• 1

/2" (39 mm) diameter dual swivel

castors permit easy placement. 31

7

/8"

(810 mm) work surface height.

DOORS

• Stainless steel exterior with white
aluminum liner to match cabinet interior.

• Each door fi tted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.

• Positive seal, self-closing doors with 90°
stay open feature. Doors swing within
cabinet dimensions.

• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.

SHELVING

• Four (4) adjustable, heavy duty PVC
coated wire shelves 15

9

/16"L x 16"D
(396 mm x 407 mm). Four (4) chrome
plated shelf clips included per shelf.

• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on

1

/2" (13 mm) increments

MODEL FEATURES

• Evaporator is epoxy coated to eliminate
the potential of corrosion.

• NSF-7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord
and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 230 - 240V / 50 Hz.
❒ Barrel locks (factory installed). Requires

one per door.

❒ Additional shelves.
❒ 30" (762 mm) deep, 1/2" thick, white

polyethylene cutting board.

❒ 30" (762 mm) deep, 1/2" thick, composite

cutting board.

❒ Heavy duty 16 gauge tops.
❒ Standard height units with 5" (127 mm)

diameter castors. 36" (915 mm) work
surface height.

❒ ADA compliant models with 34"

(864 mm) work surface height.

PLAN VIEW

4617/32"

(1182 mm)

1515/32"

(393 mm)

Model Elevation Right Plan 3D

TUC-36-LP TFPY45E TFPY45S TFPY25P TFPY453

One year warranty on all parts

WARRANTY

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

365/16"

(923 mm)

293/4"

(756 mm)

317/8"

(810 mm)

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

21/8"

(54 mm)

KCL

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

301/16"

(764 mm)

RIGHT VIEW

1"

(26 mm)
