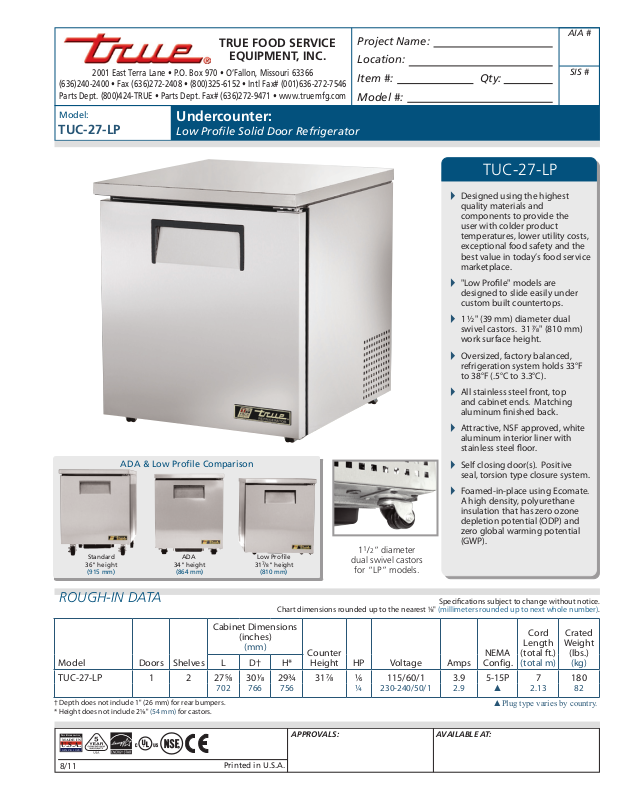

TRUE FOOD SERVICE |
Project Name: |
|
|
|
|
AIA # |
|||
|
|
|
|
|
|
|||||
|
EQUIPMENT, INC. |
Location: |
|
|
|
|
|
|||
2001 |
East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 |
Item #: |
|
|
|
|
Qty: |
|
|
SIS # |
(636)240-2400 |
• Fax (636)272-2408 • (800)325-6152 • Intl Fax# (001)636-272-7546 |
|
|
|
|
|
|
|||
|
|
|
|
|
||||||
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com |
Model #: |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
Model: |
Undercounter: |
TUC-27-LP |
Low Profile Solid Door Refrigerator |
|
|
|
|
ADA & Low Profile Comparison
Standard |
ADA |
Low Profile |
36" height |
34" height |
317/8" height |
(915 mm) |
(864 mm) |
(810 mm) |
11/2” diameter dual swivel castors for “LP” models.
TUC-27-LP
Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the
best value in today’s food service marketplace.
"Low Profile" models are designed to slide easily under custom built countertops.
1 1/2" (39 mm) diameter dual swivel castors. 31 7/8" (810 mm) work surface height.
Oversized, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C).
All stainless steel front, top and cabinet ends. Matching aluminum finished back.
Attractive, NSF approved, white aluminum interior liner with stainless steel floor.
Self closing door(s). Positive seal, torsion type closure system.
Foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Rough-In Data
Specifications subject to change without notice. Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
|
|
Cabinet Dimensions |
|
|
|
Cord |
Crated |
||
|
|
|
(inches) |
|
|
|
|
||
|
|
|
|
|
|
|
Length |
Weight |
|
|
|
|
(mm) |
|
|
|
|
||
|
|
|
|
Counter |
|
NEMA |
(total ft.) |
(lbs.) |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Model |
Doors Shelves L |
D† |
H* |
Height HP |
Voltage |
Amps Config. |
(total m) |
(kg) |
|
|
TUC-27-LP |
1 |
2 |
275/8 |
301/8 |
293/4 |
317/8 |
1/6 |
115/60/1 |
3.9 |
5-15P |
7 |
180 |
||||
|
|
|
|
|
|
|
702 |
766 |
756 |
|
1/4 |
230-240/50/1 |
2.9 |
▲ |
2.13 |
82 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
† Depth does not include 1" (26 mm) for rear bumpers. |
|
|
|
|
|
|
|
▲Plug type varies by country. |
|||||||||
* Height does not include 21/8" (54 mm) for castors. |
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Approvals: |
|
|
Available At: |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
MADE IN |
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
TRUE REFRIGERATION® |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U.S.A. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SINCE 1945 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8/11 |
|
|
|
|
Printed in U.S.A. |
|
|
|
|
|
|
|
|
||||
