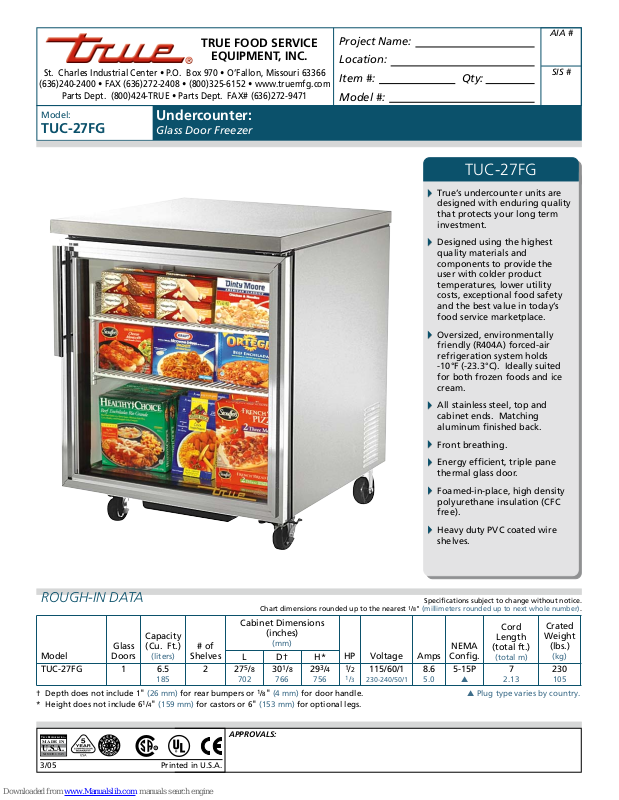

True TUC-27FG Specifications

TRUE FOOD SERVICE

EQUIPMENT, INC.

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366

[phone] • FAX [phone] • [phone] • www.truemfg.com

Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TUC-27FG

Undercounter:

Glass Door Freezer

TUC-27FG

True’s undercounter units are
designed with enduring quality
that protects your long term
investment.

Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, exceptional food safety
and the best value in today’s
food service marketplace.

Oversized, environmentally
friendly (R404A) forced-air
refrigeration system holds

-10°F (-23.3°C). Ideally suited
for both frozen foods and ice
cream.

All stainless steel, top and
cabinet ends. Matching
aluminum fi nished back.

Front breathing.

Energy effi cient, triple pane
thermal glass door.

Foamed-in-place, high density
polyurethane insulation (CFC
free).

Heavy duty PVC coated wire
shelves.

ROUGH-IN DATA

Chart dimensions rounded up to the nearest

Cabinet Dimensions

Capacity

# of

Shelves

227

APPROVALS:

Model

Glass

Doors

(Cu. Ft.)

(liters)

TUC-27FG 1 6.5

185

† Depth does not include 1" (26 mm) for rear bumpers or 1/8" (4 mm) for door handle. ▲ Plug type varies by country.
* Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

SINCE 1945

3/05

Printed in U.S.A.

(inches)

(mm)

LD†H*

5

/8

702

301/8

766

293/4

756

HP Voltage Amps

1

/2

115/60/1

1

/3

230-240/50/1

Specifi cations subject to change without notice.

1

/8" (millimeters rounded up to next whole number).

Crated

Weight

(lbs.)

(kg)

230

105

8.6

5.0

NEMA

Confi g.

5-15P

▲

Cord

Length

(total ft.)

(total m)

7

2.13

Model:

TUC-27FG

Undercounter:

Glass Door Freezer

STANDARD FEATURES

DESIGN

• True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder product
temperatures, lower utility costs,
exceptional food safety and the
best value in today’s food service
marketplace.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.

• Oversized, factory balanced
refrigeration system with guided
airfl ow to provide uniform product
temperatures.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains -10°F
(-23.3˚C) cabinet temperatures. Ideally
suited for both frozen foods and ice
cream.

• Sealed, cast iron, self-lubricating
evaporator fan motor and larger fan
blades give True undercounter units
a more effi cient low velocity, high
volume airfl ow design. This unique
design insures faster temperature
recovery and shorter run times in the
busiest of food service environments.

• Condensing unit access in back
of cabinet, slides out for easy
maintenance.

• Automatic defrost system time
initiated, time terminated.

CABINET CONSTRUCTION

• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
fi nished back.

• Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless fl oor with coved corners.

• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.

• 5" (127 mm) diameter stem castors ­locks provided on front set. 36"
(915 mm) work surface height.

DOOR

• Triple pane thermal glass with
extruded aluminum frame.

• Positive seal self-closing door with 90°
stay open feature. Door swings within
cabinet dimensions.

• Door fi tted with 15" (381 mm) long
extruded aluminum handle.

• Magnetic door gasket of one piece
construction, removable without tools
for ease of cleaning.

SHELVING

• Two (2) adjustable, heavy duty PVC
coated wire shelves 23

1

/4"L x 16"D
(591 mm x 407 mm). Four (4) chrome
plated shelf clips included per shelf.

• Shelf support pilasters made of same
material as cabinet interior; shelves
are adjustable on

1

/2" (13 mm)

increments.

LIGHTING

• Fluorescent interior lighting.

MODEL FEATURES

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

•

NSF-7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply

❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.

1

❒ 2

/2" (64 mm) diameter castors.

❒ Basic overshelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ 30" (762 mm) deep,

1

/2" (13 mm)
thick, white polyethylene cutting
board. Requires “L” brackets.

❒ 30" (762 mm) deep,

1

/2" (13 mm)
thick, composite cutting board.
Requires “L” brackets.

❒ Heavy duty, 16 gauge tops.
❒ ADA compliant models with 34"

(864 mm) work surface height.

❒ Remote cabinets (condensing unit

supplied by others), consult factory
technical service department for BTU
information.

PLAN VIEW

5511/16"

245/8"

279/16"

(701 mm)

125/8"

(321 mm)

ELEVATION

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

293/4"

(756 mm)

3515/16"

(913 mm)

75/16"

(186 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

63/16"

(158 mm)

WITHOUT NOTICE

(626 mm)

KCL

TRUE FOOD SERVICE EQUIPMENT

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com

(1415 mm)

301/16"

3

/32"

(3 mm)

(764 mm)

1"

(26 mm)

25/16"

(59 mm)

RIGHT VIEW

Model Elevation Right Plan 3D

TUC-27FG TFQY04E TFQY04S TFQY01P TFQY043
