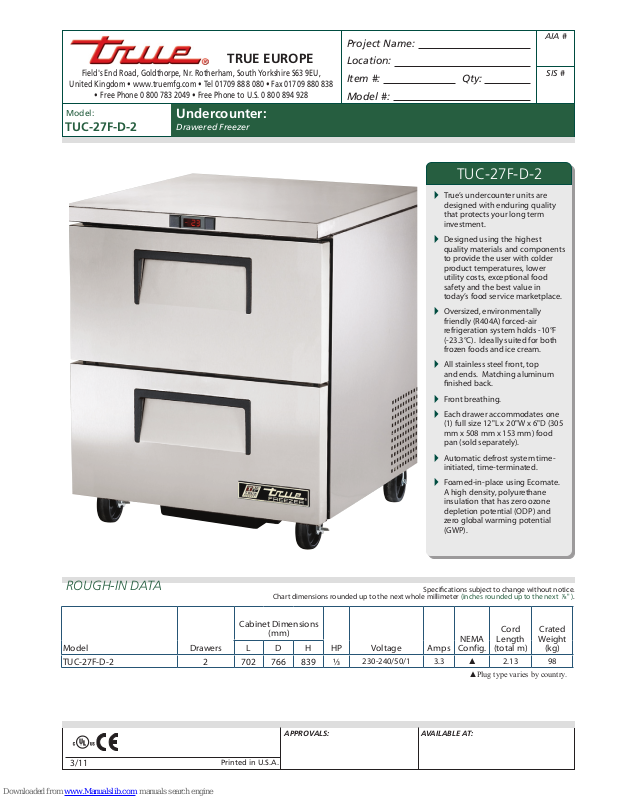

True TUC-27F-D-2 Specifications

Specications subject to change without notice.

Chart dimensions rounded up to the next whole millimeter (inches rounded up to the next ⁄" ).

Rough-In Data

Model:

TRUE EUROPE

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Printed in U.S.A.

ApprovAls: AvAilAble At:

TUC-27F-D-2

Undercounter:

Drawered Freezer

TUC-27F-D-2

True’s undercounter units are



designed with enduring quality
that protects your long term
investment.

Designed using the highest



quality materials and components
to provide the user with colder
product temperatures, lower
utility costs, exceptional food
safety and the best value in
today’s food service marketplace.

Oversized, environmentally



friendly (R404A) forced-air
refrigeration system holds -10°F
(-23.3°C). Ideally suited for both
frozen foods and ice cream.

All stainless steel front, top



and ends. Matching aluminum
nished back.

Front breathing.



Each drawer accommodates one



(1) full size 12"L x 20"W x 6"D (305
mm x 508 mm x 153 mm) food
pan (sold separately).

Automatic defrost system time-



initiated, time-terminated.

Foamed-in-place using Ecomate.



A high density, polyurethane
insulation that has zero ozone
depletion potential (ODP) and
zero global warming potential
(GWP).

Model Drawers

Cabinet Dimensions

(mm)

HP Voltage Amps

NEMA

Config.

Cord

Length

(total m)

Crated

Weight

(kg)L D H

TUC-27F-D-2 2 702 766 839 ⁄

230-240/50/1 3.3 ▲ 2.13 98

▲Plug type varies by country.

Field's End Road, Goldthorpe, Nr. Rotherham, South Yorkshire S63 9EU,

United Kingdom • www.truemfg.com • Tel [phone] • Fax [phone]

• Free Phone [phone] • Free Phone to U.S. 0 800 894 928

3/11

StanDaRD FeatuReS

Model:

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

Plan VIew

KCL

TUC-27F-D-2

DESIGN

True’s commitment to using the

•

highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 404A
refrigerant.
Oversized, factory balanced refrigeration

•

system with guided airow to provide
uniform product temperatures.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains -10°F (-23.3°C)
cabinet temperatures. Ideally suited for
both frozen foods and ice cream.
Sealed, cast iron, self-lubricating

•

evaporator fan motor(s) and larger fan
blades give True undercounter units a
more ecient, low velocity, high volume
airow design. This unique design ensures
faster temperature recovery and shorter
run times in the busiest of food service
environments.
Condensing unit access in back of cabinet,

•

slides out for easy maintenance.
Automatic defrost system time-initiated,

•

time-terminated.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends.

•

Matching aluminum nished back.
Insulation - entire cabinet structure and

•

drawer facings are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
2•½" (64 mm) diameter castors. 33" (839
mm) work surface height.

DRAWERS

Stainless steel exterior drawer facings and

•

liners. Stainless steel drawer frames.
Each drawer tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
Magnetic drawer gaskets of one piece

•

construction, removable without tools for
ease of cleaning.
Heavy-duty stainless steel drawer slides

•

and rollers. Removable without tools for
easy cleaning.
Each drawer accommodates one (1) full size

•

12"L x 20"W x 6"D (305 mm x 508 mm x 153
mm) food pan (sold separately). Drawers
will support varying size pan congurations
with pan divider bars (drawer pans and
divider bars optional).

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.

ELECTRICAL

Unit completely pre-wired at factory

•

and ready for nal connection to a 230­240/50/1 phase dedicated outlet.
Plug type varies by country.

•

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
2 ❑ ½" (64 mm) diameter castors.
Single overshelf. ❑
Double overshelf. ❑
Stacking collar. ❑
30" (762 mm) deep, ❑ ½" (13 mm) thick, white
polyethylene cutting board. Requires “L”
brackets.
0" (762 mm) deep, ❑ ½" (13 mm) thick,
composite cutting board. Requires “L”
brackets.
Heavy duty 16 gauge tops. ❑
Exterior rectangular digital temperature ❑
display (factory installed).
ADA compliant models with 34" (864 mm) ❑
work surface height.
Low prole models with 31 ❑ ⁄" (810 mm)
work surface height.
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
All remote units must be hard wired during
installation.

Undercounter:

Drawered Freezer

Model Elevation Right Plan 3D Back

TUC-27F-D-2 TFQY05E TFQY05S TFQY05P TFQY053

WARRANTY

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)
