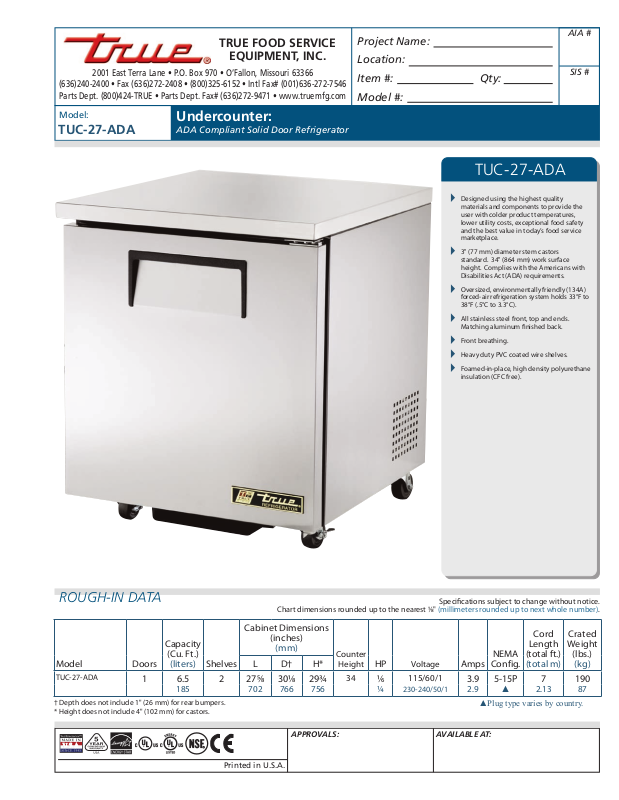

True TUC-27-ADA User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TUC-27-ADA

Undercounter:

ADA Compliant Solid Door Refrigerator

TUC-27-ADA

Designed using the highest quality



materials and components to provide the
user with colder product temperatures,
lower utility costs, exceptional food safety
and the best value in today’s food service
marketplace.

3" (77 mm) diameter stem castors



standard. 34" (864 mm) work surface
height. Complies with the Americans with
Disabilities Act (ADA) requirements.

Oversized, environmentally friendly (134A)



forced-air refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).

All stainless steel front, top and ends.



Matching aluminum nished back.

Front breathing.



Heavy duty PVC coated wire shelves.



Foamed-in-place, high density polyurethane



insulation (CFC free).

Rough-In Data

Capacity

(Cu. Ft.)

Model Doors

TUC-27-ADA

† Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 4" (102 mm) for castors.

(liters) Shelves

1 6.5 2 27⁄ 30⁄ 29¾

185 702 766 756 ¼

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Printed in U.S.A.

Specications subject to change without notice.

Counter

Height HP Voltage Amps

34

ApprovAls: AvAilAble At:

⁄

115/60/1

230-240/50/1

3.9 5-15P 7 190

2.9 ▲ 2.13 87

▲Plug type varies by country.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)L D† H*

Model:

TUC-27-ADA

Undercounter:

ADA Compliant Solid Door Refrigerator

StanDaRD FeatuReS

DESIGN

True’s undercounter units are designed with enduring

•

quality that protects your long term investment.
True’s commitment to using the highest quality

•

materials and oversized refrigeration systems provides
the user with colder product temperatures, lower
utility costs, exceptional food safety and the best
value in today’s food service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary tube

•

system using environmentally friendly (CFC free) 134A
refrigerant.
Oversized, factory balanced refrigeration system

•

with guided airow to provide uniform product
temperatures.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser
maintains cabinet temperatures of 33°F to 38°F (.56°C
to 3.33°C) for the best in food preservation.
Sealed, cast iron, self-lubricating evaporator fan

•

motor(s) and larger fan blades give True undercounter
units a more ecient, low velocity, high volume
airow design. This unique design ensures faster
temperature recovery and shorter run times in the
busiest of foodservice environments.
Condensing unit access in back of cabinet, slides out

•

for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends. Matching

•

aluminum nished back.
Interior - attractive, NSF approved, white aluminum

•

liner. 300 series stainless steel oor with coved
corners.
Insulation - entire cabinet structure and solid door

•

are foamed-in-place using high density, CFC free,
polyurethane insulation.
3" (77 mm) diameter stem castors. 34" (864 mm) work

•

surface height. Compliant with American Disablities
Act (ADA) requirements.

DOOR

Stainless steel exterior with white aluminum liner to

•

match cabinet interior.

Door tted with 12" (305 mm) long recessed handle

•

that is foamed-in-place with a sheet metal interlock to
ensure permanent attachment.
Positive seal self-closing door with 90° stay open

•

feature. Door swing within cabinet dimensions.
Magnetic door gasket of one piece construction,

•

removable without tools for ease of cleaning.

SHELVING

Two (2) adjustable, heavy duty PVC coated wire

•

shelves 23¼"L x 16"D (591 mm x 407 mm). Four (4)
chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material as

•

cabinet interior; shelves are adjustable on½" (13 mm)
increments.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the potential

•

of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

230 - 240V / 50 Hz. ❑
Barrel lock (factory installed). ❑
Single overshelf. ❑
Double overshelf. ❑
Stacking collar. ❑
30" (762 mm) deep, ❑ ½" (13 mm) thick, white
polyethylene cutting board. Requires “L” brackets.
30" (762 mm) deep, ❑ ½" (13 mm) thick, composite
cutting board. Requires “L” brackets.
Heavy duty 16 gauge top. ❑
Exterior rectangular digital temperature display ❑
(factory installed).
Standard height units with 5" (127 mm) diameter ❑
castors. 36" (915 mm) work surface height.

Low prole models with 31 ❑ ⁄" (810 mm) work surface
height.

Plan VIew

One year warranty on all parts

WARRANTY

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TUC-27-ADA TFQY016E TFQY016S TFQY01P TFQY0163
