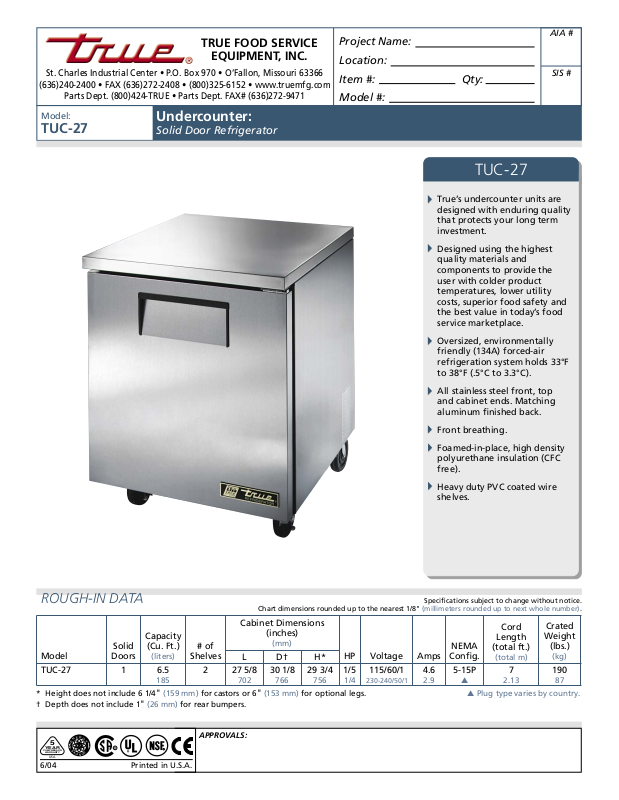

Model:

TUC-27

Undercounter:

Solid Door Refrigerator

TUC-27

True’s undercounter units are
designed with enduring quality
that protects your long term
investment.

Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, superior food safety and
the best value in today’s food
service marketplace.

Oversized, environmentally
friendly (134A) forced-air
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

All stainless steel front, top
and cabinet ends. Matching
aluminum fi nished back.

Front breathing.

Foamed-in-place, high density
polyurethane insulation (CFC
free).

Heavy duty PVC coated wire
shelves.

ROUGH-IN DATA

Chart dimensions rounded up to the nearest 1/8"

Cabinet Dimensions

Capacity

# of

Shelves

2 27 5/8

Model

Solid

Doors

(Cu. Ft.)

(liters)

TUC-27 1 6.5

185

* Height does not include 6 1/4" (159 mm) for castors or 6" (153 mm) for optional legs. ▲ Plug type varies by country.
† Depth does not include 1" (26 mm) for rear bumpers.

(inches)

(mm)

LD†H*

702

30 1/8

766

29 3/4

756

HP Voltage Amps
1/5

115/60/1

1/4

230-240/50/1

Specifi cations subject to change without notice.

(millimeters rounded up to next whole number).

Crated

Weight

(lbs.)

(kg)

190

87

4.6

2.9

NEMA

Confi g.

5-15P

▲

Cord

Length

(total ft.)

(total m)

7

2.13

YEAR

COMPRESSOR

WARRANTY

6/04

R

E

G

N

Y

E

5

S

S

A

S

V

I

G

N

USA

Printed in U.S.A.

R

APPROVALS:

Model:

TUC-27

Undercounter:

Solid Door Refrigerator

STANDARD FEATURES

DESIGN

• True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder
product temperatures, lower utility
costs, superior food safety and the
best value in today’s food service
marketplace.

REFRIGERATION SYSTEM

• Factory engineered self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.

• Oversized, factory balanced
refrigeration system with guided
airfl ow to provide uniform product
temperature.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C) for the best in food
preservation.

• Sealed, cast iron, self-lubricating
evaporator fan motors and larger
fan blades give True worktop units
a superior low velocity, high volume
airfl ow design. This unique design
insures faster temperature recovery
and shorter run times in the busiest of
food service environments.

• Condensing unit access in back
of cabinet, slides out for easy
maintenance.

CABINET CONSTRUCTION

• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
fi nished back.

• Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless fl oor with coved corners.

• Insulation - entire cabinet structure
and solid doors are foamed-in­place using high density, CFC free,
polyurethane insulation.

• 5" (127 mm) diameter stem castors
standard - locks provided on front set.
Work surface 36" (915 mm) high.

DOORS

• Stainless steel exterior with white
aluminum liner to match cabinet
interior.

• Positive seal self-closing doors with 90˚
stay open feature. Doors swing within
cabinet dimensions.

• Doors fi tted with 12" (305 mm) long
recessed handles that are foamed-in­place with a sheet metal interlock to
insure permanent attachment.

• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.

SHELVING

• Two (2) adjustable, heavy duty PVC
coated wire shelves 23 1/4"L x 16"D
(591 mm x 407 mm). Four (4) chrome
plated shelf clips included per shelf.

• Shelf support pilasters made of same
material as cabinet interior; shelves

are adjustable on 1/2" (13 mm)

increments.

MODEL FEATURES

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standardor seismic/

fl anged legs.

❒ Barrel lock (factory installed).
❒ Basic overshelf.
❒ Stacking collar.
❒ Cutting board.
❒ Heavy duty, 16 gauge tops - upcharge

applies.

❒ ADA compliant models with 2 1/2" (64

mm) castor package. 34" (864 mm)
work surface height.

❒ Low Profi le models with recessed

castors. 31 1/2" (801 mm) work surface
height.

❒ Remote cabinets (condensing unit

supplied by others), consult factory
technical service department for BTU
information.

PLAN VIEW

5529/32"

279/16"

(701 mm)

125/8"

(321 mm)

FRONT VIEW

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

293/4"

(756 mm)

3515/16"

(913 mm)

75/16"

(186 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

63/16"

(158 mm)

WITHOUT NOTICE

2427/32"

(632 mm)

KCL

TRUE FOOD SERVICE EQUIPMENT

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com

(1421 mm)

301/16"

(764 mm)

1"

(26 mm)

25/16"

(59 mm)

SIDE VIEW

Model Front Side Plan 3D

TUC-27 TFQY01E TFQY01S TFQY01P TFQY013
