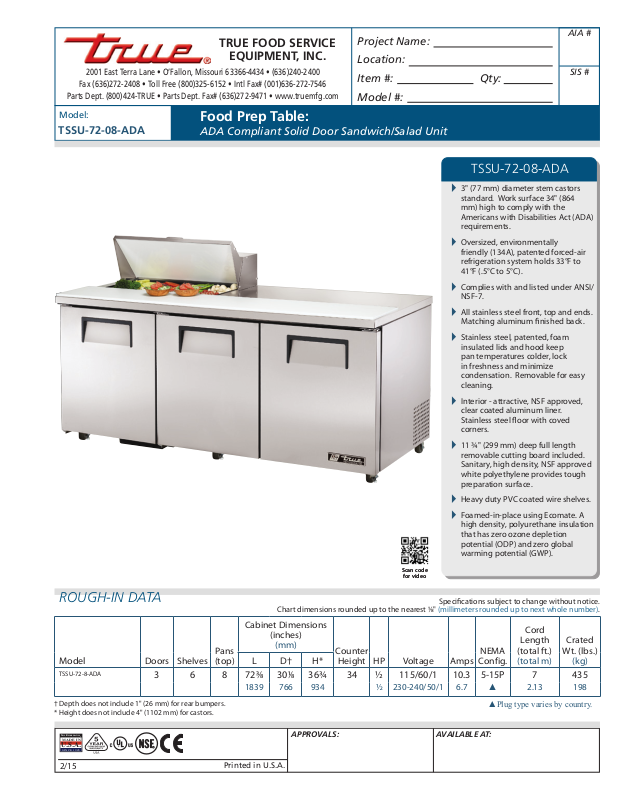

True TSSU-72-08-ADA User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TSSU-72-08-ADA

Food Prep Table:

ADA Compliant Solid Door Sandwich/Salad Unit

Scan cod e

Scan cod e

for vide o

for vide o

TSSU-72-08-ADA

3" (77 mm) diameter stem castors



standard. Work surface 34" (864
mm) high to comply with the
Americans with Disabilities Act (ADA)
requirements.

Oversized, environmentally



friendly (134A), patented forced-air
refrigeration system holds 33°F to
41°F (.5°C to 5°C).

Complies with and listed under ANSI/



NSF-7.

All stainless steel front, top and ends.



Matching aluminum nished back.

Stainless steel, patented, foam



insulated lids and hood keep
pan temperatures colder, lock
in freshness and minimize
condensation. Removable for easy
cleaning.

Interior - attractive, NSF approved,



clear coated aluminum liner.
Stainless steel oor with coved
corners.

11 ¾" (299 mm) deep full length



removable cutting board included.
Sanitary, high density, NSF approved
white polyethylene provides tough
preparation surface.

Heavy duty PVC coated wire shelves.



Foamed-in-place using Ecomate. A



high density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

ROUGH-IN DATA

Pans

Model Doors Shelves

TSSU-72-8-ADA

†Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 4" (1102 mm) for castors.

T

RUE

R

EFRIGERATION

®

MADE IN

U.S.A.

SINCE 1945

3 6 8 72⁄ 30⁄ 36¾ 34 ½ 115/60/1 10.3 5-15P 7 435

2/15

(top)

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Counter

Height HP Voltage Amps

Specications subject to change without notice.

Cord

Length

NEMA

Config.

(total ft.)

(total m)

1839 766 934 ½ 230-240/50/1 6.7 ▲ 2.13 198

▲Plug type varies by country.

APPROVALS: AVAILABLE AT:

Printed in U.S.A.

Crated

Wt. (lbs.)

(kg)L D† H*

Model:

TSSU-72-08-ADA

Food Prep Table:

ADA Compliant Solid Door Sandwich/Salad Unit

STANDARD FEATURES

DESIGN

True’s salad/sandwich units are designed with

•

enduring quality that protects your long term
investment.
True’s commitment to using the highest quality

•

materials and oversized refrigeration systems
provides the user with colder product temperatures,
lower utility costs, exceptional food safety and the
best value in today’s food service marketplace.

REFRIGERATION SYSTEM

Self-contained, factory pre-engineered capillary tube

•

system using environmentally friendly (CFC free)
134A refrigerant.
Oversized, factory balanced refrigeration system

•

with guided airow to provide uniform temperature
in food pans and cabinet interior.
Patented forced-air design holds 33°F to 41°F (.5°C to

•

5°C) product temperature in food pans and cabinet
interior. Complies with and listed under ANSI/NSF-7.
Sealed, cast iron, self-lubricating evaporator fan

•

motors and larger fan blades give True undercounter
units a more ecient, low velocity, high volume
airow design.
Condensing unit access in back of cabinet, slides out

•

for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends.

•

Matching aluminum nished back.
Interior - attractive, NSF approved, clear coated

•

aluminum liner. Stainless steel oor with coved
corners.
Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using Ecomate. A high
density, polyurethane insulation that has zero ozone
depletion potential (ODP) and zero global warming
potential (GWP).
3" (77 mm) diameter stem castors. 34" (864 mm)

•

work surface height.

DOORS

Stainless steel exterior with white aluminum liner to

•

match cabinet interior.

Each door tted with 12" (305 mm) long recessed

•

handle that is foamed-in-place with a sheet metal
interlock to ensure permanent attachment.
Positive seal self-closing doors with 90°stay open

•

feature. Doors swing within cabinet dimensions.
Magnetic door gaskets of one piece construction,

•

removable without tools for ease of cleaning.

SHELVING

Six (6) adjustable, heavy duty PVC coated wire

•

shelves. Two (2) right and two (2) left door shelf
dimensions are 21 ⁄"L x 16"D (548 mm x 407 mm).
Two (2) center door shelf dimensions are 23½ "L x
16"D (597 mm x 407 mm). Four (4) chrome plated
shelf clips included per shelf.
Shelf support pilasters made of same material as

•

cabinet interior; shelves are adjustable on ½" (13
mm) increments.

DRAWER PAN CAPACITY

Comes standard with 8 ( ⁄size) 6⁄"L x 6 ¼”W x 4"D

•

(175 mm x 159 mm x 102 mm) clear polycarbonate,
NSF approved, food pans in countertop prep area.
Also accommodates 6" (153 mm) deep food pans
(supplied by others).
Countertop pan opening designed to t varying size

•

pan congurations with available pan divider bars.
Pans supplied by others.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the potential

•

of corrosion.
11 ¾" (299 mm) deep full length removable

•

cutting board included. Sanitary, high-density,
NSF approved white polyethylene provides tough
preparation surface.
Stainless steel, patented, foam insulated lids

•

and hood keep pan temperatures colder, lock in
freshness and minimize condensation. Removable
for easy cleaning.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ Barrel locks (factory installed). Requires one per door.
❑ Additional shelves.
❑ Single overshelf.
❑ Double overshelf.
❑ Flat lid.
❑ Sneezeguard.
❑ 19" (483 mm) deep,½" (13 mm) thick, white

polyethylene cutting board. Requires “L” brackets.

❑ 19" (483 mm) deep,¾" (20 mm) thick, white

polyethylene cutting board. Requires “L” brackets.

❑ 11 ¾" (299 mm) deep, ½" (13 mm) thick, composite

cutting board. Requires “L” brackets.

❑ 19" (483 mm) deep,½" (13 mm) thick, composite

cutting board. Requires “L” brackets.

❑ Crumb catcher. Requires crumb catcher cutting

board for proper installation.
❑ Pan dividers.
❑ Exterior rectanglular digital thermometer (factory

installed).
❑ Standard height unit with 5" (127 mm) diameter

castors. 36" (915 mm) work surface height.

Beginning in October of 2014, True Manufacturing began the

process of changing the standard interior nishes on select

products. The interior liners of these units have changed from the

traditional NSF-approved white aluminum to an NSF-approved clear

coated aluminum that is silver in color. In addition, the traditional
white PVC coated shelves have been switched to a gray PVC coating.
There are no functional dierences created by any of these changes,
the dierence is only in the appearance. The following product lines

are aected by this change: T-Series, TUC, TWT, TSSU, TFP, TPP, TMC,

TRCB. A sticker will be placed on the outside packaging so that units

*CABINET INTERIOR

with this change can be identied in inventory.

PLAN VIEW

301/16"

(764 mm)

185/16"

(466 mm)

(156 mm)

117/32"

(39 mm)

7"

(178 mm)

63/16"

(158 mm)

321/32"

(990 mm)

301/2"

(775 mm)

125/8"

(321 mm)

725/16"

(1837 mm)

103/4"

(274 mm)

409/32"

(1024 mm)

445/8"

(1134 mm)

4611/16"

(1186 mm)

4215/16"

(1091 mm)

363/4"

(934 mm)

293/4"

(756 mm)

RIGHT VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL
