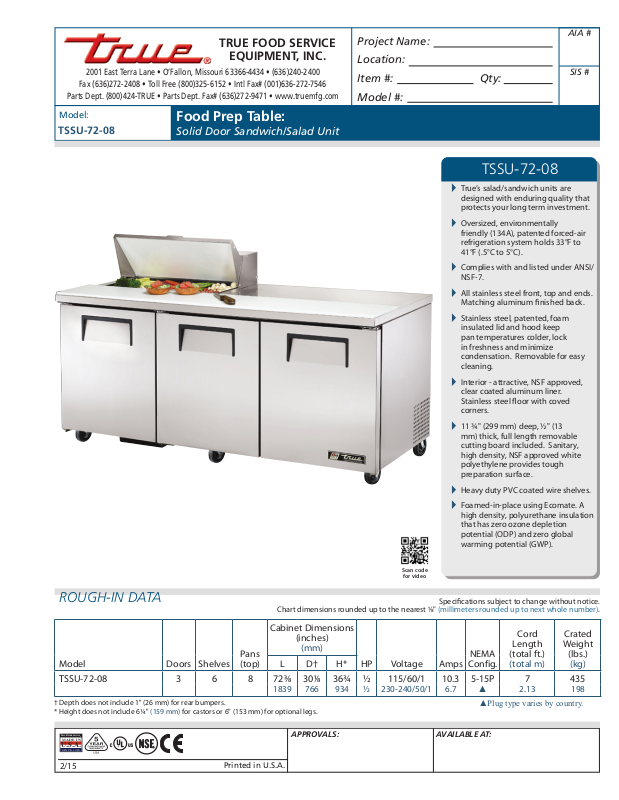

True TSSU-72-08 User Manual
TRUE FOOD SERVICE
EQUIPMENT, INC.
2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • (636)240-2400
Fax (636)272-2408 • Toll Free (800)325-6152 • Intl Fax# (001)636-272-7546
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Model:
TSSU-72-08
Food Prep Table:
Solid Door Sandwich/Salad Unit
TSSU-72-08
True’s salad/sandwich units are
designed with enduring quality that
protects your long term investment.
Oversized, environmentally
friendly (134A), patented forced-air
refrigeration system holds 33°F to
41°F (.5°C to 5°C).
Complies with and listed under ANSI/
NSF-7.
All stainless steel front, top and ends.
Matching aluminum nished back.
Stainless steel, patented, foam
insulated lid and hood keep
pan temperatures colder, lock
in freshness and minimize
condensation. Removable for easy
cleaning.
Interior - attractive, NSF approved,
clear coated aluminum liner.
Stainless steel oor with coved
corners.
11 ¾" (299 mm) deep,½ " (13
mm) thick, full length removable
cutting board included. Sanitary,
high density, NSF approved white
polyethylene provides tough
preparation surface.
Heavy duty PVC coated wire shelves.
Foamed-in-place using Ecomate. A
high density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).
Scan cod e
for vide o
ROUGH-IN DATA
Model Doors Shelves
Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).
Cabinet Dimensions
Pans
(top)
(inches)
(mm)
HP Voltage Amps
Specications subject to change without notice.
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
TSSU-72-08 3 6 8 72⁄ 30⁄ 36¾ ½ 115/60/1 10.3 5-15P 7 435
1839 766 934 ½ 230-240/50/1 6.7 ▲ 2.13 198
†Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 6¼" (159 mm) for castors or 6" (153 mm) for optional legs.
T
RUE
R
EFRIGERATION
MADE IN
U.S.A.
SINCE 1945
2/15
®
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
▲Plug type varies by country.
(kg)L D† H*
Model:
TSSU-72-08
Food Prep Table:
Solid Door Sandwich/Salad Unit
STANDARD FEATURES
DESIGN
True’s commitment to using the highest quality
•
materials and oversized refrigeration systems provides
the user with colder product temperatures, lower
utility costs, exceptional food safety and the best
value in today’s food service marketplace.
REFRIGERATION SYSTEM
Factory engineered, self-contained, capillary tube
•
system using environmentally friendly (CFC free) 134A
refrigerant.
Oversized, factory balanced refrigeration system with
•
guided airow to provide uniform temperature in
food pans and cabinet interior.
Patented forced-air design holds 33°F to 41°F (.5°C to
•
5°C) product temperature in food pans and cabinet
interior. Complies with and listed under ANSI/NSF-7.
Sealed, cast iron, self-lubricating evaporator fan
•
motors and larger fan blades give True sandwich/
salad units a more ecient, low velocity, high volume
airow design.
Condensing unit access in back of cabinet, slides out
•
for easy maintenance.
CABINET CONSTRUCTION
Exterior - stainless steel front, top and ends. Matching
•
aluminum nished back.
Interior - attractive, NSF approved, clear coated
•
aluminum liner. Stainless steel oor with coved
corners.
Insulation - entire cabinet structure and solid doors
•
are foamed-in-place using Ecomate. A high density,
polyurethane insulation that has zero ozone depletion
potential (ODP) and zero global warming potential
(GWP).
5" (127 mm) diameter stem castors - locks provided on
•
front set. 36" (915 mm) work surface height.
DOORS
Stainless steel exterior with white aluminum liner to
•
match cabinet interior.
Each door tted with 12" (305 mm) long recessed
•
handle that is foamed-in-place with a sheet metal
interlock to ensure permanent attachment.
Positive seal self-closing doors with 90°stay open
•
feature. Doors swing within cabinet dimensions.
Magnetic door gaskets of one piece construction,
•
removable without tools for ease of cleaning.
SHELVING
Six (6) adjustable, heavy duty PVC coated wire shelves.
•
Two (2) right and two (2) left door shelf dimensions
are 21 ⁄"L x 16"D (548 mm x 407 mm). Two (2) center
door shelf dimensions are 23 ½"L x 16"D (597 mm x
407 mm). Four (4) chrome plated shelf clips included
per shelf.
Shelf support pilasters made of same material as
•
cabinet interior; shelves are adjustable on ½" (13 mm)
increments.
MODEL FEATURES
Evaporator is epoxy coated to eliminate the potential
•
of corrosion.
11 ¾" (299 mm) deep, ½" (13 mm) thick, full length
•
removable cutting board. Sanitary, high-density,
NSF approved white polyethylene provides tough
preparation surface.
Stainless steel, patented, foam insulated lid(s) and
•
hood keep pan temperatures colder, lock in freshness
and minimize condensation. Removable for easy
cleaning.
Comes standard with 8 ( ⁄size) 6 ⁄"L x 6¼”W x 4"D
•
(175 mm x 159 mm x 102 mm) clear polycarbonate,
NSF approved, food pans in countertop prep area.
Also accommodates 6" (153 mm) deep food pans
(supplied by others).
Countertop pan opening designed to t varying size
•
pan congurations with available pan divider bars.
Varying size pans supplied by others.
NSF-7 compliant for open food product.
•
ELECTRICAL
Unit completely pre-wired at factory and ready
•
for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½” (64 mm) diameter castors.
❑ Barrel locks (factory installed). Requires one per door.
❑ Additional shelves.
❑ Single overshelf.
❑ Double overshelf.
❑ Flat lid.
❑ Sneezeguard.
❑ 19" (483 mm) deep, ½" (13 mm) thick, white
polyethylene cutting board. Requires “L” brackets.
❑ 19" (483 mm) deep, ¾" (20 mm) thick, white
polyethylene cutting board. Requires “L” brackets.
❑ 11 ¾" (299 mm) deep, ½" (13 mm) thick, composite
cutting board. Requires “L” brackets.
❑ 19" (483 mm) deep, ½" (13 mm) thick, composite
cutting board. Requires “L” brackets.
❑ Crumb catcher. Requires crumb catcher cutting board
for proper installation.
❑ Pan dividers.
❑ Exterior rectangular digital temperature display
(factory installed).
❑ ADA compliant model with 34" (864 mm) work surface
height.
Beginning in October of 2014, True Manufacturing began the
process of changing the standard interior nishes on select
products. The interior liners of these units have changed from the
traditional NSF-approved white aluminum to an NSF-approved clear
coated aluminum that is silver in color. In addition, the traditional
white PVC coated shelves have been switched to a gray PVC coating.
There are no functional dierences created by any of these changes,
the dierence is only in the appearance. The following product lines
are aected by this change: T-Series, TUC, TWT, TSSU, TFP, TPP, TMC,
TRCB. A sticker will be placed on the outside packaging so that units
*CABINET INTERIOR
with this change can be identied in inventory.
PLAN VIEW
301/16"
(764 mm)
185/16"
(466 mm)
(156 mm)
117/32"
(39 mm)
7"
(178 mm)
63/16"
(158 mm)
321/32"
(990 mm)
301/2"
(775 mm)
125/8"
(321 mm)
725/16"
(1837 mm)
103/4"
(274 mm)
409/32"
(1024 mm)
445/8"
(1134 mm)
4611/16"
(1186 mm)
4215/16"
(1091 mm)
(934 mm)
363/4"
293/4"
(756 mm)
RIGHT VIEW
Three year warranty on all parts
and laborand an additional 2 year
*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.
WARRANTY
warranty on compressor.
(U.S.A. only)
*
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
KCL
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • (636)240-2400 • Fax (636)272-2408 • Toll Free (800)325-6152 • Intl. Fax# (001)636-272-7546 • www.truemfg.com
1"
(26 mm)
61/8"
217/8"
25/16"
(59 mm)
37/8"
(99 mm)
(556 mm)
PLAN VIEWELEVATION
Model Elevation Right Plan 3D Back
TSSU-72-08 TFNY29E TFNY29S TFNY29P TFNY293
5215/16"
