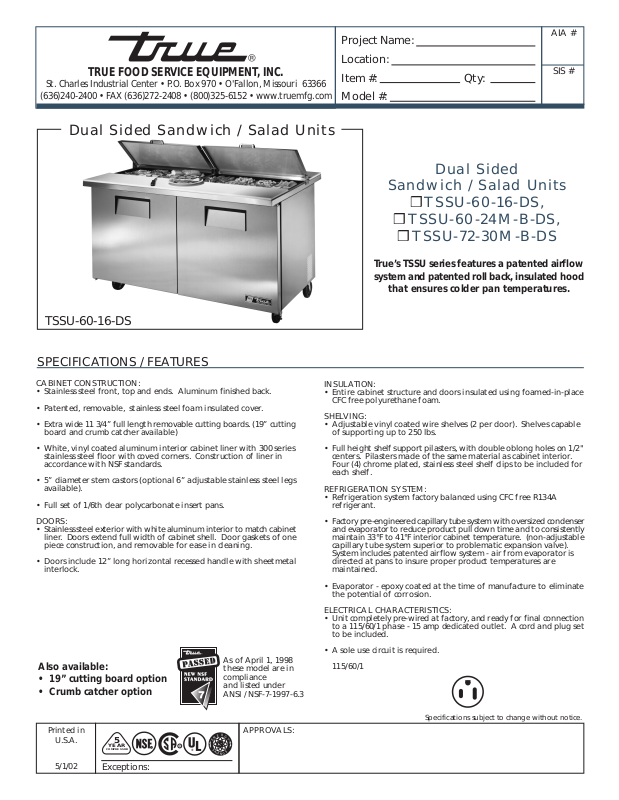

True TSSU-60-16-DS User Manual
TRUE FOOD SERVICE EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Dual Sided Sandwich / Salad Units
TSSU-60-16-DS
Project Name:
Location:
Item #: Qty:
Model #:
Dual Sided
Sandwich / Salad Units
❒ TSSU-60-16-DS,
❒ TSSU-60-24M-B-DS,
❒ TSSU-72-30M-B-DS
T rue’s TSSU series features a patented airflow
system and patented roll back, insulated hood
that ensures colder pan temperatures.
AIA #
SIS #
SPECIFICATIONS / FEATURES
CABINET CONSTRUCTION:
• Stainless steel front, top and ends. Aluminum finished back.
• Patented, removable, stainless steel foam insulated cover.
• Extra wide 11 3/4” full length removable cutting boards. (19” cutting
board and crumb catcher available)
• White, vinyl coated aluminum interior cabinet liner with 300 series
stainless steel floor with coved corners. Construction of liner in
accordance with NSF standards.
• 5” diameter stem castors (optional 6” adjustable stainless steel legs
available).
• Full set of 1/6th clear polycarbonate insert pans.
DOORS:
• Stainless steel exterior with white aluminum interior to match cabinet
liner. Doors extend full width of cabinet shell. Door gaskets of one
piece construction, and removable for ease in cleaning.
• Doors include 12” long horizontal recessed handle with sheetmetal
interlock.
Also available:
• 19” cutting board option
• Crumb catcher option
As of April 1, 1998
these model are in
compliance
and listed under
ANSI / NSF-7-1997-6.3
INSULATION:
• Entire cabinet structure and doors insulated using foamed-in-place
CFC free polyurethane foam.
SHELVING:
• Adjustable vinyl coated wire shelves (2 per door). Shelves capable
of supporting up to 250 lbs.
• Full height shelf support pilasters, with double oblong holes on 1/2"
centers. Pilasters made of the same material as cabinet interior.
Four (4) chrome plated, stainless steel shelf clips to be included for
each shelf.
REFRIGERATION SYSTEM:
• Refrigeration system factory balanced using CFC free R134A
refrigerant.
• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain 33°F to 41°F interior cabinet temperature. (non-adjustable
capillary tube system superior to problematic expansion valve).
System includes patented airflow system - air from evaporator is
directed at pans to insure proper product temperatures are
maintained.
• Evaporator - epoxy coated at the time of manufacture to eliminate
the potential of corrosion.
ELECTRICAL CHARACTERISTICS:
• Unit completely pre-wired at factory, and ready for final connection
to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set
to be included.
• A sole use circuit is required.
115/60/1
Printed in
U.S.A.
5/1/02
5
YEAR
COMPRESSOR
Exceptions:
Specifications subject to change without notice.
APPROVALS:
R
E
G
N
Y
E
R
R
S
S
®
A
S
V
I
G
N
Top View
Top View
®
TSSU-Series: Dual Sided Sandwich / Salad Units
7
38
/8"
15
22
/16"
3
27
/8"
L - 153 cm
D - 99 cm
H - 95 cm
Door
Swing - 69 cm
9
1
/16"
1
60
/4"
36"
1
5
/4"
30"
TSSU-60-16-DS
1
46
/2”
1
40
/4"
15
3
/16"
1
23
/2"
57
1
/2"
1
5
/4" 61/4"
L - 153 cm
D - 118 cm
H - 95 cm
Door
Swing - 73 cm
5
28
1
46
/2"
41
/8"
3
/4"
9
1
/16"
1
60
/4"
36"
1
5
/4"
TSSU-60-24M-B-DS
1
72
9
1
/16"
34" 34"
/4"
3
27
/8"
Top View
L - 183 cm
D - 118 cm
H - 95 cm
Door
Swing - 69 cm
36"
1
5
/4"
30"
TSSU-72-30M-B-DS
Rough-In Data
Dimensions Cord
Capacity # of (inches) NEMA Length Crated
Model Doors (Cu. Ft) Shelves L D H HP Volts PH Amps Config. (feet) Weight
TSSU-60-16-DS 2 15.5 4 60 1/4 38 7/8 37 9/16 1/3 115 1 7.8 5-15 7 312
TSSU-60-24M-B-DS* 2 15.5 4 60 1/4 46 1/2 37 9/16 1/3 115 1 7.8 5-15 7 318
TSSU-72-30M-B-DS* 3 19.0 6 72 1/4 46 1/2 37 9/16 1/2 115 1 10.5 5-15 7 394
* Depth dimension includes cutting boards
Standard Features ____________________________________________________________________________________________
• Stainless steel front, top and sides.
• Interior - NSF approved, white vinyl
coated aluminum sides and top, coved
corners and stainless steel floor.
• Oversized and balanced,
environmentally friendly (134A)
refrigeration system - holds 33°F to 41°F.
• Front breathing
• Work surface 36” high.
• 11 3/4” wide full length removeable
cutting board. High density
polyethylene provides tough surface.
Model Front Right Plan 3D
KCL
TSSU-60-16-DS TFNO28E TFNO28S TFNO28P TFNO283
TSSU-60-24M-B-DS TFNO45E TFNO45S TFNO45P TFNO453
TSSU-72-30M-B-DS TFNO35E TFNO35S TFNO35P TFNO353
• Adjustable vinyl coated wire shelves.
• Epoxy coated evaporator
• Aluminum finished back.
• Stainless steel patented foam insulated
cover.
• Slide out compressor can be serviced
easily and accessed by a single repairman.
• Self-contained system.
• Standard (1/6) 4” deep clear
polycarbonate insert pans included.
• Foamed-in-place high density
polyurethane insulation (CFC free).
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Specifications subject to change without notice.
• Recessed handles
• Door swings within cabinet dimensions.
• 5” castors standard equipment.
• 1 year parts & labor warranty (USA)
• 5 year compressor warranty
Optional Accessories______________
❒ 19” cutting board
❒ Crumb catcher
❒ 6” legs
Clearance Required For
Coolers (USA)
Sides
Inches/mm
YEAR
COMPRESSOR
0 / 0
5
R
R
R
E
G
N
Y
E
S
S
®
A
S
V
I
G
N
Printed in U.S.A.
