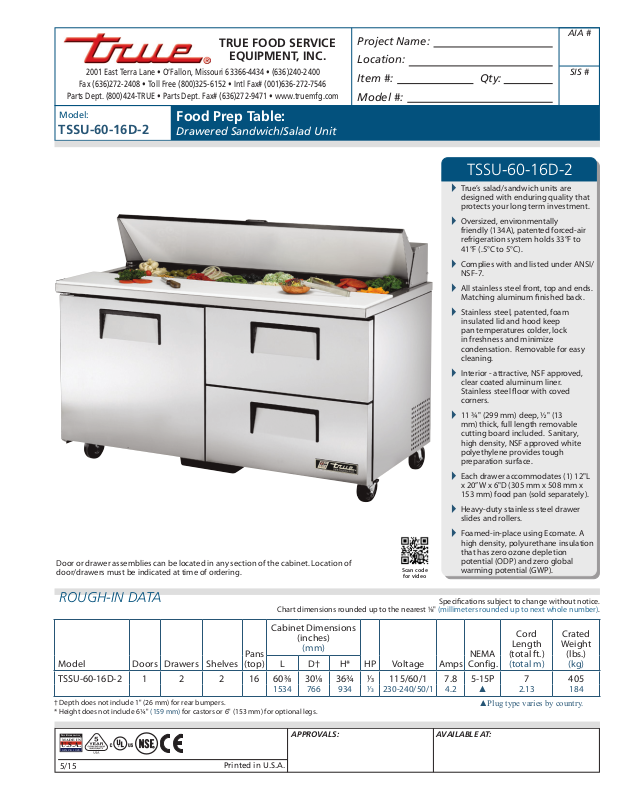

True TSSU-60-16D-2 User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TSSU-60-16D-2

Door or drawer assemblies can be located in any section of the cabinet. Location of
door/drawers must be indicated at time of ordering.

Food Prep Table:

Drawered Sandwich/Salad Unit

Scan cod e

for vide o

TSSU-60-16D-2

True’s salad/sandwich units are



designed with enduring quality that
protects your long term investment.

Oversized, environmentally



friendly (134A), patented forced-air
refrigeration system holds 33°F to
41°F (.5°C to 5°C).

Complies with and listed under ANSI/



NSF-7.

All stainless steel front, top and ends.



Matching aluminum nished back.

Stainless steel, patented, foam



insulated lid and hood keep
pan temperatures colder, lock
in freshness and minimize
condensation. Removable for easy
cleaning.

Interior - attractive, NSF approved,



clear coated aluminum liner.
Stainless steel oor with coved
corners.

11 ¾" (299 mm) deep,½" (13



mm) thick, full length removable
cutting board included. Sanitary,
high density, NSF approved white
polyethylene provides tough
preparation surface.

Each drawer accommodates (1) 12"L



x 20”W x 6"D (305 mm x 508 mm x
153 mm) food pan (sold separately).

Heavy-duty stainless steel drawer



slides and rollers.

Foamed-in-place using Ecomate. A



high density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

ROUGH-IN DATA

Model Doors Drawers Shelves

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

Pans
(top)

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

TSSU-60-16D-2 1 2 2 16 60⁄ 30⁄ 36¾ ⁄ 115/60/1 7.8 5-15P 7 405

1534 766 934 ⁄ 230-240/50/1 4.2 ▲ 2.13 184

†Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 6¼" (159 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

5/15

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

▲Plug type varies by country.

(kg)L D† H*

Model:

TSSU-60-16D-2

Food Prep Table:

Drawered Sandwich/Salad Unit

STANDARD FEATURES

DESIGN

True’s commitment to using the highest quality

•

materials and oversized refrigeration systems provides
the user with colder product temperatures, lower
utility costs, exceptional food safety and the best
value in today’s food service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary tube

•

system using environmentally friendly (CFC free) 134A
refrigerant.
Oversized, factory balanced refrigeration system with

•

guided airow to provide uniform temperature in
food pans and cabinet interior.
Patented forced-air design holds 33°F to 41°F (.5°C to

•

5°C) product temperature in food pans and cabinet
interior. Complies with and listed under ANSI/NSF-7.
Sealed, cast iron, self-lubricating evaporator fan

•

motors and larger fan blades give True sandwich/
salad units a more ecient, low velocity, high volume
airow design.
Condensing unit access in back of cabinet, slides out

•

for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends. Matching

•

aluminum nished back.
Interior - attractive, NSF approved, clear coated

•

aluminum liner. Stainless steel oor with coved
corners.
Insulation - entire cabinet structure, solid door, and

•

drawer facings are foamed-in-place using Ecomate.
A high density, polyurethane insulation that has zero
ozone depletion potential (ODP) and zero global
warming potential (GWP).
5" (127 mm) diameter stem castors - locks provided on

•

front set. 36" (915 mm) work surface height.

DOOR / DRAWERS

Door or drawer assemblies can be located in any

•

section of the cabinet. Location of door/drawers must
be indicated at time of ordering.
Door constructed of stainless steel exterior with white

•

aluminum liner to match cabinet interior. Drawers
have stainless steel exterior facings and liners with
stainless steel frames.

Each door and drawer tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place with a sheet
metal interlock to ensure permanent attachment.
Positive seal self-closing door with 90° stay open

•

feature. Door swings within cabinet dimensions.
Magnetic door/drawer gaskets of one piece

•

construction, removable without tools for ease of
cleaning.
Heavy-duty stainless steel drawer slides and rollers.

•

Removable without tools for easy cleaning.
Each drawer accommodates (1) 12"L x 20”W x 6"D (305

•

mm x 508 mm x 153 mm) food pan (sold separately).
Drawer will support varying size pan congurations
with available pan divider bars (drawer pans and
divider bars sold separately).

SHELVING

Two (2) adjustable, heavy duty PVC coated wire

•

shelves 27 ½"L x 16"D (699 mm x 407 mm). Four (4)
chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material as

•

cabinet interior; shelves are adjustable on ½" (13 mm)
increments.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the potential

•

of corrosion.
11 ¾" (299 mm) deep, full length removable cutting

•

board. Sanitary, high-density, NSF approved white
polyethylene provides tough preparation surface.
Stainless steel, patented, foam insulated lid(s) and

•

hood keep pan temperatures colder, lock in freshness
and minimize condensation. Removable for easy
cleaning.
Comes standard with 16 ( ⁄size) 6⁄"L x 6¼”W x 4"D

•

(175 mm x 159 mm x 102 mm) clear polycarbonate,
NSF approved, food pans in countertop prep area.
Also accommodates 6" (153 mm) deep food pans
(supplied by others).
Countertop pan opening designed to t varying size

•

pan congurations with available pan divider bars.
Varying size pans supplied by others.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½” (64 mm) diameter castors.
❑ Barrel lock available for door section (factory

installed).
❑ Additional shelves.
❑ Single overshelf.
❑ Double overshelf.
❑ Flat lids.
❑ Sneezeguard.
❑ 11 ¾" (299 mm) deep, ½" (13 mm) thick, composite

cutting board. Requires “L” brackets.
❑ Crumb catcher. Requires crumb catcher cutting board

for proper installation.
❑ Pan dividers.
❑ Exterior rectangular digital temperature display

(factory installed).
❑ ADA compliant model with 34" (864 mm) work surface

height.

Beginning in October of 2014, True Manufacturing began the

process of changing the standard interior nishes on select

products. The interior liners of these units have changed from the

traditional NSF-approved white aluminum to an NSF-approved clear

coated aluminum that is silver in color. In addition, the traditional
white PVC coated shelves have been switched to a gray PVC coating.
There are no functional dierences created by any of these changes,
the dierence is only in the appearance. The following product lines

are aected by this change: T-Series, TUC, TWT, TSSU, TFP, TPP, TMC,

TRCB. A sticker will be placed on the outside packaging so that units

*CABINET INTERIOR

with this change can be identied in inventory.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TSSU-60-16D-2 TFNY156E TFNY05S TFNY156P TFNY1563
