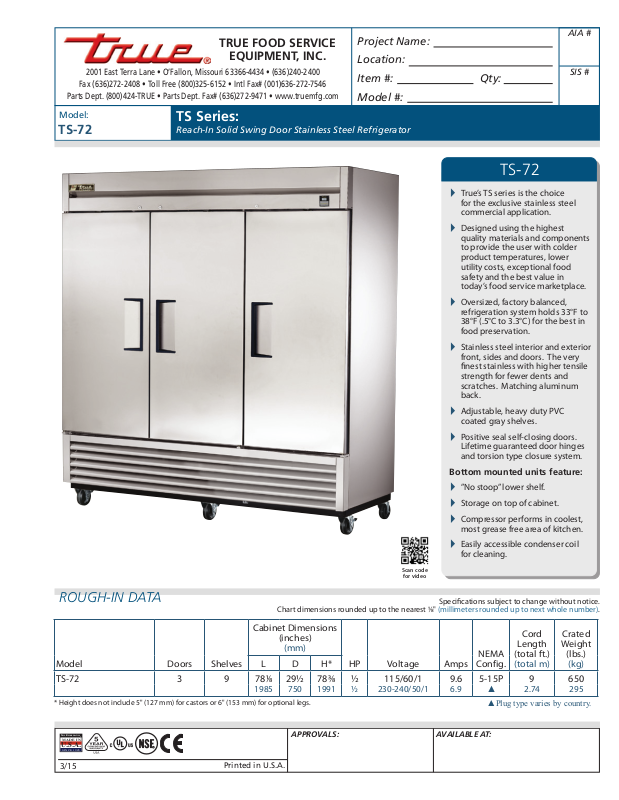

True TS-72 User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TS-72

TS Series:

Reach-In Solid Swing Door Stainless Steel Refrigerator

Scan cod e

for vide o

TS-72

True’s TS series is the choice



for the exclusive stainless steel
commercial application.

Designed using the highest



quality materials and components
to provide the user with colder
product temperatures, lower
utility costs, exceptional food
safety and the best value in
today’s food service marketplace.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in
food preservation.

Stainless steel interior and exterior



front, sides and doors. The very
nest stainless with higher tensile
strength for fewer dents and
scratches. Matching aluminum
back.

Adjustable, heavy duty PVC



coated gray shelves.

Positive seal self-closing doors.



Lifetime guaranteed door hinges
and torsion type closure system.

Bottom mounted units feature:

”No stoop” lower shelf.



Storage on top of cabinet.



Compressor performs in coolest,



most grease free area of kitchen.

Easily accessible condenser coil



for cleaning.

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

TS-72 3 9 78⁄ 29½ 78⁄ ½ 115/60/1 9.6 5-15P 9 650

1985 750 1991 ½ 230-240/50/1 6.9 ▲ 2.74 295

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

3/15

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

▲Plug type varies by country.

Model:

TS-72

TS Series:

Reach-In Solid Swing Door Stainless Steel Refrigerator

STANDARD FEATURES

DESIGN

True’s solid door reach-in’s are designed with

•

enduring quality that protects your long term
investment.
True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser;
maintains 33°F to 38°F (.5°C to 3.3°C) for the best
in food preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
reach-in’s a more ecient, low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food service
environments.
Bottom mounted condensing unit positioned

•

for easy maintenance. Compressor runs in
coolest and most grease free area of the kitchen.
Allows for storage area on top of unit.

CABINET CONSTRUCTION

Exterior - Stainless steel doors, front and sides.

•

Matching aluminum back.
Interior - Stainless steel liner and oor.

•

Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using Ecomate. A
high density, polyurethane insulation that has
zero ozone depletion potential (ODP) and zero
global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with 4" (102 mm) diameter stem

•

castors - locks provided on front set.

DOORS

Stainless steel exterior and liners. Doors extend

•

full width of cabinet shell. Door locks standard.
Lifetime guaranteed recessed door handles.

•

Each door tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing doors. Lifetime

•

guaranteed door hinges and torsion type
closure system.
Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

Nine (9) adjustable, heavy duty PVC coated

•

gray wire shelves 24⁄"L x 22 ⁄"D (613 mm x
569 mm). Four (4) chrome plated shelf clips
included per shelf.
Aluminum shelf support pilasters. Shelves are

•

adjustable on ½" (13 mm) increments.

LIGHTING

Interior lighting - safety shielded. Lights

•

activated by rocker switch mounted above
doors.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Exterior solar, digital temperature display.

•

NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ Alternate door hinging (factory installed).
❑ Additional shelves.
❑ Half door bun tray racks. Each holds up to

eleven 18"L x 26"D (458 mm x 661 mm) sheet
pans (sold separately).

❑ Full door bun tray racks. Each holds up to

twenty-two 18"L x 26"D (458 mm x 661 mm)
sheet pans (sold separatey).

PLAN VIEW

781/8"

(1985 mm)

7615/16"

(1955 mm)

13/8"

(35 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

ELEVATION

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

4"

(102 mm)

785/16"

(1990 mm)

835/16"

(2117 mm)

5"

(127 mm)

KCL

PLAN VIEW

Model Elevation Right Plan 3D Back

TS-72 TFEY01E TFEY01S TFEY01P TFEY013

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

291/2"

(750 mm)

2415/32"

(622 mm)

5331/32"

(1371 mm)
