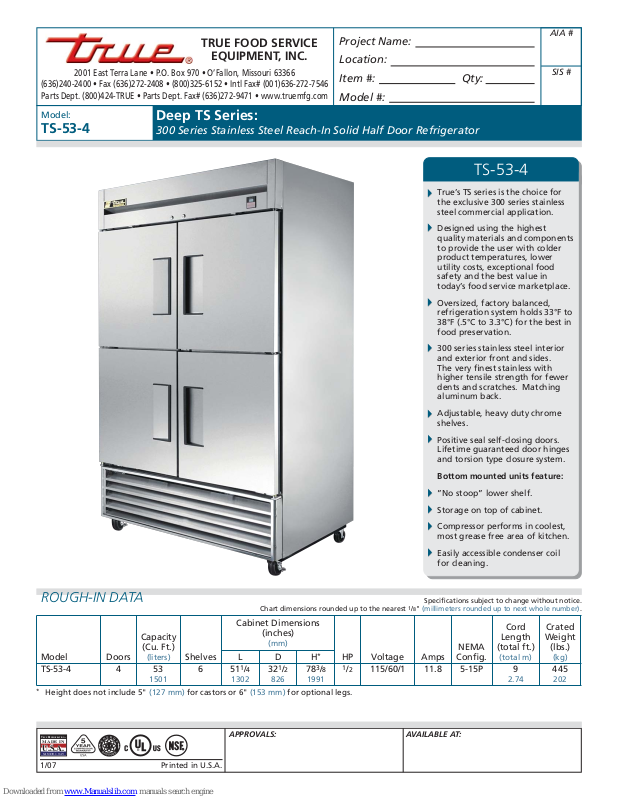

True TS-53-4 Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TS-53-4

Deep TS Series:

300 Series Stainless Steel Reach-In Solid Half Door Refrigerator

TS-53-4

True’s TS series is the choice for
the exclusive 300 series stainless
steel commercial application.

Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower
utility costs, exceptional food
safety and the best value in
today’s food service marketplace.

Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in
food preservation.

300 series stainless steel interior
and exterior front and sides.
The very fi nest stainless with
higher tensile strength for fewer
dents and scratches. Matching
aluminum back.

Adjustable, heavy duty chrome
shelves.

Positive seal self-closing doors.
Lifetime guaranteed door hinges
and torsion type closure system.

Bottom mounted units feature:

”No stoop” lower shelf.

Storage on top of cabinet.

Compressor performs in coolest,
most grease free area of kitchen.

Easily accessible condenser coil
for cleaning.

ROUGH-IN DATA

Capacity

Model Doors
TS-53-4 4 53

*

Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

1/07

(Cu. Ft.)

(liters) Shelves

1501

®

R

Printed in U.S.A.

651

Specifi cations subject to change without notice.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

LDH

1

/4

321/2

1302

APPROVALS: AVAILABLE AT:

826

*

783/8

1991

HP Voltage Amps

1

/2 115/60/1 11.8 5-15P 9

NEMA

Confi g.

Cord

Length

(total ft.)

(total m)

2.74

Crated

Weight

(lbs.)

(kg)

445

202

Model:

TS-53-4

Deep TS Series:

300 Series Stainless Steel Reach-In
Solid Half Door Refrigerator

STANDARD FEATURES

DESIGN

• True’s solid door pass-thru’s are designed with
enduring quality that protects your long term
investment.

• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary
tube system using environmentally friendly (CFC
free) 134A refrigerant.

• Extra large evaporator coil balanced with higher
horsepower compressor and large condenser
maintains 33°F to 38°F (.5°C to 3.3°C) for the
best in food preservation.

• Sealed, cast iron, self-lubricating evaporator fan
motor(s) and larger fan blades give True reach­in’s a more effi cient, low velocity, high volume
airfl ow design. This unique design ensures faster
temperature recovery and shorter run times in
the busiest of food service environments.

• Bottom mounted condensing unit positioned
for easy maintenance. Compressor runs in
coolest and most grease free area of the
kitchen. Allows for storage area on top of unit.

CABINET CONSTRUCTION

• Exterior - 300 series stainless steel doors, front
and sides. Matching aluminum back.

• Interior - 300 series stainless steel liner and fl oor.

• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.

• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.

• Frame rail fi tted with 4" (102 mm) diameter
stem castors - locks provided on front set.

DOORS

• 300 series stainless steel exterior and liners.

• Lifetime guaranteed recessed door handles.

• Positive seal self-closing doors. Lifetime

• Magnetic door gaskets of one piece

SHELVING

• Six (6) adjustable, heavy duty chrome shelves

• Aluminum shelf support pilasters (fi eld

• Three (3) different interior kits available (see Kit

LIGHTING

• Incandescent interior lighting - safety shielded.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate the

• Exterior solar, digital temperature display.

• NSF-7 compliant for open food product.

Doors extend full width of cabinet shell. Door
locks standard.

Each door fi tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.

guaranteed door hinges and torsion type
closure system.

construction, removable without tools for ease
of cleaning.

231/2"L x 26"D (597 mm x 661 mm). Four
(4) plastic support knobs included per shelf.
Shelving ships separately.

installed)(ship separately). Shelves are
adjustable on 1/2" (13 mm) increments.

Options). Pilasters and tray slides require fi eld
installation (shipped separately).

Lights activated by rocker switch mounted
above top doors.

potential of corrosion.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1 phase

- 15 amp dedicated outlet. Cord and plug set
included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒

6" (153 mm) standard legs.

❒

6" (153 mm) seismic legs.

❒

Additional shelves.

❒

Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant), consult factory technical service
department for BTU information.

KIT OPTIONS

Upcharge and lead times may apply.

• Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (fi eld installed)(shipped separately),
bottom support of one (1) 18"L x 26"D (458 mm
x 661 mm) pan or two (2) 14"L x 18"D (356 mm
x 458 mm) pans.

• Kit #2: One (1) set half-section #2 steel rod tray
slides and pilasters (fi eld installed)(shipped
separately), rim support of one (1) 18"L x 26"D
(458 mm x 661 mm) pan.

• Kit #3: Six (6) sets of universal type tray
slides and pilasters (fi eld installed)(shipped
separately), bottom support of one (1) 18"L x
26"D (458 mm x 661 mm) pan, two (2) 12"L x
20"D (305 mm x 508 mm) pans or two (2) 14"L x
18"D (356 mm x 458 mm) pans.

• Additional kit option components available
individually.

PLAN VIEW

7615/16"

(1955 mm)

785/16"

(1990 mm)

835/16"

(2117 mm)

4"

(102 mm)

5"

(127 mm)

WARRANTY

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

13/8"

(35 mm)

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D

TS-53-4 TFQH17E TFQH27S TFQH12P TFQH273

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

511/4"

(1302 mm)

PLAN VIEW

327/16"

(824 mm)

2331/32"

(609 mm)

5613/32"

(1433 mm)
