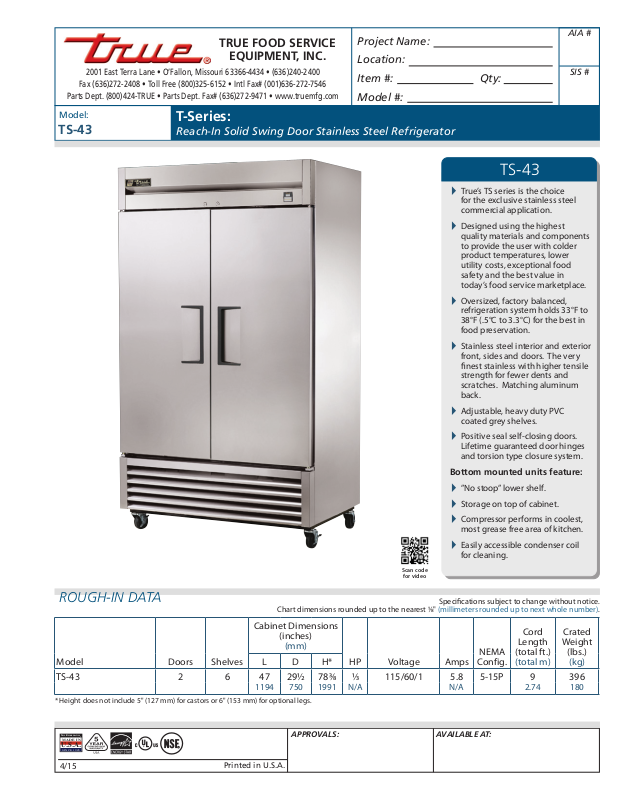

Model:

TS-43

T-Series:

Reach-In Solid Swing Door Stainless Steel Refrigerator

Scan cod e

for vide o

TS-43

True’s TS series is the choice



for the exclusive stainless steel
commercial application.

Designed using the highest



quality materials and components
to provide the user with colder
product temperatures, lower
utility costs, exceptional food
safety and the best value in
today’s food service marketplace.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in
food preservation.

Stainless steel interior and exterior



front, sides and doors. The very
nest stainless with higher tensile
strength for fewer dents and
scratches. Matching aluminum
back.

Adjustable, heavy duty PVC



coated grey shelves.

Positive seal self-closing doors.



Lifetime guaranteed door hinges
and torsion type closure system.

Bottom mounted units feature:

”No stoop” lower shelf.



Storage on top of cabinet.



Compressor performs in coolest,



most grease free area of kitchen.

Easily accessible condenser coil



for cleaning.

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

TS-43 2 6 47 29½ 78⁄ ⁄ 115/60/1 5.8 5-15P 9 396

1194 750 1991 N/A N/A 2.74 180

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

4/15

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TS-43

T-Series:

Reach-In Solid Swing Door Stainless Steel
Refrigerator

STANDARD FEATURES

DESIGN

True’s solid door reach-in’s are designed with

•

enduring quality that protects your long term
investment.
True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder
product temperatures, lower utility costs,
exceptional food safety and the best value in
today’s food service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains 33°F to 38°F (.5°C to

3.3°C) for the best in food preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motors and larger fan blades give True
reach-in’s a more ecient low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food
service environments.
Bottom mounted condensing unit positioned

•

for easy maintenance. Compressor runs in
coolest and most grease free area of the
kitchen. Allows for storage area on top of
unit.

CABINET CONSTRUCTION

Exterior - Stainless steel doors, front and

•

sides. Matching aluminum back.
Interior - Stainless steel liner and oor.

•

Insulation - entire cabinet structure and solid

•

door are foamed-in-place using Ecomate. A
high density, polyurethane insulation that
has zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with 4" (102 mm) diameter

•

stem castors - locks provided on front set.

DOORS

Stainless steel exterior and liners. Doors

•

extend full width of cabinet shell. Door locks
standard.
Lifetime guaranteed recessed door handles.

•

Each door tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing doors. Lifetime

•

guaranteed door hinges and torsion type
closure system.
Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.

SHELVING

Six (6) adjustable, heavy duty PVC coated

•

grey wire shelves 20⁄"L x 22 ½ "D (531 mm x
572 mm). Four (4) chrome plated shelf clips
included per shelf.
Shelf support pilasters made of same material

•

as cabinet interior; shelves are adjustable on

½" (13 mm) increments.

LIGHTING

Interior lighting - safety shielded. Lights

•

activated by rocker switch mounted above
doors.

MODEL FEATURES

Exterior digital temperature display.

•

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ Additional shelves.
❑ Half door bun tray racks. Each holds up to

eleven 12"L x 20"D (305 mm x 508 mm) sheet
pans (sold separately).

❑ Full door bun tray racks. Each holds up to

twenty-two 12"L x 20"D (305 mm x 508 mm)
sheet pans (sold separately).

PLAN VIEW

47"

(1194 mm)

833/8"

(2118 mm)

77"

(1956 mm)

13/8"

(35 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

ELEVATION

*

(102 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

783/8"

(1991 mm)

4"

WITHOUT NOTICE

5"

(127 mm)
