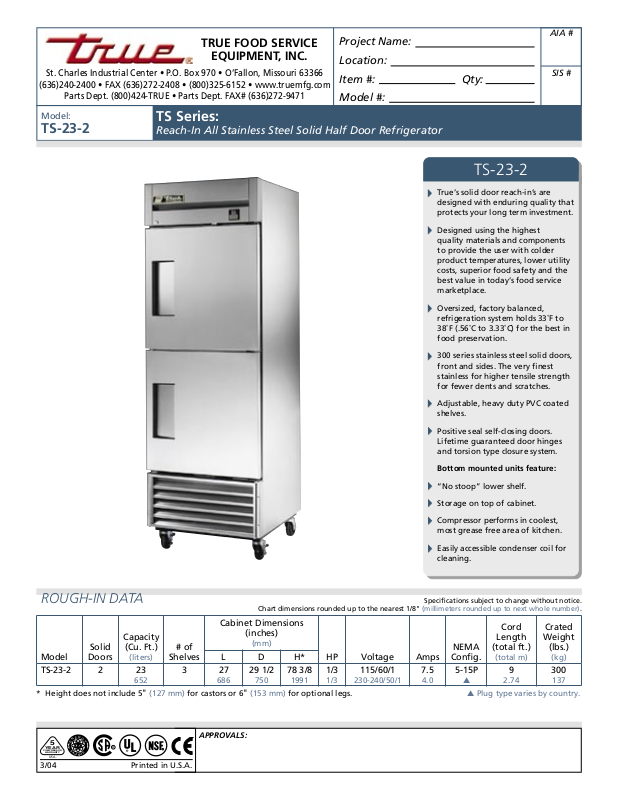

True TS-23-2 User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366

(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com

Parts Dept. (800)424-TRUE • Parts Dept. FAX# (636)272-9471

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TS-23-2

TS Series:

Reach-In All Stainless Steel Solid Half Door Refrigerator

TS-23-2

True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.

Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace.

Oversized, factory balanced, refrigeration system holds 33˚F to 38˚F (.56˚C to 3.33˚C) for the best in food preservation.

300 series stainless steel solid doors, front and sides. The very nest stainless for higher tensile strength for fewer dents and scratches.

Adjustable, heavy duty PVC coated shelves.

Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.

Bottom mounted units feature:

“No stoop” lower shelf.

Storage on top of cabinet.

Compressor performs in coolest, most grease free area of kitchen.

Easily accessible condenser coil for cleaning.

ROUGH-IN DATA

Capacity

Solid

Model

Doors

TS-23-2 2 23

(Cu. Ft.)

(liters)

652

# of

Shelves

3 27

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

L D H*

686

29 1/2

750

78 3/8

1991

HP Voltage Amps 1/3

1/3

115/60/1

230-240/50/1

Specications subject to change without notice.

7.5

4.0

NEMA

Cong.

5-15P



Cord

Length

(total ft.)

(total m)

2.74

Crated

Weight

(lbs.)

(kg)

300

137

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.  Plug type varies by country.

YEAR

COMPRESSOR

WARRANTY

3/04

USA

APPROVALS:

Printed in U.S.A.

Model:

TS-23-2

TS Series:

Reach-In All Stainless Steel Solid Half Door Refrigerator

STANDARD FEATURES

DESIGN

• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace.

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.

• Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains 33°F to 38°F (.56°C to

3.33°C).

• Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blades give True reach-in’s a superior low velocity, high volume airow design. This unique design insures faster temperature recovery and shorter run times in the busiest of food service environments.

• Bottom mounted condensing unit positioned for easy maintenance. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.

CABINET CONSTRUCTION

• Exterior - 300 series stainless steel doors, front, and sides. Matching aluminum back.

• Interior - 300 series stainless steel liner and oor.

• Insulation - entire cabinet structure and solid doors are foamed-in-place using high density, CFC free, polyurethane insulation.

• Cabinet mounted on a welded, heavy duty galvanized frame rail. Rail dipped in rust inhibiting enamel paint for corrosion

MODEL FEATURES

• Exterior mounted temperature monitor.

• Evaporator is epoxy coated to eliminate

protection inside and out.

• Frame rail tted with 4" (102 mm) diameter stem castors standard - locks provided on front set.

ELECTRICAL

• Unit completely pre-wired at factory and

DOORS

• 300 series stainless steel exterior and door liner. Doors extend full width of cabinet shell. Door lock standard.

• Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.

• Lifetime guaranteed recessed door handles standard. Each door tted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal

OPTIONAL FEATURES/ACCESSORIES

 230 - 240V/50 Hz.  6" (153 mm) stainless steel or

interlock to insure permanent attachment.

• Magnetic door gaskets of one piece construction, removable without tools for

 Additional shelves.



ease of cleaning.

SHELVING

• Three (3) adjustable, heavy duty PVC

 Remote cabinets (condensing unit supplied

coated wire shelves 22 7/8"L x 23 1/4"D (582 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

LIGHTING

• Incandescent interior lighting - safety shielded. Lights activated by rocker switch mounted above door

the potential of corrosion.

ready for nal connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included.

115/60/1 NEMA-5-15R

seismic legs.

Half and full door bun tray racks

accommodates 18" x 26" (458 mm x 661 mm) sheet pans.

by others), consult factory technical service department for BTU information.

PLAN VIEW

(686 mm)

291/2"

785/16"

(1990 mm)

835/16"

(2117 mm)

TOP VIEW

Model Front Side Plan 3D

TS-23-2 TFGY07E TFGY07S TFEY03P TFGY073

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

FRONT VIEW

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

(127 mm)

KCL

TRUE FOOD SERVICE EQUIPMENT

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com

(750 mm)

2517/32"

(649 mm)

551/32"

(1398 mm)
