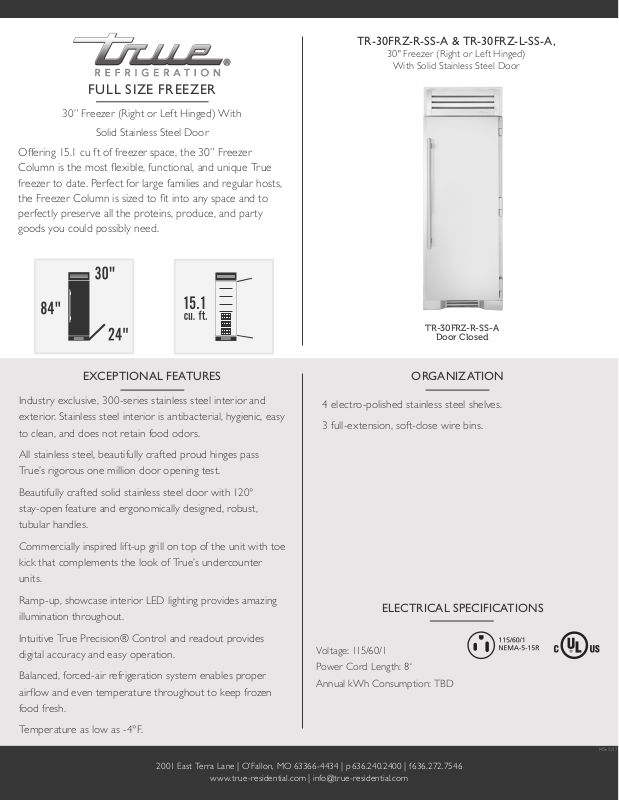

True TR30FRZLSSA, TR30FRZRSSA Specification Sheet
MS•5/17
FULL SIZE FREEZER
30” Freezer (Right or Left Hinged) With
Solid Stainless Steel Door
Offering 15.1 cu ft of freezer space, the 30” Freezer
Column is the most exible, functional, and unique True
freezer to date. Perfect for large families and regular hosts,
the Freezer Column is sized to t into any space and to
perfectly preserve all the proteins, produce, and party
goods you could possibly need.
TR-30FRZ-R-SS-A & TR-30FRZ-L-SS-A,
30" Freezer (Right or Left Hinged)
With Solid Stainless Steel Door
TR-30FRZ-R-SS-A
Door Closed
EXCEPTIONAL FEATURES
Industry exclusive, 300-series stainless steel interior and
exterior. Stainless steel interior is antibacterial, hygienic, easy
to clean, and does not retain food odors.
All stainless steel, beautifully crafted proud hinges pass
True’s rigorous one million door opening test.
Beautifully crafted solid stainless steel door with 120°
stay-open feature and ergonomically designed, robust,
tubular handles.
Commercially inspired lift-up grill on top of the unit with toe
kick that complements the look of True’s undercounter
units.
Ramp-up, showcase interior LED lighting provides amazing
illumination throughout.
Intuitive True Precision® Control and readout provides
digital accuracy and easy operation.
Balanced, forced-air refrigeration system enables proper
airow and even temperature throughout to keep frozen
food fresh.
ORGANIZATION
4 electro-polished stainless steel shelves.
3 full-extension, soft-close wire bins.
ELECTRICAL SPECIFICATIONS
Voltage: 115/60/1
Power Cord Length: 8‘
Annual kWh Consumption: TBD
Temperature as low as -4°F.
2001 East Terra Lane | O’Fallon, MO 63366-4434 | p 636.240.2400 | f 636.272.7546
www.true-residential.com | info@true-residential.com
MS•5/17
PLAN VIEW
30"
762mm
67 29/32"
1725mm
DOOR
HEIGHT
72 5/8"
1845mm
83 15/16"
2132mm
25 25/32"
655mm
27 29/32"
709mm
30 15/32"
774mm
2 9/16"
65mm
3 15/16"
100mm
135°
20 19/32"
523mm
23 25/32"
604mm
55 1/4"
1403mm
29 15/32"
748mm
31 15/32"
799mm
90°
29 9/16"
751mm
TR-30REF-R-SS-A
R
25 25/32"
655mm
FLUSH INSTALL
TR-30REF-R-SG-A
R
TR-30REF-R-SG-A
23 25/32"
604mm
PROUD INSTALL
FRONT VIEW SIDE VIEW TOP VIEWS
Dimensions may vary by ± 1/8”
FLUSH OPENING DIMENSIONS PROUD OPENING DIMENSIONS
Width Depth† Height
30¼" 26" 84¼"
TOP VIEW
FIGURE 1 ROUGH OPENING
2001 East Terra Lane | O’Fallon, MO 63366-4434 | p 636.240.2400 | f 636.272.7546
25 25/32"
655mm
FLUSH INSTALL
www.true-residential.com | info@true-residential.com
Width Depth† Height
29¾" 24" 84"
FRONT VIEW
FIGURE 2 ROUGH OPENING
Elec trical located
in this a rea.
8"
(204 mm)
293/4"
(756 mm)
301/4"
(769 mm)
PROUD
INSTALL
FLUSH
INSTALL
2"
(51 mm)
(1956 mm)
77"
(2140 mm)
84"
(2134 mm)
PROUD
INSTALL
841/4"
FLUSH
INSTALL
Width 30"
Depth† 28"
Height 84"
Shelving
Flush Opening
Width
Flush Opening
Depth
Flush Opening
Height
Proud Opening
Width
Proud Opening
Depth
Proud Opening
Height
Weight** TBD lbs
†Depth does not include 2 ⁄for door handle.
**Because of the weight of this unit, it is recommended to
consult a flooring expert prior to installation. The flooring
beneath the unit should be rated to support at least 150
pounds per square foot.
SPECIFICATIONS
4 electro-polished stainless
steel shelves.
3 full-extension, soft-close
wire bins.
30¼"
26"
84¼"
29¾"
24"
84"
