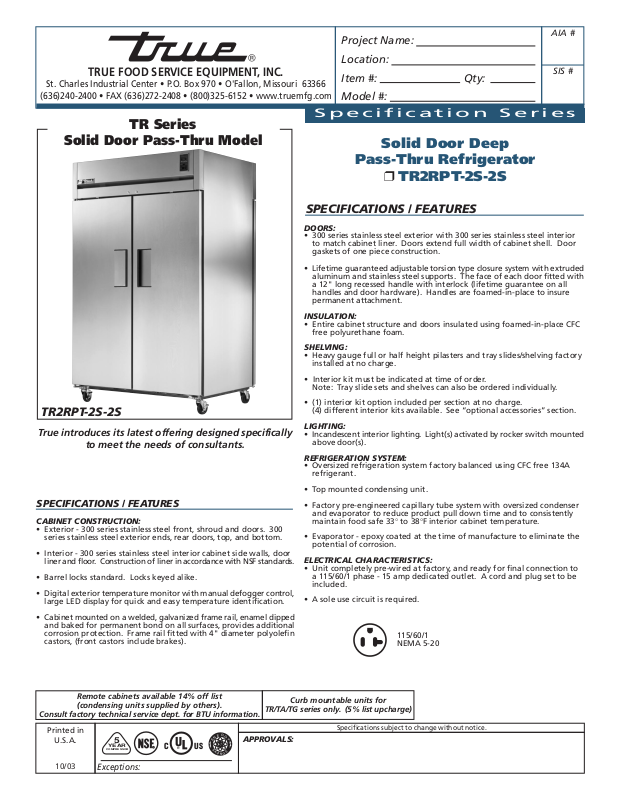

True TR2RPT-2S-2S User Manual
TRUE FOOD SERVICE EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Specification Series
TR Series
Solid Door Pass-Thru Model
SPECIFICATIONS / FEATURES
DOORS:
• 300 series stainless steel exterior with 300 series stainless steel interior
to match cabinet liner. Doors extend full width of cabinet shell. Door
gaskets of one piece construction.
• Lifetime guaranteed adjustable torsion type closure system with extruded
aluminum and stainless steel supports. The face of each door fitted with
a 12" long recessed handle with interlock (lifetime guarantee on all
handles and door hardware). Handles are foamed-in-place to insure
permanent attachment.
INSULATION:
• Entire cabinet structure and doors insulated using foamed-in-place CFC
free polyurethane foam.
SHELVING:
• Heavy gauge full or half height pilasters and tray slides/shelving factory
installed at no charge.
• Interior kit must be indicated at time of order.
Note: Tray slide sets and shelves can also be ordered individually.
• (1) interior kit option included per section at no charge.
TR2RPT-2S-2S
True introduces its latest offering designed specifically
to meet the needs of consultants.
SPECIFICATIONS / FEATURES
CABINET CONSTRUCTION:
• Exterior - 300 series stainless steel front, shroud and doors. 300
series stainless steel exterior ends, rear doors, top, and bottom.
• Interior - 300 series stainless steel interior cabinet side walls, door
liner and floor. Construction of liner in accordance with NSF standards.
• Barrel locks standard. Locks keyed alike.
• Digital exterior temperature monitor with manual defogger control,
large LED display for quick and easy temperature identification.
• Cabinet mounted on a welded, galvanized frame rail, enamel dipped
and baked for permanent bond on all surfaces, provides additional
corrosion protection. Frame rail fitted with 4" diameter polyolefin
castors, (front castors include brakes).
(4) different interior kits available. See “optional accessories” section.
LIGHTING:
• Incandescent interior lighting. Light(s) activated by rocker switch mounted
above door(s).
REFRIGERATION SYSTEM:
• Oversized refrigeration system factory balanced using CFC free 134A
refrigerant.
• Top mounted condensing unit.
• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain food safe 33° to 38°F interior cabinet temperature.
• Evaporator - epoxy coated at the time of manufacture to eliminate the
potential of corrosion.
ELECTRICAL CHARACTERISTICS:
• Unit completely pre-wired at factory, and ready for final connection to
a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be
included.
• A sole use circuit is required.
Project Name:
Location:
Item #: Qty:
Model #:
Solid Door Deep
Pass-Thru Refrigerator
❒ TR2RPT-2S-2S
115/60/1
NEMA 5-20
AIA #
SIS #
Remote cabinets available 14% off list
(condensing units supplied by others).
Consult factory technical service dept. for BTU information.
Printed in
U.S.A.
10/03
5
YEAR
COMPRESSOR
Exceptions:
R
C US
®
R
E
G
N
Y
E
APPROVALS:
S
S
A
S
V
I
G
N
Curb mountable units for
TR/TA/TG series only. (5% list upcharge)
Specifications subject to change without notice.
12
®
9
/
16
"
TR-Series: Deep Pass-Thru Refrigerator (solid door)
5
23
/
8
"
35
L - 131 cm
D - 95 cm
84
1
/
2
"
H - 199 cm
63
Door
Swing - 61 cm
3
/
8
"
77"
83
1
/
4
"
3
51
/
8
"
37
23
1
/
4
"
5
/
8
"
5"
1
/
4
"
1
Rough-In Data
Dimensions Cord
Capacity (inches) NEMA Length Crated
Model Doors (Cu. Ft) L D H* HP Volts PH Amps Config. (feet) Weight
TR2RPT-2S-2S 4 56 51 3/8 37 1/4 78 1/4 3/4 115 1 15.5 5-20 9 710
* Height does not include 5” for castors or 6” for optional legs.
Specifications subject to change without notice.
Standard Features____________________________________________________________________________________________
• Oversized and balanced, environmentally
friendly 134A refrigeration system - holds
food safe 33°F to 38°F.
• Exterior - 300 series stainless steel front,
doors, sides, top and bottom (the finest
stainless available).
• Interior - 300 series stainless steel side
walls, door liner & floor.
• 300 series stainless steel doors with
recessed handles (lifetime guaranteed).
• Door locks standard.
• Exterior mounted digital electronic
thermometer with manual defogger.
• Incandescent interior lighting.
• Wide door openings.
• Glass condensate pan to prevent
electrolysis.
• Magnetic door gaskets.
• Epoxy coated evaporator.
KCL
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Model Front Right Plan 3D
TR2RPT-2S-2S TFQY54E TFQY96S TFQY96P TFQY953
• (1) interior kit option included per section
at no charge. (4) different interior kits
available.
• Pilasters and tray slides/shelving factory
installed at no charge. Kit selection must
be indicated at time of order.
• 4" diameter swivel castors standard
equipment - locking castors provided for
front set.
• Hot gas condensate for energy efficiency.
• Positive seal self-closing doors with factory
tested (over 1,000,000 times) lifetime
guaranteed door hinges and torsion type
closure system.
• Foamed-in-place polyurethane high density
cell insulation (CFC free).
• Top mounted unit positioned out of food
zone to maximize storage capacity.
• Self-contained system.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty (USA).
