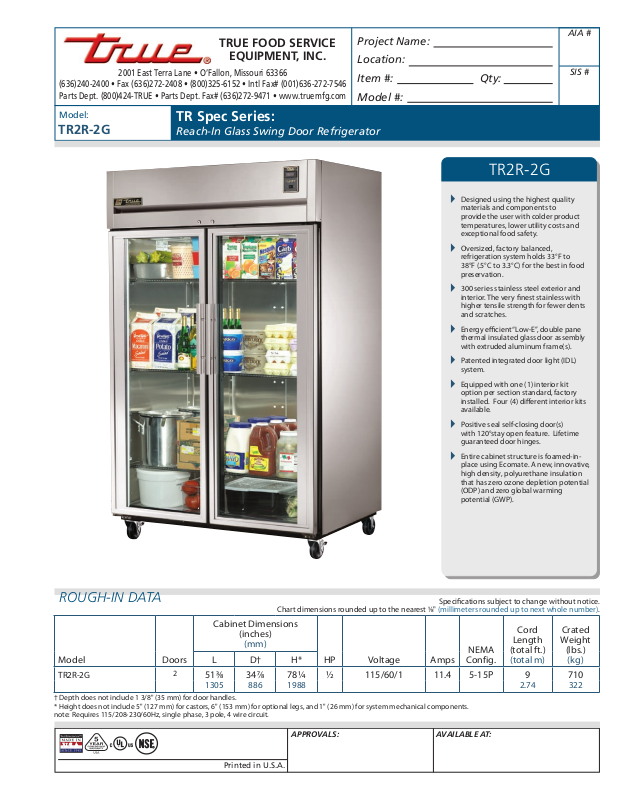

True TR2R-2G User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TR2R-2G

TR Spec Series:

Reach-In Glass Swing Door Refrigerator

TR2R-2G

Designed using the highest quality



materials and components to
provide the user with colder product
temperatures, lower utility costs and
exceptional food safety.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in food
preservation.

300 series stainless steel exterior and



interior. The very nest stainless with
higher tensile strength for fewer dents
and scratches.

Energy ecient “Low-E”, double pane



thermal insulated glass door assembly
with extruded aluminum frame(s).

Patented integrated door light (IDL)



system.

Equipped with one (1) interior kit



option per section standard, factory
installed. Four (4) dierent interior kits
available.

Positive seal self-closing door(s)



with 120°stay open feature. Lifetime
guaranteed door hinges.

Entire cabinet structure is foamed-in-



place using Ecomate. A new, innovative,
high density, polyurethane insulation
that has zero ozone depletion potential
(ODP) and zero global warming
potential (GWP).

Rough-In Data

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Specications subject to change without notice.

Cabinet Dimensions

(inches)

(mm)

Model Doors

TR2R-2G

† Depth does not include 1 3/8" (35 mm) for door handles.
* Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs, and 1" (26 mm) for system mechanical components.
note: Requires 115/208-230/60Hz, single phase, 3 pole, 4 wire circuit.

2

51⁄ 34⁄ 78¼ ½ 115/60/1 11.4 5-15P 9 710

1305 886 1988 2.74 322

ApprovAls: AvAilAble At:

Printed in U.S.A.

HP Voltage Amps

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H*

Model:

TR2R-2G

TR Spec Series:

Reach-In Glass Swing Door Refrigerator

StanDaRD FeatuReS

DESIGN

True’s glass door reach-in’s are designed with

•

enduring quality that protects your long term
investment.
Designed using the highest quality materials

•

and components to provide the user with colder
product temperatures, lower utility costs and
exceptional food safety.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser
maintains cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C) for the best in food preservation.
Sealed, cast iron, self-lubricating evaporator fan

•

motor(s) and larger fan blades give True reach­in’s a more ecient low velocity, high volume
airow design. This unique design ensures faster
temperature recovery and shorter run times in
the busiest of food service environments.
Top mounted refrigeration system with

•

evaporator positioned out of food zone to
maximize capacity.
Hot gas condensate for energy eciency.

•

CABINET CONSTRUCTION

Exterior - 300 series stainless steel front, sides,

•

back and bottom.
Interior - 300 series stainless steel liner and oor.

•

Insulation - entire cabinet structure is foamed-

•

in-place using Ecomate. A new, innovative, high
density, polyurethane insulation that has zero
ozone depletion potential (ODP) and zero global
warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with 4" (102 mm) diameter stem

•

castors - locks provided on front set.

DOORS

“Low-E”, double pane thermal insulated glass

•

assemblies with extruded aluminum frames.
Door locks standard.

•

Each door tted with 15" (381 mm) long

•

extruded aluminum handle.
Positive seal self-closing door(s) with 120°stay

•

open feature. Lifetime guaranteed door hinges.
Magnetic door gasket(s) of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

One (1) factory installed, interior kit option per

•

section. Four (4) dierent interior kits available
(see Kit Options). Pilasters and tray slides are
factory installed at no charge.

LIGHTING

Fluorescent interior lighting. Door(s) utilize(s)

•

full-length, patented, integrated door light (IDL)
system. Safety shielded.

MODEL FEATURES

Exterior digital temperature display, available

•

with either°F or°C .
Evaporator epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
6" (153 mm) stainless steel legs. ❑

Stainless steel rail skirt for use with legs (eld ❑
installed).
Electronic temperature control (factory ❑
installed).
Curb mountable units. ❑
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with 404A
expansion valve and requires R404A refrigerant).
Consult factory technical service department for
BTU information. All remote units must be hard
wired during installation.
Kit #1: Nine (9) sets of #1 type tray slides and ❑
pilasters (factory installed), bottom support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.
Kit #2: One (1) set half-section #2 steel rod ❑
tray slides and pilasters (factory installed), rim
support of one (1) 18"L x 26"D (458 mm x 661
mm) pan.
Kit #3: Six (6) sets of universal type tray slides ❑
and pilasters (factory installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan,
two (2) 12"L x 20"D (305 mm x 508 mm) pans or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.
Kit #4: Three (3) chrome shelves 23 ❑ ½"L x
27 ¾"D (597 mm x 705 mm). Four (4) shelf
supports included per shelf (factory installed);
adjustable on 6" (153 mm) increments. Optional
wall mounted shelf support pilasters (factory
installed) with four (4) shelf clips per shelf
available; adjustable on ½ " (13 mm) increments.
Additional kit option components available ❑
individually. Upcharge applies.

Plan VIew

CUBIC FEET

* Based on ANSI/AHAM HRF-1-2004

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

56

WARRANTY

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE
