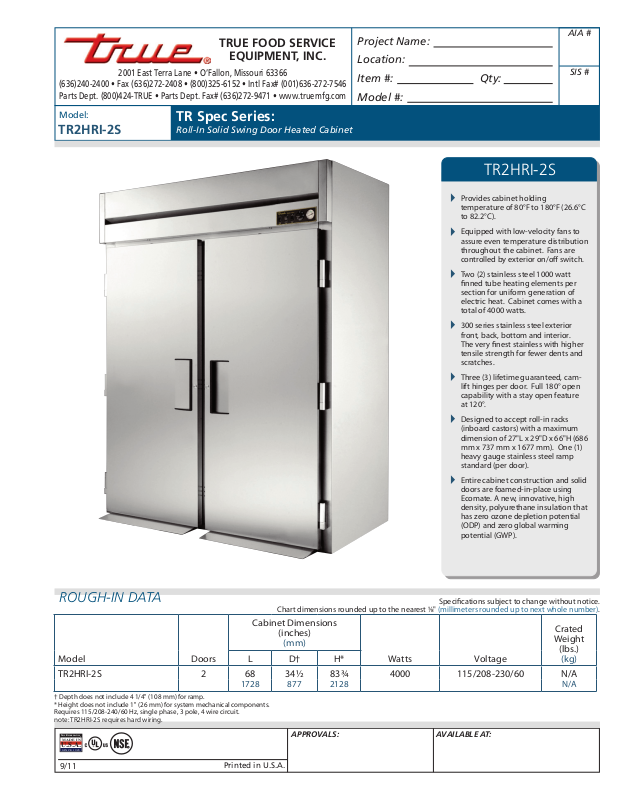

True TR2HRI-2S User Manual

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TR2HRI-2S

TR Spec Series:

Roll-In Solid Swing Door Heated Cabinet

TR2HRI-2S

Provides cabinet holding



temperature of 80°F to 180°F (26.6°C
to 82.2°C).

Equipped with low-velocity fans to



assure even temperature distribution
throughout the cabinet. Fans are
controlled by exterior on/o switch.

Two (2) stainless steel 1000 watt



nned tube heating elements per
section for uniform generation of
electric heat. Cabinet comes with a
total of 4000 watts.

300 series stainless steel exterior



front, back, bottom and interior.
The very nest stainless with higher
tensile strength for fewer dents and
scratches.

Three (3) lifetime guaranteed, cam-



lift hinges per door. Full 180° open
capability with a stay open feature
at 120°.

Designed to accept roll-in racks



(inboard castors) with a maximum
dimension of 27"L x 29"D x 66"H (686
mm x 737 mm x 1677 mm). One (1)
heavy gauge stainless steel ramp
standard (per door).

Entire cabinet construction and solid



doors are foamed-in-place using
Ecomate. A new, innovative, high
density, polyurethane insulation that
has zero ozone depletion potential
(ODP) and zero global warming
potential (GWP).

Rough-In Data

Model Doors

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Watts Voltage

Specications subject to change without notice.

Crated

Weight

(lbs.)

(kg)L D† H*

TR2HRI-2S 2 68 34½ 83¾ 4000 115/208-230/60 N/A

1728 877 2128 N/A

† Depth does not include 4 1/4" (108 mm) for ramp.
* Height does not include 1" (26 mm) for system mechanical components.
Requires 115/208-240/60 Hz, single phase, 3 pole, 4 wire circuit.
note: TR2HRI-2S requires hard wiring.

ApprovAls: AvAilAble At:

9/11

Printed in U.S.A.

Model:

TR2HRI-2S

TR Spec Series:

Roll-In Solid Swing Door Heated Cabinet

StanDaRD FeatuReS

DESIGN

True’s solid door roll-in heated cabinets are

•

designed with enduring quality that protects
your long term investment.

HEATER SYSTEM

Cabinet is designed to provide holding

•

temperatures of 80°F to 180°F (26.6°C to

82.2°C). Heating system controlled by exterior
on/o switch and temperature control dial.
Two (2) stainless steel (for corrosion resistance),

•

nned tube heating elements (1000 watts
each) per section for uniform generation of
electric heat. Cabinet comes with a total of
4000 watts.
Equipped with low-velocity fans to assure

•

even temperature distribution throughout the
cabinet. Fans are controlled by exterior on/o
switch.
Manually controlled vent located on top of the

•

cabinet for positive humidity control.

CABINET CONSTRUCTION

Exterior - 300 series stainless steel door(s),

•

front, back and bottom. Stainless steel sides.
Interior - 300 series stainless steel liner and

•

oor.
Stainless steel breaker caps.

•

Insulation - entire cabinet construction and

•

solid doors are foamed-in-place using Ecomate.
A new, innovative, high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
One (1) heavy gauge stainless steel ramp per

•

door.
Designed to accept roll-in racks (inboard

•

castors) with a maximum dimension of 27"L x
29"D x 66"H (686 mm x 737 mm x 1677 mm).

DOORS

300 series stainless steel exterior and liners.

•

Doors open within cabinet dimension.

Door locks standard.

•

Lifetime guaranteed recessed door handles.

•

Each door tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Three (3) lifetime guaranteed, cam-lift hinges

•

per door. Full 180° open capability with a stay
open feature at 120°.
Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.
Doors are eld reversible.

•

LIGHTING

Incandescent interior lighting; lights activated

•

by exterior on/o switch, safety shielded.

MODEL FEATURES

Exterior, color coded, temperature display;

•

accurate direct reading of internal cabinet
temperature.
Designed to hold warm baked or cooked food.

•

Cabinet is not designed to heat ambient or
cold product.
Interior bumpers protect cabinet walls from

•

abuse caused by roll-in carts.
12" x 20" (305 mm x 508 mm) pan for water

•

included, if additional humidity is required.
NSF-4 compliant for open food product.

•

ELECTRICAL

True requires that a sole use circuit be

•

dedicated for the unit.
Unit comes with 4 feed wires (including

•

ground) to be hardwired at installation site to
a 115/208-240/60 Hz. single phase, 20 amp
dedicated outlet.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

Metal door handle(s) (factory installed). ❑
Electronic temperature control (factory ❑
installed).
Correctional facilities options. ❑

Plan VIew

One year warranty on all parts

WARRANTY

and labor. (U.S.A. only)

2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TR2HRI-2S

TFQY97E TFQY51S TFQY155P TFQY1553
