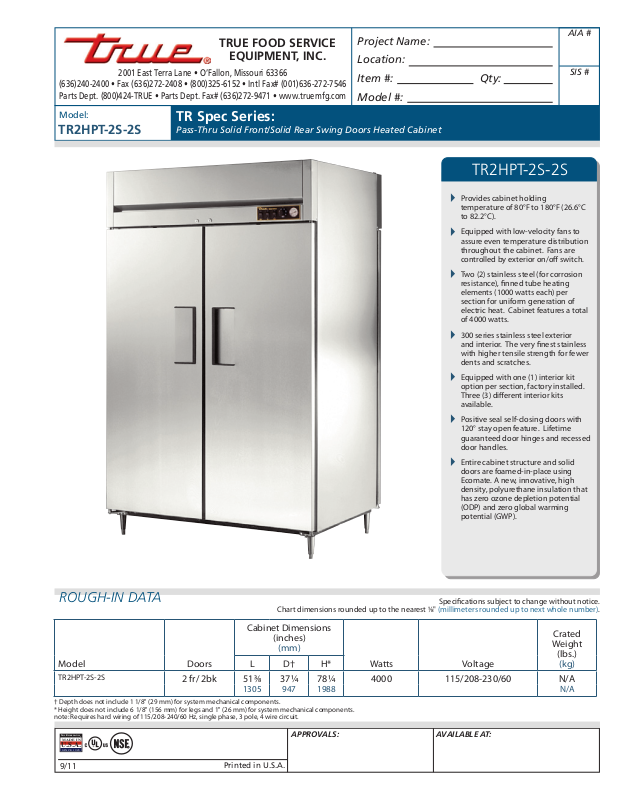

Model:

TR2HPT-2S-2S

TR Spec Series:

Pass-Thru Solid Front/Solid Rear Swing Doors Heated Cabinet

TR2HPT-2S-2S

Provides cabinet holding



temperature of 80°F to 180°F (26.6°C
to 82.2°C).

Equipped with low-velocity fans to



assure even temperature distribution
throughout the cabinet. Fans are
controlled by exterior on/o switch.

Two (2) stainless steel (for corrosion



resistance), nned tube heating
elements (1000 watts each) per
section for uniform generation of
electric heat. Cabinet features a total
of 4000 watts.

300 series stainless steel exterior



and interior. The very nest stainless
with higher tensile strength for fewer
dents and scratches.

Equipped with one (1) interior kit



option per section, factory installed.
Three (3) dierent interior kits
available.

Positive seal self-closing doors with



120° stay open feature. Lifetime
guaranteed door hinges and recessed
door handles.

Entire cabinet structure and solid



doors are foamed-in-place using
Ecomate. A new, innovative, high
density, polyurethane insulation that
has zero ozone depletion potential
(ODP) and zero global warming
potential (GWP).

Rough-In Data

Model Doors

TR2HPT-2S-2S

2 fr/ 2bk 51⁄ 37¼ 78¼ 4000 115/208-230/60 N/A

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Watts Voltage

Specications subject to change without notice.

Crated

Weight

(lbs.)

(kg)L D† H*

1305 947 1988 N/A

† Depth does not include 1 1/8" (29 mm) for system mechanical components.
* Height does not include 6 1/8" (156 mm) for legs and 1" (26 mm) for system mechanical components.
note: Requires hard wiring of 115/208-240/60 Hz, single phase, 3 pole, 4 wire circuit.

ApprovAls: AvAilAble At:

9/11

Printed in U.S.A.

Model:

TR2HPT-2S-2S

TR Spec Series:

Pass-Thru Solid Front/Solid Rear Swing Doors Heated
Cabinet

StanDaRD FeatuReS

DESIGN

True’s solid half door pass-thru heated cabinets

•

are designed with enduring quality that
protects your long term investment.

HEATER SYSTEM

Cabinet is designed to provide holding

•

temperatures of 80°F to 180°F (26.6°C to 82.2°C).
Heating system controlled by exterior on/o
switch and temperature control dial.
Equipped with low-velocity fans to assure

•

even temperature distribution throughout the
cabinet. Fans are controlled by exterior on/o
switch.
Two (2) stainless steel (for corrosion resistance),

•

nned tube heating elements (1000 watts each)
per section for uniform generation of electric
heat. Cabinet features a total of 4000 watts.
Manually controlled vent located on top of the

•

cabinet for positive humidity control.

CABINET CONSTRUCTION

Exterior - 300 series stainless steel doors, front,

•

sides, back and bottom.
Interior- 300 series stainless steel liner and oor.

•

Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using Ecomate. A
new, innovative, high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with 6" (153 mm) stainless steel

•

legs.

DOORS

Front and rear doors are 300 series stainless

•

steel exterior and liners. Doors open within
cabinet dimension.
Door locks standard.

•

Lifetime guaranteed recessed door handles.

•

Each door tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing doors with 120°stay

•

open feature. Lifetime guaranteed door hinges.
Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

One (1) factory installed, interior kit option per

•

section. Three (3) dierent interior kits available
(see Kit Options). Pilasters and tray slides are
factory installed at no charge.

LIGHTING

Incandescent interior lighting; lights activated

•

by exterior on/o switch, safety shielded.

MODEL FEATURES

Exterior, color coded, temperature display;

•

accurate direct reading of internal cabinet
temperature.
Designed to hold warm baked or cooked food.

•

Cabinet is not designed to heat ambient or cold
product.
12" x 20" (305 mm x 508 mm) pan for water

•

included, if additional humidity is required.
NSF-4 compliant for open food product.

•

ELECTRICAL

True requires a sole use circuit be dedicated for

•

the unit.
Unit comes with 4 feed wires (including ground)

•

to be hardwired at installation site to a 115/208­240/60 Hz. single phase, 20 amp dedicated
outlet.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) seismic/anged legs. ❑
Stainless steel rail skirt for use with legs (eld ❑
installed).
Metal door handle(s) (factory installed). ❑
Electronic temperature control (factory ❑
installed).
Correctional facilities options. ❑
Curb mountable units. ❑
Kit #1: Nine (9) sets of #1 type tray slides and ❑
pilasters (factory installed), bottom support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.
Kit #2: One (1) set half-section #2 steel rod ❑
tray slides and pilasters (factory installed), rim
support of one (1) 18"L x 26"D (458 mm x 661
mm) pan.
Kit #3: Six (6) sets of universal type tray slides ❑
and pilasters (factory installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan,
two (2) 14"L x 18"D (356 mm x 458 mm) pans or
two (2) 12"L x 20"D (305 mm x 508 mm) pans.
Kit #4: Six (6) chrome shelves 23 ❑ ½"L x 27 ⁄"D
(597 mm x 732 mm). Four (4) shelf clips
included per shelf and wall mounted pilasters
(factory installed). Shelves adjustable on ½" (13
mm) increments.
Additional kit option components available ❑
individually. Upcharge applies.
Stainless steel (electro polished) shelves to be ❑
used with Kit Option #4.

Plan VIew

One year warranty on all parts

WARRANTY

and labor. (U.S.A. only)
