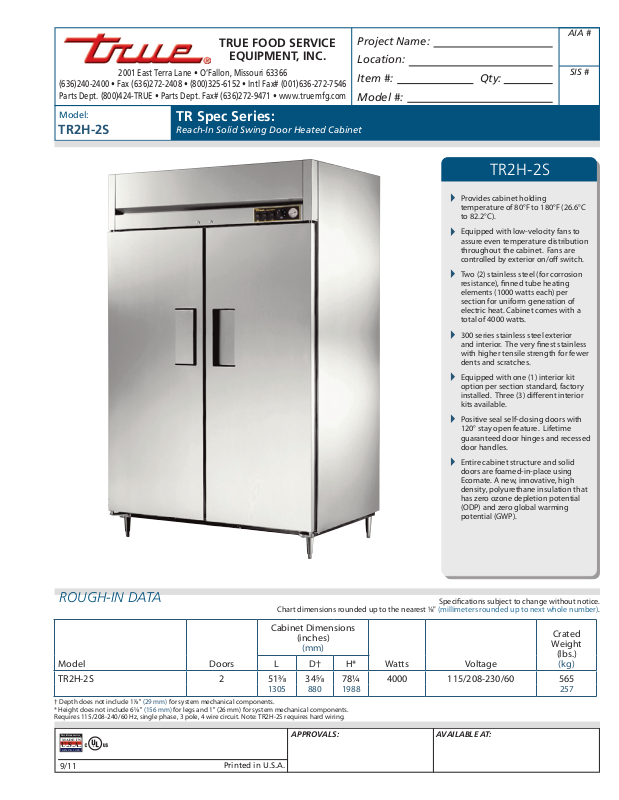

True TR2H-2S User Manual

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TR2H-2S

TR Spec Series:

Reach-In Solid Swing Door Heated Cabinet

TR2H-2S

Provides cabinet holding



temperature of 80°F to 180°F (26.6°C
to 82.2°C).

Equipped with low-velocity fans to



assure even temperature distribution
throughout the cabinet. Fans are
controlled by exterior on/o switch.

Two (2) stainless steel (for corrosion



resistance), nned tube heating
elements (1000 watts each) per
section for uniform generation of
electric heat. Cabinet comes with a
total of 4000 watts.

300 series stainless steel exterior



and interior. The very nest stainless
with higher tensile strength for fewer
dents and scratches.

Equipped with one (1) interior kit



option per section standard, factory
installed. Three (3) dierent interior
kits available.

Positive seal self-closing doors with



120° stay open feature. Lifetime
guaranteed door hinges and recessed
door handles.

Entire cabinet structure and solid



doors are foamed-in-place using
Ecomate. A new, innovative, high
density, polyurethane insulation that
has zero ozone depletion potential
(ODP) and zero global warming
potential (GWP).

Rough-In Data

Model Doors

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Watts Voltage

Specications subject to change without notice.

Crated

Weight

(lbs.)

(kg)L D† H*

TR2H-2S 2 51⁄ 34⁄ 78¼ 4000 115/208-230/60 565

1305 880 1988 257

† Depth does not include 1⁄" (29 mm) for system mechanical components.
* Height does not include 6⁄" (156 mm) for legs and 1" (26 mm) for system mechanical components.
Requires 115/208-240/60 Hz, single phase, 3 pole, 4 wire circuit. Note: TR2H-2S requires hard wiring.

ApprovAls: AvAilAble At:

9/11

Printed in U.S.A.

Model:

TR2H-2S

TR Spec Series:

Reach-In Solid Swing Door Heated Cabinet

StanDaRD FeatuReS

DESIGN

True’s solid door reach-in heated cabinets are

•

designed with enduring quality that protects
your long term investment.

HEATER SYSTEM

Cabinet designed to provide holding

•

temperatures of 80°F to 180°F (26.6°C to 82.2°C).
Heating system controlled by exterior on/o
switch and temperature control dial.
Two (2) stainless steel (for corrosion resistance),

•

nned tube heating elements (1000 watts each)
per section for uniform generation of electric
heat. Cabinet comes with a total of 4000 watts.
Equipped with low-velocity fans to assure

•

even temperature distribution throughout the
cabinet. Fans are controlled by exterior on/o
switch.
Manually controlled vent located on top of the

•

cabinet for positive humidity control.

CABINET CONSTRUCTION

Exterior - 300 series stainless steel doors, front,

•

sides, back and bottom.
Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using Ecomate. A
new, innovative, high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with 6" (153 mm) stainless steel

•

legs.

DOORS

300 series stainless steel exterior and liners.

•

Doors open within cabinet dimension.
Door locks standard.

•

Lifetime guaranteed recessed door handles.

•

Each door tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing doors with 120° stay

•

open feature. Lifetime guaranteed door hinges.
Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

One (1) factory installed, interior kit option per

•

section. Three (3) dierent interior kits available
(see Kit Options). Pilasters and tray slides are
factory installed at no charge.

LIGHTING

Incandescent interior lighting; lights activated

•

by exterior on/o switch, safety shielded.

MODEL FEATURES

Exterior, color coded, temperature display;

•

accurate direct reading of internal cabinet
temperature.
Designed to hold warm baked or cooked food.

•

Cabinet is not designed to heat ambient or cold
product.
12" x 20" (305 mm x 508 mm) pan for water

•

included, if additional humidity required.
NSF-4 compliant for open food product.

•

ELECTRICAL

True requires that a sole use circuit be dedicated

•

for the unit.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) seismic/anged legs. ❑
Stainless steel rail skirt for use with legs (eld ❑
installed).
Metal door handle(s) (factory installed). ❑
Electronic temperature control (factory ❑
installed).
Correctional facilities options. ❑
Curb mountable units. ❑
Kit #1: Nine (9) sets of #1 type tray slides and ❑
pilasters (factory installed), bottom support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.
Kit #2: One (1) set half-section #2 steel rod ❑
tray slides and pilasters (factory installed), rim
support of one (1) 18"L x 26"D (458 mm x 661
mm) pan.
Kit #3: Six (6) sets of universal type tray slides ❑
and pilasters (factory installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan,
two (2) 14"L x 18"D (356 mm x 458 mm) pans or
two (2) 12"L x 20"D (305 mm x 508 mm) pans.
Kit #4: Six (6) chrome shelves 23 ❑ ½"L x 27 ¾"D
(597 mm x 705 mm). Four (4) shelf clips
included per shelf and wall mounted pilasters
(factory installed). Shelves adjustable on ½" (13
mm) increments.
Stainless steel (electro polished) shelves to be ❑
used with Kit Option #4.
Additional kit option components available ❑
individually. Upcharge applies.

Plan VIew

One year warranty on all parts

WARRANTY

and labor. (U.S.A. only)

2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TR2H-2S

TFQY180E TFQY180S TFQY180P TFQY1803
