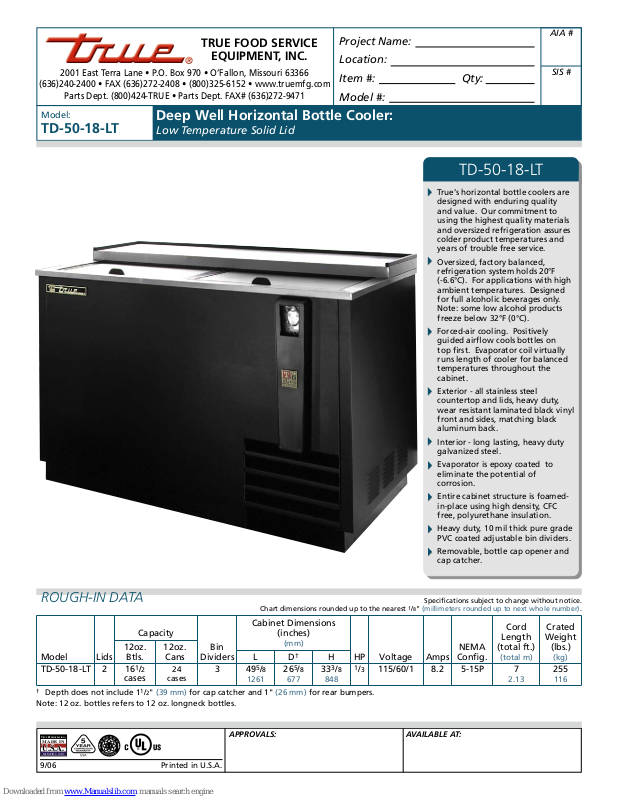

True TD-50-18-LT Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366

[phone] • FAX [phone] • [phone] • www.truemfg.com

Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TD-50-18-LT

Deep Well Horizontal Bottle Cooler:

Low Temperature Solid Lid

TD-50-18-LT

True’s horizontal bottle coolers are
designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.

Oversized, factory balanced,
refrigeration system holds 20°F
(-6.6°C). For applications with high
ambient temperatures. Designed
for full alcoholic beverages only.
Note: some low alcohol products
freeze below 32°F (0°C).

Forced-air cooling. Positively
guided airfl ow cools bottles on
top fi rst. Evaporator coil virtually
runs length of cooler for balanced
temperatures throughout the
cabinet.

Exterior - all stainless steel
countertop and lids, heavy duty,
wear resistant laminated black vinyl
front and sides, matching black
aluminum back.

Interior - long lasting, heavy duty
galvanized steel.

Evaporator is epoxy coated to
eliminate the potential of
corrosion.

Entire cabinet structure is foamed­in-place using high density, CFC
free, polyurethane insulation.

Heavy duty, 10 mil thick pure grade
PVC coated adjustable bin dividers.

Removable, bottle cap opener and
cap catcher.

ROUGH-IN DATA

Capacity

12oz.

Model Lids

Btls.

TD-50-18-LT 2 161/2

cases

†

Depth does not include 11/2" (39 mm) for cap catcher and 1" (26 mm) for rear bumpers.

Note: 12 oz. bottles refers to 12 oz. longneck bottles.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

9/06

12oz.

Cans

®

Printed in U.S.A.

Dividers

24

cases

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

Bin

349

1261

APPROVALS: AVAILABLE AT:

(mm)

LD†H

5

/8

265/8

677

333/8

848

HP Voltage Amps

1

/3 115/60/1 8.2 5-15P 7

Specifi cations subject to change without notice.

Crated

Weight

(lbs.)

(kg)

NEMA

Confi g.

Cord

Length

(total ft.)

(total m)

255

2.13

116

Model:

TD-50-18-LT

Deep Well Horizontal Bottle Cooler:

Low Temperature Solid Lid

STANDARD FEATURES

DESIGN

• True’s horizontal bottle coolers are
designed with enduring quality and
value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser.

• Maintains 20°F (-6.6°C) for applications
with high ambient temperatures.
Designed for full alcoholic beverages
only. Note; some low alcohol products
freezer below 32°F (0°C).

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True merchandisers
a more effi cient low velocity, high
volume airfl ow design. This unique
design insures colder standard
temperatures and faster recovery in
high use situations.

• Condensing unit accessed from
behind front grill, slides out for easy
maintenance.

• Automatic defrost system time­initiated, time-terminated.

• Forced-air cooling. Positively guided
air fl ow cools bottles on top fi rst.
Evaporator coil virtually runs length
of cooler for balanced temperatures
throughout the cabinet.

CABINET CONSTRUCTION

• Exterior - all stainless steel countertop
and lids, heavy duty, wear resistant
laminated black vinyl front and sides,
matching black aluminum back.

• Interior - long lasting, heavy duty
galvanized steel.

• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.

• Welded, heavy duty galvanized base
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.

• Removable, bottle cap opener and cap
catcher.

BIN DIVIDERS

• Three (3) heavy duty, 10 mil thick
pure grade PVC coated adjustable bin
dividers to maximize storage.

MODEL FEATURES

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.

1

❒ 2

/2" (64 mm) diameter rail castors.

❒ 3" (77 mm) diameter rail castors.
❒ Ratchet locks and handles. Requires

one per lid.

❒ Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.

PLAN VIEW

495/8"

(1261 mm)

333/8"

(848 mm)

47"

(1194 mm)

WARRANTY

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

ELEVATION

(737 mm)

(712 mm)

17/16"

(36 mm)

313/8"

(797 mm)

31/16"

(78 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

269/16"

(675 mm)

2"

(51 mm)

RIGHT VIEW

29"

28"

123/4"

(324 mm)

KCL

1"

(26 mm)

87/8"

(226 mm)

203/4"

(528 mm)

PLAN VIEW

Model Elevation Right Plan 3D

TD-50-18-LT TFKY03E TFKY01S TFKY03P TFKY033
