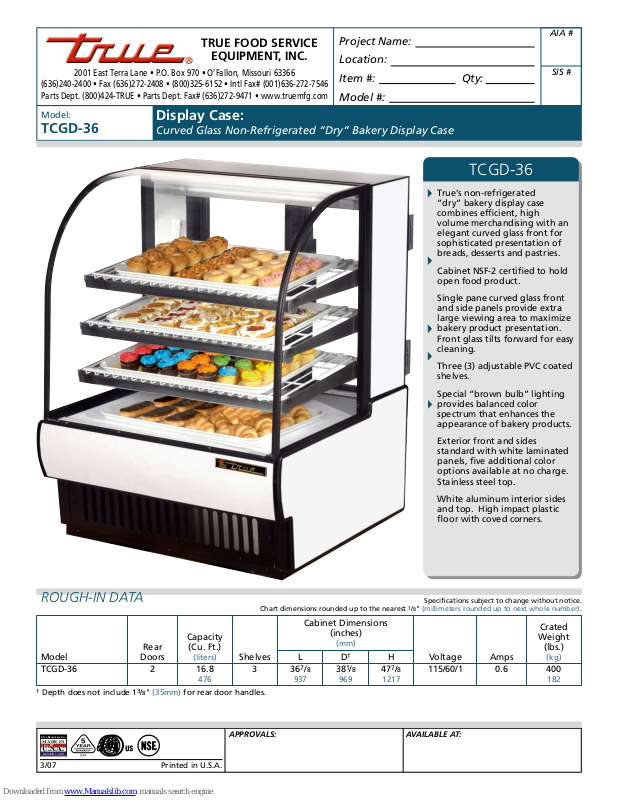

True TCGD-36 Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TCGD-36

Display Case:

Curved Glass Non-Refrigerated “Dry” Bakery Display Case

TCGD-36

True’s non-refrigerated
“dry” bakery display case
combines effi cient, high
volume merchandising with an
elegant curved glass front for
sophisticated presentation of
breads, desserts and pastries.

Cabinet NSF-2 certifi ed to hold
open food product.

Single pane curved glass front
and side panels provide extra
large viewing area to maximize
bakery product presentation.
Front glass tilts forward for easy
cleaning.

Three (3) adjustable PVC coated
shelves.

Special “brown bulb” lighting
provides balanced color
spectrum that enhances the
appearance of bakery products.

ROUGH-IN DATA

Model

Doors

TCGD-36 2 16.8

†

Depth does not include 13/8" (35mm) for rear door handles.

Rear

Capacity

(Cu. Ft.)

(liters) Shelves

336

476

Chart dimensions rounded up to the nearest

Cabinet Dimensions

(inches)

(mm)

LD†H

7

/8

937

381/8

969

477/8

1217

Exterior front and sides
standard with white laminated
panels, fi ve additional color
options available at no charge.
Stainless steel top.

White aluminum interior sides
and top. High impact plastic
fl oor with coved corners.

Specifi cations subject to change without notice.

1

/8" (millimeters rounded up to next whole number).

Crated

Weight

(lbs.)

Voltage Amps

(kg)

115/60/1 0.6 400

182

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

3/07

®

R

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TCGD-36

Display Case:

Curved Glass Non-Refrigerated “Dry”
Bakery Display Case

STANDARD FEATURES

DESIGN

• True’s non-refrigerated “dry” bakery
display case combines effi cient,
high volume merchandising with
an elegant curved glass front for
sophisticated presentation of breads,
desserts and pastries.

• Designed to provide an attractive
companion to our forced-air
refrigerated display case.

CABINET CONSTRUCTION

• Exterior - white laminate front and
side panels. Color options available
at no charge:

Walnut Teak Oak Beige Black White

All laminates ship separately from
unit and are fi eld installed. Stainless
steel top. Black front grill and trim.
Template kit available at no charge for
fi eld cutomization of laminate.

• Interior - NSF approved white
aluminum sides and top; high impact
plastic fl oor with coved corners.

• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.

• Frame rail fi tted with leg levelers.

CURVED FRONT DISPLAY GLASS

• Single pane curved glass front and
side panels provide extra large
viewing area to maximize bakery
product presentation. Glass is
tempered for safety.

PLAN VIEW

163/4"

(426 mm)

(937 mm)

• Front glass tilts forward for easy
cleaning.

REAR DOORS

• “Low-E”, double pane thermal
glass door assembly with extruded
aluminum frame.

• Each door fi tted with 12"(305 mm)
extruded handle.

• Self-closing doors. Positive seal,
torsion type closing system.

• Magnetic door gasket of one piece
construction, removable without tools
for ease of cleaning.

SHELVING

• Three (3) adjustable, heavy duty PVC
coated wire shelves 24

3

/8"L x 225/32"D
(620 mm x 563 mm). Shelving system
is cantilevered and angle can be
adjusted to maximize presentation.

• Shelf supports a maximum weight of
150 lbs. (69 kg).

PAN CAPACITY

• Cabinet holds four (4) 18"L x 26"D
(458 mm x 661 mm) display pans (1 per
level) and four (4) 9"L x 26"D (229 mm
x 661 mm) display pans (1 per level).
Pans supplied by others.

LIGHTING

• Cabinet is equipped with four (4) light
sources for maximum product display;
three (3) shelf mounted and one (1)
cabinet mounted. Special “brown
bulb” lighting provides balanced
color spectrum that enhances the
appearance of bakery products.

367/8"

• Safety shielded lighting tube assure
longer, brighter, shadow-free product
illumination.

MODEL FEATURES

• Recessed exterior light switch.

• NSF-2 compliant for open food
product.

ELECTRICAL

• Unit comes with 4 feed wires
(including ground) to be hardwired at
installation site to a 115/60/1 phase-15
amp dedicated outlet.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.

1

❒ 2

/2" (64 mm) diameter castors [NOTE:
castors can not be installed on units
that are hardwired, optional 12"
(305 mm) power cord must be factory
installed].

❒ 12" (305 mm) cord set (factory

installed).

❒ Custom exterior laminates, contact

factory for details. See our website:
www.truemfg.com for the latest color
offerings.

❒ Stainless steel exterior.
❒ Mirrored interior ends with laminate

exterior.

❒ Additional lighted shelves.
❒ Additional non-lighted shelves.

591/2"

441/2"

(1131 mm)

11"

(280 mm)

(1512 mm)

19"

(483 mm)

315/8"

(804 mm)

155/16"

(389 mm)

Open Back For Storage

BACK VIEW

One year warranty on all parts

WARRANTY

& labor.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

18.33°

533/16"

4713/16"

(1215 mm)

(1351 mm)

161/4"

(413 mm)

RIGHT VIEW

KCL

WITHOUT NOTICE

Model Elevation Right Plan 3D Back

TCGD-36 TFD076E TFD076S TFD081P TFD0813 TFD081B

TRUE FOOD SERVICE EQUIPMENT

381/8"

(969 mm)
