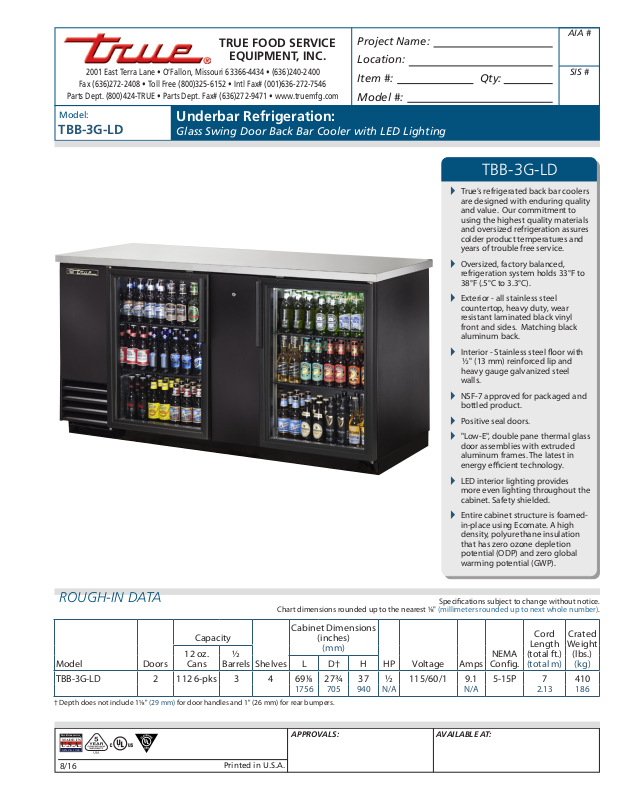

True TBB-3G-LD User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TBB-3G-LD

Underbar Refrigeration:

Glass Swing Door Back Bar Cooler with LED Lighting

TBB-3G-LD

True’s refrigerated back bar coolers



are designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).

Exterior - all stainless steel



countertop, heavy duty, wear
resistant laminated black vinyl
front and sides. Matching black
aluminum back.

Interior - Stainless steel oor with



½" (13 mm) reinforced lip and
heavy gauge galvanized steel
walls.

NSF-7 approved for packaged and



bottled product.

Positive seal doors.



"Low-E", double pane thermal glass



door assemblies with extruded
aluminum frames. The latest in
energy ecient technology.

LED interior lighting provides



more even lighting throughout the
cabinet. Safety shielded.

Entire cabinet structure is foamed-



in-place using Ecomate. A high
density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

ROUGH-IN DATA

Model Doors

Capacity

12 oz.

Cans

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

½

Barrels L D† H

Shelves

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

TBB-3G-LD 2 112 6-pks 3 4 69⁄ 27¾ 37 ½ 115/60/1 9.1 5-15P 7 410

1756 705 940 N/A N/A 2.13 186

†Depth does not include 1⁄" (29 mm) for door handles and 1" (26 mm) for rear bumpers.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

8/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TBB-3G-LD

Underbar Refrigeration:

Glass Swing Door Back Bar Cooler with LED
Lighting

STANDARD FEATURES

DESIGN

True’s refrigerated back bar coolers are

•

designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Sealed, cast iron, self-lubricating

•

evaporator fan motor(s) and larger fan
blades give True back bar coolers a more
ecient low velocity, high volume airow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

Exterior - heavy duty, wear resistant

•

laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.

Interior - Stainless steel oor with ½ "

•

(13 mm) reinforced lip and heavy gauge
galvanized steel walls.
Door threshold protector prevents damage

•

to cabinet from routine loading of product.
Insulation - entire cabinet structure is

•

foamed-in-place using Ecomate. A high
density, polyurethane insulation that has
zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.

DOORS

"Low-E", double pane thermal glass door

•

assemblies with extruded aluminum
frames. The latest in energy ecient
technology.
Each door tted with 12" (305 mm) long

•

handle.
Positive seal doors.

•

Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.
Door locks standard.

•

SHELVING

Four (4) adjustable, heavy duty, black PVC

•

coated wire shelves 31¾ "L x 21 ¼"D (807
mm x 540 mm). Four (4) chrome plated
shelf clips included per shelf.
Aluminum shelf support pilasters. Shelves

•

are adjustable on ½ " (13 mm) increments.

LIGHTING

LED interior lighting provides more even

•

lighting throughout the cabinet. Safety
shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½ " (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Additional shelves.

PLAN VIEW

1"

(26 mm)

691/16"

(1755 mm)

37"

(940 mm)

3"

(77 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

673/4"

(1721 mm)

671/4"

(1709 mm)

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

2813/16"

(732 mm)

4923/32"

(1263 mm)

KCL

277/16"

(697 mm)

PLAN VIEW

Model Elevation Right Plan 3D Back

TBB-3G-LD TFJY13E TFJY13S TFJY13P TFJY133

271/16"

(688 mm)

2121/32"

(551 mm)
