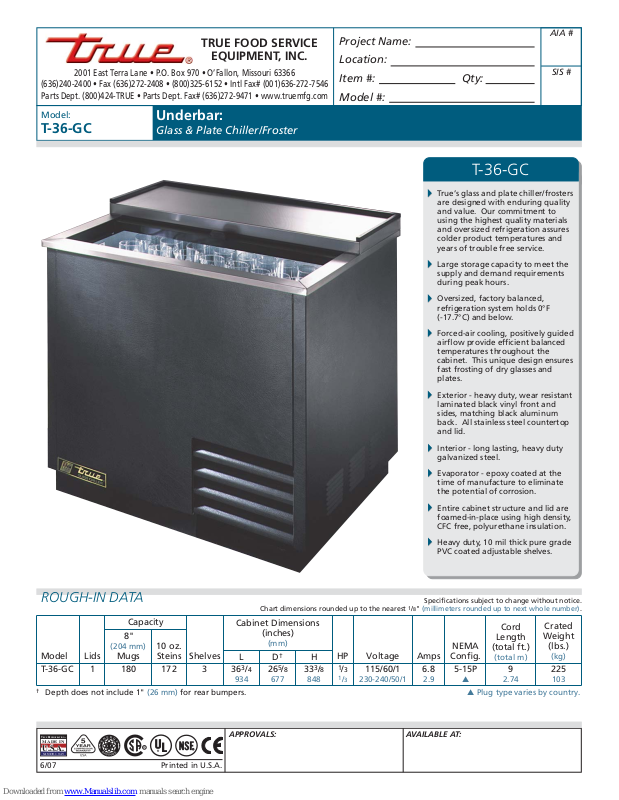

True T-36-GC Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

T-36-GC

Underbar:

Glass & Plate Chiller/Froster

T-36-GC

True’s glass and plate chiller/frosters
are designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.

Large storage capacity to meet the
supply and demand requirements
during peak hours.

Oversized, factory balanced,
refrigeration system holds 0°F
(-17.7°C) and below.

Forced-air cooling, positively guided
airfl ow provide effi cient balanced
temperatures throughout the
cabinet. This unique design ensures
fast frosting of dry glasses and
plates.

Exterior - heavy duty, wear resistant
laminated black vinyl front and
sides, matching black aluminum
back. All stainless steel countertop
and lid.

Interior - long lasting, heavy duty
galvanized steel.

Evaporator - epoxy coated at the
time of manufacture to eliminate
the potential of corrosion.

Entire cabinet structure and lid are
foamed-in-place using high density,
CFC free, polyurethane insulation.

Heavy duty, 10 mil thick pure grade
PVC coated adjustable shelves.

ROUGH-IN DATA

Capacity

8"

(204 mm)

Model Lids

Mugs

T-36-GC 1 180 172 3 36

†

Depth does not include 1" (26 mm) for rear bumpers. ▲ Plug type varies by country.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

6/07

10 oz.
Steins

Shelves

R

Printed in U.S.A.

Specifi cations subject to change without notice.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

LD†H

3

/4

265/8

934

APPROVALS: AVAILABLE AT:

677

333/8

HP Voltage Amps

1

/3

115/60/1

848

1

/3

230-240/50/1

NEMA

Confi g.

6.8

2.9

5-15P

▲

Cord

Length

(total ft.)

(total m)

9

2.74

Crated

Weight

(lbs.)

(kg)

225

103

Model:

T-36-GC

Underbar:

Glass & Plate Chiller/Froster

STANDARD FEATURES

DESIGN

• True’s glass and plate chiller/frosters
are designed with enduring quality
and value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
404A refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
cabinet temperatures of 0°F (-17.7°C)
and below.

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True chiller/frosters
a more effi cient low velocity, high
volume airfl ow design. This unique
design ensures fast frosting of dry
glasses and plates.

• Automatic defrost system time­initiated, time-terminated.

• Condensing unit accessed from
behind front grill, slides out for easy
maintenance.

• Forced-air cooling, positively guided
airfl ow provide effi cient balanced
temperatures throughout the cabinet.

CABINET CONSTRUCTION

• Exterior - heavy duty, wear resistant
laminated black vinyl front and sides,
matching black aluminum back. All
stainless steel countertop and lids.

• Interior - long lasting, heavy duty
galvanized steel.

• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.

• Welded, heavy duty galvanized base
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.

SHELVING

• Three (3) adjustable, heavy duty PVC
coated wire shelves. One (1) bottom
shelf 18

491 mm) and two (2) top shelves

16

1

/2"L x 195/16"D (470 mm x

1

/4"L x 193/8"D (413 mm x 491 mm).
Split shelf design allows for effective
rotation of chilled smallware, working
with already chilled plates and glasses
on one side while chilling dry product
on the other side.

MODEL FEATURES

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.

1

❒ 2

/2" (64 mm) diameter castors.

❒ 3" (77 mm) diameter castors.
❒ Ratchet lock and handle.
❒ Floor racks.
❒ Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.

PLAN VIEW

23/4"

(70 mm)

279/16"

(701 mm)

31/16"

(78 mm)

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

(U.S.A. only)

363/4"

(934 mm)

ELEVATION

341/8"

(867 mm)

269/16"

(675 mm)

333/8"

(848 mm)

RIGHT VIEW

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

1"

(26 mm)

279/16"

(701 mm)

311/8"

(791 mm)

123/4"

(324 mm)

87/8"

(226 mm)

PLAN VIEW

Model Elevation Right Plan 3D

T-36-GC TFLY02E TFLY01S TFLY02P TFLY023
