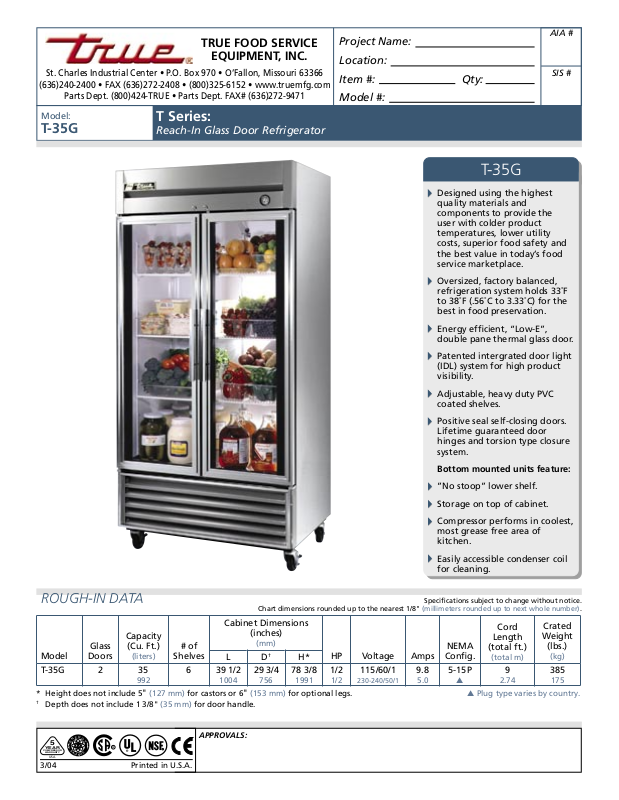

True T-35G User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366

(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com

Parts Dept. (800)424-TRUE • Parts Dept. FAX# (636)272-9471

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

T-35G

T Series:

Reach-In Glass Door Refrigerator

T-35G

Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace.

Oversized, factory balanced, refrigeration system holds 33˚F to 38˚F (.56˚C to 3.33˚C) for the best in food preservation.

Energy efcient, “Low-E”, double pane thermal glass door.

Patented intergrated door light (IDL) system for high product visibility.

Adjustable, heavy duty PVC coated shelves.

Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.

Bottom mounted units feature:

”No stoop” lower shelf.

Storage on top of cabinet.

Compressor performs in coolest, most grease free area of kitchen.

Easily accessible condenser coil for cleaning.

ROUGH-IN DATA

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

Capacity

Glass

Model

Doors

T-35G 2 35

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.  Plug type varies by country.

†

Depth does not include 1 3/8" (35 mm) for door handle.

(Cu. Ft.)

(liters)

992

# of

Shelves

6 39 1/2

1004

(inches)

(mm)

L D

29 3/4

756

†

78 3/8

1991

HP Voltage Amps 1/2

115/60/1

1/2

230-240/50/1

Specications subject to change without notice.

Crated

Weight

(lbs.)

(kg)

385

175

9.8

5.0

NEMA

Cong.

5-15P



Cord

Length

(total ft.)

(total m)

2.74

YEAR

COMPRESSOR

WARRANTY

3/04

USA

Printed in U.S.A.

APPROVALS:

Model:

T-35G

T Series:

Reach-In Glass Door Refrigerator

STANDARD FEATURES

DESIGN

• True’s glass door reach-in’s are designed with enduring quality that protects your long term investment.

• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace.

REFRIGERATION SYSTEM

• Factory engineered self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.

• Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains 33˚F to 38˚F (.56˚C to

3.33˚C) for the best in food preservation.

• Sealed, cast iron, self-lubricating evaporator fan motor and larger fan blades give True reach-in’s a superior low velocity, high volume airow design. This unique design insures faster temperature recovery and shorter run times in the busiest of foodservice environments.

• Bottom mounted condensing unit positioned for easy maintenance. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.

CABINET CONSTRUCTION

• Exterior - 300 series stainless steel front grill and shroud. Anodized quality aluminum exterior ends and back.

• Interior - attractive, NSF approved, white

aluminum liner. 300 series stainless oor with coved corners.

• Insulation - entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation.

• Cabinet mounted on a welded, heavy duty galvanized frame rail. Rail dipped in rust inhibiting enamel paint for corrosion protection inside and out.

• Frame rail tted with 4" (102 mm) diameter stem castors standard - locks provided on front set.

DOORS

• “Low-E”, double pane thermal glass assembly with extruded aluminum frames. Door locks standard.

• Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.

• Each glass door is tted with a 15" (381 mm) long extruded aluminum handle.

• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

SHELVING

• Six (6) adjustable, heavy duty PVC coated wire shelves 17 1/4"L X 22 3/8"D (439 mm x 569 mm). Four (4) chrome plated shelf clips included per shelf.

• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

LIGHTING

• Fluorescent interior lighting. Each glass door utilizes full-length, patented,

integrated door light (IDL) system. Safety shielded.

MODEL FEATURES

• Exterior mounted temperature monitor.

• Evaporator is epoxy coated to eliminate the potential of corrosion.

ELECTRICAL

• Unit completely pre-wired at factory and ready for nal connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included.

115/60/1 NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

 230 - 240V / 50 Hz.  6" (153 mm) stainless steel or seismic legs.  Additional shelves.  Novelty baskets.  Remote cabinets (condensing unit supplied

by others), consult factory technical service dept. for BTU information.

PLAN VIEW

391/2"

(1004 mm)

(127 mm)

2923/32"

(755 mm)

13/8"

(35 mm)

KCL

4711/

(1212 mm)

183/16"

(462 mm)

TOP VIEW

Model Front Side Plan 3D

T-35G TFEY08E TFEY08S TFEY08P TFEY083

785/16"

835/16"

(2117 mm)

(1990 mm)

FRONT VIEW

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
