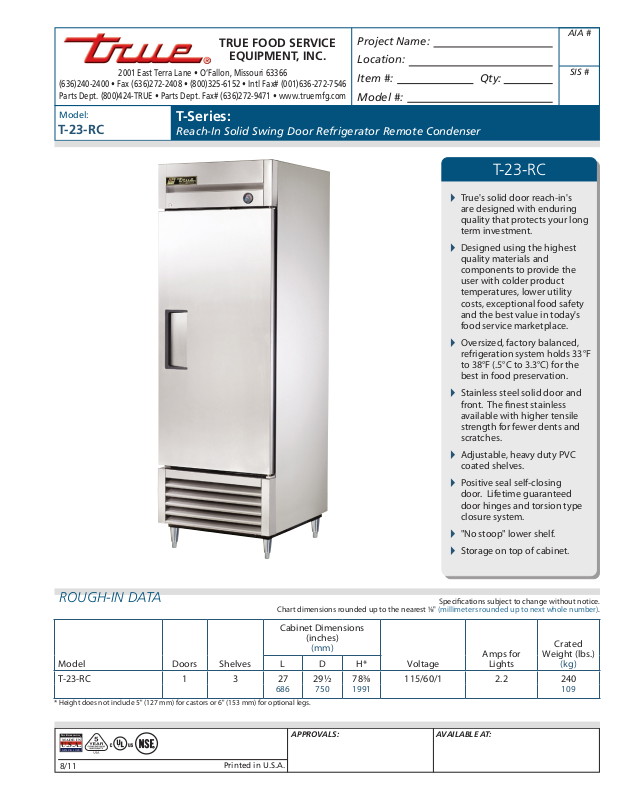

True T-23-RC User Manual

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

T-23-RC

T-Series:

Reach-In Solid Swing Door Refrigerator Remote Condenser

True's solid door reach-in's



are designed with enduring
quality that protects your long
term investment.

Designed using the highest



quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, exceptional food safety
and the best value in today's
food service marketplace.

Oversized, factory balanced,



refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C) for the
best in food preservation.

Stainless steel solid door and



front. The nest stainless
available with higher tensile
strength for fewer dents and
scratches.

Adjustable, heavy duty PVC



coated shelves.

Positive seal self-closing



door. Lifetime guaranteed
door hinges and torsion type
closure system.

"No stoop" lower shelf.



Storage on top of cabinet.



T-23-RC

Rough-In Data

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Voltage

Specications subject to change without notice.

Crated

Amps for

Lights

Weight (lbs.)

(kg)L D H*

T-23-RC 1 3 27 29½ 78⁄ 115/60/1 2.2 240

686 750 1991 109

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.

ApprovAls: AvAilAble At:

8/11

Printed in U.S.A.

Model:

T-23-RC

T-Series:

Reach-In Solid Swing Door Refrigerator Remote
Condenser

StanDaRD FeatuReS

DESIGN

True's commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder
product temperatures, lower utility costs,
exceptional food safety and the best value in
today's food service marketplace.

REFRIGERATION SYSTEM

Remote cabinets (condensing unit supplied

•

by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information. All remote
units must be hard wired during installation.
Factory engineered Thermostatic expansion

•

valve system
Extra large evaporator coil maintains 33°F

•

to 38°F (.5°C to 3.3°C) for the best in food
preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
reach-in's a more ecient low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food
service environments.

CABINET CONSTRUCTION

Exterior - Stainless steel front. Anodized

•

quality aluminum ends, back and top.
Interior - attractive, NSF approved, white

•

aluminum liner. Stainless steel oor with
coved corners.

Insulation - entire cabinet structure and solid

•

door are foamed-in-place using Ecomate. A
high density, polyurethane insulation that
has zero ozone depletion potential (ODP)
and zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame Rail tted with 6" (153 mm) legs.

•

DOOR

Stainless steel exterior with white aluminum

•

liner to match cabinet interior. Door extends
full width of cabinet shell. Door lock
standard.
Lifetime guaranteed recessed door handle.

•

Door tted with 12" (305 mm) long recessed
handle that is foamed-in-place with a
sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing door. Lifetime

•

guaranteed door hinges and torsion type
closure system.
Magnetic door gasket of one piece

•

construction, removable without tools for
ease of cleaning.

SHELVING

Three (3) adjustable, heavy duty PVC coated

•

wire shelves 22 ⁄ "L x 23 ¼"D (582 mm x
591 mm). Four (4) chrome plated shelf clips
included per shelf.
Shelf support pilasters made of same

•

material as cabinet interior; shelves are
adjustable on ½ " (13 mm) increments.

LIGHTING

Incandescent interior lighting - safety

•

shielded. Lights activated by rocker switch
mounted above door.

MODEL FEATURES

Exterior temperature display.

•

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit is prewired and ready for the nal

•

connection to a 115/60/1 phase, 15 amp
circuit that will need to be made in the eld.
No power cord included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) seismic/anged legs. ❑
Alternate door hinging (factory installed). ❑
Additional shelves. ❑
Half door bun tray racks. Each holds up to ❑
eleven 18"L x 26"D (458 mm x 661 mm) sheet
pans (sold separately).
Full door bun tray rack. Holds up to twenty- ❑
two 18"L x 26"D (458 mm x 661 mm) sheet
pans (sold separately).
Self contained capillary tube system ❑

Plan VIew

One year warranty on all parts

WARRANTY

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

T-23-RC TFEY13E TFEY13S TFEY13P TFEY133
