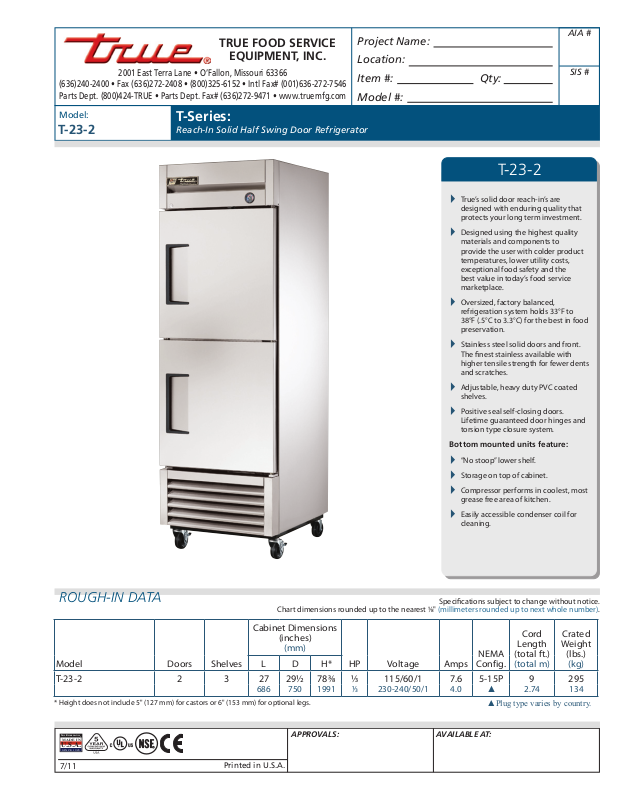

True T-23-2 User Manual

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

T-23-2

T-Series:

Reach-In Solid Half Swing Door Refrigerator

T-23-2

True’s solid door reach-in’s are



designed with enduring quality that
protects your long term investment.

Designed using the highest quality



materials and components to
provide the user with colder product
temperatures, lower utility costs,
exceptional food safety and the
best value in today’s food service
marketplace.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in food
preservation.

Stainless steel solid doors and front.



The nest stainless available with
higher tensile strength for fewer dents
and scratches.

Adjustable, heavy duty PVC coated



shelves.

Positive seal self-closing doors.



Lifetime guaranteed door hinges and
torsion type closure system.

Bottom mounted units feature:

”No stoop” lower shelf.



Storage on top of cabinet.



Compressor performs in coolest, most



grease free area of kitchen.

Easily accessible condenser coil for



cleaning.

Rough-In Data

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

T-23-2 2 3 27 29½ 78⁄ ⁄ 115/60/1 7.6 5-15P 9 295

686 750 1991 ⁄ 230-240/50/1 4.0 ▲ 2.74 134

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.

ApprovAls: AvAilAble At:

7/11

Printed in U.S.A.

▲Plug type varies by country.

Model:

T-23-2

T-Series:

Reach-In Solid Half Swing Door Refrigerator

StanDaRD FeatuReS

DESIGN

True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains 33°F to 38°F (.5°C to

3.3°C) for the best in food preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
reach-in’s a more ecient low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food service
environments.
Bottom mounted condensing unit positioned

•

for easy maintenance. Compressor runs in
coolest and most grease free area of the
kitchen. Allows for storage area on top of unit.

CABINET CONSTRUCTION

Exterior - Stainless steel front. Anodized

•

quality aluminum ends, back and top.
Interior - attractive, NSF approved, white

•

aluminum liner. Stainless steel oor with coved
corners.

Insulation - entire cabinet structure and solid

•

door are foamed-in-place using Ecomate. A
high density, polyurethane insulation that has
zero ozone depletion potential (ODP) and zero
global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with 4" (102 mm) diameter

•

stem castors - locks provided on front set.

DOORS

Stainless steel exterior with white aluminum

•

liners to match cabinet interior. Doors extend
full width of cabinet shell. Door locks standard.
Lifetime guaranteed recessed door handles.

•

Each door tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing doors. Lifetime

•

guaranteed door hinges and torsion type
closure system.
Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

Three (3) adjustable, heavy duty PVC coated

•

wire shelves 22 ⁄ "L x 23 ¼"D (582 mm x
591 mm). Four (4) chrome plated shelf clips
included per shelf.
Shelf support pilasters made of same material

•

as cabinet interior; shelves are adjustable on

½" (13 mm) increments.

LIGHTING

Incandescent interior lighting - safety shielded.

•

Lights activated by rocker switch mounted
above top doors.

MODEL FEATURES

Exterior temperature display.

•

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1 phase,
15 amp dedicated outlet. Cord and plug set
included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

230 - 240V / 50 Hz. ❑
6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
Alternate door hinging (factory installed). ❑
Additional shelves. ❑
Half door bun tray racks. Each holds up to ❑
eleven 18"L x 26"D (458 mm x 661 mm) sheet
pans (sold separately).
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information. All remote
units must be hard wired during installation.

Plan VIew

One year warranty on all parts

WARRANTY

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

T-23-2 TFGY17E TFGY07S TFEY03P TFGY173
