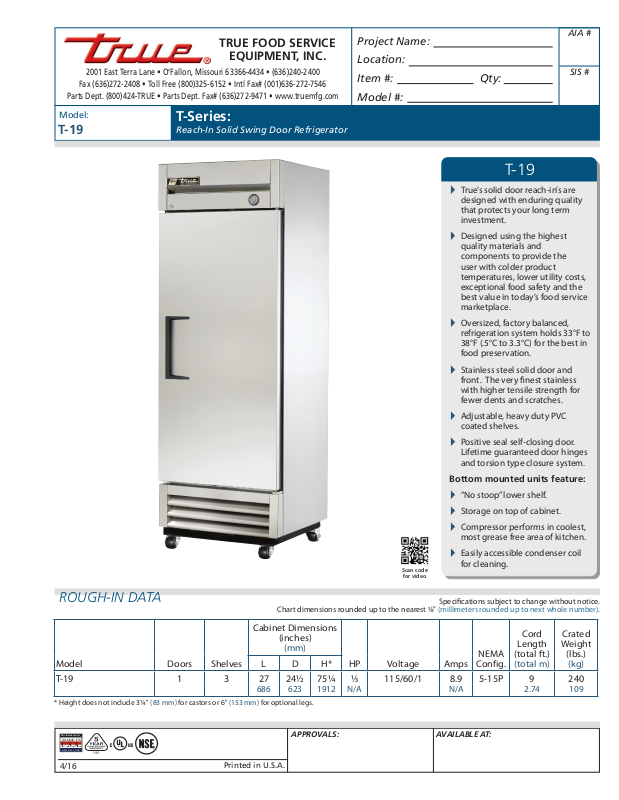

True T-19 User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

T-19

T-Series:

Reach-In Solid Swing Door Refrigerator

Scan cod e

for video

T-19

True’s solid door reach-in’s are



designed with enduring quality
that protects your long term
investment.

Designed using the highest



quality materials and
components to provide the
user with colder product
temperatures, lower utility costs,
exceptional food safety and the
best value in today’s food service
marketplace.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in
food preservation.

Stainless steel solid door and



front. The very nest stainless
with higher tensile strength for
fewer dents and scratches.

Adjustable, heavy duty PVC



coated shelves.

Positive seal self-closing door.



Lifetime guaranteed door hinges
and torsion type closure system.

Bottom mounted units feature:

”No stoop” lower shelf.



Storage on top of cabinet.



Compressor performs in coolest,



most grease free area of kitchen.

Easily accessible condenser coil



for cleaning.

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

T-19 1 3 27 24½ 75¼ ⁄ 115/60/1 8.9 5-15P 9 240

686 623 1912 N/A N/A 2.74 109

* Height does not include 3¼" (83 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

4/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

T-19

T-Series:

Reach-In Solid Swing Door Refrigerator

STANDARD FEATURES

DESIGN

True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder
product temperatures, lower utility costs,
exceptional food safety and the best value
in today’s food service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains 33°F to 38°F (.5°C to

3.3°C) for the best in food preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
reach-in’s a more ecient low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food
service environments.
Bottom mounted condensing unit

•

positioned for easy maintenance.
Compressor runs in coolest and most grease
free area of the kitchen. Allows for storage
area on top of unit.

CABINET CONSTRUCTION

Exterior - Stainless steel front. Anodized

•

quality aluminum ends, back and top.
Interior - attractive, NSF approved, clear

•

coated aluminum liner. Stainless steel oor
with coved corners.

Insulation - entire cabinet structure and

•

solid door are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with 2½" (64 mm) diameter

•

stem castors - locks provided on front set.

DOOR

Stainless steel exterior with white aluminum

•

liner to match cabinet interior. Door
extends full width of cabinet shell. Door lock
is standard.
Lifetime guaranteed recessed door handle.

•

Door tted with 12" (305 mm) long recessed
handle that is foamed-in-place with a
sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing door. Lifetime

•

guaranteed door hinges and torsion type
closure system.
Magnetic door gasket of one piece

•

construction, removable without tools for
ease of cleaning.

SHELVING

Three (3) adjustable, heavy duty PVC coated

•

wire shelves 22 ⁄"L x 18 ¼"D (582 mm x
464 mm). Four (4) chrome plated shelf clips
included per shelf.
Shelf support pilasters made of same

•

material as cabinet interior; shelves are
adjustable on ½ " (13 mm) increments.

LIGHTING

Interior lighting - safety shielded. Lights

•

activated by rocker switch mounted above
door.

MODEL FEATURES

Exterior temperature display.

•

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ Additional shelves.

Beginning in October of 2014, True Manufacturing began the

process of changing the standard interior nishes on select

products. The interior liners of these units have changed from the

traditional NSF-approved white aluminum to an NSF-approved clear

coated aluminum that is silver in color. In addition, the traditional
white PVC coated shelves have been switched to a gray PVC coating.
There are no functional dierences created by any of these changes,
the dierence is only in the appearance. The following product lines

are aected by this change: T-Series, TUC, TWT, TSSU, TFP, TPP, TMC,

TRCB. A sticker will be placed on the outside packaging so that units

*CABINET INTERIOR

with this change can be identied in inventory.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

T-19 TFE045E TFE045S TFE015P TFE0453
