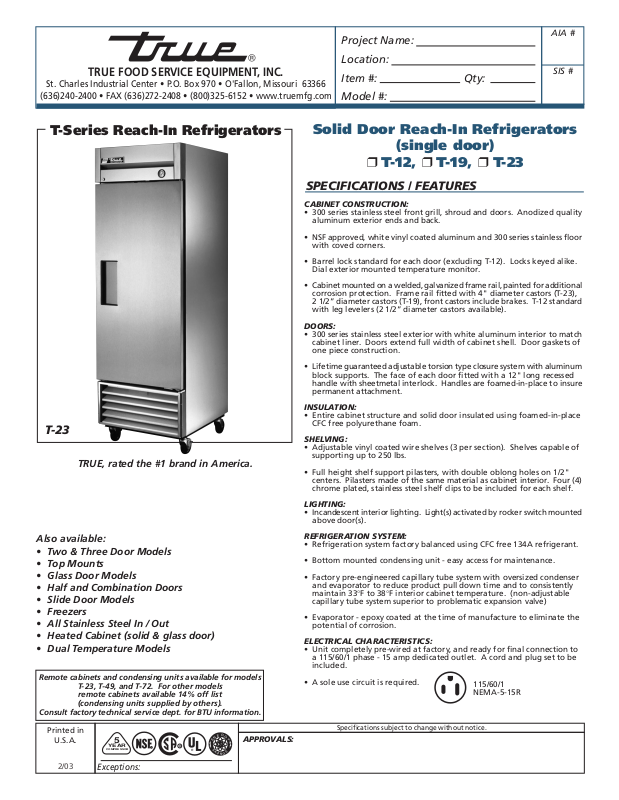

True T-12 User Manual

TRUE FOOD SERVICE EQUIPMENT, INC.

St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366

(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

T-Series Reach-In Refrigerators

T-23

TRUE, rated the #1 brand in America.

Also available:

• Two & Three Door Models

• Top Mounts

• Glass Door Models

• Half and Combination Doors

• Slide Door Models

• Freezers

• All Stainless Steel In / Out

• Heated Cabinet (solid & glass door)

• Dual Temperature Models

Remote cabinets and condensing units available for models

Consult factory technical service dept. for BTU information.

Printed in

T-23, T-49, and T-72. For other models remote cabinets available 14% off list (condensing units supplied by others).

U.S.A.

2/03

YEAR

COMPRESSOR

Exceptions:

APPROVALS:

Solid Door Reach-In Refrigerators

(single door)

❒ T-12, ❒ T-19, ❒ T-23

SPECIFICATIONS / FEATURES

CABINET CONSTRUCTION:

• 300 series stainless steel front grill, shroud and doors. Anodized quality aluminum exterior ends and back.

• NSF approved, white vinyl coated aluminum and 300 series stainless floor with coved corners.

• Barrel lock standard for each door (excluding T-12). Locks keyed alike. Dial exterior mounted temperature monitor.

• Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection. Frame rail fitted with 4" diameter castors (T-23), 2 1/2” diameter castors (T-19), front castors include brakes. T-12 standard with leg levelers (2 1/2” diameter castors available).

DOORS:

• 300 series stainless steel exterior with white aluminum interior to match cabinet liner. Doors extend full width of cabinet shell. Door gaskets of one piece construction.

• Lifetime guaranteed adjustable torsion type closure system with aluminum block supports. The face of each door fitted with a 12" long recessed handle with sheetmetal interlock. Handles are foamed-in-place to insure permanent attachment.

INSULATION:

• Entire cabinet structure and solid door insulated using foamed-in-place CFC free polyurethane foam.

SHELVING:

• Adjustable vinyl coated wire shelves (3 per section). Shelves capable of supporting up to 250 lbs.

• Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.

LIGHTING:

• Incandescent interior lighting. Light(s) activated by rocker switch mounted above door(s).

REFRIGERATION SYSTEM:

• Refrigeration system factory balanced using CFC free 134A refrigerant.

• Bottom mounted condensing unit - easy access for maintenance.

• Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain 33°F to 38°F interior cabinet temperature. (non-adjustable capillary tube system superior to problematic expansion valve)

• Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included.

• A sole use circuit is required.

Specifications subject to change without notice.

115/60/1 NEMA-5-15R

T-Series: Solid Door Reach-In Refrigerators (single door)

25"

L - 64 cm D - 59 cm H - 163 cm Door Swing - 59 cm

23"

27"

L - 69 cm D - 63 cm H - 199 cm Door Swing - 65 cm

L - 69 cm D - 75 cm

⁄16

H - 199 cm Door Swing - 65 cm

TRUE

⁄4

/16

63"

T-12 T-19 T-23

⁄4

⁄2

⁄4

27"

Rough-In Data

Dimensions Cord

Capacity # of (inches) NEMA Length Crated Model Doors (Cu. Ft) Shelves L D H* HP Volts PH Amps Config. (feet) Weight T-12

(1)

T-19

(1)

T-23

(1, 2)

(1) Available with full glass doors (2) Available with solid half doors, glass half doors & combination solid/glass half doors

* Height does not include 5” for castor height or 6” for optional legs on T-23;

3 1/4” for castors on T-19, legs available; T-12 standard with leg levelers, available with optional 2 1/2” diameter castors, legs not available.

1 12 3 25 23 64 1/5 115 1 4.9 5-15 6 180 1 19 3 27 24 1/2 78 1/3 115 1 5.0 5-15 9 218 1 23 3 27 29 1/2 78 1/4 1/3 115 1 7.5 5-15 9 254

Specifications subject to change without notice.

Standard Features____________________________________________________________________________________________

• Oversized and balanced, environmentally friendly (134A) refrigeration system holds 33°F to 38°F.

• 300 series stainless steel doors & front.

• Interior - NSF approved, white vinyl

coated aluminum sides and top, 300 series stainless steel floor with coved corners.

• Anodized quality aluminum top, sides and back.

• Lifetime guaranteed recessed handles.

• Exterior mounted temperature monitor.

(not available for T-12).

• Door locks (not available for T-12).

Model Front Right Plan 3D

KCL

St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com

T-12 TFEY10E TFEY10S TFEY10P TFEY103 T-19 TFE015E TFE015S TFE015P TFE0153 T-23 TFEY03E TFEY03S TFEY03P TFEY033

• Magnetic door gaskets.

• Adjustable vinyl coated wire shelves.

• Epoxy coated evaporator.

• Incandescent interior lighting (fluorescent

interior lighting for glass door models).

• Foamed-in-place high density polyurethane insulation (CFC free).

• T-23: 4" diameter swivel castors standard equipment - locking castors provided for front set.

• T-19: 2 1/2” diameter castors standard equipment.

• T-12: leg levelers standard.

TRUE FOOD SERVICE EQUIPMENT

• Slide out compressor can be serviced easily and accessed by a single repairman.

• 1 year parts & labor warranty (USA).

• 5 year compressor warranty.

Optional Accessories_______________

❒ Available with 6" stainless steel or optional

seismic legs (not available for the T-12)

❒ Additional shelves available. ❒ Remote condenser available for T-23. ❒ Left hinge door available for T-23; no charge

(not field reversible).

Clearance Required For Coolers (USA)

Sides Top* Rear

Inches/mm Inches/mm Inches/mm

0 / 0 1 / 26 1 / 26

* T-12 only.
