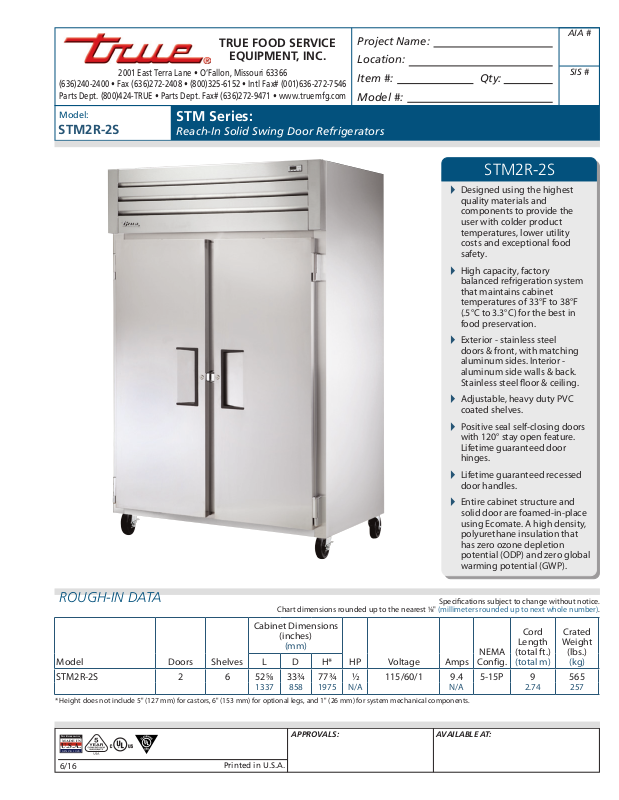

True STM2R-2S User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

STM2R-2S

STM Series:

Reach-In Solid Swing Door Refrigerators

STM2R-2S

Designed using the highest



quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs and exceptional food
safety.

High capacity, factory



balanced refrigeration system
that maintains cabinet
temperatures of 33°F to 38°F
(.5°C to 3.3°C) for the best in
food preservation.

Exterior - stainless steel



doors &front, with matching
aluminum sides. Interior ­aluminum side walls &back.
Stainless steel oor &ceiling.

Adjustable, heavy duty PVC



coated shelves.

Positive seal self-closing doors



with 120°stay open feature.
Lifetime guaranteed door
hinges.

Lifetime guaranteed recessed



door handles.

Entire cabinet structure and



solid door are foamed-in-place
using Ecomate. A high density,
polyurethane insulation that
has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

STM2R-2S 2 6 52⁄ 33¾ 77¾ ½ 115/60/1 9.4 5-15P 9 565

1337 858 1975 N/A N/A 2.74 257

* Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs, and 1" (26 mm) for system mechanical components.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

6/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

STM2R-2S

STM Series:

Reach-In Solid Swing Door Refrigerators

STANDARD FEATURES

DESIGN

True’s solid door reach-in’s are designed with

•

enduring quality that protects your long term
investment.
Designed using the highest quality materials

•

and components to provide the user with
colder product temperatures, lower utility
costs and exceptional food safety.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
High capacity, factory balanced refrigeration

•

system that maintains cabinet temperatures of
33°F to 38°F (.5°C to 3.3°C) for the best in food
preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
reach-in’s a more ecient low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
Top mounted refrigeration system with

•

evaporator positioned out of food zone.

CABINET CONSTRUCTION

Insulation - entire cabinet structure and solid

•

door are foamed-in-place using Ecomate. A
high density, polyurethane insulation that has
zero ozone depletion potential (ODP) and zero
global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
5" (127 mm) diameter plate castors - locks

•

provided on front set.

DOORS

Stainless steel exterior and liner. Doors

•

open within cabinet dimension. Door locks
standard.
Lifetime guaranteed recessed door handles.

•

Doors tted with 12" (305 mm) long recessed
handle that is foamed-in-place with a
sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing doors with 120°stay

•

open feature. Lifetime guaranteed door
hinges.
Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

Six (6) heavy duty PVC coated wire shelves

•

25" x 27 ¾" (635 mm x 705 mm). Four (4)
shelf clips included per shelf (eld installed).
Shelves adjustable on ½" (13 mm) increments.

LIGHTING

Interior lighting, safety shielded.

•

MODEL FEATURES

Exterior digital temperature display, available

•

with either °F or °C .
Evaporator epoxy coated to eliminate the

•

potential of corrosion
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1 phase,
15 amp dedicated outlet. Cord and plug set
included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs
❑ 6" (153 mm) seismic/anged legs
❑ 6" (153 mm) stainless steel legs
❑ Additional shelves

SHELVING KIT OPTIONS

❑ Kit #1: Nine (9) sets of #1 type tray slides and

pilasters (eld installed), bottom support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.

❑ Kit #2: One (1) set half-section #2 steel rod

tray slides and pilasters (eld installed), rim
support of one (1) 18"L x 26"D (458 mm x 661
mm) pan.

❑ Kit #3: Six (6) sets of universal type tray slides

and pilasters (eld installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan,
two (2) 14"L x 18"D (356 mm x 458 mm) pans
or two (2) 12"L x 20"D (305 mm x 508 mm)
pans.

❑ Kit #4: Three (3) chrome shelves 25"L x

27 ¾"D (635 mm x 705 mm). Four (4) shelf
supports included per shelf (eld installed);
adjustable on 6" (153 mm) increments.
Optional wall mounted shelf support pilasters
(eld installed) with four (4) shelf clips per
shelf available; adjustable on ½" (13 mm)
increments (must order at time of cabinet
order).

❑ Additional kit option components available

individually.

PLAN VIEW

525/8"

(1337 mm)

143/8"

(366 mm)

61/8"

(156 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

ELEVATION

*

5"

(127 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

SPECIFICATIONS SUBJECT TO CHANGE

11/2"

(39 mm)

773/4"

(1975 mm)

5915/16"

(1523 mm)

841/8"

(2137 mm)

NEAREST WHOLE MILLIMETER

WITHOUT NOTICE

31"

(788 mm)

KCL

333/4"

(858 mm)

Model Elevation Right Plan 3D Back

STM2R-2S

TRUE FOOD SERVICE EQUIPMENT

5619/32"

(1438 mm)

2519/32"

(651 mm)

PLAN VIEWRIGHT VIEW

525/8"

(1337 mm)

333/4"

(858 mm)

231/32"

(585 mm)
