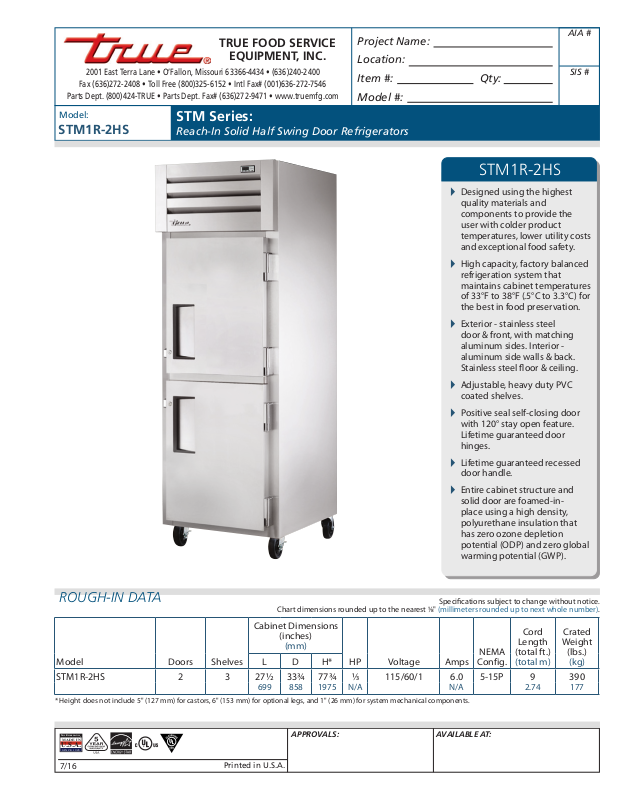

True STM1R-2HS User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

STM1R-2HS

STM Series:

Reach-In Solid Half Swing Door Refrigerators

STM1R-2HS

Designed using the highest



quality materials and
components to provide the
user with colder product
temperatures, lower utility costs
and exceptional food safety.

High capacity, factory balanced



refrigeration system that
maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C) for
the best in food preservation.

Exterior - stainless steel



door &front, with matching
aluminum sides. Interior ­aluminum side walls &back.
Stainless steel oor &ceiling.

Adjustable, heavy duty PVC



coated shelves.

Positive seal self-closing door



with 120°stay open feature.
Lifetime guaranteed door
hinges.

Lifetime guaranteed recessed



door handle.

Entire cabinet structure and



solid door are foamed-in­place using a high density,
polyurethane insulation that
has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

STM1R-2HS 2 3 27½ 33¾ 77¾ ⁄ 115/60/1 6.0 5-15P 9 390

699 858 1975 N/A N/A 2.74 177

* Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs, and 1" (26 mm) for system mechanical components.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

7/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

STM1R-2HS

STM Series:

Reach-In Solid Half Swing Door Refrigerators

STANDARD FEATURES

DESIGN

True’s solid door reach-in’s are designed with

•

enduring quality that protects your long term
investment.
Designed using the highest quality materials

•

and components to provide the user with
colder product temperatures, lower utility costs
and exceptional food safety.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
High capacity, factory balanced refrigeration

•

system that maintains cabinet temperatures of
33°F to 38°F (.5°C to 3.3°C) for the best in food
preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
reach-in’s a more ecient low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
Top mounted refrigeration system with

•

evaporator positioned out of food zone.

CABINET CONSTRUCTION

Insulation - entire cabinet structure and solid

•

door are foamed-in-place using Ecomate. A
high density, polyurethane insulation that has
zero ozone depletion potential (ODP) and zero
global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
5" (127 mm) diameter plate castors - locks

•

provided on front set.

DOORS

Stainless steel exterior and liner. Doors open

•

within cabinet dimension. Door locks standard.
Lifetime guaranteed recessed door handles.

•

Doors tted with 12" (305 mm) long recessed
handle that is foamed-in-place with a
sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing door with 120°stay

•

open feature. Lifetime guaranteed door
hinges.
Magnetic door gasket of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

Three (3) heavy duty PVC coated wire shelves

•

25" x 27 ¾" (635 mm x 705 mm). Four (4) shelf
clips included per shelf (eld installed). Shelves
adjustable on ½" (13 mm) increments.

LIGHTING

Interior lighting, safety shielded.

•

MODEL FEATURES

Exterior digital temperature display, available

•

with either °F or °C .
Evaporator epoxy coated to eliminate the

•

potential of corrosion
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1 phase,
15 amp dedicated outlet. Cord and plug set
included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs
❑ 6" (153 mm) seismic/anged legs
❑ 6" (153 mm) stainless steel legs
❑ Additional shelves
❑ Field reversible hinging

SHELVING KIT OPTIONS

❑ Kit #1: Nine (9) sets of #1 type tray slides and

pilasters (eld installed), bottom support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.

❑ Kit #2: One (1) set half-section #2 steel rod tray

slides and pilasters (eld installed), rim support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan.

❑ Kit #3: Six (6) sets of universal type tray slides

and pilasters (eld installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan,
two (2) 14"L x 18"D (356 mm x 458 mm) pans or
two (2) 12"L x 20"D (305 mm x 508 mm) pans.

❑ Kit #4: Three (3) chrome shelves 25"L x 27¾ "D

(635 mm x 705 mm). Four (4) shelf supports
included per shelf (eld installed); adjustable
on 6" (153 mm) increments. Optional wall
mounted shelf support pilasters (eld installed)
with four (4) shelf clips per shelf available;
adjustable on ½" (13 mm) increments (must
order at time of cabinet order).

❑ Additional kit option components available

individually.

PLAN VIEW

1

271/2"

(699 mm)

143/8"

(366 mm)

5915/16"

(1523 mm)

61/8"

(156 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

ELEVATION

*

/4"

(7 mm)

773/4"

(1975 mm)

841/8"

(2137 mm)

5"

(127 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

TRUE FOOD SERVICE EQUIPMENT

31"

(788 mm)

KCL

KCL

333/4"

(858 mm)

5619/32"

(1438 mm)

2519/32"

(651 mm)

Model Elevation Right Plan 3D Back

STM1R-2HS

PLAN VIEWRIGHT VIEW

271/2"

(699 mm)

(858 mm)

231/32"

(585 mm)

333/4"
