Chapter 1: Safety Instructions
Chapter 5: Customer Service
TABLE OF CONTENTS
Safety Instructions 1
Space Requirements 3
Working Dimensions 3
Warning Decals 4
Proper Training Position 5
Chapter 2: Assembly Instructions
Pre-Assembly Check List 7
Assembly Steps 10
Chapter 3: Product Overview
Product Overview 23
Chapter 4: Care & Maintenance
Care & Maintenance 24
Daily Inspection & Maintenance 24
Weekly Inspection & Maintenance 24
Other Scheduled Preventive Maintenance 25
Cleaning the Equipment 25
Cable Inspection & Maintenance 26
:
Contacting Service 28
Contacting Sales 28
Reporting Freight Claims or Parts Damage 29
Chapter 6: Additional Information
Specification Sheet 30
Warranty Registration 32
Truefitness.com / 800.426.6570 / 636.272.7100
CHAPTER 1: SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE SAFETY INSTRUCTIONS
Force series strength equipment is intended for a commercial or institutional setting. This owner’s manual should be accessible to
all personal trainers, staff members, and members.
WARNING: All EXERCISERS MUST READ ALL INSTRUCTIONS BEFORE USING STRENGHT EQUIPMENT.
WARNING: Over-exercising may result in serious injury or death. If you feel faint, stop exercising immediately.
WARNING: Equipment should be immediately taken out of use if it fails to work properly or when a warning is
presented electronically.
TRUE STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program,
particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high
cholesterol, is obese or has not exercised regularly in the past year. Additionally, TRUE recommends consulting a fitness
professional on the correct use of this product. If at any time while exercising the user experiences faintness, dizziness, pain or
shortness of breath, he or she must stop immediately.
WARNING: To reduce the risk of injury, facility personnel should inspect the equipment daily for potential issue, such
as loose hardware, worn or frayed cables, cracked pulleys or welds.
WARNING: To reduce the risk of injury, facility personnel should provide direct supervision of the use of strength
equipment and provide knowledge about the safe operation of the equipment to users if they recognize potential issues.
WARNING: Do not move the equipment by lifting the moving arms, plates or adjustment handles/knobs.
WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other
reproductive harm.
*for additional information visit http://oehha.ca.gov/prop65
WARNING: Keep equipment stable on flat ground. True Fitness recommends for all strength equipment to be bolted down to
the floor to avoid toppling during improper use.
WARNING: Replace warning labels that may be worn, damaged or missing.
WARNING: Replace any non-working or damaged components; remove the unit from service until repair is performed.
WARNING: To reduce the risk of injury to persons, follow these instructions:
• Do not attempt to free any jammed equipment without appropriate assistance.
• Do not use strength equipment if the top plate or weight stack is pined in a raised position.
• Do not use strength equipment if the weight stack selector pin is bent or damaged.
• Do not place the equipment in a wet location or outdoors.
• Do not use equipment if dropped or otherwise damaged.
• Do not attempt to lift more weight than you can control safely.
Do not operate the equipment while being covered with a blanket, plastic, or anything that restricts operation.
WARNING: Risk of personal injury-crushing hazard when strength equipment is in operation - Keep feet, hands,
and fingers away from moving parts.
Truefitness.com / 800.426.6570 / 636.272.7100 1
CHAPTER 1: SAFETY INSTRUCTIONS
CAUTION:
• Health related injuries may result from incorrect or excessive use of exercise equipment.
• Take care when getting on or off and strength equipment.
• If you do not understand how to use/operate a piece of equipment seek assistance from facility staff or trainer to
demonstrate safe and proper use.
• Any changes or modifications to this equipment could void the product warranty.
• Do not use this product in areas where aerosol spray products are being used or where oxygen is being administered.
Such substances create the danger of combustion and explosion.
• Always all posted safety instructions and warnings for proper operation. Close supervision is necessary when used near
children under the age of 15, or disabled persons.
• Do not use this product outdoors, near water, while wet, or in areas of high humidity including extreme temperature
changes.
• Never insert objects into any openings in this product. If an object should drop inside, carefully retrieve it. If the item
cannot be reached, contact TRUE Customer Service.
• Never place liquids of any type directly on the unit except in the accessory tray or bottle holders. Containers with lids are
recommended.
• Wear shoes with rubber or high traction soles. Do not use shoes with heels, leather soles, cleats or spikes. Make sure no
stones are embedded in the soles. Do not use this product in bare feet. Keep all loose clothing, shoelaces and towels away
from moving parts.
• Do not reach into or underneath the unit, or tip it on its side during operation.
• Use correct ergonomic positioning while operating strength equipment.
• Do not allow animals on or near the equipment while in operation.
• Do not exceed maximum user weight of 300 lbs. (136 kg).
• Avoid exiting strength equipment if any part is still in motion.
• Do not use if you have a cold or fever.
• When using this exercise machine, basic precautions should always be followed.
• Use this equipment only for its intended use as described in this manual.
• Do not use attachments not recommended by the manufacturer.
• Allow only trained personnel to service this equipment.
• Avoid the possibility of bystanders being struck or caught between moving parts by making sure that they are out of
reach while equipment is in motion.
• Allow only one person at a time on the equipment while it’s in operation.
• It is the sole responsibility of the owner/operator to ensure regular and scheduled maintenance is performed.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Always check the equipment before using it. If you spot a potential problem, contact the facility staff immediately
• Do not drop or slam the weight stack while exercising.
• Do not use equipment or attempt to fix if broken or jammed.
• Do not use the equipment for support during stretching.
• Do not use any other means other than the one provided to incrementally increase the weight resistance.
• Always check that the weight selector pin is fully inserted into the weight stack before using.
Truefitness.com / 800.426.6570 / 636.272.7100 2
CHAPTER 1: SAFETY INSTRUCTIONS
SPACE REQUIREMENTS:
TRUE’s recommendation is to leave a 40” (1.0m) safety zone on all sides of the unit.
Additionally for Functional Trainers there should be enough room left for full extension of all cable in all directions. (See Fig 1)
WORKING DIMENSIONS:
Truefitness.com / 800.426.6570 / 636.272.7100 3
CHAPTER 1: SAFETY INSTRUCTIONS
WARNING DECALS:
WARNING: Replace warning labels that may be worn, damaged or missing.
*To replace any worn or missing warning decals contact TRUE FITNESS by one of the following: www.truefitness.com or contact
customer service at 800-883-8783.
Truefitness.com / 800.426.6570 / 636.272.7100 4
CHAPTER 1: SAFETY INSTRUCTIONS
Target Muscles: Chest:
Target Muscles: Shoulders:
BC A
B D C
A
PROPER TRAINING POSITION:
A. Select appropriate weight.
B. Adjust back pad and press arm for desired ches
exercise.
C. Grasp handles and push forward.
D. Perform the exercise in a slow controlled manner.
A. Select appropriate weight.
B. Adjust back pad and press arm for shoulder
exercise.
C. Adjust seat so the handles align with shoulders.
D. Grasp handles and push upward.
E. Perform the exercise in a slow controlled manner.
t
Truefitness.com / 800.426.6570 / 636.272.7100 5
CHAPTER 2: ASSEMBLY GUIDE
• Read all instructions before using the equipment. These instructions are written to ensure the
IMPORTANT SAFETY INSTRUCTIONS
user’s safety and to protect the unit.
• Do not allow children on or near the equipment.
• Use the equipment only for its intended purpose as described in this guide.
• Do not use accessory attachments that are not recommended by
cause injuries or damage the machine.
• Wear proper exercise clothing and shoes for a workout.
• Use caution when entering and exiting the machine.
• Never attempt to exceed your personal performance capabilities.
• If you feel any pain or become dizzy, stop your workout immediately
attention.
• Never attempt to operate the unit if you suspect that it is not working properly or appears
damaged.
• Only allow authorized TRUE service providers to repair the machine.
• Never drop or insert anything into any opening in the equipment.
• Always inspect the unit and its cables before each use. Make sure that all
• Fasteners and cables are secure and in good working condition.
• Frayed or worn cables can be dangerous and may cause injury.
for any indication of wear.
• Keep hands, limbs, loose clothing and hair well out of the way of
• Never attempt to use this machine if it is not on stable, level and dry surface.
the manufacturer as they may
and seek medical
Periodically check these cables
moving parts.
Personal Safety During Assembly:
• Read each step in the assembly instructions and follow the steps in
ahead, you may learn later that
equipment.
• Assemble and operate the equipment on a solid, level and dry surface. Locate the
an open area to provide easy access.
• Before beginning assembly please take the time to read instructions
• The assembly of this product requires two people to ensure that it is safely and properly assembled.
• Please use the various lists in this manual to make sure that all parts have been included in your shipment.
• When ordering, use part number and description from the lists. Use only True Fitness replacement part when
servicing. Failure to do so will void your warranty and could result in personal injury or damage your machine.
• This equipment is designed to provide the smoothest, most effective
should check all functions to ensure correct operation. If you experience problems, first recheck the assembly
instructions to locate any possible errors made during assembly. If you are unable to correct the problem, call
your authorized dealer. Be sure to have your serial number and this manual when calling. When all parts have
been accounted for, continue on.
you have to disassemble components and that you may have damaged
sequence. Do not skip ahead. If you skip
unit a few feet from walls in
thoroughly.
exercise motion possible. After assembly, you
the
Truefitness.com / 800.426.6570 / 636.272.7100 6
CHAPTER 2: ASSEMBLY GUIDE
Item No.
Description
QTY.
1
Main Frame
1
2
Press Arm
1
3
Pivoting Pulley Carriage
1 4 Head Pad
1 5 Back Pad
1 6 Seat Pad
1 7 Hardware Kit
1
PRE-ASSEMBLY CHECKLIST:
Box One Contents:
Truefitness.com / 800.426.6570 / 636.272.7100 7
CHAPTER 2: ASSEMBLY GUIDE
Item No.
Description
QTY.
1
Weight Stack Frame
1
2
Cross Member
1
3
Bottom Cross Member
1 4 Guide Rod
2 5 Left Rear Shroud Retention Plate
1 6 Right Rear Shroud Retention Plate
1 7 Stabilizer Foot.
1
PRE-ASSEMBLY CHECKLIST:
Box Two Contents:
Truefitness.com / 800.426.6570 / 636.272.7100 8
CHAPTER 2: ASSEMBLY GUIDE
10 LB Weight Plate Box
(4) x 10lb. Weight Plates
15 LB Weight Plate Box
(4) x 15 lb. Weight plates
Item No.
Description
QTY.
1
Accessory Tray
1
2
Placard Frame
1
3
Outer Shield Cap
1 4 Back Shroud
1 5 Front Shroud
1
PRE-ASSEMBLY CHECKLIST:
Box Three Contents:
Weight Plate Cartons:
Weight Plates are packaged (4) per box. The shipment should contain (4) Boxes of weight plates for a total of 16 weight
plates. The weight plates are available in two different sizes: 10 lbs. and 15 lbs. The 10 lbs. plates are used for the standard
weight stack and the 15 lbs. plates are used for the heavy weight stack. Ensure the correct weight stack is being installed on
this machine. *The Top Plate and Selector Rod are packaged separately.
Top Plate & Selector Rod
Truefitness.com / 800.426.6570 / 636.272.7100 9
OR
CHAPTER 2: ASSEMBLY GUIDE
1. Attach 2 Adjustable Foot Plates to the bottom
ITEM
Description
Qty
62
Flat Washer M10
9
83
Spring Washer M10
2
86
Lock Nut M10
3
103
Button Head Hex Socket Bolt M10*25
2
105
Hex Bolt M10*95
2
106
Hex Bolt M10*100
1
107
Hex Bolt M10*110
1
103
Weight Stack Frame
Cross Member
Stability Foot
Bottom Cross Member
83
105
62
62
Adjustable Foot Plate
62
86
107
83
62
105
106
UNIT ASSEMBLY STEPS:

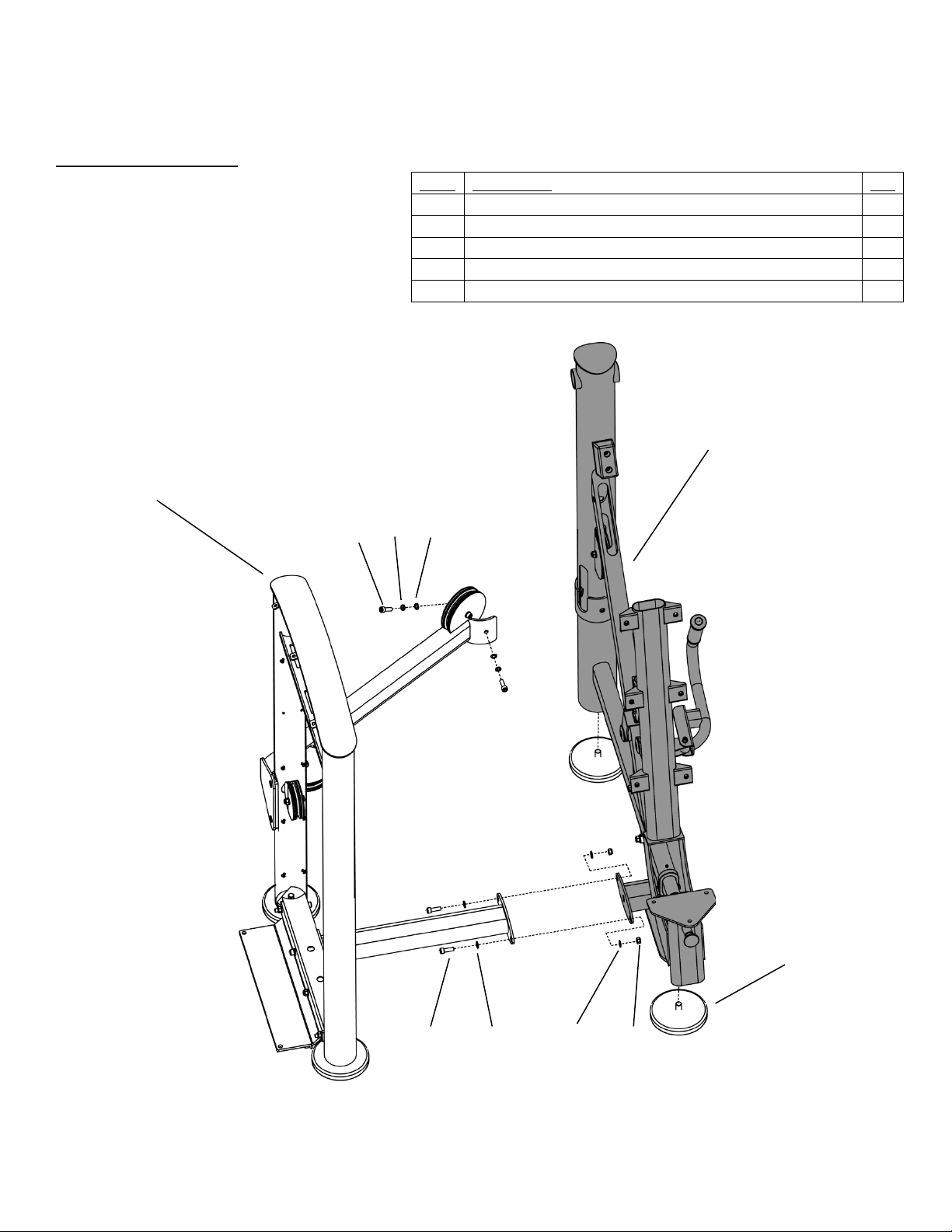

STEP 1 Frame Assembly:
of the Weight Stack Frame.
2. Secure the Bottom Cross Member, Cross
Member and Stability Foot to the Weight Tower
Frame as shown.
Truefitness.com / 800.426.6570 / 636.272.7100 10
CHAPTER 2: ASSEMBLY GUIDE
1. Install the Main Frame as shown.
ITEM
Description
Qty
62
Flat Washer M10
4
63
Curved Washer M10
2
83
Spring Washer M10
2
86
Lock Nut M10
2
88
Button Head Hex Socket Bolt M10X30
4
Weight Stack Frame
Adjustable Foot Plate
86
63
88
83
Main Frame
62
62
88
UNIT ASSEMBLY STEPS (continued):
STEP 2 Main Frame:
Truefitness.com / 800.426.6570 / 636.272.7100 11
CHAPTER 2: ASSEMBLY GUIDE

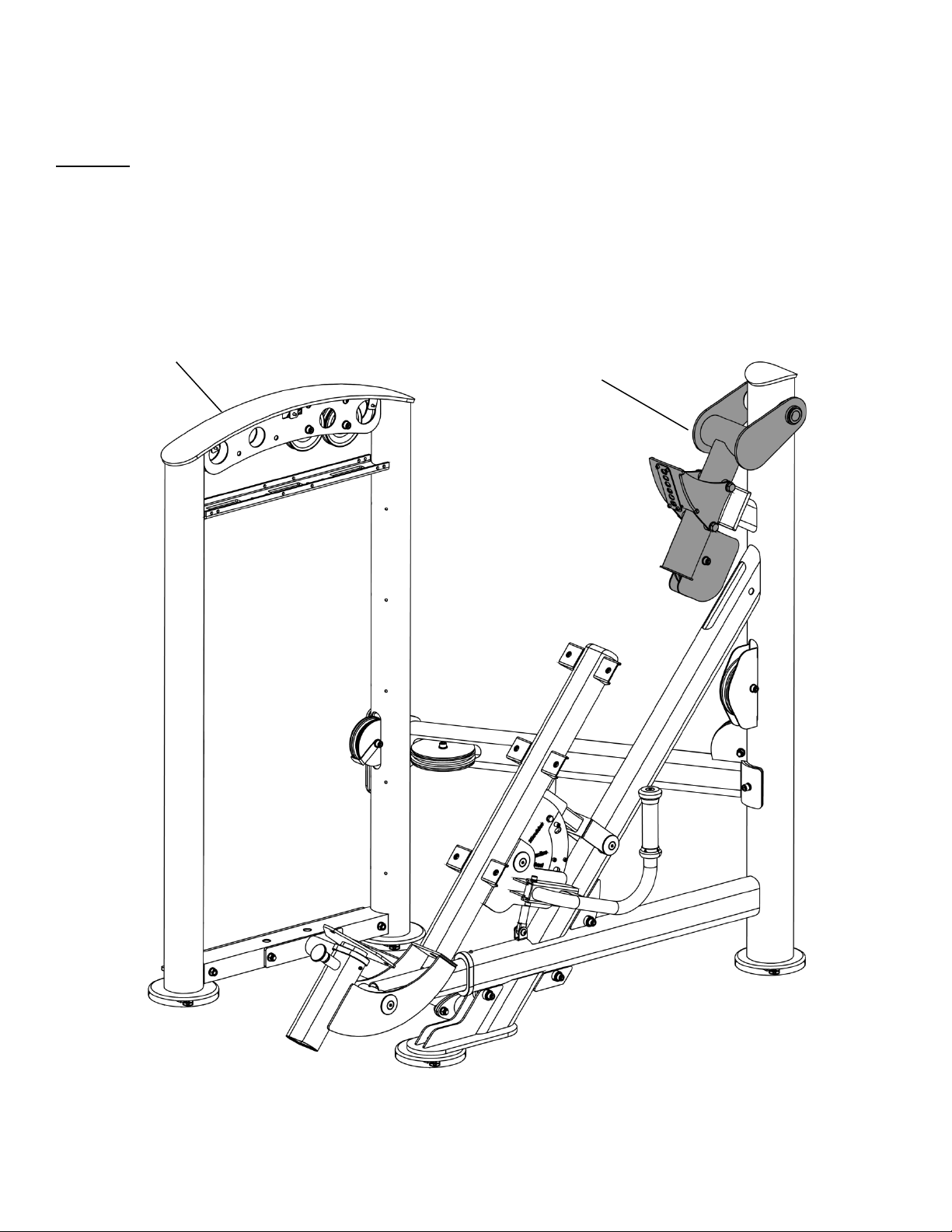

1. Lift the Pivoting Pulley Carriage into place
Weight Tower Frame
Pivoting Pulley Carriage
UNIT ASSEMBLY STEPS (continued):
STEP 3 :
2. Hold the Pivoting Pulley Carriage in place
throughout step 4
Truefitness.com / 800.426.6570 / 636.272.7100 12
CHAPTER 2: ASSEMBLY GUIDE

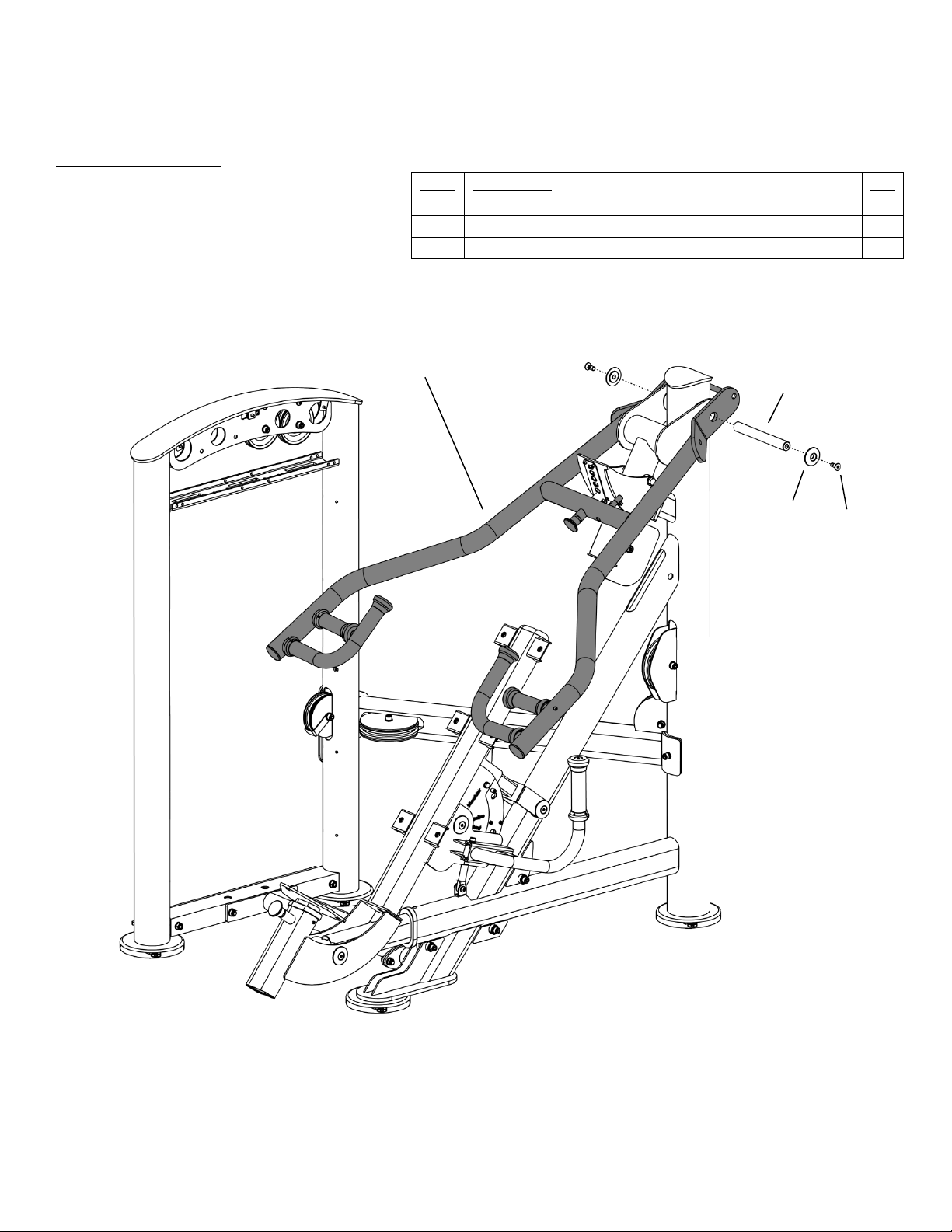

1. Install the Press Arm over Pivoting Pulley
ITEM
Description
Qty
20
Shaft 25*206*M10
2
49
End Cap 50*11*8.1
2
89
Countersunk Hex Socket Bolt M10X25
2
49
89
Main Bracket
20
UNIT ASSEMBLY STEPS (continued):
STEP 4 Press Arm:
Carriage and secure as shown.
Truefitness.com / 800.426.6570 / 636.272.7100 13
CHAPTER 2: ASSEMBLY GUIDE

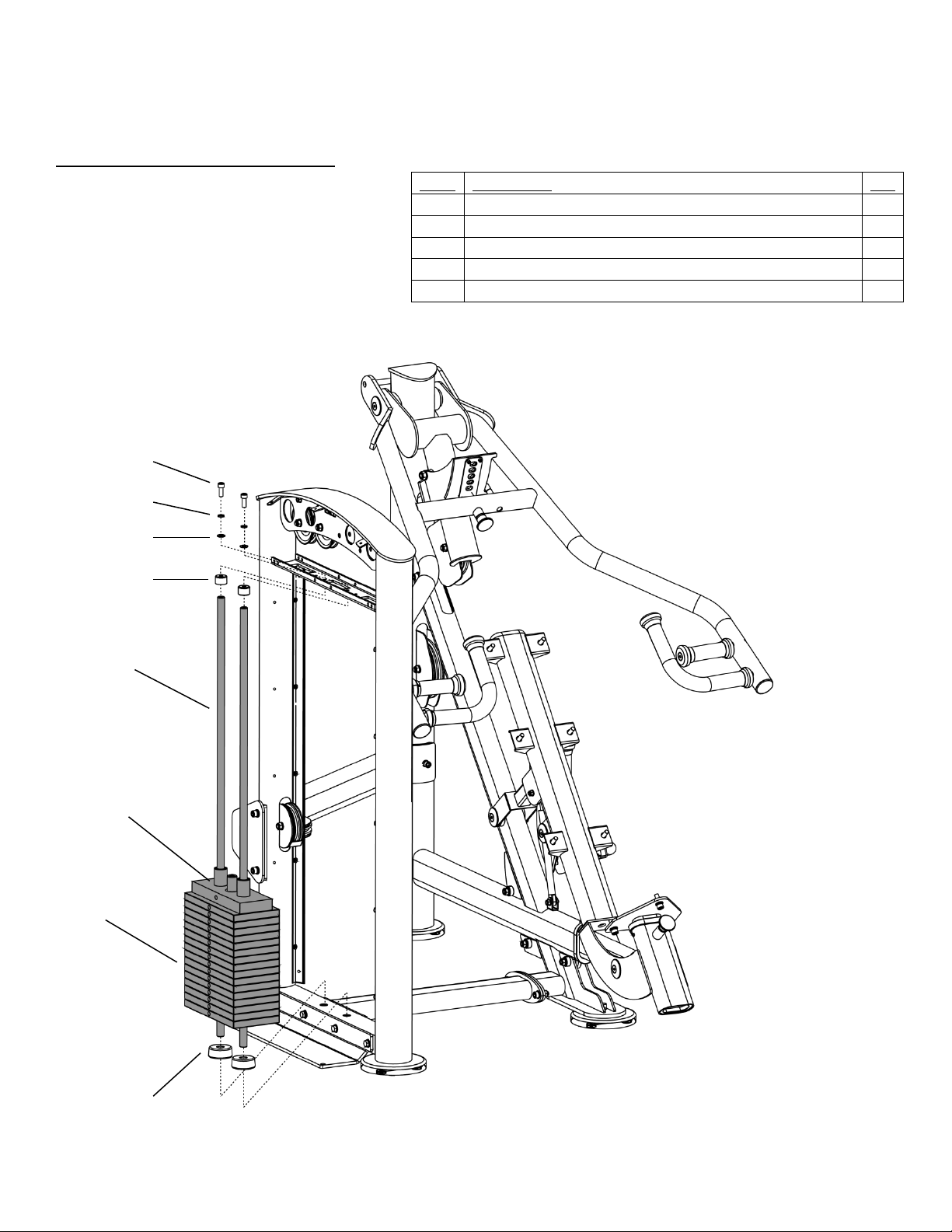

1. Assemble and Install the Weight Tower as
ITEM
Description
Qty
28
Nylon Sleeve For Guide Rod
2
53
Rubber Weight Bumper
2
62
Flat washer M10
2
83
Spring Washer M10
2
103
Button Head Hex Socket Bolt M10*25
2
28
103
83
Top Plate
62
53
Guide Rods
Weight Plates
UNIT ASSEMBLY STEPS (continued):
STEP 5 Weight Stack Assembly:
shown.
Truefitness.com / 800.426.6570 / 636.272.7100 14
CHAPTER 2: ASSEMBLY GUIDE

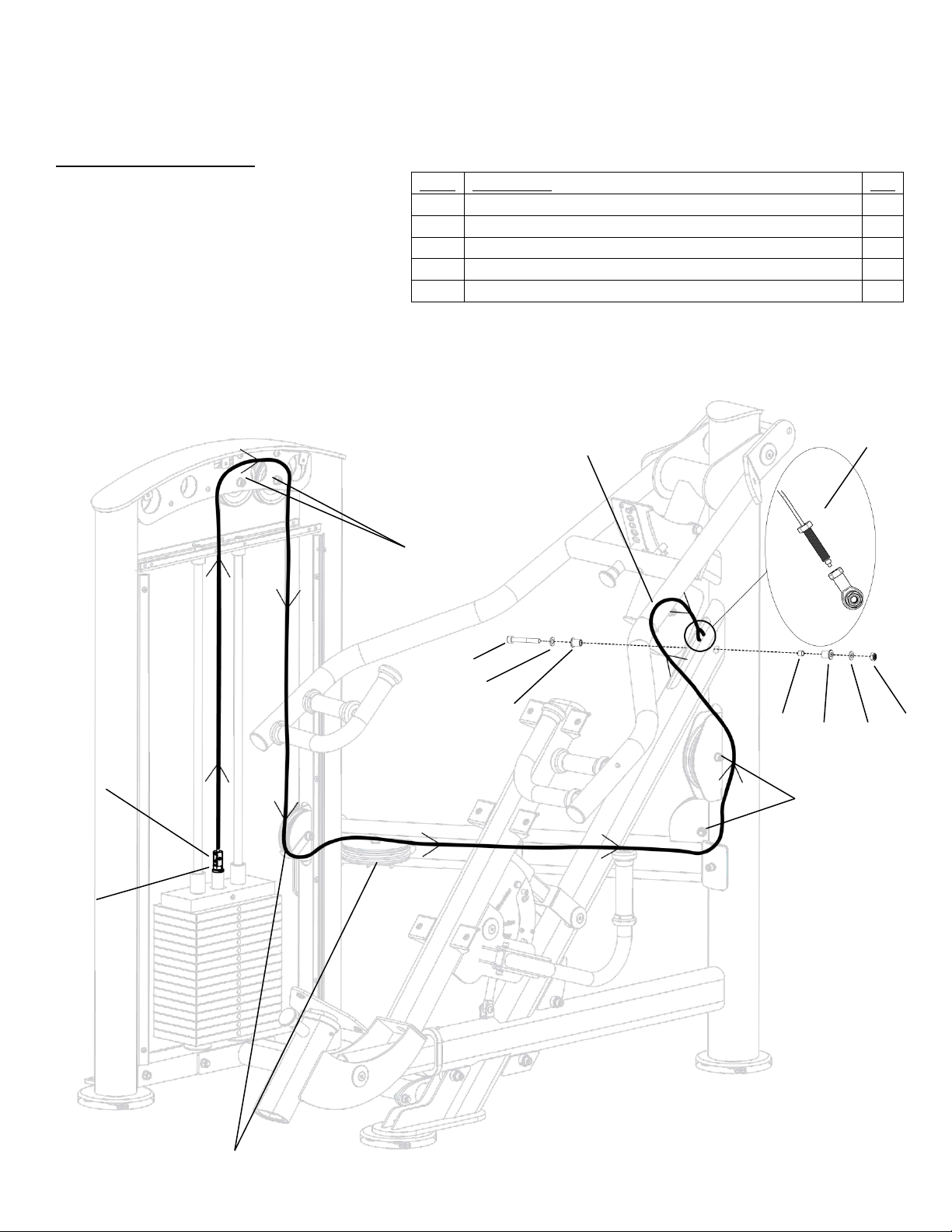

1. Route the Cable as shown.
as shown.
ITEM
Description
Qty
51
Spacer 22*15.8*21.5
2
62
Flat Washer M10
2
86
Lock Nut M10
1
108
Button Head Hex Socket Bolt M10X70
1
128
Bushing 10*10
1
Cable Bolt
Pulley
Pulleys
Pulleys
128
51
62
86
62
108
51
Pulleys
Cable Nut
UNIT ASSEMBLY STEPS (continued):
STEP 6 Cable Routing:
2. Tighten the cable nut on the cable bolt against
the top plate.
*Verify that the no more than 1 inch (25.4mm)
of the cable bolt is left exposed.
3. Secure the Upper Cable End with the hardware
Upper Cable
End
Truefitness.com / 800.426.6570 / 636.272.7100 15
CHAPTER 2: ASSEMBLY GUIDE

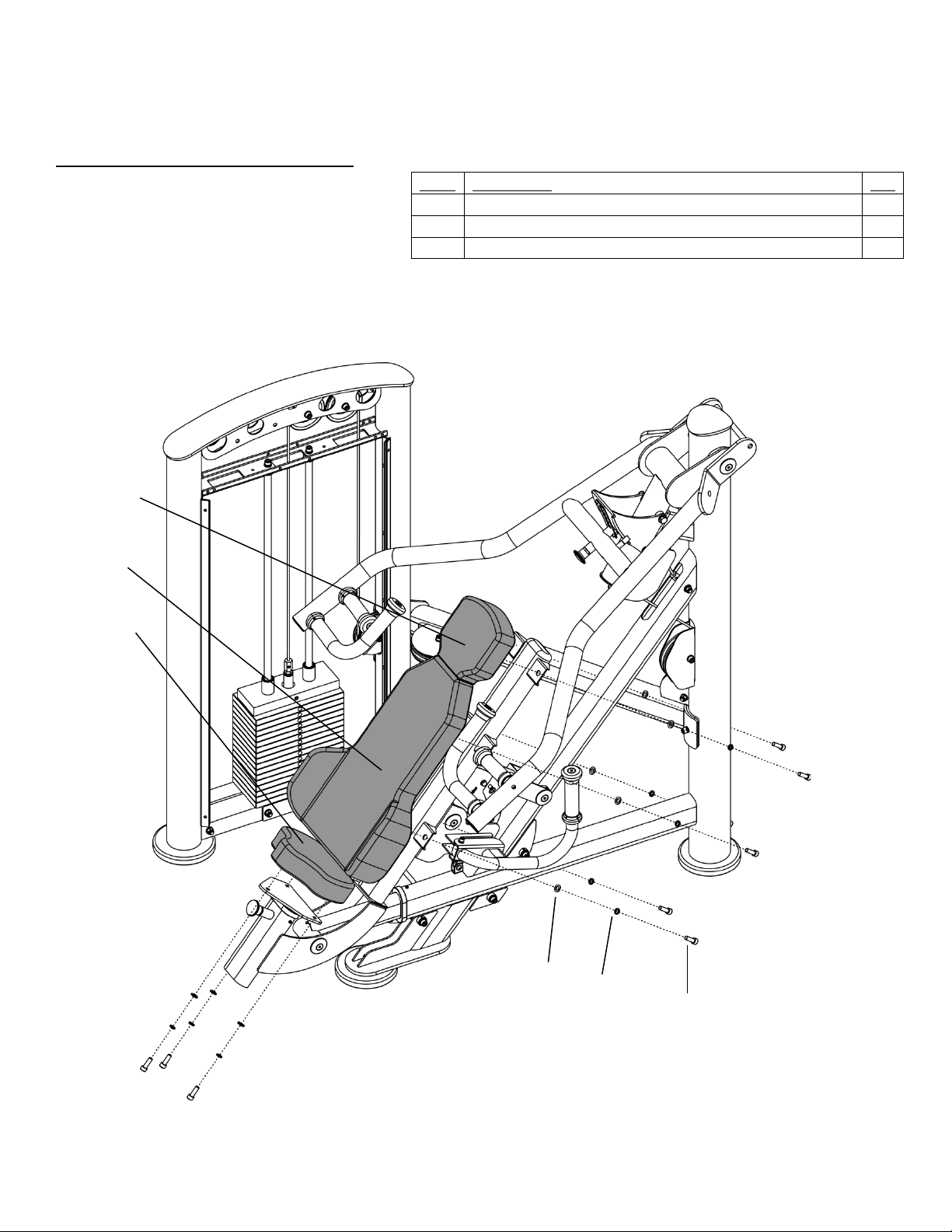

1. Install the Seat, Back and Head Pads as shown
ITEM
Description
Qty
62
Flat Washer M10
6
83
Spring Washer M10
4
88
Button Head Hex Socket Bolt M10X30
2
88
Back Pad
83
62
Seat Pad
Head Pad
UNIT ASSEMBLY STEPS (continued):
STEP 7 Seat, Back and Head Pads:
below.
Truefitness.com / 800.426.6570 / 636.272.7100 16
CHAPTER 2: ASSEMBLY GUIDE
1. Install the Rear Shroud Retainer Plates as
ITEM
Description
Qty
82
Countersunk Hex Socket Bolt M6*10
10
82
Rear Shroud Retainer Plates
UNIT ASSEMBLY STEPS (continued):
STEP 8 Rear Shroud Retainer Plates
shown in the diagram below.
Truefitness.com / 800.426.6570 / 636.272.7100 17
CHAPTER 2: ASSEMBLY GUIDE
1. Attach the Placard Frame to the Weight Tower
ITEM
Description
Qty
117
Button Clip
4
39
Button Head Hex Socket Bolt M5X10
3
96
117
Placard Frame
UNIT ASSEMBLY STEPS (continued):
STEP 9 Placard Frame:
as shown.
Truefitness.com / 800.426.6570 / 636.272.7100 18
CHAPTER 2: ASSEMBLY GUIDE

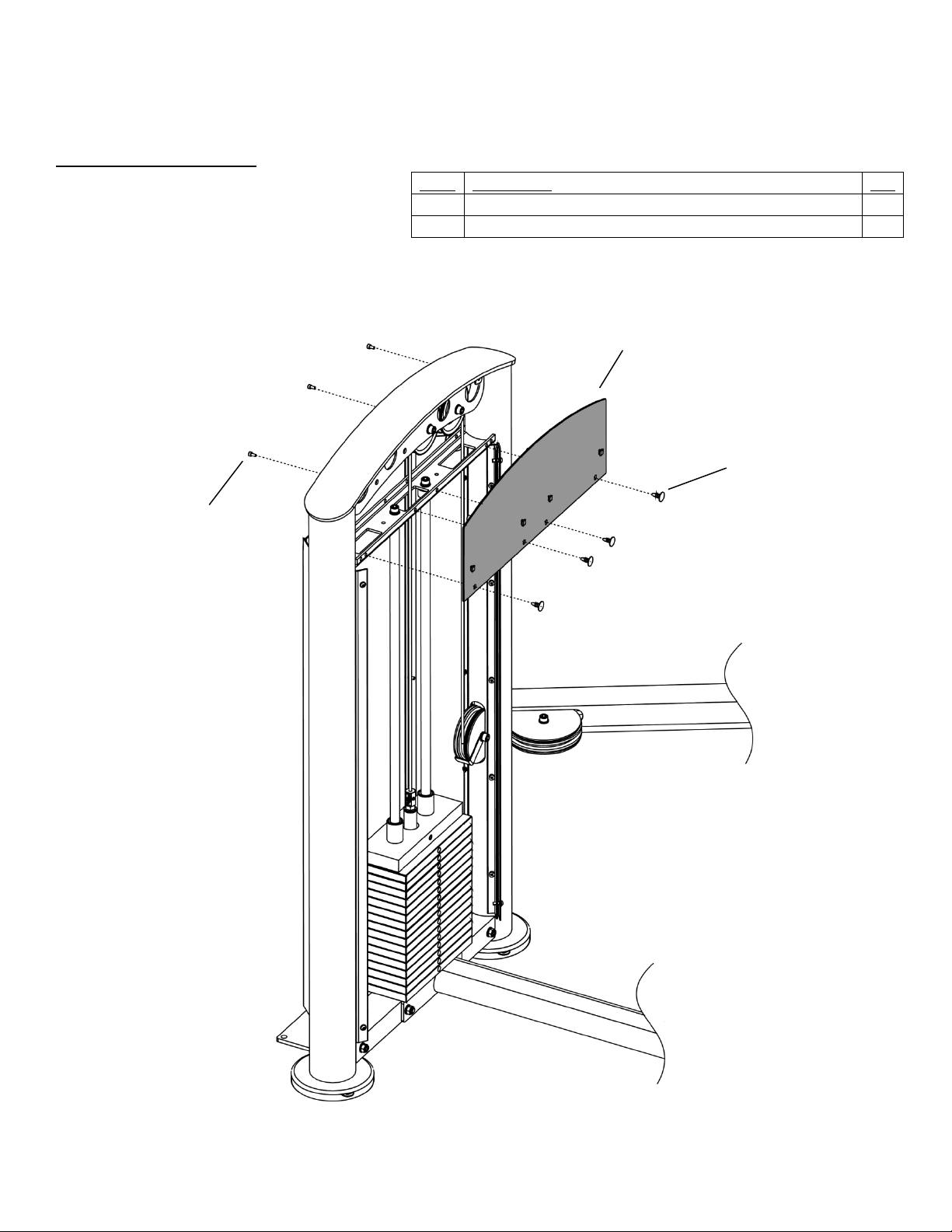

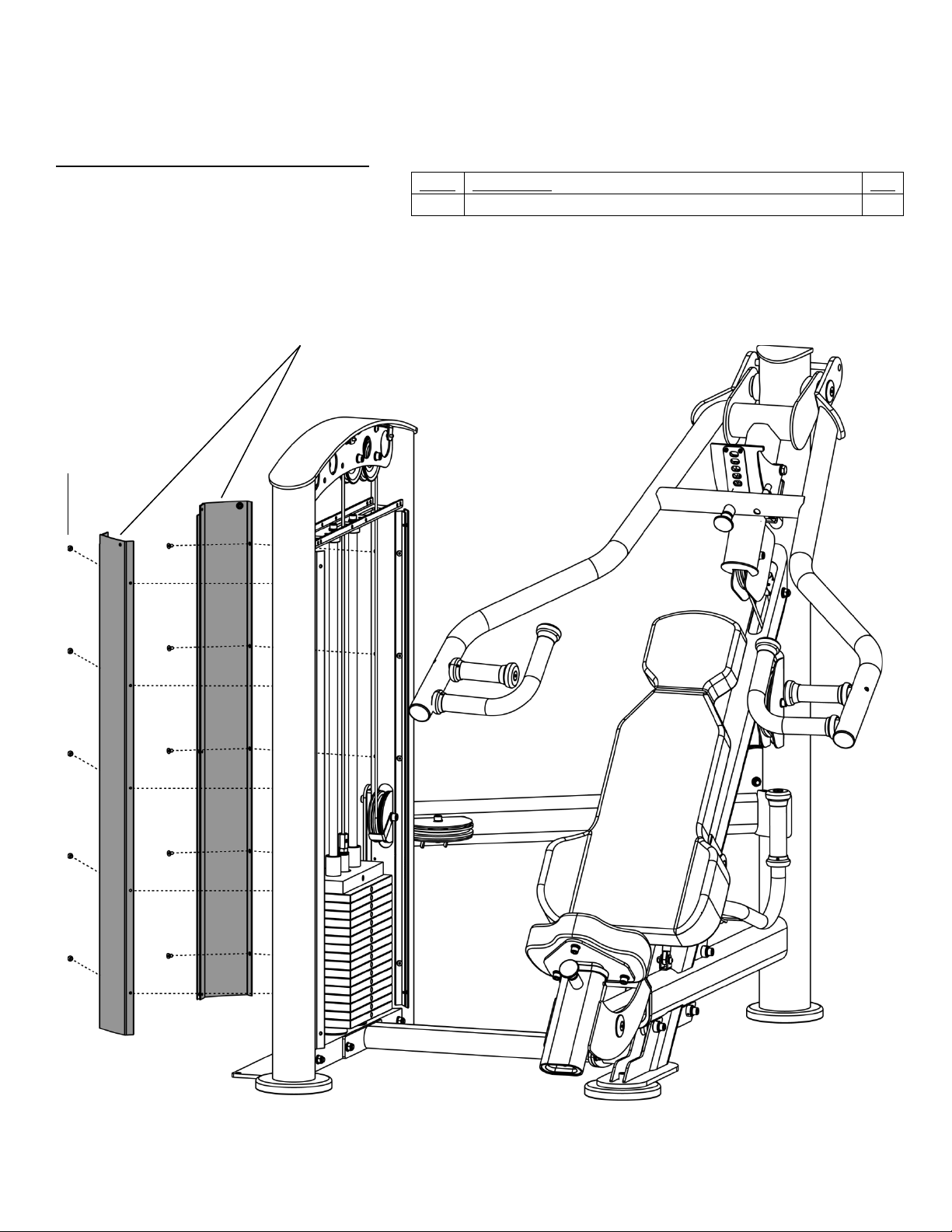

1. Slide the Front Shroud into the Front Shroud
ITEM
Description
Qty
125
Flat Washer 6.6x12x1.6
4
126
M6x20 Button Head Cap Screw
4
Front Shroud
126
125
UNIT ASSEMBLY STEPS (continued):
STEP 10 Front Shroud:
Retainer Plates.
2. Secure the shroud with 4 screws and 4 washers
as shown.
Truefitness.com / 800.426.6570 / 636.272.7100 19
CHAPTER 2: ASSEMBLY GUIDE

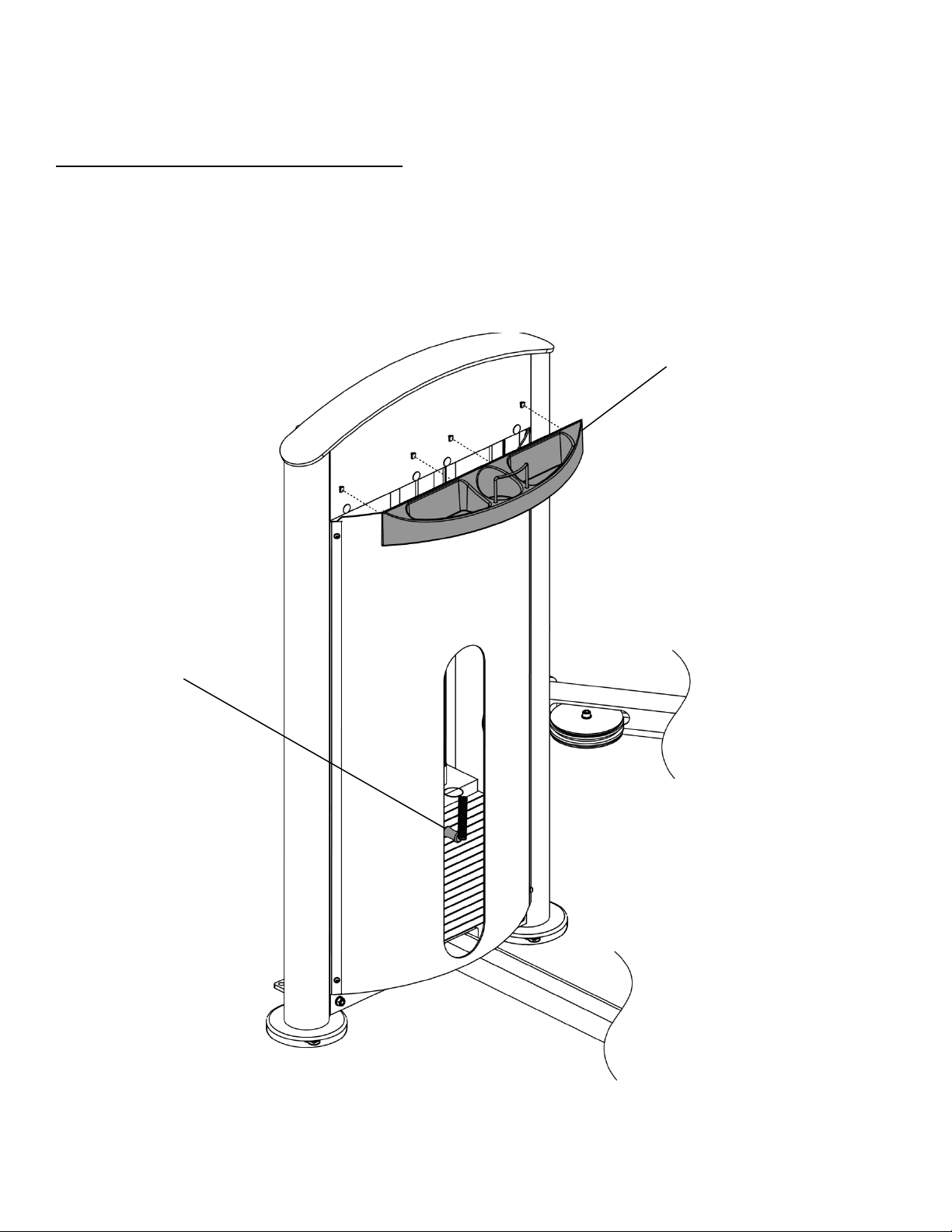

1. Secure the Accessory Tray to the Placard
Accessory Tray
Selector Pin
UNIT ASSEMBLY STEPS (continued):
STEP 11 Accessory Tray & Selector pin:
Frame by snapping it into place.
2. Insert the Selector Pin into the weight stack
and attach it to the Weight Cable
Truefitness.com / 800.426.6570 / 636.272.7100 20
CHAPTER 2: ASSEMBLY GUIDE

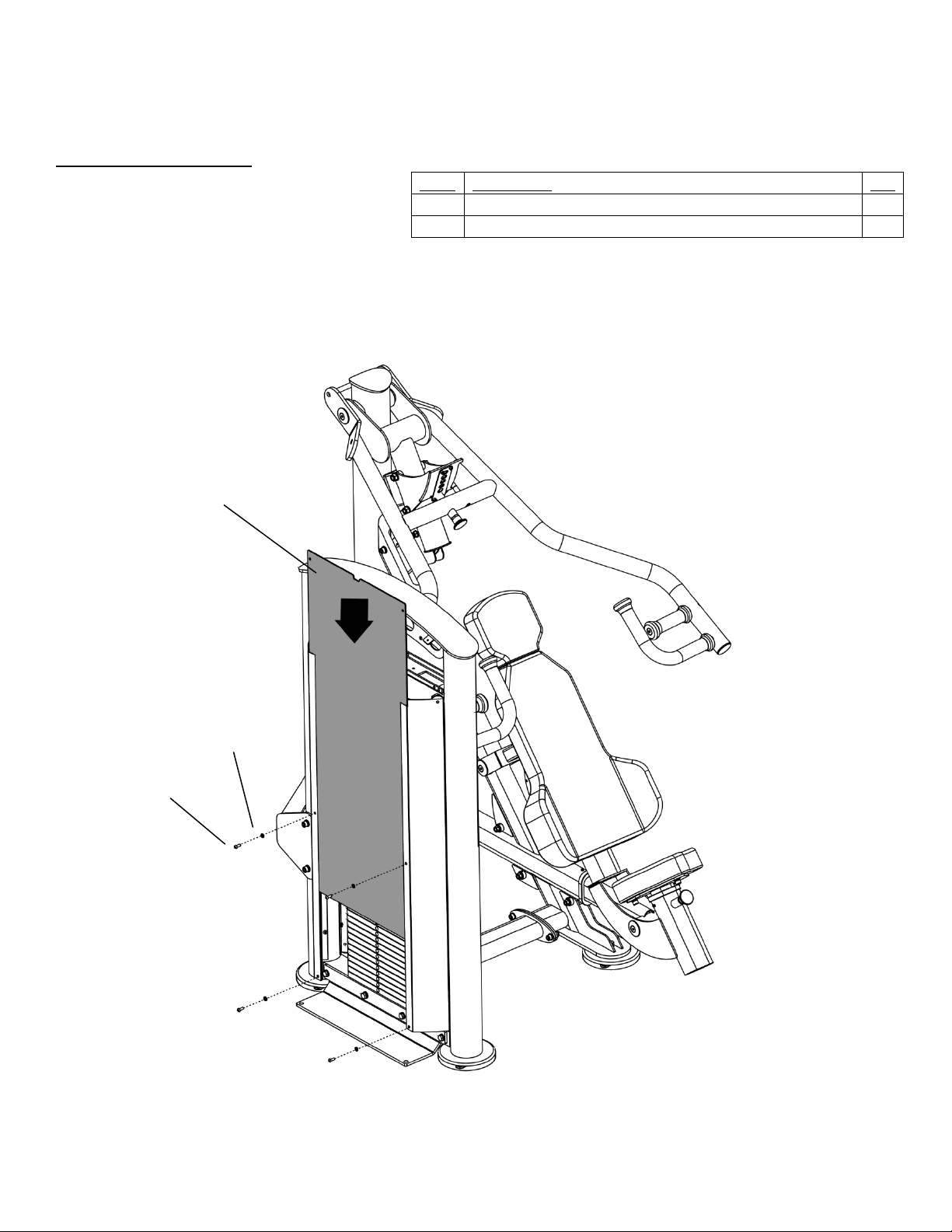

1. Slide the Back Shroud down into the Retainer
ITEM
Description
Qty
125
Mushroom Head Hex Socket Bolt M6*16
4
126
Flat Washer M6
4
126
125
Back Shroud
UNIT ASSEMBLY STEPS (continued):
STEP 12 Back Shroud:
Plates.
2. Secure the shroud with 4 screws and 4 washers
as shown.
Truefitness.com / 800.426.6570 / 636.272.7100 21
CHAPTER 2: ASSEMBLY GUIDE
1. Install the Shield Cap as shown.
ITEM
Description
Qty
125
Mushroom Head Hex Socket Bolt M6*16
7
126
Flat Washer M6
7
46
43
Shield Cap
UNIT ASSEMBLY STEPS (continued):
STEP 13 Shield Cap:
Truefitness.com / 800.426.6570 / 636.272.7100 22
CHAPTER 3: PRODUCT OVERVIEW

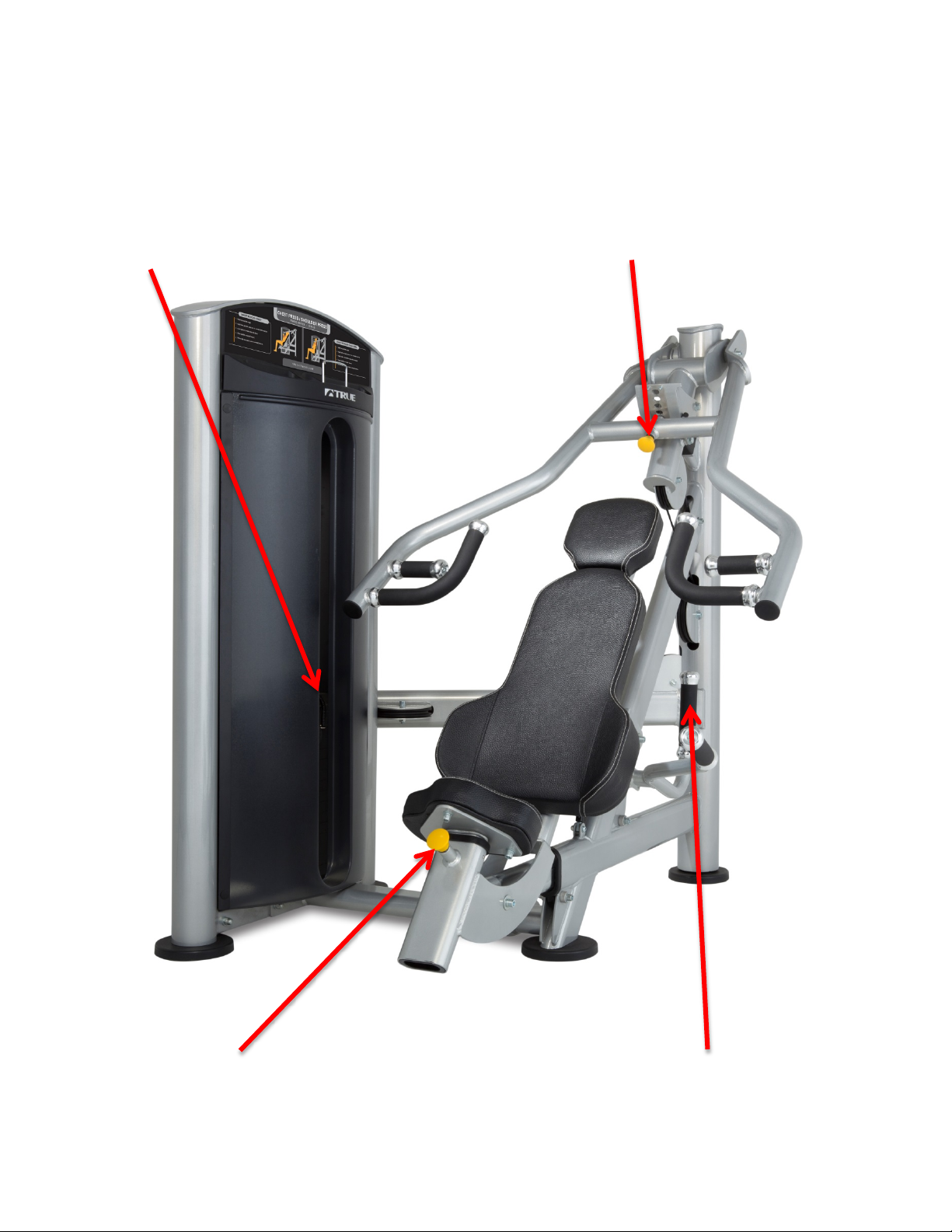

Weight Stack Adjustment Pin
Press Arm Adjustment Pin
Seat Adjustment Pin
Back Pad Adjustment Lever
PRODUCT OVERVI W:
E
Truefitness.com / 800.426.6570 / 636.272.7100 23
CHAPTER 4: CARE & MAINTENANCE
CARE & MAINTENANCE:
Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish
written guidelines for preventative maintenance and keep written or online records of the maintenance performed on
these products. As a minimum, the items presented in the Safety Instructions section of this document and the items that
follow here, should be included in your maintenance program.
IMPORTANT: Always purchase replacement parts from TRUE Fitness. Many parts are tested and manufactured
specifically for TRUE Fitness equipment. Use of unapproved parts may cause serious injury and/or void the limited
warranty.
DAILY INSPECTION & MAINTENANCE:
The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance
of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE Fitness is
not responsible for performing or scheduling regular maintenance or inspections.
• Inspect cables for wear, tension and proper connection (as described in the cable inspection section below).
• Inspect all adjustment pins weight stack pins, set screws, gas shocks, snap links, and pulleys.
• Inspect all safety and instructional decals.
• Inspect all weight stack shields.
• Verify that rubber hand grips are intact and secure.
• Verify that anti-skid foot grips are intact and secure
• Verify that the weight stack selector pin is attached with the coiled lanyard to the top plate.
WEEKLY INSPECTION & MAINTENANCE:
The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance
of the machines. These inspections should be performed each week. TRUE Fitness is not responsible for performing or
scheduling regular maintenance or inspections.
• Check entire length of cable & end fittings for any signs of wear. Replace immediately as required. (Refer to Daily
Maintenance Section).
• Verify that A minimum of 1/2 inch (12.7mm) of the threaded portion of the cable bolt is threaded into the top
plate and that the nut is tight. (See Cable Inspection & Maintenance Section).
• Perform a function test by placing the selector pin in the TOP PLATE and Cycling the machine throu
i
ntended motion. Verify that the machine operates smoothly without binding. Select a moderate weight and
repeat.
• Verify that each pulley rotates freely when performing the exercise. A pulley that does not rotate will caus
ex
treme cable wear and could lead to cable failure. Determine cause and remedy immediately.
• Verify that the adjustment pop pins retract easily and fully engage (when released) into each adjustment disc
hole/slot. The pop pins are spring loaded so they should return to the engaged position when you release t
knob.
• Verify that the adjustment pin disengages and engages freely when actuating the adjustment mechanism. Be sure
t the adjustment pin inserts fully into the adjustment disc.
tha
• Verify that all hardware (nuts/bolts and fasteners) is tight and that associated frame members are secure. Apply a
few small drops of a thread locking compound such as Loctite on any loose bolts.
• Inspect frame for integrity and function. Replace any components at the first sign of wear with only TRUE
supplied parts.
Truefitness.com / 800.426.6570 / 636.272.7100 24
gh the
e
he
CHAPTER 4: CARE & MAINTENANCE
OTHER SCHEDULED PREVENTIVE MAINTENANCE:
TRUE recommends that scheduled maintenance be performed by a qualified service technician. Please contact your
dealer or visit www.truefitness.com to contact a local TRUE authorized service technician.
Monthly:
Clean guide rods and lubricate with a Teflon lubricant.
Every 6 months:
Lubricate pivot bearing and linear bearings with lithium grease.
CLEANING THE EQUIPMENT:
Daily Cleaning:
Wipe all machines with a water dampened cloth and dry completely. This includes painted parts, chrome plated parts
(except guide rods), plastic parts, and upholstered pads. It is important not to leave parts damp. This will increase the
potential for corrosion to occur.
CAUTION:
Certain anti-bacterial cleaners and other harsh cleaning agents can induce corrosion on the machine components. These
solutions can also dry out and cause cracking and splitting on the upholstery.
Heavy Duty Cleaning:
Guide Rods: Clean and lubricate with a Teflon Spray. Be sure to coat the entire guide rod. Spraying lubricant into the cap
plate bushings is also recommended.
Chromed Adjustment Tubes: Wipe away dust and dirt before applying a Teflon spray lubricant. TRUE Fitness
recommends using TriFlow or a similar brand.
Linear Bearings: Clean the linear shaft and lubricate (as required) with Teflon based grease. Keeping linear bearings clean
and lubricated is critical to long life and good performance.
Painted Frames: If you have scuff marks, grease or a heavy dirt buildup on frame components, start with a mild soap
solution or a diluted solution of a product such as Simple Green. If you cannot remove the marks using those methods,
use a car polish/cleaner. DO NOT use solvents such as lacquer thinner, mineral spirits or acetone. For deeper scuff marks,
use an automobile finish rubbing compound.
Upholstery: For heavy duty cleaning, use a mild soap solution. This method should be sufficient in the majority of
instances. In severe stain cases, you can use a solution of 5-10% household bleach diluted with water. Be sure to test an
inconspicuous area first. DO NOT use chemical cleaners on the vinyl upholstery. You can also use a lanolin based hand
cleaner to clean your upholstery. Wipe off after cleaning with a damp cloth and thoroughly dry. Plastic Parts: Use a mild
soap solution to clean dirt and grease marks. Labels: Use a mild soap solution to clean dirt and grease marks. Shrouds: Use
a mild soap solution to clean dirt and grease marks.
CAUTION:
Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness
Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.
Truefitness.com / 800.426.6570 / 636.272.7100 25
CHAPTER 4: CARE & MAINTENANCE
Twisted Cable (Zig-Zag pattern):
Break in the Cable Cover:
Break/Bend in Cable:
Tear in the Cable Cover:
Stretched Cable Covering:
Crimp Connector Dislodged:
Bad
Good
CAUTION:
If you determine that the equipment needs service, make sure that the equipment cannot be used inadvertently and ensure
other users know that the machine needs service.
*To order parts or to contact a TRUE Authorized Service representative, please visit www.truefitness.com
CABLE INSPECTION & MAINTENANCE:
One of the most critical areas that require frequent inspection on any weight machine is the cable or belt system that lifts
the weight stack. Sudden failure of a worn cable can in some instances, result in injury to the user. It is the responsibility of
the facility to inspect the cables frequently.
Cables are components that wear over time. This means that the more often a piece of equipment is used, the greater the
likelihood that cable wear will occur. This holds true for equipment made by any manufacturer and applies to urethane
belts as well as wire rope cables. Listed below are the areas of the cable that require inspection.
*TRUE Fitness recommends that all cables be replaced on an annual basis to maintain the safety of all users.
Cable Wear:
Inspect all cables for any signs of wear. Pay close attention to the cable in the area of the end fittings and attachment
points. Inspect the areas around the pulleys and/or cams. Shown below are examples of cables that exhibit signs of
potential failure. If any of these conditions are apparent, the machine should immediately be taken out of service and
repaired. Be sure to use only cables supplied by TRUE Fitness. DO NOT use cables that have fittings attached with handcrimp tools.
Truefitness.com / 800.426.6570 / 636.272.7100 26
CHAPTER 4: CARE & MAINTENANCE
To adjust the cable tension, loosen the cable nut
Handle Fittings (if applicable):
Cable Bolt
Cable Nut
Top Plate
1” (25.4mm)
Maximum
CABLE INSPECTION & MAINTENANCE (continued):
Cable Tension:
Ensure that the cables are adjusted to remove any slack using the threaded end fittings. These are normally located at the
weight stack connection. Depending upon the machine, there may be multiple threaded fitting on multiple cables. You
can determine if there is too much slack by performing the exercise. As you start to move a load arm or handle, the weight
stack should lift immediately. If not, the cable tension needs to be adjusted.
that is located on the Cable Bolt connected to the
Top Plate. Tighten the cable bolt until the top
plate is barely lifted off of the first weight plate and
then re-tighten the cable nut.
CAUTION:
No More than 1 inch (25.4mm) of the treaded
portion of the cable bolt should be visible
Inspect the cable fittings where any handles are
attached to the end of the cable. The fittings supplied
with this machine are load rated snap-links. Ensure
that the snap-link opens and closes easily and is fully
engaged when closed. Replace the snap-link as
needed.
Truefitness.com / 800.426.6570 / 636.272.7100 27
CHAPTER 5: CUSTOMER SERVICE
CONTACTING SERVICE:
TRUE Fitness recommends that you gather the serial number, model number, and a brief description of the reason for the
request. After information has been gathered you may choose to contact your selling dealer or local service company to
set an appointment. (If you are not familiar with who is in your area, you may visit our website at www.truefitness.com
and use our dealer locator to obtain the contact information for the closest dealer).
Y
ou may also contact TRUE Fitness’ customer support team by calling 800.883.8783 or e-mailing us at
service@truefitness.com Monday – Friday during normal business hours.
TRUE FITNESS SERVICE DEPARTMENT
865 HOFF ROAD
ST. LOUIS, MO 63366
1.800.883.8783
HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST
E-MAIL: service@truefitness.com
NTACTING SALES:
CO
Interested in TRUE Products? Please contact us with any sales or product inquires so that we may direct you to the
appropriate sales representative to answer your questions.
TRUE FITNESS HOME OFFICE
865 HOFF ROAD
ST. LOUIS, MO 63366
1.800.426.6570
HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST
E-MAIL: sales@truefitness.com
Truefitness.com / 800.426.6570 / 636.272.7100 28
CHAPTER 5: CUSTOMER SERVICE
REPORTING FREIGHT OR PARTS DAMAGE:
Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please
follow the guidelines below to determine the appropriate process for you to follow in case of damages.
Severe Damage:
Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE
Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by
calling 800.426.6570 Monday-Friday during normal business hours to notify us that the shipment has been refused. Once
we have received the damaged shipment, a replacement shipment will be sent to you. Only refuse the damaged piece if the
shipment is multiple boxes.
Slight Damage:
The box may have minimal damages and you are not sure if the actual product is damaged or not. You must sign the bill
of lading as damaged when accepting the shipment. Once you have opened the box and you have determined something is
indeed damaged please gather the serial number, model number, description and photos of damages. Please make sure the
photos include the damaged product as well as the damaged box the product arrived in. Contact the TRUE Fitness
customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during
normal business hours.
Concealed Damage:
You may receive a shipment that looks intact and discover once the box has been opened that there are hidden
damages. Please notify the carrier immediately. We will not be able to file a claim if the carrier is not notified in a timely
manner. Once you have called the carrier you will need to gather the serial number, model number, description and
photos of damages. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by
calling 800.426.6570 Monday-Friday during normal business hours.
Truefitness.com / 800.426.6570 / 636.272.7100 29
MULTI-PRESS
MULTI-PRESS
Complete a combination of customizable exercises all on one machine with the
TRUE FORCE Multi-Press: chest press, shoulder press, and incline press. Following suit of
the rest of the FORCE Series strength line, the adjustments between exercises can be made
quickly and easily by locating the clearly labeled and color-coded adjustment knobs.
The 3-position back pad, 6-position press arm, and 8-position seat allow this machine to
accommodate a very wide range of users. The multi-position hand grips provide ample
comfort to all users by allowing hand placement that is comfortable for each individual user.
Warranties outside the U.S. and Canada may vary - Please contact your dealer for details. Specications subject to change without notice.
TRUE is Impacting Fitness. TRUE has a thirty-four year history making the world’s most premium cardio equipment. Now, we are taking that same
manufacturing and design quality and bringing it to you in the new FORCE strength line. All of the features you have come to associate with TRUE
are found in the FORCE line…quality, durability, craftsmanship and superior aesthetics. Welcome to the new TRUE.
MULTI-PRESS
Key Features:
• 3-position back pad with lumbar support wings and integrated head pad uses gas cylinder assist to easily adjust for chest, incline chest,
and shoulder press exercises.
• 6-position press arm and 8 position seat accommodate wide range of users.
• Multi-position hand grips for exercise variation.
Product Dimensions L x W x H
60.75” x 60” x 59.75”
155 cm x 153 cm x 152 cm
Product Weight (including weight stack)
Standard - 570 lbs / 258kg
Heavy - 650 lbs / 295 kg
Weight Stack
Standard - 175 lbs / 79 kg / 15 lbs top plate + 10 lbs increments
Heavy - 255 lbs / 116 kg / 15 lbs top plate + 10 lbs increments
Warranty
10 YEARS: Frames, welds, cams, and weight plates
5 YEARS: Bushings, pivot bearings, gas-shocks, pulleys, and guide rods
1 YEAR: Cables, rubber grips
6 MONTHS: Upholstery, hardware, and all other parts not mentioned
truefitness.com | 800.426.6570 | 636.272.7100 ©2016 True Fitness Technology, Inc
STRENGTH1610
CHAPTER 6: ADDITIONAL INFORMATION
Commercial Limited Warranty
Force Strength Line
Save Time and Register Online!
Activate Multiple Warranties at truetness.com
All TRUE® Fitness products are distributed by TRUE and are
warranted to the original registered product purchaser and the
parts of the TRUE product (the “Product”) listed below, under
normal use and service, shall be free of manufacturing defects
in workmanship and materials only for the period of time
beginning from the original date of purchase set forth below:
Frame* Lifetime
Parts
Bearings, Bushings and Weight Plates
Guide Rods and Pulleys
Cables and Belts
Cosmetics, Coatings, Grips and Upholstery
Labor
Frame
Bearings, Bushings, Weight Plates
Guide Rods and Pulleys
Cables and Belts
Cosmetics, Coatings, Grips and Upholstery
NOTE: Warranty valid for USA and Canada only.
NOTE: Failure to register this product will result in no
servicing or authorization of parts to be shipped.
NOTE: Buying after-market products from a 3rd party will
result in voided warranty.
Frame: The frame is warranted for defects in material and
workmanship for as long as the original purchaser owns the
Product. The frame is warranted for labor and freight (for parts
shipped from TRUE) for one year from date of purchase. * This
limited warranty on structural frame does not include paint or
coatings.
5 Years
5 Years
1 Year
6 Months
1 Year
1 Year
1 Year
1 Year
6 Months
Cosmetics: The Force Strength Line cosmetic parts, coatings,
grips and upholstery are warranted for defects in material and
workmanship for six months with labor warranty to match the
parts warranty period. This limited warranty does not cover
damage or equipment failure resulting from or caused by
improper assembly/installation, failure to follow instructions
and warnings in owner’s manual, accident, misuse, abuse,
unauthorized modication, or failure to provide reasonable
and necessary maintenance. This limited warranty will apply to
but may not be limited to plastic covers, shrouds, caps, badges,
overlays, paint, coatings, soft step inserts and grips.
Labor: Labor is covered for a period of one year from the
date of purchase unless otherwise expressed within this
limited warranty as long as a TRUE authorized service provider
performs the service. Service that requires over 50 miles of
travel may be subject to additional charges. Reasonable and
necessary maintenance guidelines can be found in the owner’s
manual.
Claims Procedure: TRUE Limited Warranty service may be
obtained by contacting the authorized TRUE dealer from
whom the Product was purchased. If the dealer from whom
the Product was purchased is no longer an authorized TRUE
dealer, then TRUE Limited Warranty service may be obtained
by contacting TRUE directly at:
TRUE Fitness, Service Department
865 Ho Road, St. Louis, MO 63366
1.800.883.8783
Hours of operation 8:30am - 5:00 pm CST
Parts: The Force Strength Line’s mechanical parts and are
warranted for defects in material and workmanship for ve
years with one year labor warranty. Cables and belts are
warranted for defects in material and workmanship for one
year with one year labor warranty.This limited warranty does
not cover damage or equipment failure resulting from or
caused by improper assembly/installation, failure to follow
instructions and warnings in owner’s manual, accident,
misuse, abuse, unauthorized modication, or failure to provide
reasonable and necessary maintenance.
truetness.com / 800.426.6570 / 1.636.272.7100
Truetness.com / 800.426.6570 / 636.272.7100
32
CHAPTER 6: ADDITIONAL INFORMATION
truetness.com / 800.426.6570 / 1.636.272.7100
Commercial Limited Warranty
Force Strength Line
Save Time and Register Online!
Activate Multiple Warranties at truetness.com
The above Limited Warranty is subject to and will be in
accordance with the conditions set forth below:
1. This Limited Warranty can be processed only if the Warrant
egistration Form is completed on-line; or if the attached for
R
is lled in, signed by the original purchaser and mailed to
TRUE within 30 da
ser
ial number must be intact on the Product for this Limit
arranty to be valid.
W
2. This Limited Warranty applies to the produc
Product remains in the possession of the original purchaser
and is not tr
3. This Limited Warranty becomes VALID ONLY if the Produc
is initially assembled/installed b
technician (if anyone other than a TRUE authorized dealer/
technician initially assembles and installs the Product, this
Limit
ed Warranty will be void unless the written authoriza
of
TRUE is rst obtained).
4. This Limited Warranty does not cover damage or equipmen
e resulting from or caused by improper assembly/
failur
installation, failure to follow instructions and warnings in
o
wner’s manual, accident, misuse, abuse, unauthoriz
modica
main
5.
replacement of parts and does not include labor (beyond
the abo
and fr
her
6. This Limited Warranty shall not apply to: Service calls t
correct installation of the equipment or instruction to owners
on ho
bey
7.
implied
part of TRUE, under no circumstances shall TRUE be liable by
vir
an
inciden
e
Any implied warranty is limited in duration to the time period
c
overed by the Limited Warranty. Some states do not allo
limita
e
y
which vary from state to state.
tion, or failure to provide reasonable and necessar
tenance (as referenced in the owner’s manual.)
This Limited Warranty applies only to the cost of r
ve warranty period), transportation, service, retur
eight charges associated there with expr
ein.
w to use the equipment; or any labor costs incurr
ond the applicable labor warranty period
This Limited Warranty is in lieu of all warranties, expr
, and in lieu of all other obliga
tue of this Limited Warranty or otherwise from damage t
y person or property whatsoever for any special, indirect
tal, secondary or consequential losses
xpenses in connection with exercise products.
tions on how long an implied warranty lasts
xclusion may not apply to you. This Limited Warranty gran
ou specic legal rights and you may also have other rights
ys of purchaser’s receipt of this Product. T
t only while the
ansferable.
y a TRUE authorized dealer/
ed
epair or
essly specied
.
tions or liabilities on the
, damages or
, or the
y
m
he
ed
t
tion
t
y
n
o
ed
ess or
o
,
w
ts
,
NOTE TO AUTHORIZED WARRANTY LABOR PROVIDERS:
Warranty labor reimbursement or warranty parts rights may
not be transferred to, reassigned to, a third party without the
express written consent of TRUE. Even jobbing out warranty
labor requires TRUE’s written approval.
FORCE STRENGTH LINE SERIAL NUMBER:
The Force Strength Line comes with one serial number on the
base of the machine. Please write down your serial number
below and keep for your records.
SERIAL NUMBER:

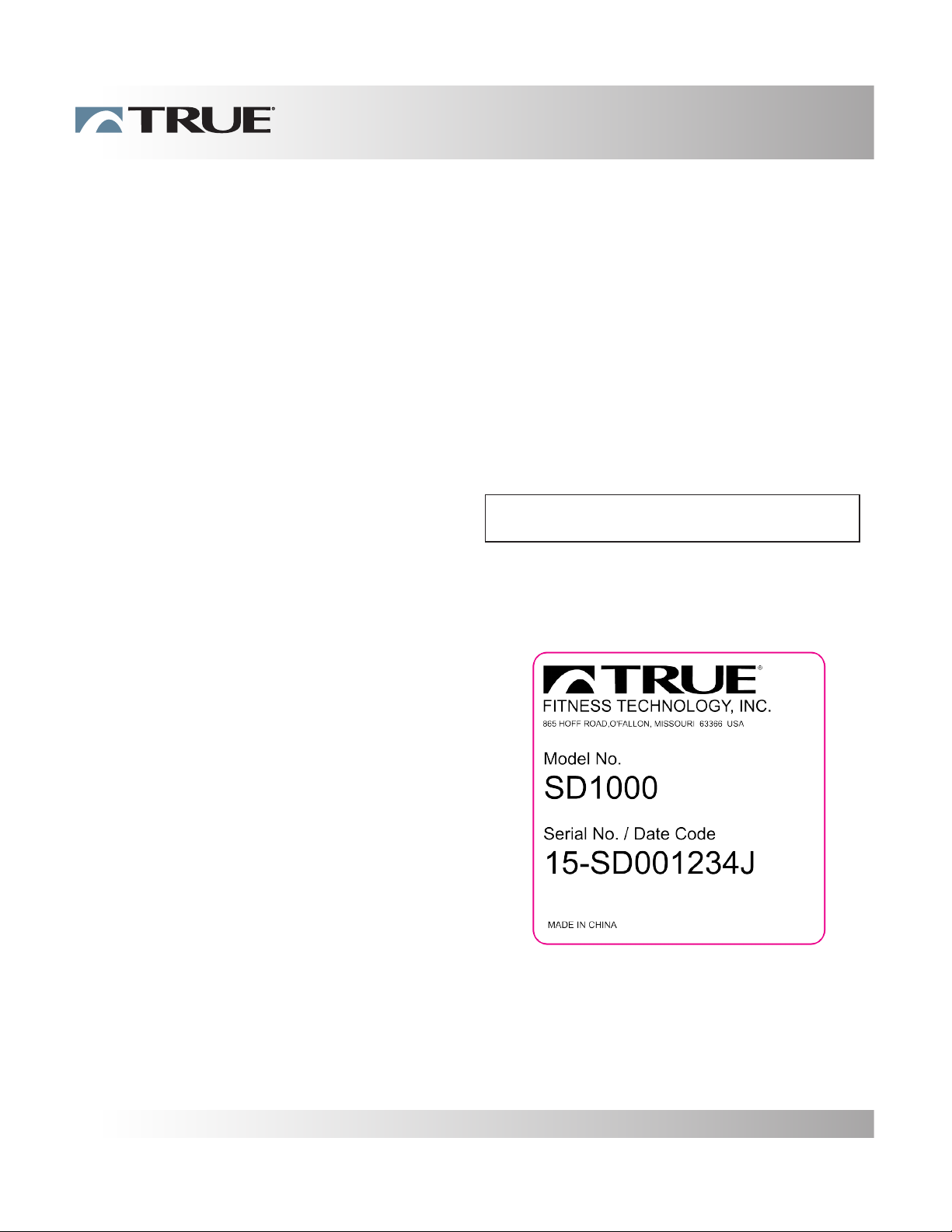

SAMPLE SERIAL NUMBER STICKER:
Keep this page for your records
Truetness.com / 800.426.6570 / 636.272.7100
33
CHAPTER 6: ADDITIONAL INFORMATION
Commercial Limited Warranty
Force Strength Line
Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way,
please go on-line now to truetness.com/support and register your product. The information you provide will
never be distributed to any other individuals or agencies for any purpose. If you prefer to mail your warranty
card, have the owner of the product complete the information below and return it to TRUE Fitness within 30
days from the date of equipment installation.
To mail your warranty information, please ll in the information below and mail to: Service Dept., TRUE Fitness,
865 Ho Road, St. Louis, MO 63366 (or save postage and register online at truetness.com)
Commercial Warranty Registration
PLEASE PROVIDE YOUR SERIAL NUMBER BELOW.
REQUIRED FOR WARRANTY REGISTRATION:
SERIAL NUMBER:
Model Type
Date of Purchase
Your Company Name
Contact First Name
Contact Last Name
Address
City State ZIP
Email Address Website
Phone Fax
1. Where did you rst learn about TRUE?
___ a. Dealer ____ b. Website
____ c. Advertisement ____ d. Referral
____ e. Current Customer ____ f. Other_______________
2. Why did you purchase a TRUE product?
___ a. Design/Appearance ___ b. D
___ c
. Price/Value ___ d. Quality Construction
___ e. Performance ___ f. TRUE Reputation
___ g. Other_________________________
ealer Suggestion
3. Please indicate your type of facility:
___ a. Apartment/Condo ___ b. Corporate Fitness Center
___ c. Municipality ___ d. Health Club/Gym/Spa
___ e. Hotel/Resort ___ f. Military Base
___ g. Student Rec Center ___ h. Other
4. What other types of equipment does your company currently own?
___ a. Treadmill Brand ________________
___ b. Bike Brand ________________
___ c. Elliptical Brand ________________
___ d. Free Weights/Gym Brand ________________
5. How many people use your facility on a daily basis?
___ a. <25 ___ b. 25-75
___ c. 76-150 ___ d. 150+
6. Do you plan to purchase more tness equipment
in the next 6-12 mon
____ Yes ____ No
7. If you answered “yes” to question 6, what type do you
plan to purchase?
____ a. Treadmill ____ b. Elliptical
____ c. Stationary Bike ____ d. Free Weights
____ e. Gym ____ f. Other ______________
8. Would you recommend TRUE to other club owners?
____ Yes ____ No
9. You are a valued TRUE customer and your suggestions
allow us to continually improve your experience. Is there
anything else you would like us to know? Please explain:
ths?
truetness.com / 800.426.6570 / 1.636.272.7100
Truetness.com / 800.426.6570 / 636.272.7100
34
Loading...
