Troy-Bilt 682J—Horse, E686N—Horse, E682L—Horse, Horse 682J, Horse E686N Operator's Manual
...
Operator’s Manual
Rear-tine PTO Tiller Models
682J—Horse
TM
E686N—Horse
TM
E682L—Horse
TM
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brushcovered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available by contacting the service department at Troy-Bilt LLC, P.O. Box 361131 Cleveland, Ohio 44136-0019.
IMPORTANT:READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
TROY-BILT LLC, P.O. BOX 361131, CLEVELAND, OH 44136-0019
PRINTED IN USA FORM NO. 770-10598C
(9/2003)
Model 682J Shown
43
Troy-Bilt®PTO Log Splitter
290-258-081
The Troy-Bilt®PTO Log Splitter provides
you with a convenient and easy means of
splitting about a half a cord of wood per
hour when working alone. When
connected to the PTO Power Unit, the
tiller’s engine runs the splitter’s hydraulic
pump, providing you with 13 tons of
steady, unhurried and predictable splitting
force.
As an added benefit, the power-driven
mobility provided by the PTO Power Unit
allows you to move the splitter to and
from your wood pile, over to a neighbor’s
place, or along the woodpile to a fresh
supply of logs.
Features include a 15 second splitting
cycle; can handle log sizes up to 26" long;
a two-stage hydraulic pump that automatically shifts into low gear to provide fourtimes greater pressure when needed;
slim-cut wedge design for splitting green,
stringy wood; and an auto-control valve
for automatic return stroke.
Dozer/Snow Blade Attachment
290-259-081
In the winter, moves up to one foot of
light snow (or 6"-to-8" of heavy snow); at
other times use it to move or spread
sand, gravel, loose dirt, grain, sawdust,
etc. Attaches easily to the front of the
Wrap-Around Bumper Guard. Set the
blade to several angles. Weighs 41-lbs.;
measures 15" x 32".
Row Marker Attachment
290-257-081
Do you like very straight, even, neat rows
in your garden? If so, the Row Marker is
a must attachment. Hooks quickly to the
Hiller/Furrower attachment– eliminates
the need for string, stakes, measuring
tape, etc. You’ll like the straight rows it
helps you make if you lay out furrows, dig
compost trenches, or make raised beds.
The Row Marker extends from 28"-to49
3
⁄
4", letting you vary the width between
rows to suit the crop you’re planting.
V-Sweep Cultivator
290-260-081
The V-Sweep Cultivator is a specialized
tool designed for between-row crop cultivation. Instead of stirring the soil, it
slices through just below the surface to
eliminate practically any weeds in its path.
The Sweep mounts easily to the optional
Tow Hitch Attachment at the rear of the
PTO Power Unit. The blade is made of
high carbon, heat treated steel and
measures 2" wide (overall wing span is
20").
The unique way the Sweep works,
skimming along just underneath the soil’s
surface without turning the soil over,
makes this the ideal tool for use in dry,
dusty conditions where it is important to
keep soil disturbance to a minimum.
And, because of its 20" wide cutting path,
it does an effective cultivation job at a fast
speed.
The Sweep’s natural shallow cultivation
helps to prevent weed seeds from being
brought to the soil’s surface. This
shallow cultivation feature also means
there’s less chance of damaging the roots
of your vegetables. For deeper or more
shallow cultivating, the blade depth can
be changed with a simple adjustment..
Wheel Weights
290-266-081
Help increase traction by putting extra
weight directly on the wheels. They
reduce bucking and jumping when deeptilling in heavy soil. They’re shipped
empty– fill them with material like
concrete, sand, gravel, etc. They bolt
directly to the tiller wheels.
Wrap-Around Bumper Guard
290-255-081
Order this Bumper Guard by itself or
receive it as one of the components if you
order the combination Dozer/ Snow Blade
attachment. Protects the engine from
damage by wrapping around and protecting many of the engine components. 1"
diameter, high-strength steel tubing.
Hiller/Furrower Attachment
290-250-081
The most popular attachment because it
does so many jobs. Mounts to the rear of
the depth regulator bracket. Furrower
blade easily makes plant rows, trenches,
ditches to 8" deep. When hiller wings are
attached to furrower blade, attachment
makes hilled rows and raised bed
gardens. Converts from a furrower to a
hiller and back again, in seconds, without
tools.
Appendix B: Attachments & Accessories
44
REF PART
No. No. DESCRIPTION QTY.
REF PART
No. No. DESCRIPTION QTY.
1 647-04006 Lever Assembly–Wheels/Tines/
PTO Drive (Includes Ref. 17)......... 1
2 1908156 Spring–clutch pawl........................ 1
3 710-0805 Bolt–hex hd., 5/16-18 x 1-1/2"....... 3
4 GW-2447 Bushing–3/8" ................................. 3
5 1177548 Lockwasher–external tooth, 5/16" . 3
6 712-3010 Nut–hex, 5/16"-18.......................... 3
7 686-04006 Roller Assembly ............................ 1
8 GW-2165-1 Yoke–left side................................ 1
9 GW-2165-2 Yoke–right side.............................. 1
10 GW-2164 Link–yoke pivot, left & right,
6-7/8" long ................................. 2
11 710-0514 Bolt–hex hd., 3/8-16 x 1" ............... 6
12 736-0169 Lockwasher–spring lock, 3/8"........ 6
13 736-3050 Washer–flat, 3/8", S.A.E................. 6
15 712-0798 Nut–hex, 3/8"-16............................ 2
16 1113-1 Bushing–spacer, 19/64" (.300")..... 6
17 GW-2595 Knob .............................................. 1
See Page 50
Section
Parts List
WHEELS/TINES/PTO DRIVE LEVER & YOKE ASSEMBLY
6
REF PART
No. No. DESCRIPTION QTY.
REF PART
No. No. DESCRIPTION QTY.
1 629-04017 Engine Wire Harness Assy–forward
interlock system (Incl. one red
and one black wire, plug connector, neutral switch and PVC
tubing. Parts not available
separately................................. 1
2 GW-9971 Lockwasher–external tooth, 7/16" ......1
3 1186246 Nut–hex, 7/16"-20 ....................... 1
6 GW-9205 Clip–for plug connector ............... 1
7 725-0157 Tie–plastic ................................... 2
8 GW-2551 Handlebar Wire Harness Assy–
(see page 46, Ref. No. 20) ....... 1

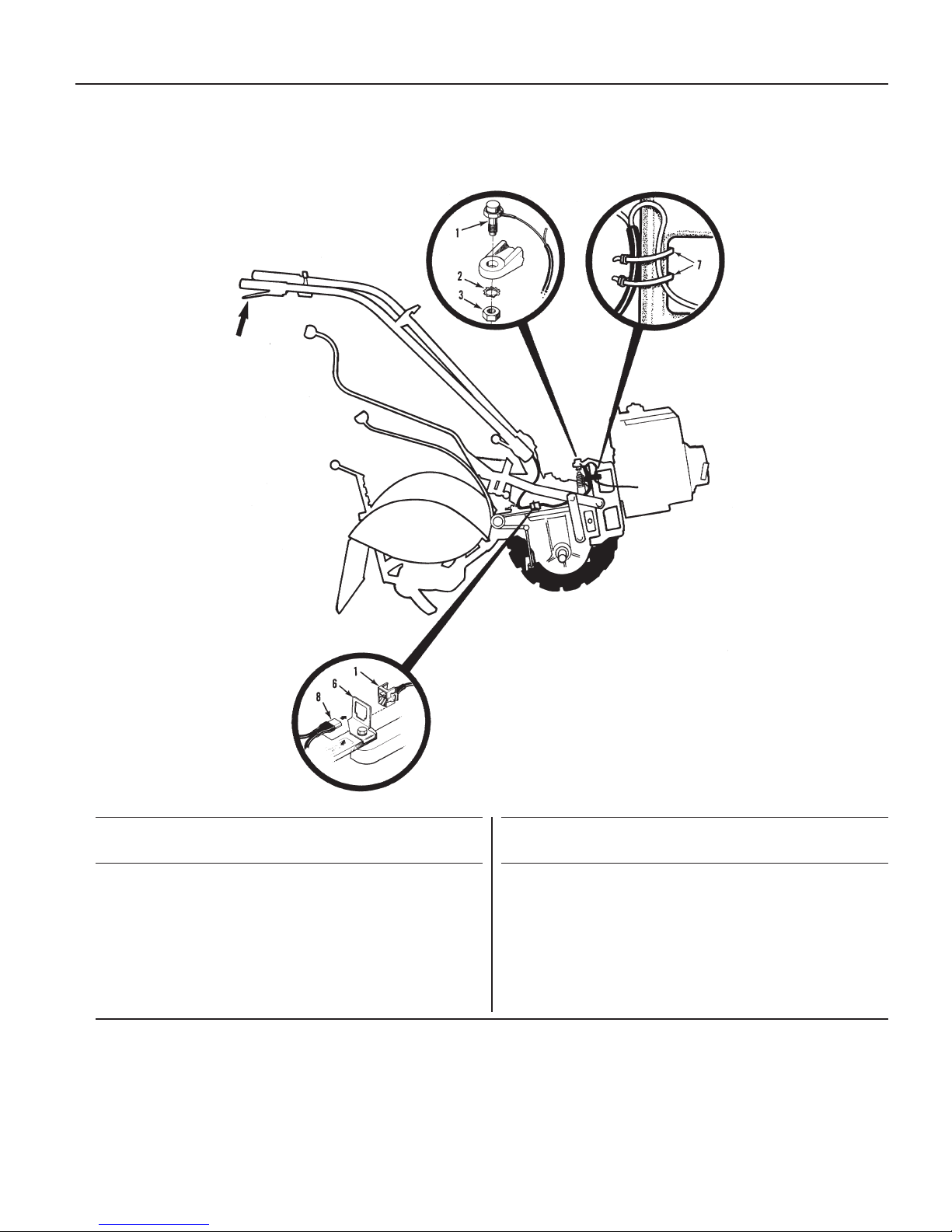

FORWARD INTERLOCK SYSTEM
See Page 46
MODELS 682J. E686N & E682L
Parts List
45
Parts List
MODELS 682J. E686N & E682L
REF PART
No. No. DESCRIPTION QTY.
REF PART
No. No. DESCRIPTION QTY.
1 GW-9548 Bolt–Hex hd., flanged self-locking
Grade 5, 1/2-13 x 3-1/2" ............ 1
2 GW-9119 Knob–handlebar height adjustment 1
3 GW-9120 Ring–retaining (tolerance ring)...... 1
4 GW-2657 Stud–handlebar height adjustment 1
5 1186233 Nut–hex, 1/2"-13............................ 1
6 GW-1021-1 Clamp–left, handlebar height
adjustment ................................. 1
7 GW-2542-1 Ratchet–left, handlebar height
adjustment ................................. 1
8 GW-2542-2 Ratchet–right, handlebar height
adjustment ................................. 1
9 1901784 Clamp–right, handlebar height
adjustment ................................. 1
10 GW-2534A Base–handlebar mounting............. 1
11 GW-2717 Handlebars .................................... 1
12 GW-9125 Grip–handlebars ............................ 2
13 777I22026 Decal–Control panel ...................... 1
14 1918111 Bolt–curved hd, GR5, 1/4-20 x 2" .. 1
15 1186389 Nut–hex, flanged self-locking, whiz
lock, 1/4"-20............................... 1
16 1909286 Throttle Control & Cable, 66” ........ 1
17 777I20946 Decal–Forward Interlock Lever ...... 2
18 725-0157 Tie–plastic ..................................... 2
19 GW-9219 Plug–wire harness retainer ............ 2
20 GW-2551 Handlebar Wire Harness Assy–
forward interlock system............ 1
21 GW-9250 Handlebar Switch–forward
interlock system......................... 2
22 GW-9385 Lock Pin–handlebar switch............ 2
23 GW-2543 Switch Housing–handlebar switch. 2
— GW-2563 Switch Assembly ........................... 1
(Includes Ref. 21-23)
24 1186009 Screw–pan head, 10-24 x 1/2",
thread-forming........................... 2
24A GW-9733 Screw–phillips head, 10-32 x 1/2",
thread-forming........................... 1
25 786-04003 Lever–Operator Presence Control.. 2
26 GW-9199 Pivot Pin–forward interlock lever... 2
27 GW-9514 Retaining Ring–klip ring–forward
interlock lever............................. 2
28 GW-9387 Return Spring–fwd interlock lever . 2
29 777D06526 Label – Troy-Bilt Horse.................. 1
777D06527 Label – Troy-Bilt Horse “Big Red” . 1

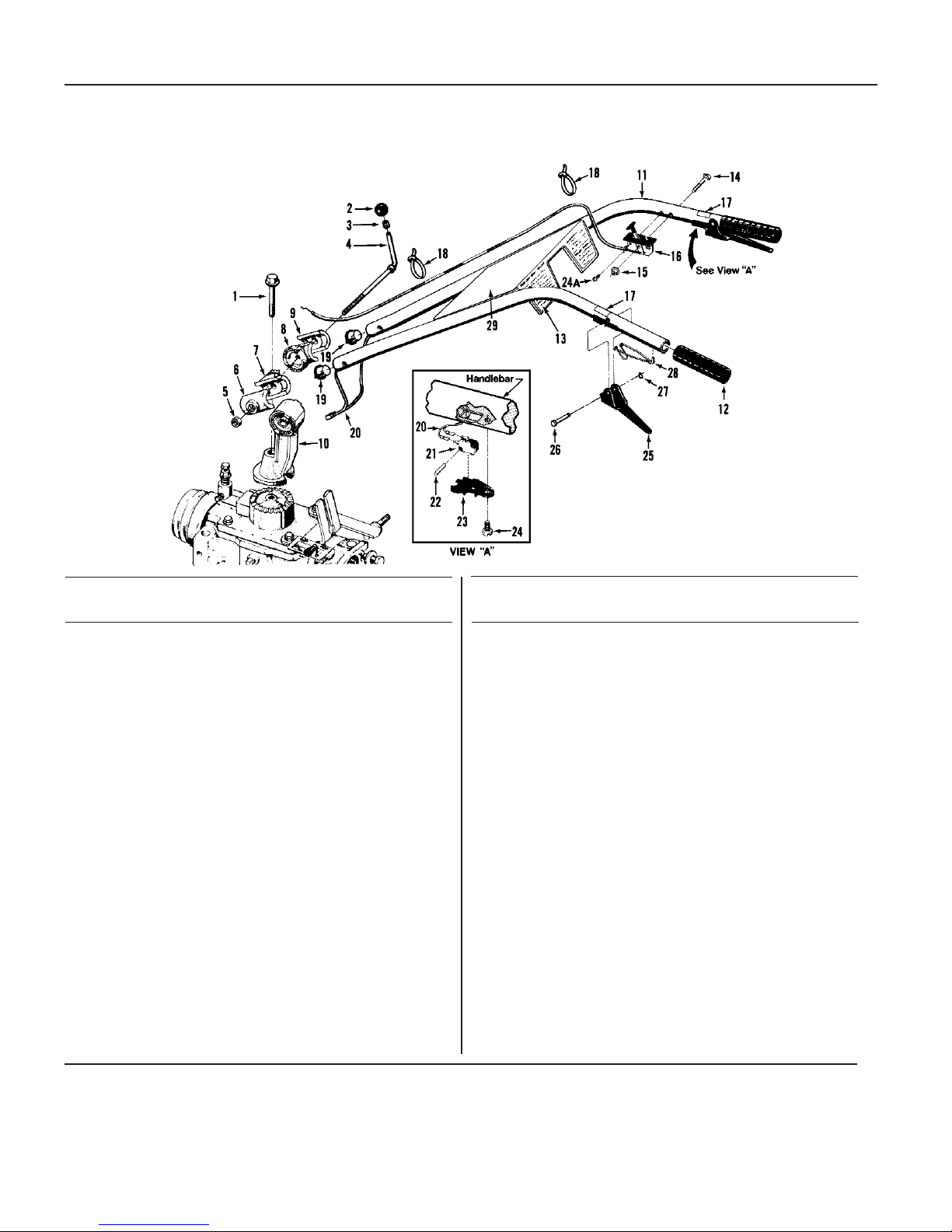

HANDLEBAR ASSEMBLY
46
1 710-3005 Bolt–hex hd., 3/8-16 x 1-1/4" ........ 2
2 GW-1113-1 Bushing–19/64" (.300" lg.) ............ 2
3 736-0169 Lockwasher–spring lock, 3/8" ....... 2
4 712-3017 Nut–hex, 3/8"-16 ........................... 2
5 GW-20795 Bar–depth regulator ...................... 1
6 GW-9120 Ring–retaining .............................. 1
7 GW-9119 Knob–depth regulator ................... 1
8 GW-2121 Bar–drag, depth regulator ............. 1
9 710-0599 Screw–thread-forming,
1/4-20 x 1/2".............................. 2
10 1186329 Bolt–flanged hex hd.,
5/16-18 x 3/4"............................ 2
12 GW-9929 Washer–flat, 5/16"......................... 2
13 GW-2468 Hood ............................................. 1
14 777I22027 Decal–hood, operating inst. (LH) .. 1
777S32049 Decal–hood, operating inst. (RH).. 1
15 GW-2525 Bracket .......................................... 1
16 1185469 Pin–roll (spirol) 1/4" x 1" ............... 1
17 GW-9534 Spacer........................................... 1
18 GW-9384 Spring ........................................... 1
19 710-0597 Bolt–hex hd., 1/4-20x1"................. 1
20 1110106 Locknut–1/4"-20 ........................... 1
21 710-04049 Bolt–flanged hex hd.,
5/16-18 x 5/8"............................ 2
REF PART
No. No. DESCRIPTION QTY.
REF PART
No. No. DESCRIPTION QTY.
DEPTH REGULATOR & TINE HOOD ASSEMBLIES
See Page 54
MODELS 682J. E686N & E682L
Parts List
47
