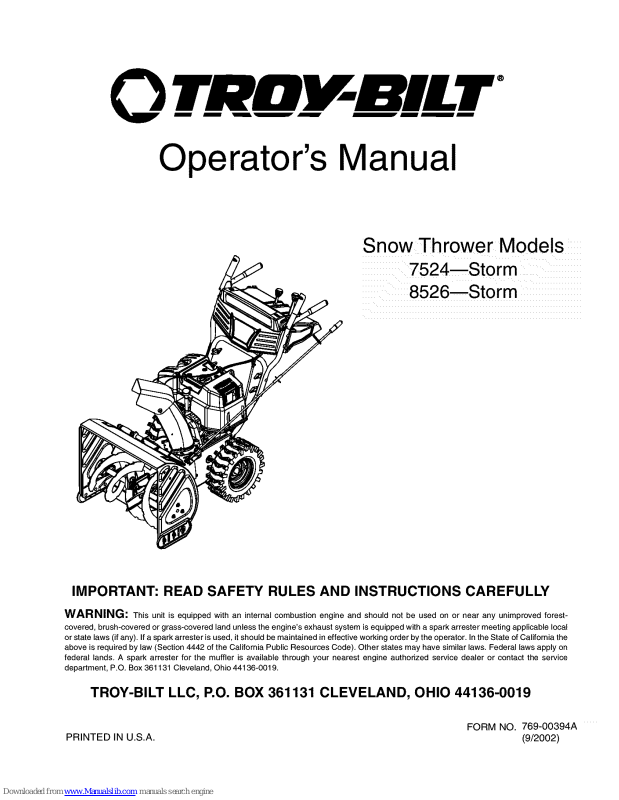

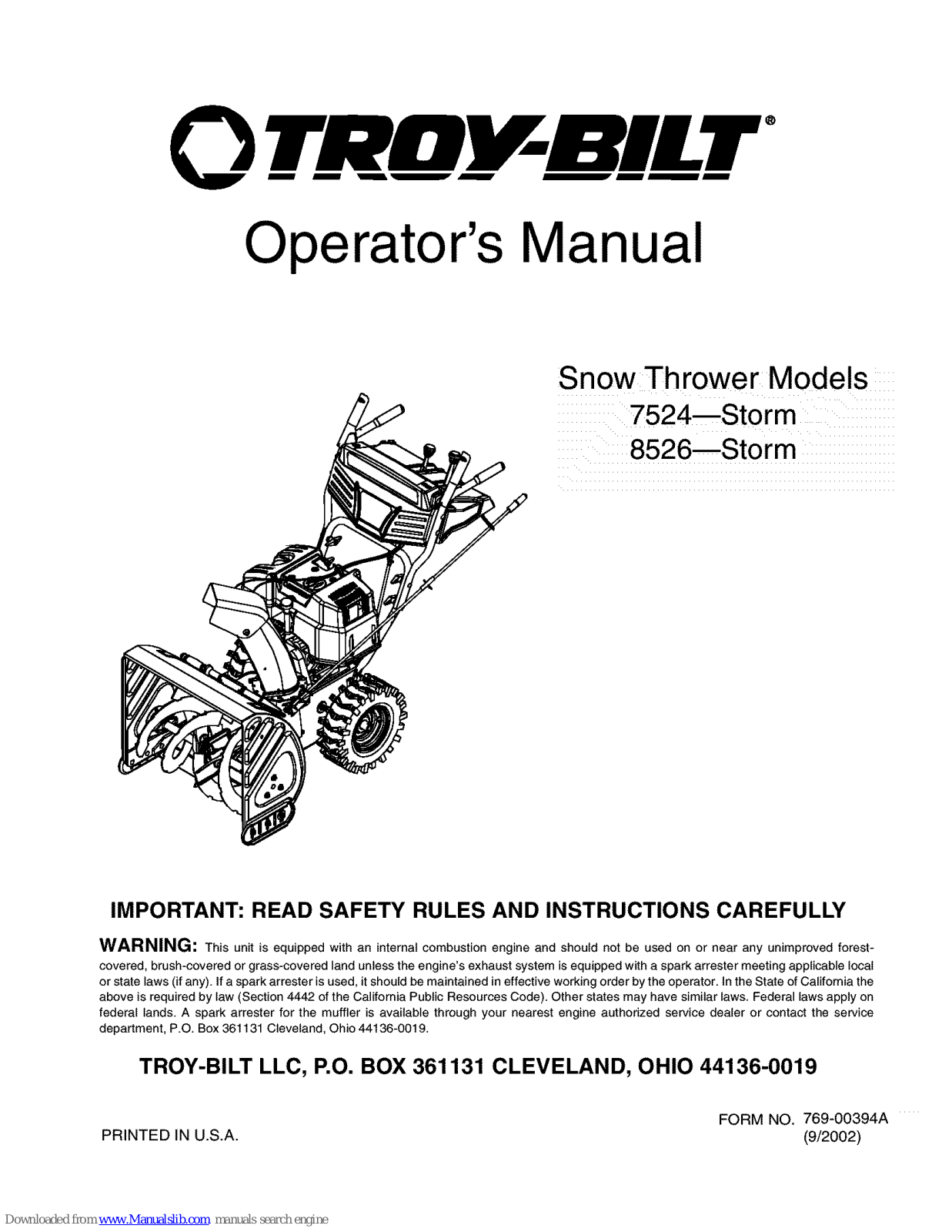

Page 1
OTRO_ BILT__
Operator's Manual
Snow Thrower Models
7524--Storm
8526--Storm
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
WARNING: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arreeter meeting applicable local
or state laws (if any). If a spark attester is used, it should be maintained in effective working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on
federal lands. A spark attester for the muffler is available through your nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
FORM NO. 769-00394A
PRINTED IN U.S.A. (9/2002)
Page 2

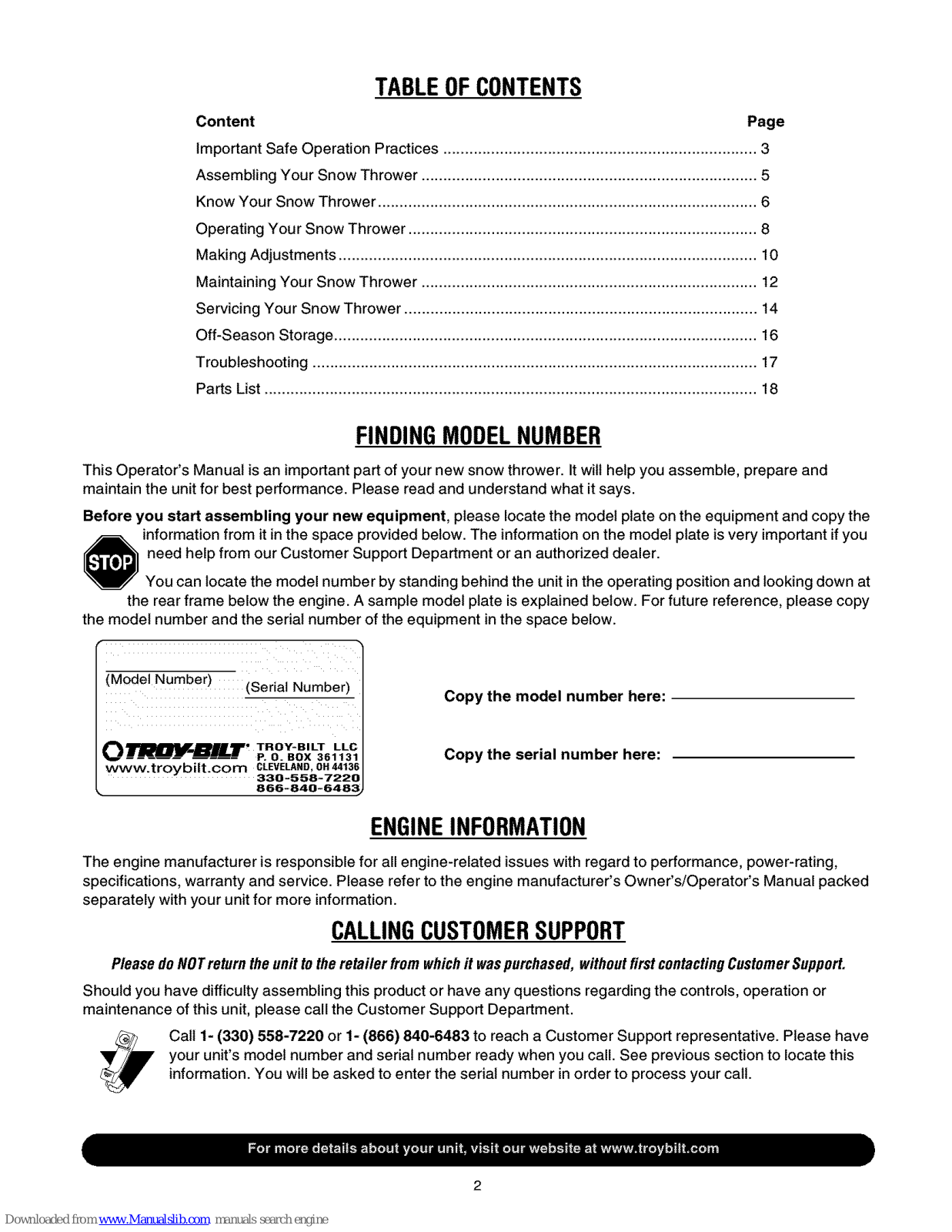

TABLEOFCONTENTS
Content Page
Important Safe Operation Practices ........................................................................ 3

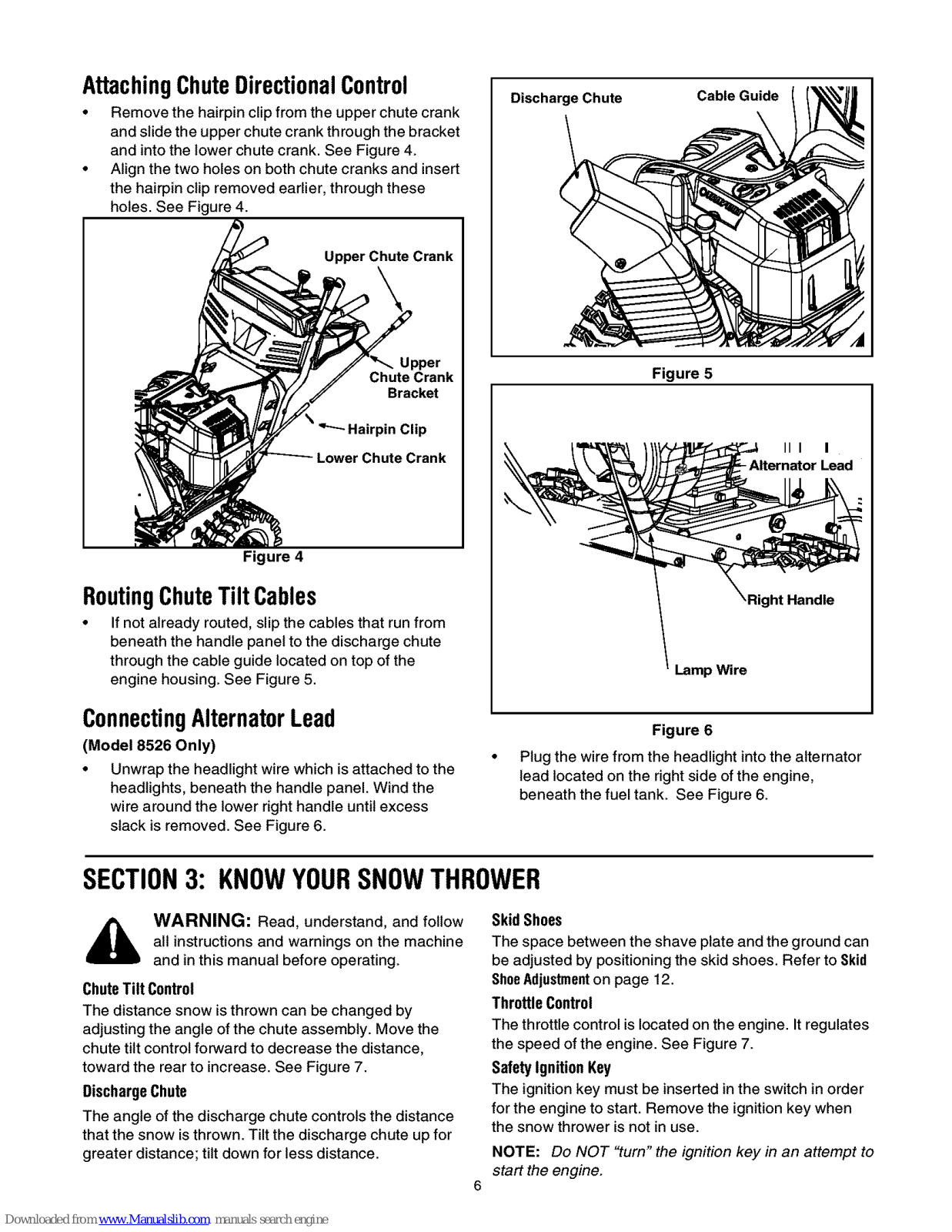

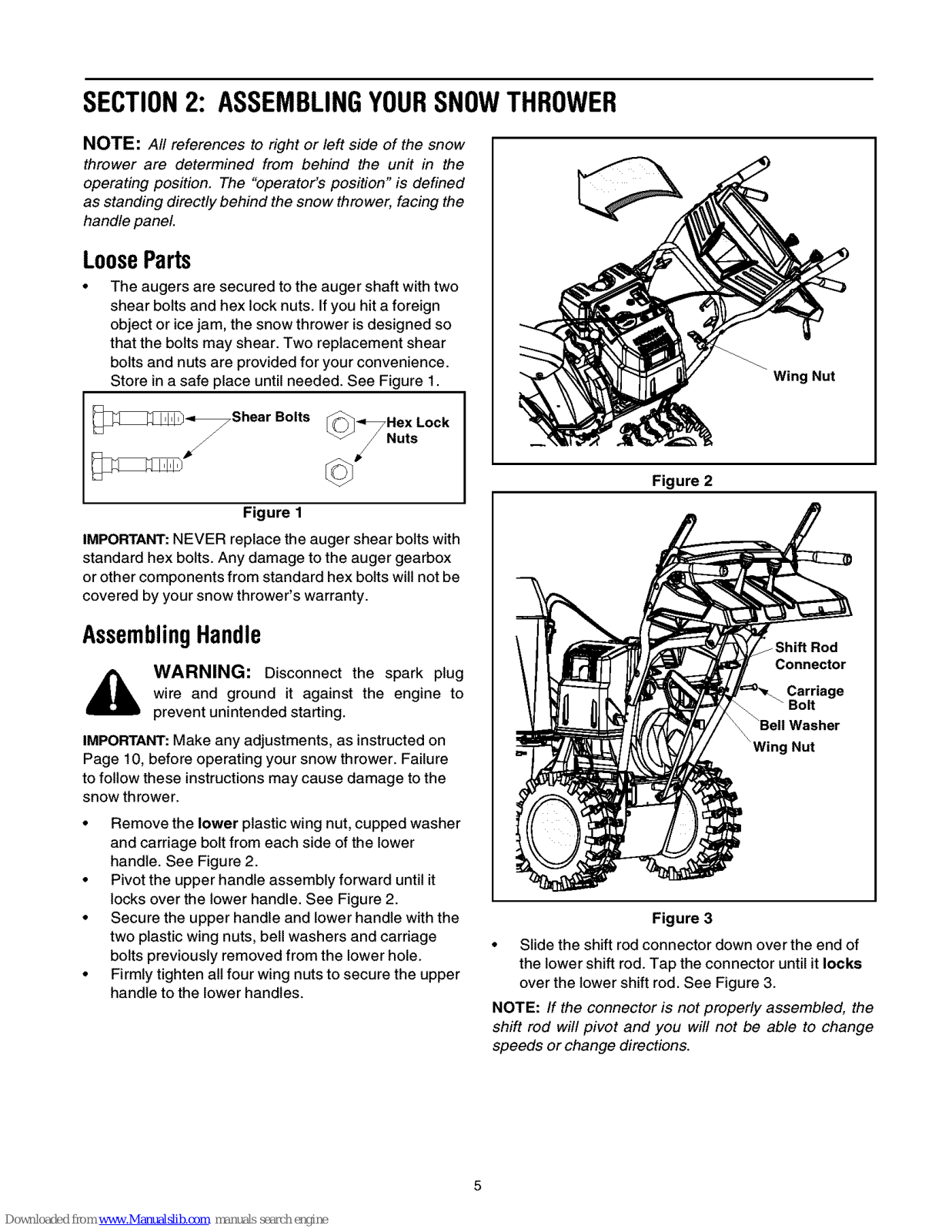

Assembling Your Snow Thrower ............................................................................. 5
Know Your Snow Thrower ....................................................................................... 6
Operating Your Snow Thrower ................................................................................ 8

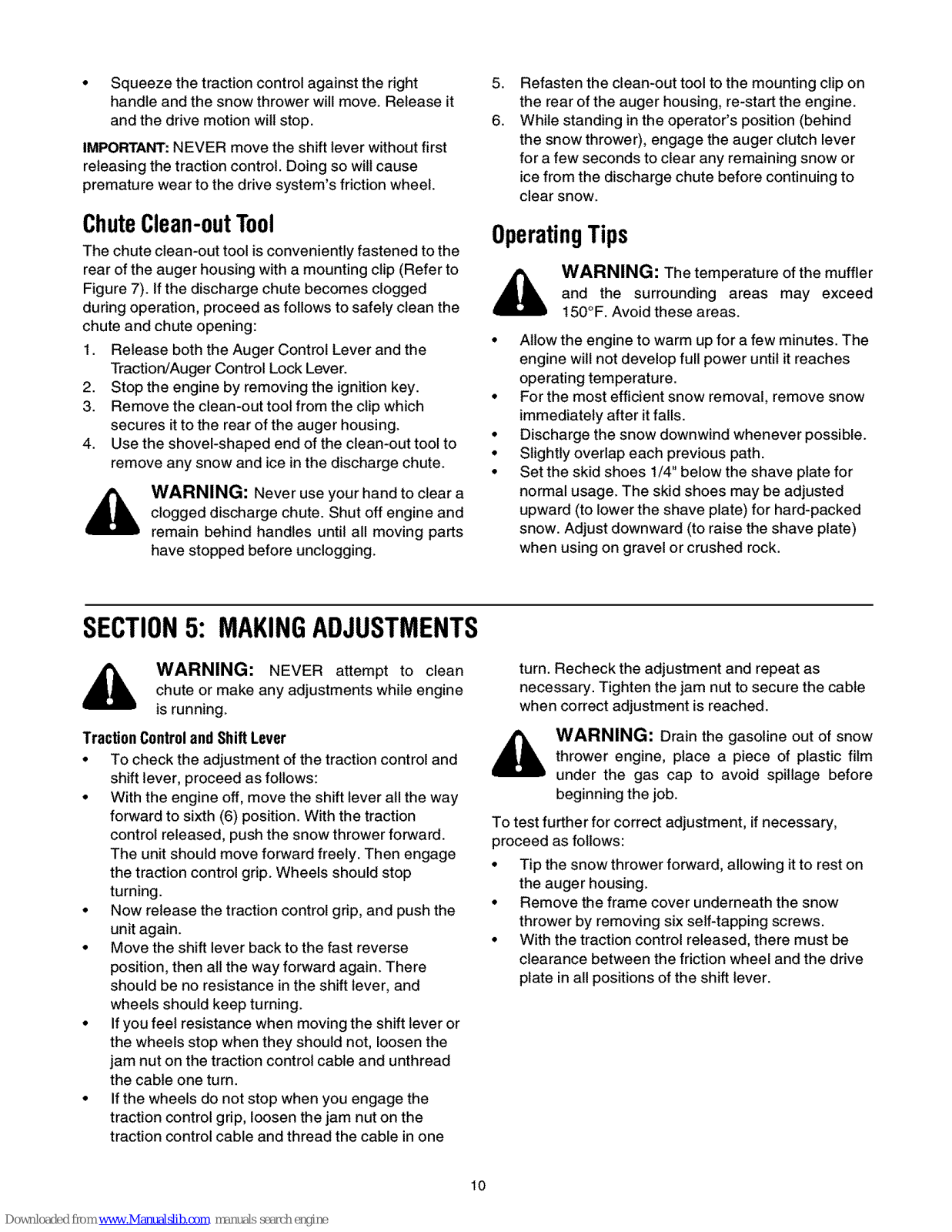

Making Adjustments ................................................................................................ 10
Maintaining Your Snow Thrower ............................................................................. 12

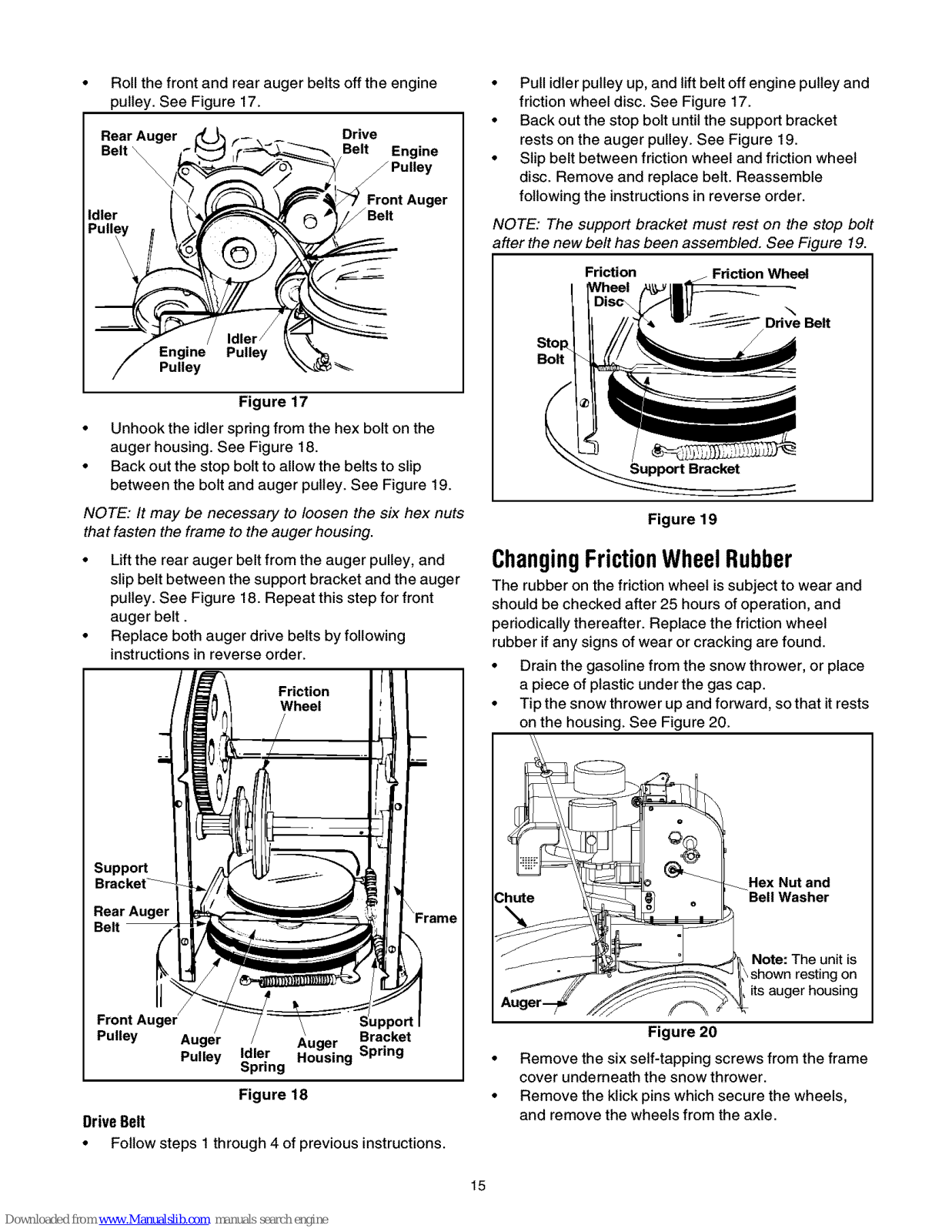

Servicing Your Snow Thrower ................................................................................. 14

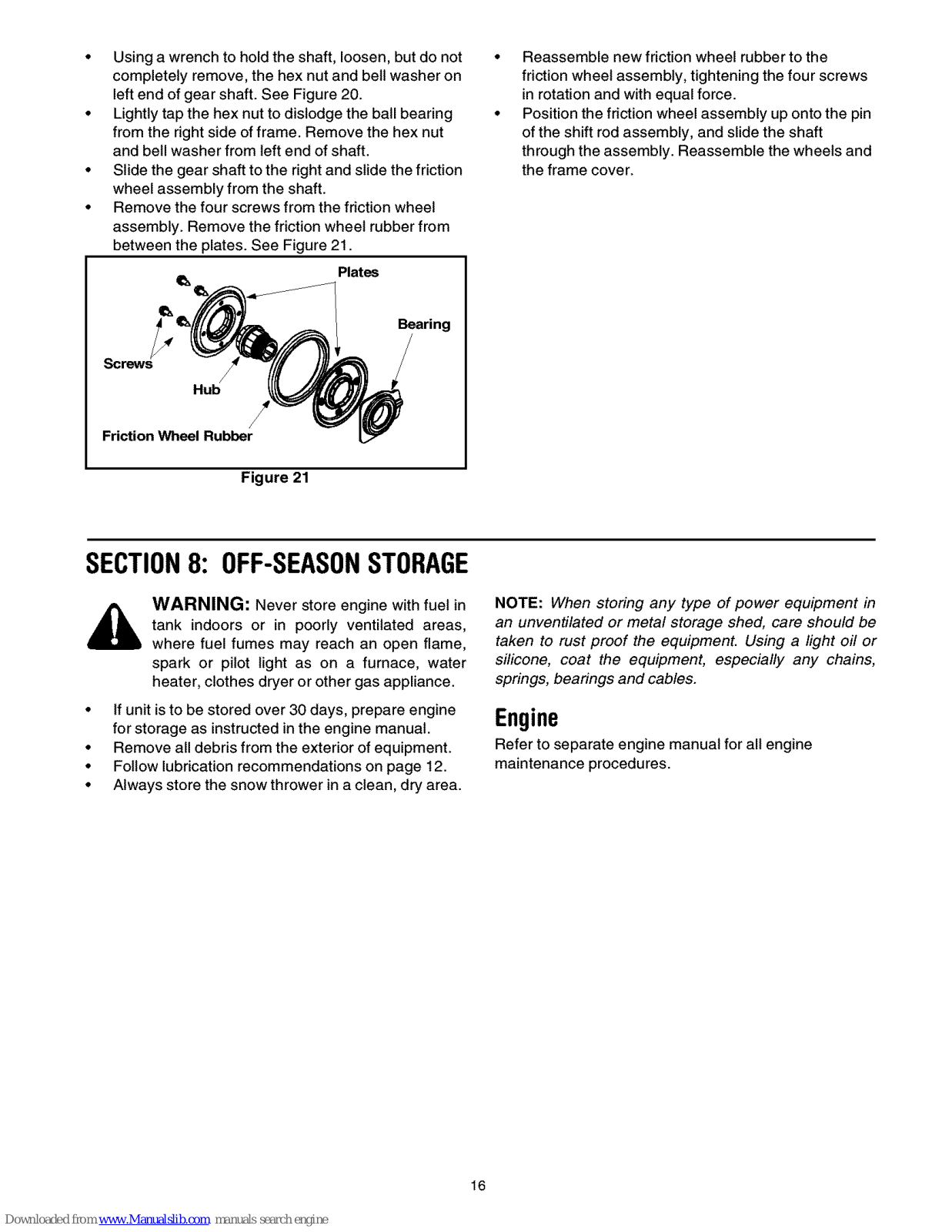

Off-Season Storage ................................................................................................. 16
Troubleshooting ...................................................................................................... 17

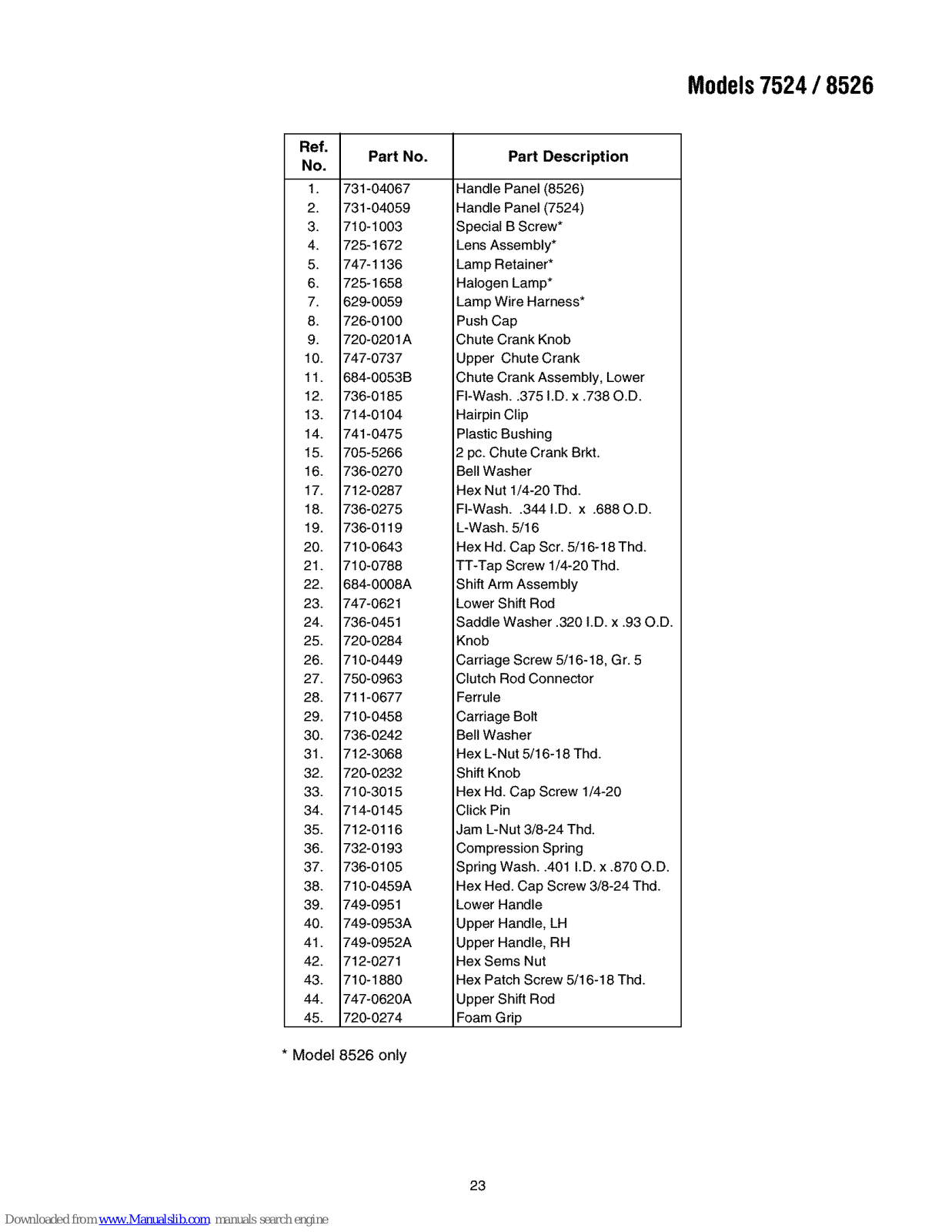

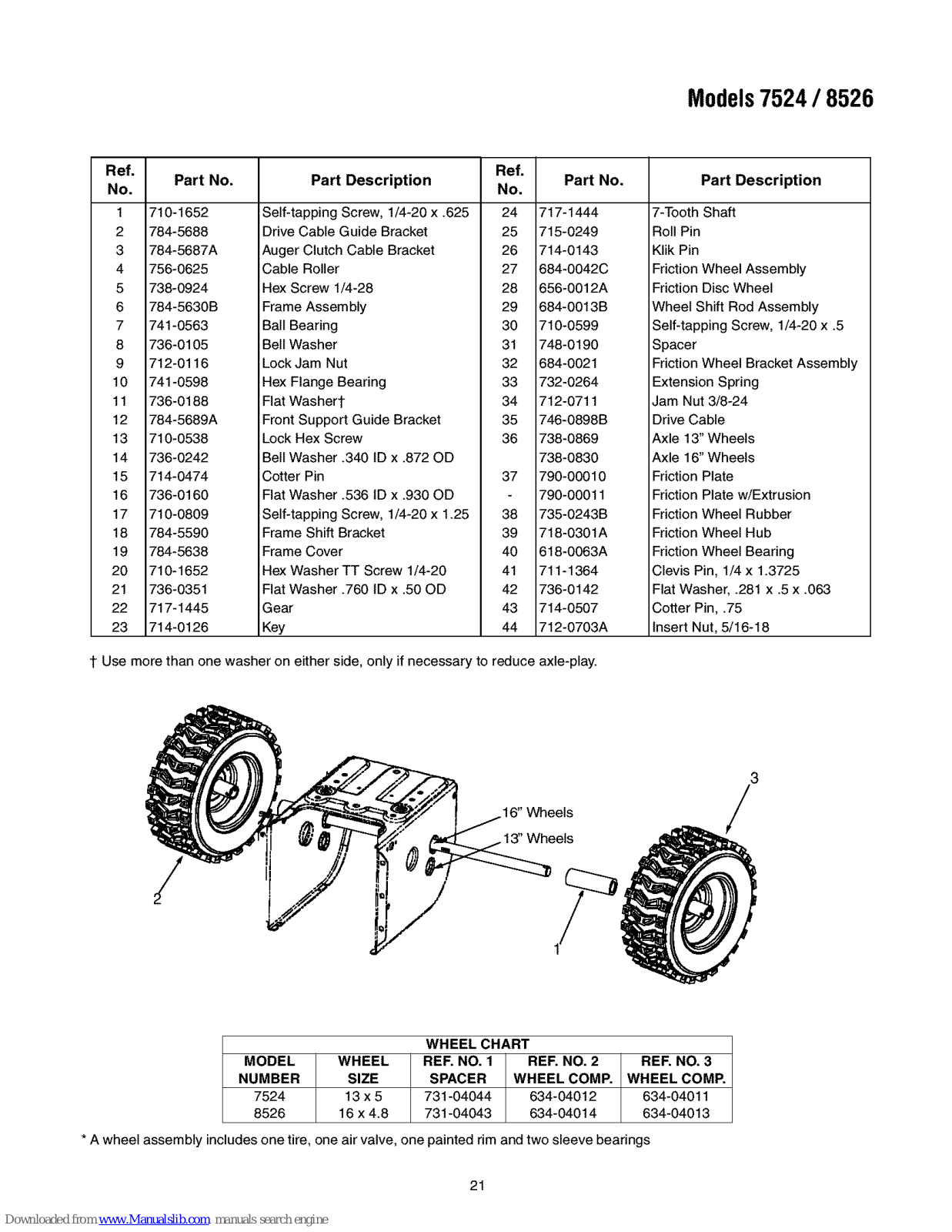

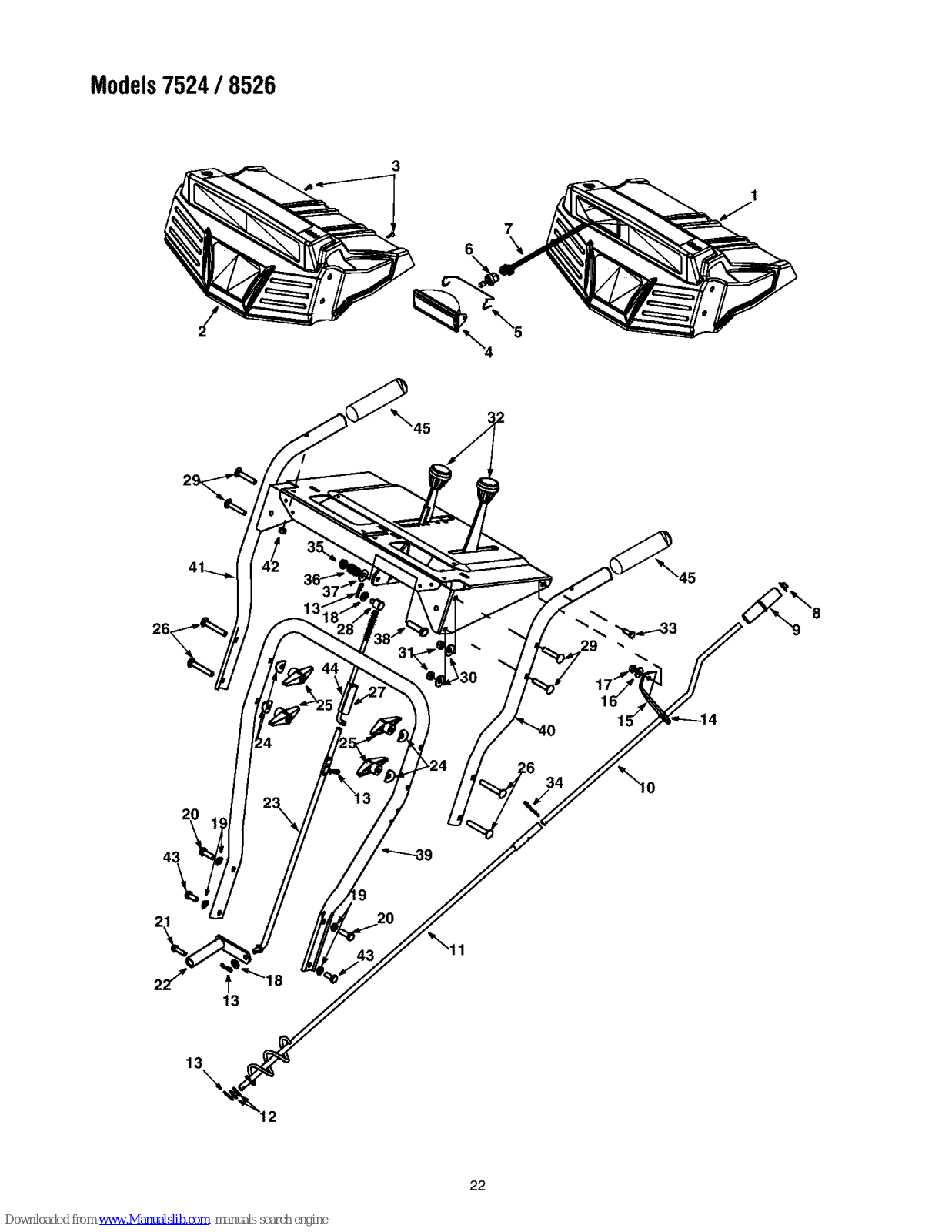

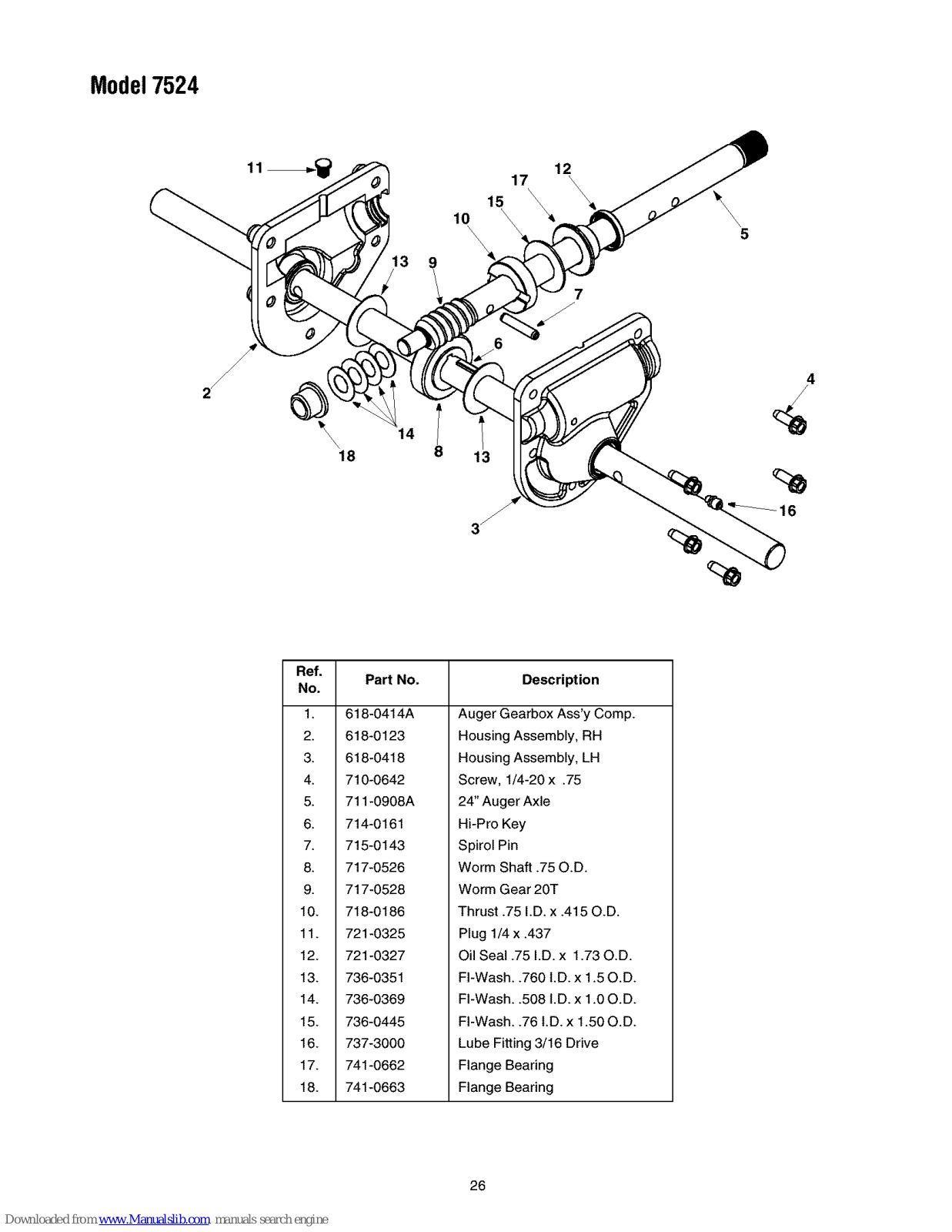

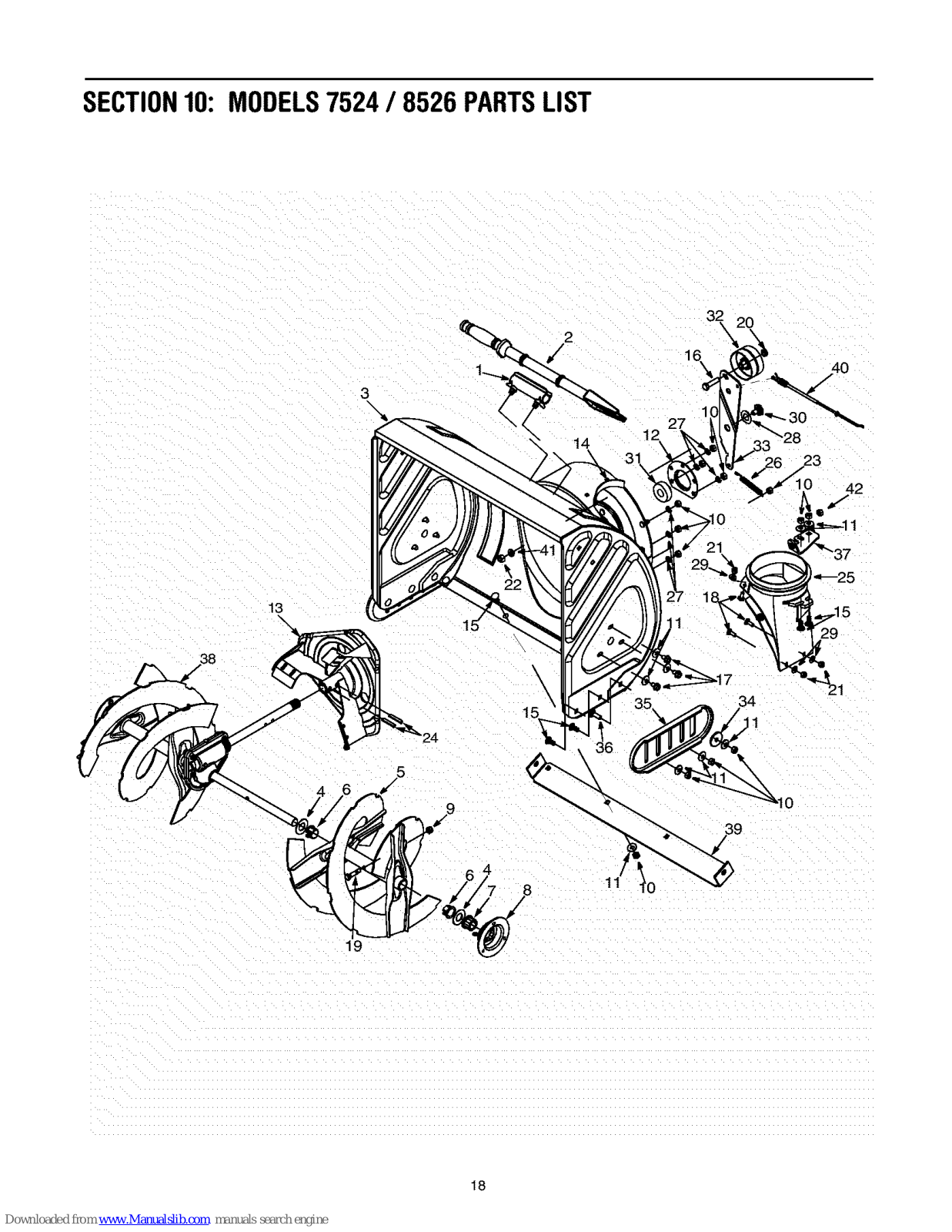

Parts List ................................................................................................................. 18
FINDINGMODELNUMBER
This Operator's Manual is an important part of your new snow thrower. It will help you assemble, prepare and
maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the equipment and copy the
O information from it in the space provided below. The information on the model plate is very important if you
need help from our Customer Support Department or an authorized dealer.
You can locate the model number by standing behind the unit in the operating position and looking down at
the rear frame below the engine. A sample model plate is explained below. For future reference, please copy
the model number and the serial number of the equipment in the space below.
Model NUmbe r) (serial Number)
WWW.troybilt.com CLEVELAND,OH44136
330-558-7220
866-840-6483
Copy the model number here:
Copy the serial number here:
The engine manufacturer is responsible for all engine-related issues with regard to performance, power-rating,
specifications, warranty and service. Please refer to the engine manufacturer's Owner's/Operator's Manual packed
separately with your unit for more information.
CALLINGCUSTOMERSUPPORT
PleasedoNOTreturntheunitto theretailer fromwhichit waspurchased,withoutfirst contactingCustomerSupport.
Should you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- (330) 558-7220 or 1- (866) 840-6483 to reach a Customer Support representative. Please have
your unit's model number and serial number ready when you call. See previous section to locate this
information. You will be asked to enter the serial number in order to process your call.
ENGINEINFORMATION
Page 3

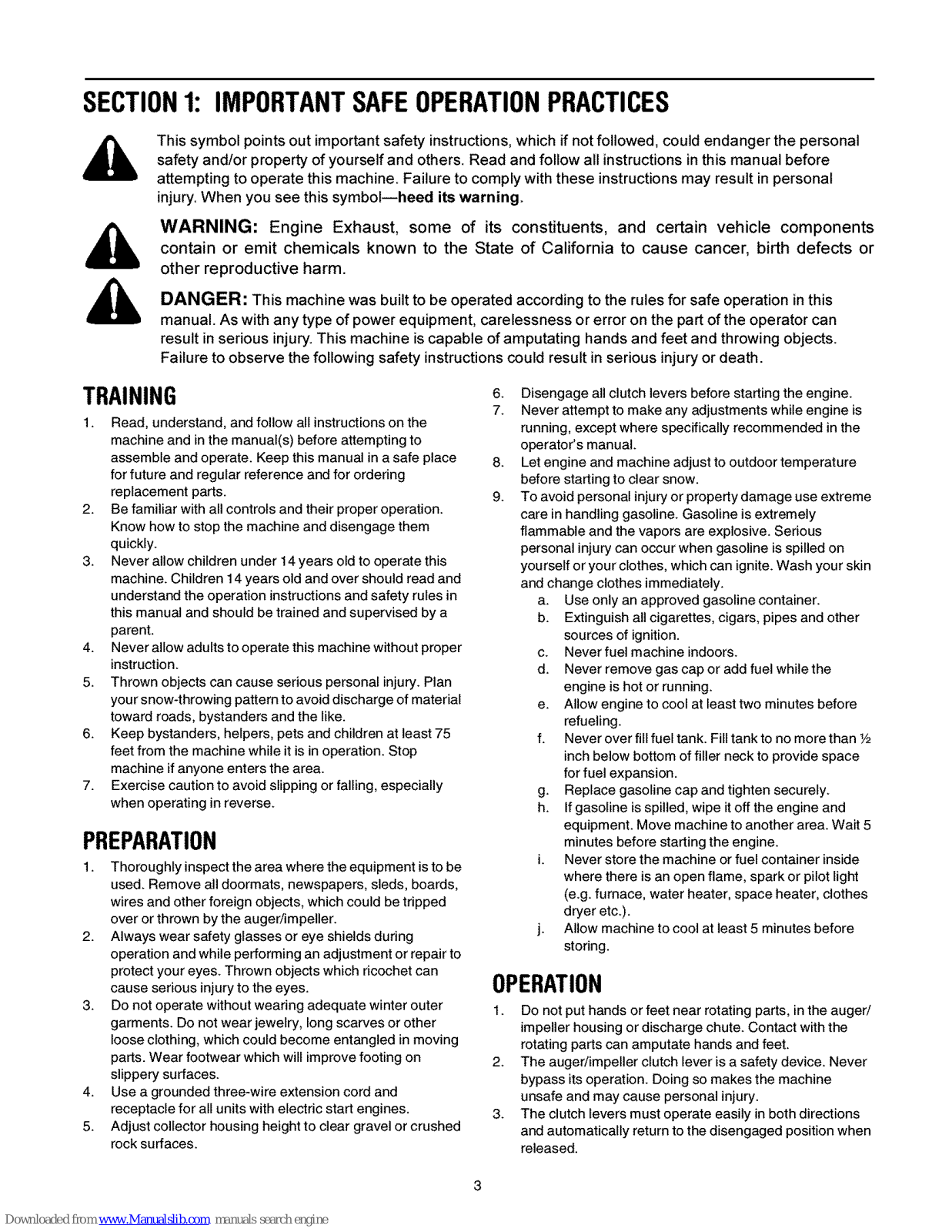

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES
This symbol points out important safety instructions, which if not followed, could endanger the personal
safety and/or property of yourself and others. Read and follow all instructions in this manual before
attempting to operate this machine. Failure to comply with these instructions may result in personal
injury. When you see this symboliheed its warning.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to the State of California to cause cancer, birth defects or
other reproductive harm.
DANGER: This machine was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.
TRAINING
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place
for future and regular reference and for ordering
replacement parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
4. Never allow adults to operate this machine without proper
instruction.
5. Thrown objects can cause serious personal injury. Plan
your snow4hrowing pattern to avoid discharge of material
toward roads, bystanders and the like.
6. Keep bystanders, helpers, pets and children at least 75
feet from the machine while it is in operation. Stop
machine if anyone enters the area.
7. Exercise caution to avoid slipping or falling, especially
when operating in reverse.
PREPARATION
1. Thoroughly inspect the area where the equipment is to be
used. Remove all doormats, newspapers, sleds, boards,
wires and other foreign objects, which could be tripped
over or thrown by the auger/impeller.
2. Always wear safety glasses or eye shields during
operation and while performing an adjustment or repair to
protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
3. Do not operate without wearing adequate winter outer
garments. Do not wear jewelry, long scarves or other
loose clothing, which could become entangled in moving
parts. Wear footwear which will improve footing on
slippery surfaces.
4. Use a grounded three-wire extension cord and
receptacle for all units with electric start engines.
5. Adjust collector housing height to clear gravel or crushed
rock surfaces.
6.
7.
8.
9.
Disengage all clutch levers before starting the engine.
Never attempt to make any adjustments while engine is
running, except where specifically recommended in the
operator's manual.
Let engine and machine adjust to outdoor temperature
before starting to clear snow.
To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Serious
personal injury can occur when gasoline is spilled on
yourself or your clothes, which can ignite. Wash your skin
and change clothes immediately.
a. Use only an approved gasolinecontainer.
b. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the
engine is hot or running.
e. Allow engine to cool at least two minutes before
refueling.
f. Never over fill fuel tank. Fill tank to no more than _/2
inch below bottom of filler neck to provide space
for fuel expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine and
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
i. Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
(e.g. furnace, water heater, space heater, clothes
dryer etc.).
j. Allow machine to cool at least 5 minutes before
storing.
OPERATION
1. Do not put hands or feet near rotating parts, in the auger/
impeller housing or discharge chute. Contact with the
rotating parts can amputate hands and feet.
2. The auger/impeller clutch lever is a safety device. Never
bypass its operation. Doing so makes the machine
unsafe and may cause personal injury.
3. The clutch levers must operate easily in both directions
and automatically return to the disengaged position when
released.

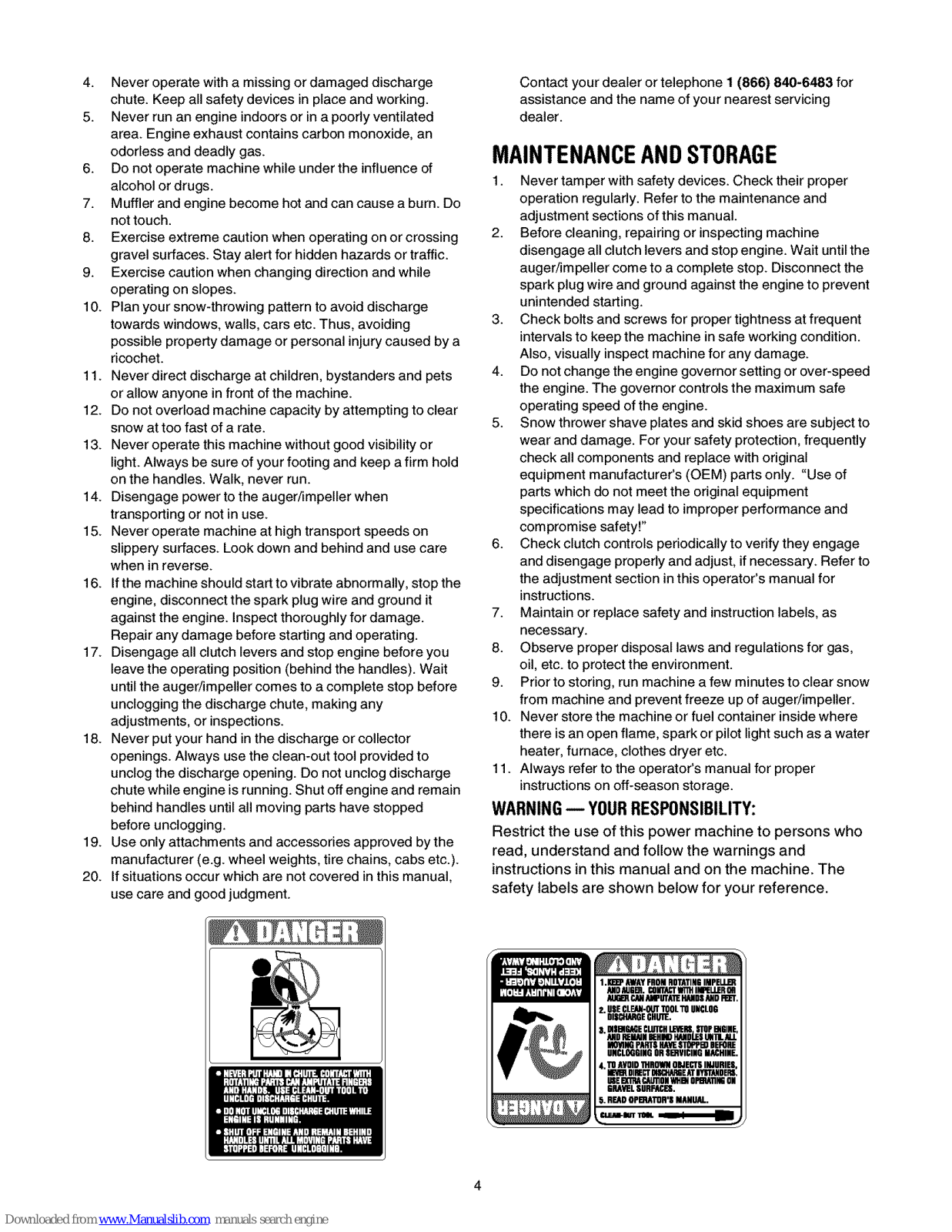

Page 4
4. Neveroperatewithamissingordamageddischarge
chute.Keepallsafetydevicesinpieceandworking.
5. Neverrunanengineindoorsorinapoorlyventilated
area.Engineexhaustcontainscarbonmonoxide,an
odorlessanddeadlygas.
6. Donotoperatemachinewhileundertheinfluenceof
alcoholordrugs.
7. Mufflerandenginebecomehotandcancauseaburn.Do
nottouch.
8. Exerciseextremecautionwhenoperatingonorcrossing
gravelsurfaces.Stayalertforhiddenhazardsortraffic.
9. Exercisecautionwhenchangingdirectionandwhile
operatingonslopes.
10.Planyoursnow-throwingpatterntoavoiddischarge
towardswindows+wails,carsetc.Thus,avoiding
possiblepropertydamageorpersonalinjurycausedbya
ricochet.
11.Neverdirectdischargeatchildren,bystandersandpets
orallowanyoneinfrontofthemachine.
12.Donotoverloadmachinecapacitybyattemptingtoclear
snowattoofastofarate.
13.Neveroperatethismachinewithoutgoodvisibilityor
light.Alwaysbesureofyourfootingandkeepafirmhold
onthehandles.Walk,neverrun.
14.Disengagepowertotheauger/impellerwhen
transportingornotinuse.
15.Neveroperatemachineathightransportspeedson
slipperysurfaces.Lookdownandbehindandusecare
wheninreverse.
16.Ifthemachineshouldstarttovibrateabnormally,stopthe
engine,disconnectthesparkplugwireandgroundit
againsttheengine.Inspectthoroughlyfordamage.
Repairanydamagebeforestartingandoperating.
17.Disengageallclutchleversandstopenginebeforeyou
leavetheoperatingposition(behindthehandles).Wait
untiltheauger/impellercomestoacompletestopbefore
uncloggingthedischargechute,makingany
adjustments,orinspections.
18.Neverputyourhandinthedischargeorcollector
openings.Alwaysusetheclean-outtoolprovidedto
unclogthedischargeopening.Donotunclogdischarge
chutewhileengineisrunning.Shutoffengineandremain
behindhandlesuntilallmovingpartshavestopped
beforeunclogging.
19.Useonlyattachmentsandaccessoriesapprovedbythe
manufacturer(e.g.wheelweights+tirechains,cabsetc.).
20.Ifsituationsoccurwhicharenotcoveredinthismanual+
usecareandgoodjudgment.
ContactyourdealerortelephoneI (866)840-6483for
assistanceandthenameofyournearestservicing
dealer.
MAINTENANCEANDSTORAGE
1. Never tamper with safety devices. Check their proper
operation regularly. Refer to the maintenance and
adjustment sections of this manual.
2. Before cleaning, repairing or inspecting machine
disengage all clutch levers and stop engine. Wait until the
auger/impeller come to acomplete stop. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
3. Check bolts and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
5. Snow thrower shave plates and skid shoes are subject to
wear and damage. For your safety protection, frequently
check all components and replace with original
equipment manufacturer's (OEM) parts only. "Use of
parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!"
6. Check dutch controls periodically to verify they engage
and disengage properly and adjust+ if necessary. Refer to
the adjustment section in this operator's manual for
instructions.
7. Maintain or replace safety and instruction labels, as
necessary.
8. Observe proper disposal laws and regulations for gas,
oil, etc. to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow
from machine and prevent freeze up of auger/impeller.
10+ Never store the machine or fuel container inside where
there is an open flame, spark or pilot light such as a water
heater, furnace, clothes dryer etc.
11. Always refer to the operator's manual for proper
instructions on off-season storage.
WARNING-- YOURRESPONSIBILITY:
Restrict the use of this power machine to persons who
read, understand and follow the warnings and
instructions in this manual and on the machine. The
safety labels are shown below for your reference.
1.10_ AWAYFROMROTATINGIMPELLI_
ANDAUGBR.CgHTACTWT'C4IN_LLEROR
ALiBRCJ ,Z,_UTATOHANDSANDH£i:'r,
2.USECLFJLN-C(ITTOOLTOUNCLOG
_b DI$CILIRGE$HUIT.
_ S.glSEHGAOECLUTOHLEIERS5"FOrETOiHE,
.MIDHmNN gEHifOFIAHDLE$UN111.N.L
i40VIHIGPARTSHAVESTOPPWDETOHE
UNCLOGGINGORS_VICING MACHINE.
4.TOAVDID11TOOWHOBJECTSINJURIES,
iWR DIRECTDISCIIARGEATDTSTANDERS.
LBSEe('l_,ACALmONWHENOFHTAllNGON
GRAVELSURW_CES.
.R_D OPmATOR'$MAHLBAL.
I:l,EF,I- liJT 1TIP. iala4aili,
Page 5
SECTION2: ASSEMBLINGYOURSNOWTHROWER
NOTE: All references to right or left side of the snow
thrower are determined from behind the unit in the
operating position. The "operator's position" is defined
as standing directly behind the snow thrower, facing the
handle panel
LooseParts
• The augers are secured to the auger shaft with two
shear bolts and hex lock nuts. If you hit a foreign
object or ice jam, the snow thrower is designed so
that the bolts may shear. Two replacement shear
bolts and nuts are provided for your convenience.
Store in a safe place until needed. See Figure 1.
_]__Shear Bolts _Hex Lock
_/Nuts
Figure 1
IMPORTANT:NEVER replace the auger shear bolts with
standard hex bolts. Any damage to the auger gearbox
or other components from standard hex bolts will not be
covered by your snow thrower's warranty.
AssemblingHandle
,_ WARNING: Disconnect the spark plug
wire and ground it against the engine to
prevent unintended starting.
IMPORTANT: Make any adjustments, as instructed on
Page 10, before operating your snow thrower. Failure
to follow these instructions may cause damage to the
snow thrower.
• Remove the lower plastic wing nut, cupped washer
and carriage bolt from each side of the lower
handle. See Figure 2.
• Pivot the upper handle assembly forward until it
locks over the lower handle. See Figure 2.
• Secure the upper handle and lower handle with the
two plastic wing nuts, bell washers and carriage
bolts previously removed from the lower hole.
• Firmly tighten all four wing nuts to secure the upper
handle to the lower handles.
Wing Nut
Figure 2
/ Shift Rod
Connector
Carriage
Bolt
\Bell Washer
\Wing Nut
Figure 3
• Slide the shift rod connector down over the end of
the lower shift rod. Tap the connector until it locks
over the lower shift rod. See Figure 3.
NOTE: If the connector is not properly assembled, the
shift rod will pivot and you will not be able to change
speeds or change directions.
Page 6
AttachingChuteDirectionalControl
• Remove the hairpin clip from the upper chute crank
and slide the upper chute crank through the bracket
and into the lower chute crank. See Figure 4.
• Align the two holes on both chute cranks and insert
the hairpin clip removed earlier, through these
holes. See Figure 4.
Upper Chute Crank
Figure 4
RoutingChuteTiltCables
• If not already routed, slip the cables that run from
beneath the handle panel to the discharge chute
through the cable guide located on top of the
engine housing. See Figure 5.
ConnectingAlternatorLead
(Model 8526 Only)
• Unwrap the headlight wire which is attached to the
headlights, beneath the handle panel. Wind the
wire around the lower right handle until excess
slack is removed. See Figure 6.
Discharge Chute
Cable Guide
Figure 5
III I
-Alternator Lead
Right Handle
Lamp Wire
Figure 6
Plug the wire from the headlight into the alternator
lead located on the right side of the engine,
beneath the fuel tank. See Figure 6.
SECTION3: KNOWYOURSNOWTHROWER
_lb WARNING: Read, understand, and follow
all instructions and warnings on the machine
and in this manual before operating.
ChuteTilt Control
The distance snow isthrown can be changed by
adjusting the angle of the chute assembly. Move the
chute tilt control forward to decrease the distance,
toward the rear to increase. See Figure 7.
DischargeChute
The angle of the discharge chute controls the distance
that the snow is thrown. Tilt the discharge chute up for
greater distance; tilt down for less distance.
SkidShoes
The space between the shave plate and the ground can
be adjusted by positioning the skid shoes. Refer to Skid
ShoeAdjustmenton page 12.
ThrottleControl
The throttle control is located on the engine. It regulates
the speed of the engine. See Figure 7.
SafetyIgnitionKey
The ignition key must be inserted in the switch in order
for the engine to start. Remove the ignition key when
the snow thrower is not in use.
NOTE: Do NOT "turn" the ignition key in an attempt to
start the engine.
Page 7

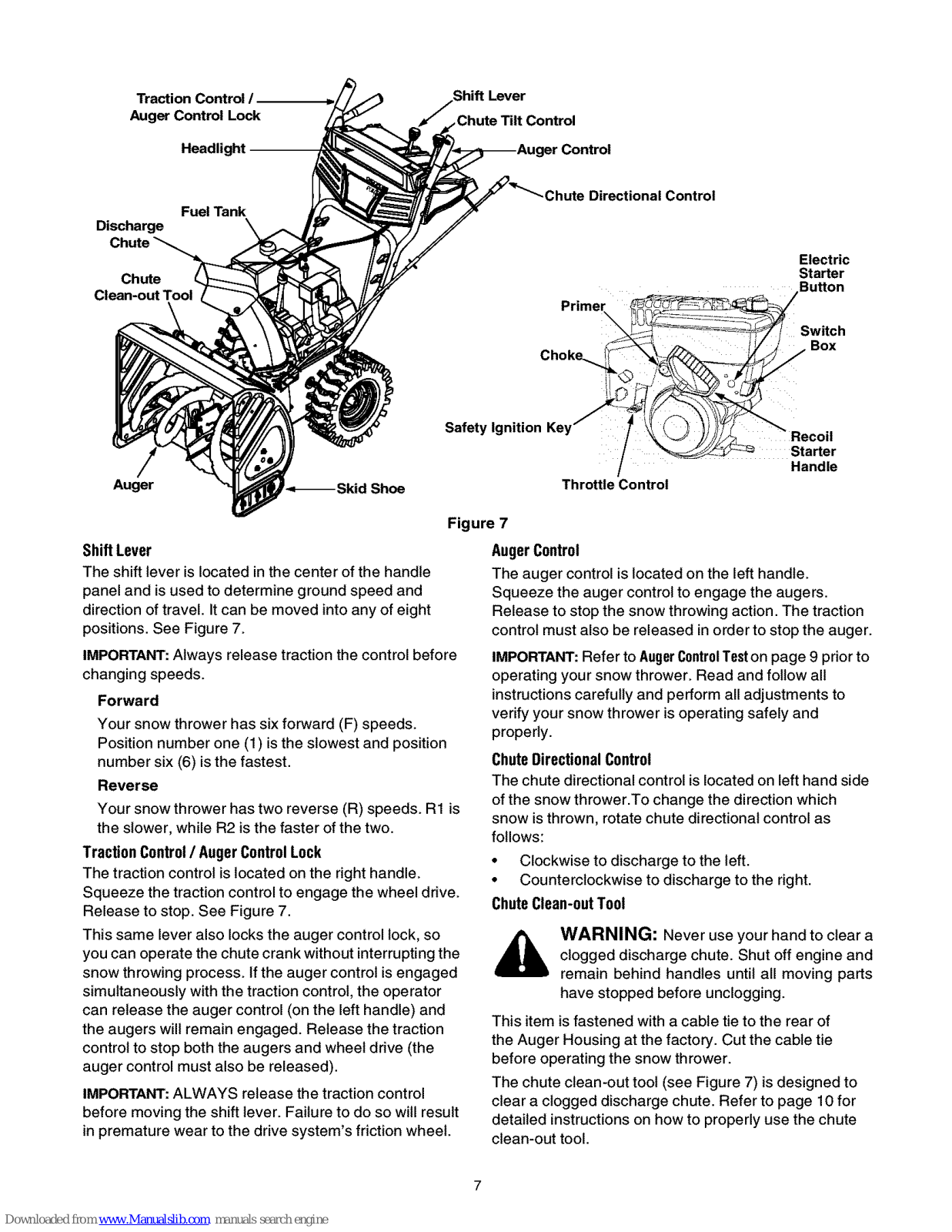

Traction Control /
Auger Control Lock
Headlight
Fuel Tank
Discharge
Chute
Clean-out Tool
_hute Directional Control
Electric
Starter
3utton
Primer.x
Switch
Box
Choke._.
Auger
Safety Ignition Km
Throttle Control
Starter
Handle
Shift Lever
The shift lever is located in the center of the handle
panel and is used to determine ground speed and
direction of travel. It can be moved into any of eight
positions. See Figure 7.
IMPORTAhrI":Always release traction the control before
changing speeds.
Forward
Your snow thrower has sixforward (F) speeds.
Position number one (1) isthe slowest and position
number six (6) is the fastest.
Reverse
Your snowthrower has two reverse (R) speeds. R1 is
the slower, while R2 isthe faster of the two.
TractionControl / AugerControlLock
The traction control is located on the righthandle.
Squeeze the traction controlto engage the wheel drive.
Release to stop. See Figure 7.
This same leveralso locksthe auger control lock,so
you can operate the chute crank without interruptingthe
snow throwing process. If the auger control is engaged
simultaneously withthe traction control, the operator
can release the auger control (on the lefthandle) and
the augers will remain engaged. Release the traction
controlto stop both the augers and wheel drive (the
auger control must also be released).
IMPORTANT:ALWAYS release the traction control
before moving the shiftlever. Failure to do so will result
in premature wear to the drive system's friction wheel.
Figure 7
AugerControl
The auger control is located on the left handle.
Squeeze the auger control to engage the augers.
Release to stop the snow throwing action. The traction
control must also be released in order to stop the auger.
IMPORTANT:Refer to AugerControlTeston page 9 prior to
operating your snow thrower. Read and follow all
instructionscarefully and perform all adjustments to
verify your snow thrower is operating safely and
properly.
ChuteDirectional Control
The chute directional control is located on lefthand side
ofthe snow thrower.To change the direction which
snow isthrown, rotate chute directional controlas
follows:
• Clockwise to discharge to the left.
• Counterclockwise to discharge to the right.
Chute Clean-0ut T001
WARNING: Never use your hand to clear a
clogged discharge chute. Shut off engine and
remain behind handles until all moving parts
have stopped before unclogging.
This item is fastened with a cable tie to the rear of
the Auger Housing at the factory. Cut the cable tie
before operating the snow thrower.
The chute clean-out toot (see Figure 7) isdesigned to
clear a clogged discharge chute. Refer to page 10 for
detailed instructionson how to properly use the chute
clean-out tool.
Page 8

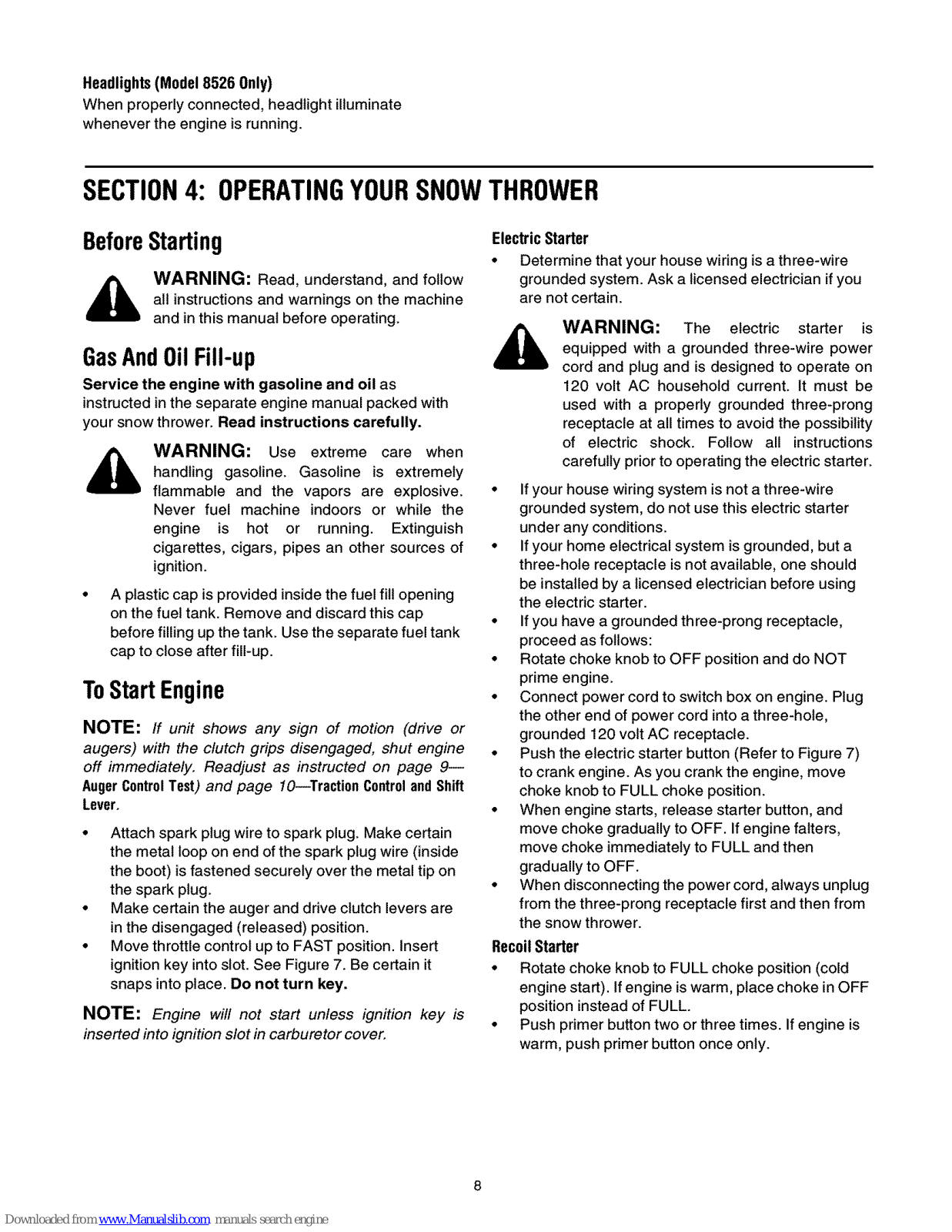

Headlights(Model 8526 Only)
When properly connected, headlight illuminate
whenever the engine is running.
SECTION4: OPERATINGYOURSNOWTHROWER
BeforeStarting
i_ WARNING: Read, understand, and follow
all instructions and warnings on the machine
and in this manual before operating.
GasAndOilFill-up
Service the engine with gasoline and oil as
instructed in the separate engine manual packed with
your snow thrower. Read instructions carefully.
_, WARNING: Use extreme care when
handling gasoline. Gasoline is extremely
flammable and the vapors are explosive.
Never fuel machine indoors or while the
engine is hot or running. Extinguish
cigarettes, cigars, pipes an other sources of
ignition.
A plastic cap is provided inside the fuel fill opening
on the fuel tank. Remove and discard this cap
before filling up the tank. Use the separate fuel tank
cap to close after fill-up.
ToStartEngine
NOTE: If unit shows any sign of motion (drive or
augers) with the clutch grips disengaged, shut engine
off immediately. Readjust as instructed on page 9--
AugerControlTest)and page /O--Traction ControlandShift
Lever.
• Attach spark plug wire to spark plug. Make certain
the metal loop on end of the spark plug wire (inside
the boot) is fastened securely over the metal tip on
the spark plug.
• Make certain the auger and drive clutch levers are
in the disengaged (released) position.
• Move throttle control up to FAST position. Insert
ignition key into slot. See Figure 7. Be certain it
snaps into place. Do not turn key.
NOTE: Engine will not start unless ignition key is
inserted into ignition slot in carburetor cover.
ElectricStarter
• Determine that your house wiring is a three-wire
grounded system. Ask a licensed electrician if you
are not certain.
WARNING: The electric starter is
equipped with a grounded three-wire power
cord and plug and is designed to operate on
120 volt AC household current. It must be
used with a properly grounded three-prong
receptacle at all times to avoid the possibility
of electric shock. Follow all instructions
carefully prior to operating the electric starter.
• If your house wiring system is not a three-wire
grounded system, do not use this electric starter
under any conditions.
• If your home electrical system is grounded, but a
three-hole receptacle is not available, one should
be installed by a licensed electrician before using
the electric starter.
• If you have a grounded three-prong receptacle,
proceed as follows:
• Rotate choke knob to OFF position and do NOT
prime engine.
• Connect power cord to switch box on engine. Plug
the other end of power cord into a three-hole,
grounded 120 volt AC receptacle.
• Push the electric starter button (Refer to Figure 7)
to crank engine. As you crank the engine, move
choke knob to FULL choke position.
• When engine starts, release starter button, and
move choke gradually to OFF. If engine falters,
move choke immediately to FULL and then
gradually to OFF.
• When disconnecting the power cord, always unplug
from the three-prong receptacle first and then from
the snow thrower.
RecoilStarter
• Rotate choke knob to FULL choke position (cold
engine start). If engine is warm, place choke in OFF
position instead of FULL.
• Push primer button two or three times. If engine is
warm, push primer button once only.
Page 9

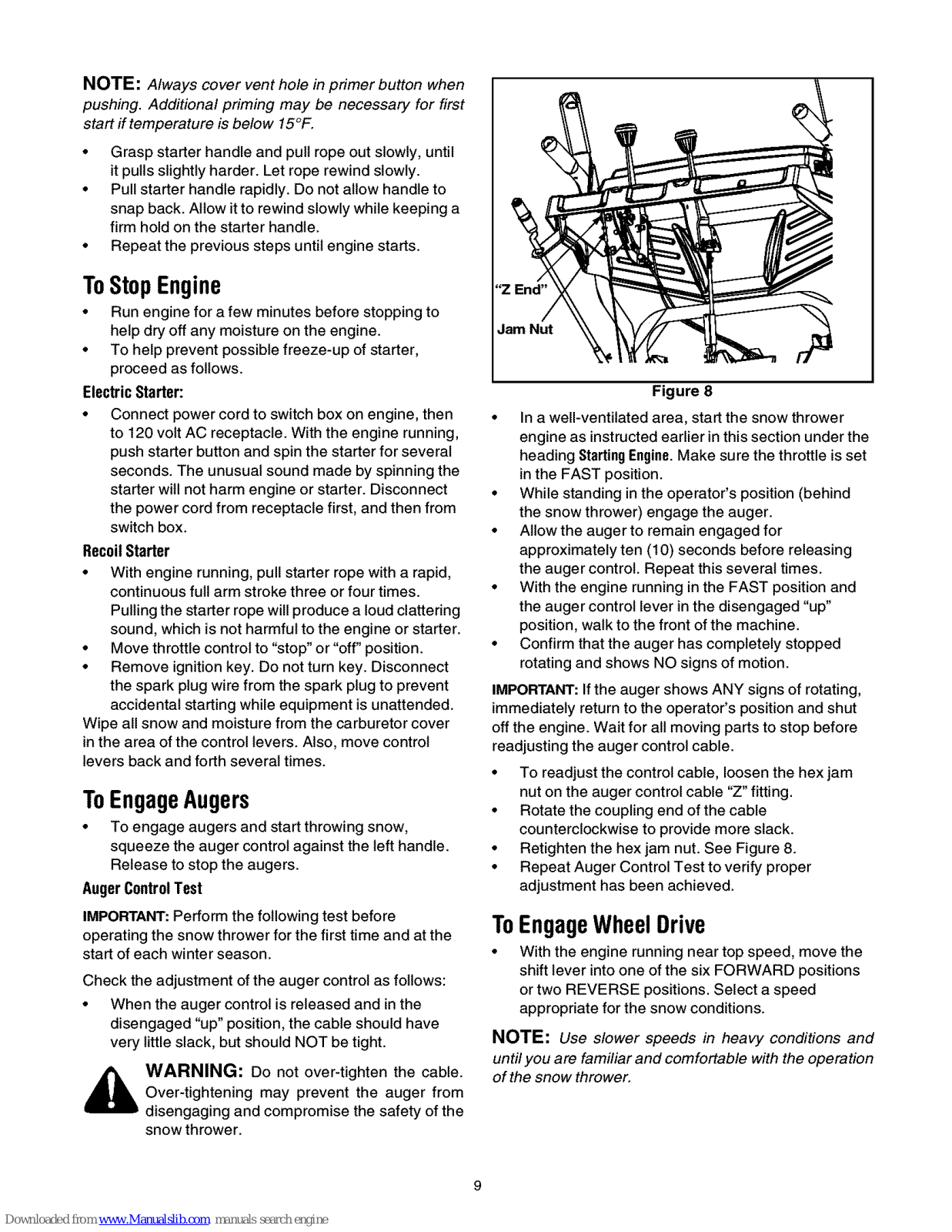

NOTE: Always cover vent hole in primer button when
pushing. Additional priming may be necessary for first
start if temperature is below 15°F.
• Grasp starter handle and pull rope out slowly, until
it pulls slightly harder. Let rope rewind slowly.
• Pull starter handle rapidly. Do not allow handle to
snap back. Allow it to rewind slowly while keeping a
firm hold on the starter handle.
• Repeat the previous steps until engine starts.
ToStopEngine
• Run engine for a few minutes before stopping to
help dry off any moisture on the engine.
• To help prevent possible freeze-up of starter,
proceed as follows.
ElectricStarter:
• Connect power cord to switch box on engine, then
to 120 volt AC receptacle. With the engine running,
push starter button and spin the starter for several
seconds. The unusual sound made by spinning the
starter will not harm engine or starter. Disconnect
the power cord from receptacle first, and then from
switch box.
RecoilStarter
• With engine running, pull starter rope with a rapid,
continuous full arm stroke three or four times.
Pulling the starter rope will produce a loud clattering
sound, which is not harmful to the engine or starter.
• Move throttle control to "stop" or "off" position.
• Remove ignition key. Do not turn key. Disconnect
the spark plug wire from the spark plug to prevent
accidental starting while equipment is unattended.
Wipe all snow and moisture from the carburetor cover
in the area of the control levers. Also, move control
levers back and forth several times.
ToEngageAugers
• To engage augers and start throwing snow,
squeeze the auger control against the left handle.
Release to stop the augers.
AugerControlTest
IMPORTANT: Perform the following test before
operating the snow thrower for the first time and at the
start of each winter season.
Check the adjustment of the auger control as follows:
• When the auger control is released and in the
disengaged "up" position, the cable should have
very little slack, but should NOT be tight.
i_ WARNING: Do not over-tighten the cable.
Over-tightening may prevent the auger from
disengaging and compromise the safety of the
snow thrower.
"2
Jam Nut
Figure 8
• In a well-ventilated area, start the snow thrower
engine as instructed earlier in this section under the
heading StartingEngine.Make sure the throttle is set
in the FAST position.
• While standing in the operator's position (behind
the snow thrower) engage the auger.
• Allow the auger to remain engaged for
approximately ten (10) seconds before releasing
the auger control. Repeat this several times.
• With the engine running in the FAST position and
the auger control lever in the disengaged "up"
position, walk to the front of the machine.
• Confirm that the auger has completely stopped
rotating and shows NO signs of motion.
IMPORTANT: If the auger shows ANY signs of rotating,
immediately return to the operator's position and shut
off the engine. Wait for all moving parts to stop before
readjusting the auger control cable.
• To readjust the control cable, loosen the hex jam
nut on the auger control cable "Z" fitting.
• Rotate the coupling end of the cable
counterclockwise to provide more slack.
• Retighten the hex jam nut. See Figure 8.
• Repeat Auger Control Test to verify proper
adjustment has been achieved.
ToEngageWheelDrive
• With the engine running near top speed, move the
shift lever into one of the six FORWARD positions
or two REVERSE positions. Select a speed
appropriate for the snow conditions.
NOTE: Use slower speeds in heavy conditions and
until you are familiar and comfortable with the operation
of the snow thrower.
Page 10
• Squeeze the traction control against the right
handle and the snow thrower will move. Release it
and the drive motion wilt stop.
IMPORTANT: NEVER move the shift lever without first
releasing the traction control. Doing so will cause
premature wear to the drive system's friction wheel.
ChuteClean-outTool
The chute clean-out tool is conveniently fastened to the
rear of the auger housing with a mounting clip (Refer to
Figure 7). If the discharge chute becomes clogged
during operation, proceed as follows to safely clean the
chute and chute opening:
1. Release both the Auger Control Lever and the
Traction/Auger Control Lock Lever.
2. Stop the engine by removing the ignition key.
3. Remove the clean-out tool from the clip which
secures it to the rear of the auger housing.
4. Use the shovel-shaped end of the clean-out tool to
remove any snow and ice in the discharge chute.
WARNING: Never use your hand to clear a
clogged discharge chute. Shut off engine and
remain behind handles until all moving parts
have stopped before unclogging.
5,
6.
Refasten the clean-out tool to the mounting clip on
the rear of the auger housing, re-start the engine.
While standing in the operator's position (behind
the snow thrower), engage the auger clutch lever
for afew seconds to clear any remaining snow or
ice from the discharge chute before continuing to
clear snow.
OperatingTips
,_ WARNING: The temperature of the muffler
and the surrounding areas may exceed
150°F. Avoid these areas.
• Allow the engine to warm up for a few minutes. The
engine will not develop full power until it reaches
operating temperature.
• For the most efficient snow removal, remove snow
immediately after it falls.
• Discharge the snow downwind whenever possible.
• Slightly overlap each previous path.
• Set the skid shoes 1/4" below the shave plate for
normal usage. The skid shoes may be adjusted
upward (to lower the shave plate) for hard-packed
snow. Adjust downward (to raise the shave plate)
when using on gravel or crushed rock.
SECTION5: MAKINGADJUSTMENTS
WARNING: NEVER attempt to clean
chute or make any adjustments while engine
is running.
TractionControlandShiftLever
• To check the adjustment of the traction control and
shift lever, proceed as follows:
• With the engine off, move the shift lever all the way
forward to sixth (6) position. With the traction
control released, push the snow thrower forward.
The unit should move forward freely. Then engage
the traction control grip. Wheels should stop
turning.
• Now release the traction control grip, and push the
unit again.
• Move the shift lever back to the fast reverse
position, then all the way forward again. There
should be no resistance in the shift lever, and
wheels should keep turning.
• If you feel resistance when moving the shift lever or
the wheels stop when they should not, loosen the
jam nut on the traction control cable and unthread
the cable one turn.
• If the wheels do not stop when you engage the
traction control grip, loosen the jam nut on the
traction control cable and thread the cable in one
turn. Recheck the adjustment and repeat as
necessary. Tighten the jam nut to secure the cable
when correct adjustment is reached.
WARNING: Drain the gasoline out of snow
thrower engine, place a piece of plastic film
under the gas cap to avoid spillage before
beginning the job.
To test further for correct adjustment, ifnecessary,
proceed as follows:
• Tip the snow thrower forward, allowing itto rest on
the auger housing.
• Remove the frame cover underneath the snow
thrower by removing six self-tapping screws.
• With the traction control released, there must be
clearance between the friction wheel and the drive
plate in all positions of the shift lever.
10
Page 11

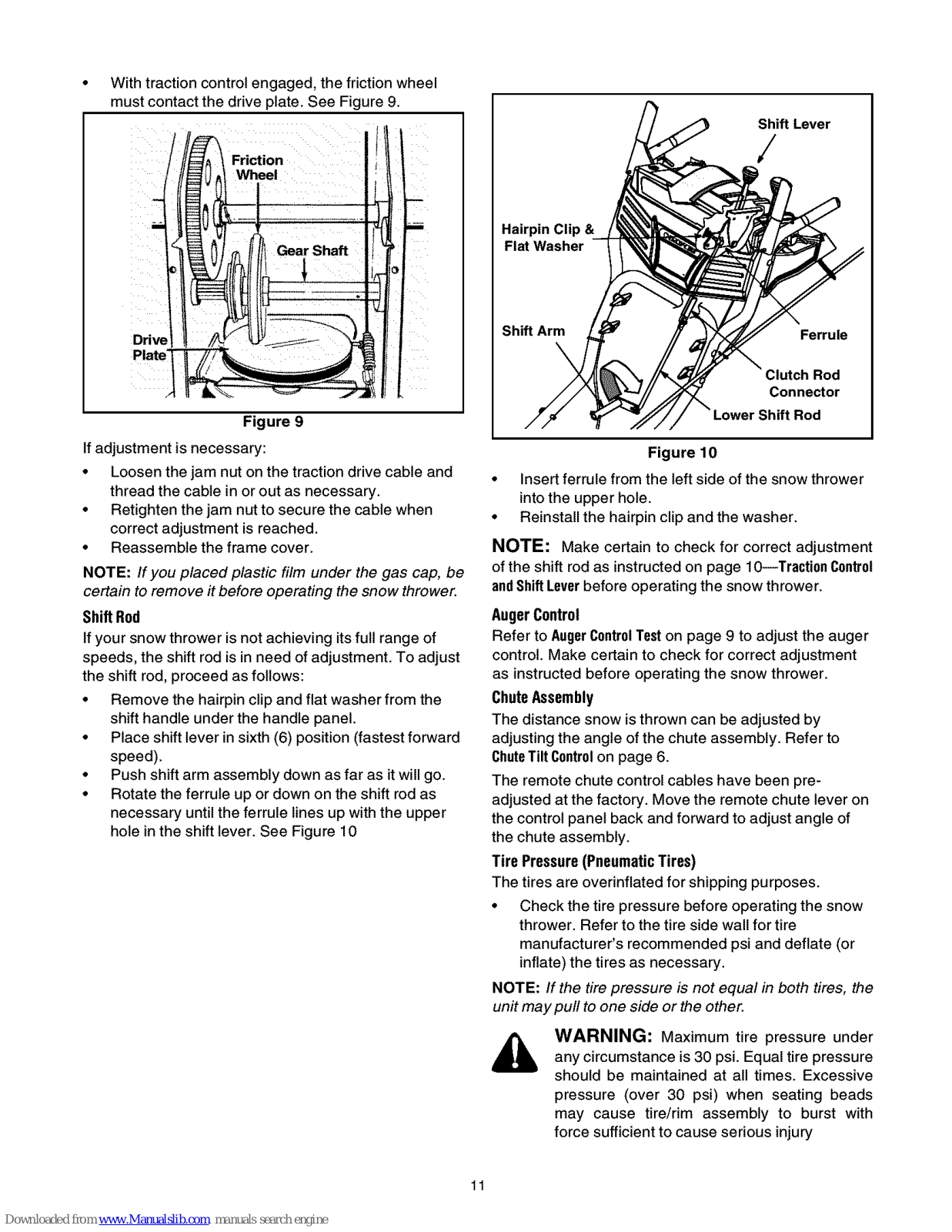

• With traction control engaged, the friction wheel
must contact the drive plate. See Figure 9.
/
Friction
Wheel
il.
Figure 9
If adjustment is necessary:
• Loosen the jam nut on the traction drive cable and
thread the cable in or out as necessary.
• Retighten the jam nut to secure the cable when
correct adjustment is reached.
• Reassemble the frame cover.
NOTE: If you placed plastic film under the gas cap, be
certain to remove it before operating the snow thrower.
Shift Rod
Ifyour snow thrower is not achieving itsfull range of
speeds, the shift rod is in need of adjustment. To adjust
the shift rod, proceed as follows:
• Remove the hairpin clip and flat washer from the
shift handle under the handle panel.
• Place shift lever in sixth (6) position (fastest forward
speed).
• Push shift arm assembly down as far as it will go.
• Rotate the ferrule up or down on the shift rod as
necessary until the ferrule lines up with the upper
hole in the shift lever. See Figure 10
Shift Lever
/
Hairpin Clip &
Flat Washer
Shift Arm Ferrule
\
Clutch Rod
Connector
Rod
Figure 10
• Insert ferrule from the left side of the snow thrower
into the upper hole.
• Reinstall the hairpin clip and the washer.
NOTE: Make certain to check for correct adjustment
of the shift rod as instructed on page 10--Traction Control
andShiftLeverbefore operating the snow thrower.
AugerControl
Refer to AugerControlTeston page 9 to adjust the auger
control. Make certain to check for correct adjustment
as instructed before operating the snow thrower.
ChuteAssembly
The distance snow isthrown can be adjusted by
adjusting the angle of the chute assembly. Refer to
ChuteTiltControlon page 6.
The remote chute control cables have been pre-
adjusted at the factory. Move the remote chute lever on
the control panel back and forward to adjust angle of
the chute assembly.
Tire Pressure(PneumaticTires)
The tires are overinflated for shipping purposes.
• Check the tire pressure before operating the snow
thrower. Refer to the tire side wall for tire
manufacturer's recommended psi and deflate (or
inflate) the tires as necessary.
NOTE: If the tire pressure is not equal in both tires, the
unit may pull to one side or the other.
WARNING: Maximum tire pressure under
any circumstance is 30 psi. Equal tire pressure
should be maintained at all times. Excessive
pressure (over 30 psi) when seating beads
may cause tire/rim assembly to burst with
force sufficient to cause serious injury
11
Page 12

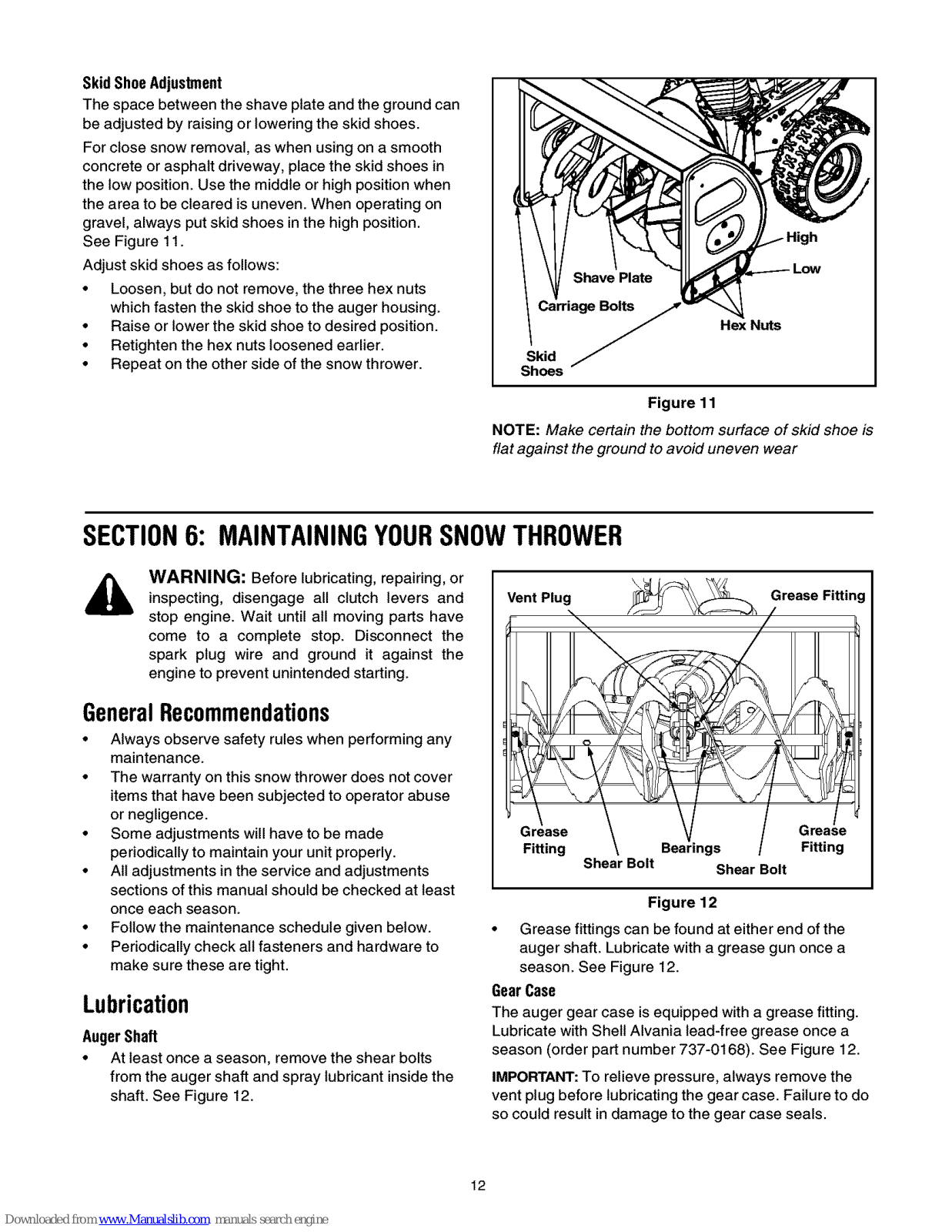

Skid ShoeAdjustment
The space between the shave plate and the ground can
be adjusted by raising or lowering the skid shoes.
For close snow removal, as when using on a smooth
concrete or asphalt driveway, place the skid shoes in
the low position. Use the middle or high position when
the area to be cleared is uneven. When operating on
gravel, always put skid shoes in the high position.
See Figure 11.
Adjust skid shoes as follows:
• Loosen, but do not remove, the three hex nuts
which fasten the skid shoe to the auger housing.
• Raise or lower the skid shoe to desired position.
• Retighten the hex nuts loosened earlier.
• Repeat on the other side of the snow thrower.
Skid
Shoes
Hex Nuts
Figure 11
NOTE: Make certain the bottom surface of skid shoe is
flat against the ground to avoid uneven wear
SECTION6: MAINTAININGYOURSNOWTHROWER
WARNING: Before lubricating, repairing, or
inspecting, disengage all clutch levers and
stop engine. Wait until all moving parts have
come to a complete stop. Disconnect the
spark plug wire and ground it against the
engine to prevent unintended starting.
GeneralRecommendations
• Always observe safety rules when performing any
maintenance.
• The warranty on this snow thrower does not cover
items that have been subjected to operator abuse
or negligence.
• Some adjustments will have to be made
periodically to maintain your unit properly.
• All adjustments in the service and adjustments
sections of this manual should be checked at least
once each season.
• Follow the maintenance schedule given below.
• Periodically check all fasteners and hardware to
make sure these are tight.
Lubrication
AugerShaft
• At least once a season, remove the shear bolts
from the auger shaft and spray lubricant inside the
shaft. See Figure 12.
Shear Bolt Shear Bolt
Figure 12
• Grease fittings can be found at either end of the
auger shaft. Lubricate with a grease gun once a
season. See Figure 12.
GearCase
The auger gear case is equipped witha grease fitting.
Lubricate withShell AIvania lead-free grease once a
season (order part number 737-0168). See Figure 12.
IMPORTANT:To relieve pressure, always remove the
vent plug before lubricating the gear case. Failure to do
so could result in damage to the gear case seals.
12
Page 13

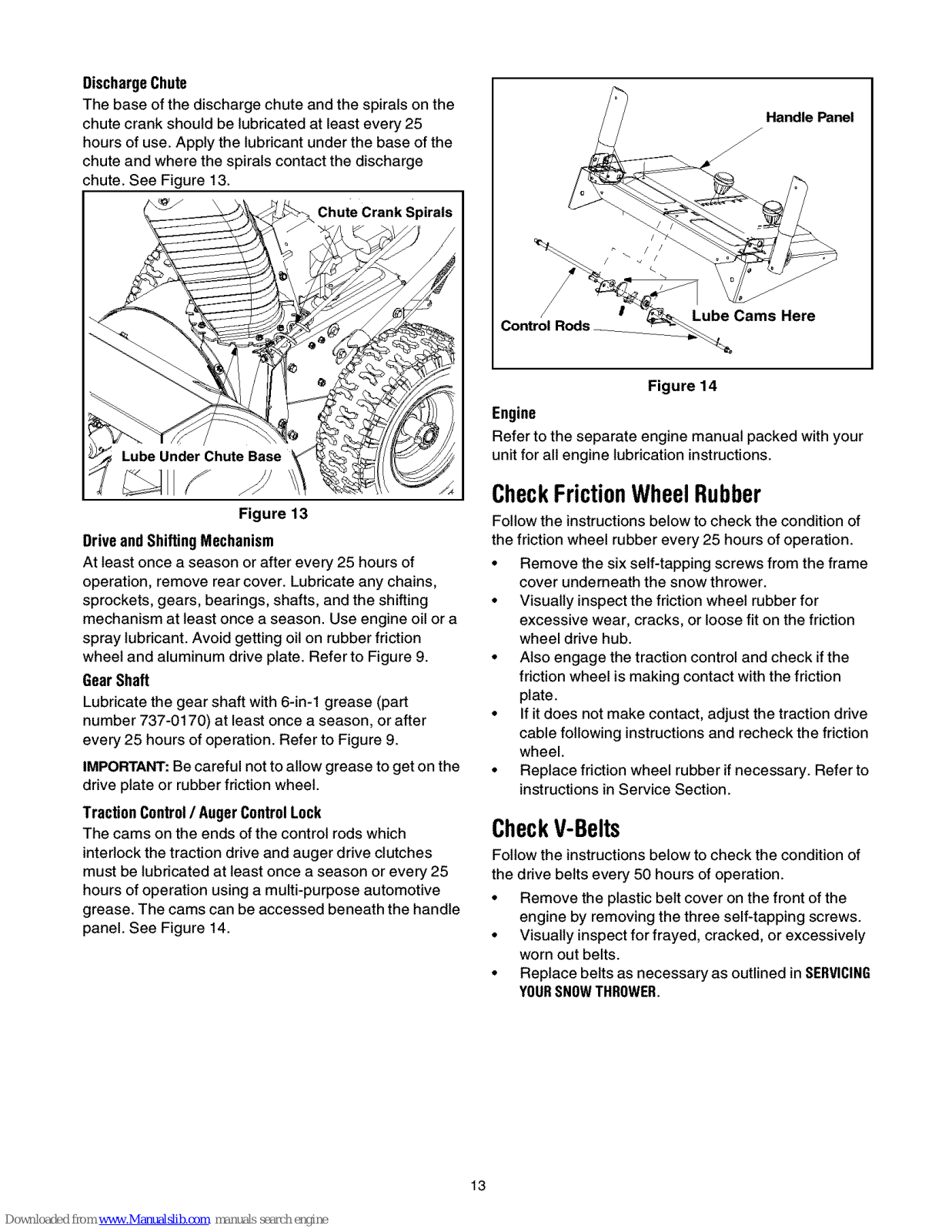

DischargeChute
The base of the discharge chute and the spirals on the
chute crank should be lubricated at least every 25
hours of use. Apply the lubricant under the base of the
chute and where the spirals contact the discharge
chute. See Figure 13.
Chute Crank Spirals
Lube Under Chute Base
:Yll Y
Figure 13
DriveandShiftingMechanism
At least once a season orafter every 25 hours of
operation, remove rear cover. Lubricate any chains,
sprockets, gears, bearings, shafts, and the shifting
mechanism at least once a season. Use engine oilor a
spray lubricant. Avoid getting oilon rubberfriction
wheel and aluminum drive plate. Refer to Figure 9.
GearShaft
Lubricate the gear shaft with 6-in-1 grease (part
number 737-0170) at least once a season, or after
every 25 hoursof operation. Refer to Figure 9.
IMPORTANT: Be careful notto allow grease to get on the
drive plate or rubber friction wheel.
TractionControl/ AugerControlLock
The cams on the ends of the control rods which
interlock the traction drive and auger drive clutches
must be lubricated at least once a season or every 25
hours of operation using a multi-purpose automotive
grease. The cams can be accessed beneath the handle
panel. See Figure 14.
nel
Contro/IRods ! "_ Lube Cams Here
Figure 14
Engine
Refer to the separate engine manual packed with your
unit for all engine lubrication instructions.
CheckFrictionWheelRubber
Follow the instructions below to check the condition of
the friction wheel rubber every 25 hours of operation.
• Remove the six self-tapping screws from the frame
cover underneath the snow thrower.
• Visually inspect the friction wheel rubber for
excessive wear, cracks, or loose fit on the friction
wheel drive hub.
• Also engage the traction control and check if the
friction wheel is making contact with the friction
plate.
• If it does not make contact, adjust the traction drive
cable following instructions and recheck the friction
wheel.
• Replace friction wheel rubber if necessary. Refer to
instructions in Service Section.
CheckV-Belts
Follow the instructionsbelow to check the conditionof
the drive belts every 50 hours of operation.
• Remove the plastic belt cover on the front of the
engine by removing the three self-tapping screws.
• Visually inspect for frayed, cracked, or excessively
worn out belts.
• Replace belts as necessary as outlined in SERVICING
YOURSNOWTHROWER.
13
Page 14

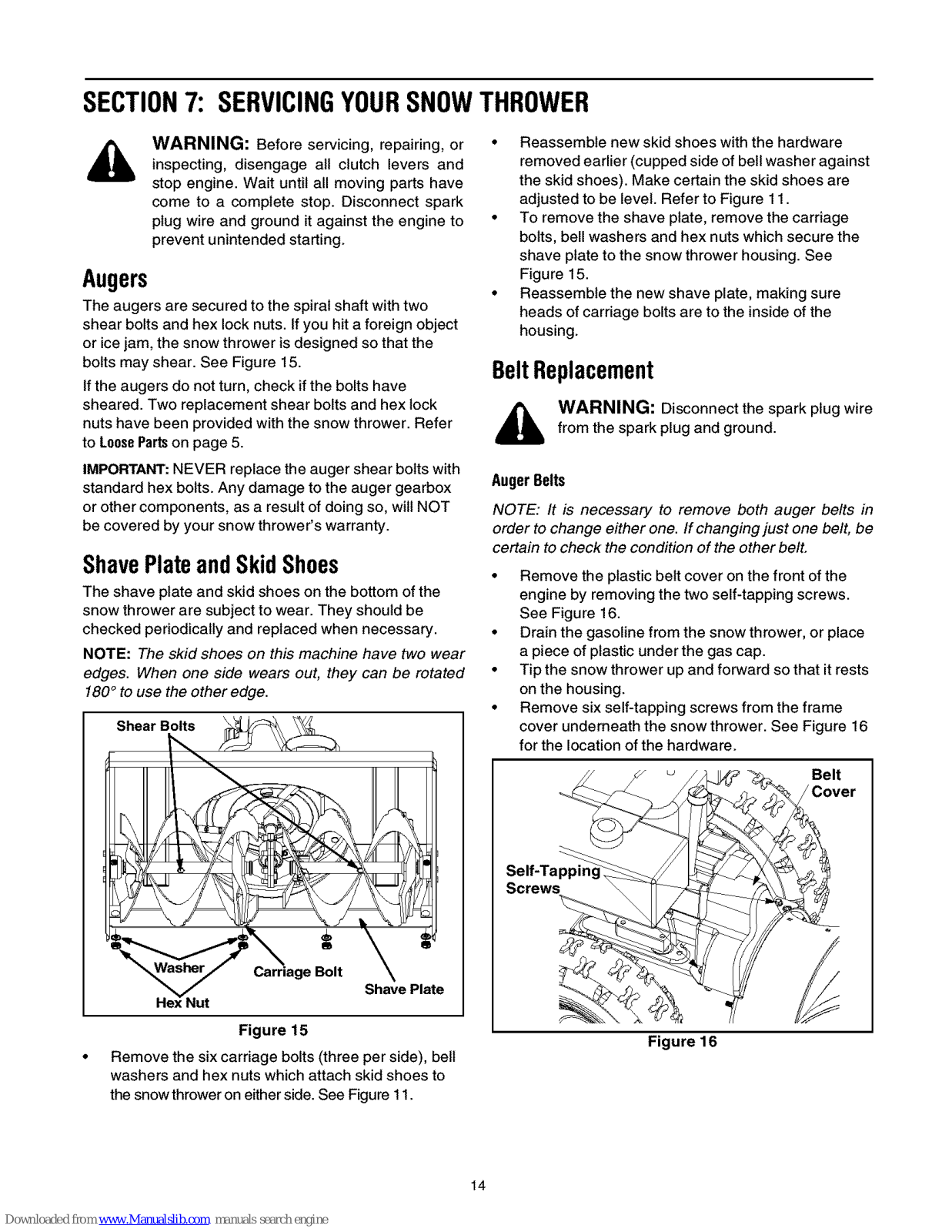

SECTION7: SERVICINGYOURSNOWTHROWER
WARNING: Before servicing, repairing, or
inspecting, disengage all clutch levers and
stop engine. Wait until all moving parts have
come to a complete stop. Disconnect spark
plug wire and ground it against the engine to
prevent unintended starting.
Augers
The augers are secured to the spiral shaft with two
shear bolts and hex lock nuts. If you hit a foreign object
or ice jam, the snow thrower is designed so that the
bolts may shear. See Figure 15.
If the augers do not turn, check if the bolts have
sheared. Two replacement shear bolts and hex lock
nuts have been provided with the snow thrower. Refer
to LoosePartson page 5.
IMPORTANT: NEVER replace the auger shear bolts with
standard hex bolts. Any damage to the auger gearbox
or other components, as a result of doing so, will NOT
be covered by your snow thrower's warranty.
ShavePlateandSkidShoes
The shave plate and skid shoes on the bottom of the
snow thrower are subject to wear. They should be
checked periodically and replaced when necessary.
NOTE: The skid shoes on this machine have two wear
edges. When one side wears out, they can be rotated
180° to use the other edge.
Shear Bolts
b,.
Nut
Bolt
Shave Plate
• Reassemble new skid shoes with the hardware
removed earlier (cupped side of bell washer against
the skid shoes). Make certain the skid shoes are
adjusted to be level. Refer to Figure 11.
• To remove the shave plate, remove the carriage
bolts, bell washers and hex nuts which secure the
shave plate to the snow thrower housing. See
Figure 15.
• Reassemble the new shave plate, making sure
heads of carriage bolts are to the inside of the
housing.
BeltReplacement
,_ WARNING: Disconnect the spark plug wire
from the spark plug and ground.
AugerBelts
NOTE: It is necessary to remove both auger belts in
order to change either one. If changing just one belt, be
certain to check the condition of the other belt.
• Remove the plastic belt cover on the front of the
engine by removing the two self-tapping screws.
See Figure 16.
• Drain the gasoline from the snow thrower, or place
a piece of plastic under the gas cap.
• Tip the snow thrower up and forward so that it rests
on the housing.
• Remove six self-tapping screws from the frame
cover underneath the snow thrower. See Figure 16
for the location of the hardware.
Belt
/ Cover
Screws
Figure 15
Remove the six carriage bolts (three per side), belt
washers and hex nuts which attach skid shoes to
the snow thrower on either side. See Figure 11.
14
Figure 16
Page 15
• Roll the front and rear auger belts off the engine
pulley. See Figure 17.
Rear Auger
Drive
Belt Engine
_ Pulley
Idler
Engine Pulley
Pulley _--
Figure 17
Unhook the idler spring from the hex bolt on the
auger housing. See Figure 18.
Back out the stop bolt to allow the belts to slip
between the bolt and auger pulley. See Figure 19.
NOTE: It may be necessary to loosen the six hex nuts
that fasten the frame to the auger housing.
• Lift the rear auger belt from the auger pulley, and
slip belt between the support bracket and the auger
pulley. See Figure 18. Repeat this step for front
auger belt.
• Replace both auger drive belts by following
instructions in reverse order.
Friction
Wheel
• Pull idler pulley up, and lift belt off engine pulley and
friction wheel disc. See Figure 17.
• Back out the stop bolt until the support bracket
rests on the auger pulley. See Figure 19.
• Slip belt between friction wheel and friction wheel
disc. Remove and replace belt. Reassemble
following the instructions in reverse order.
NOTE: The support bracket must rest on the stop bolt
after the new belt has been assembled. See Figure 19.
Friction Friction Wheel
Drive Belt
Support Bracket
Figure 19
ChangingFrictionWheelRubber
The rubber on the friction wheel is subject to wear and
should be checked after 25 hours of operation, and
periodically thereafter. Replace the friction wheel
rubber if any signs of wear or cracking are found.
• Drain the gasoline from the snow thrower, or place
a piece of plastic under the gas cap.
• Tip the snow thrower up and forward, so that it rests
on the housing. See Figure 20.
Suppo_
Rear Auger
Belt
/
Front Auger /
Pulley Auger Auger Bracket
Pulley Idler Housing Spring
Spring
Figure 18
DriveBelt
• Follow steps 1 through4 of previous instructions.
Hex Nut and
Bell Washer
Note: The unit is
\ shown resting on
Lits auger housing
Figure 20
Remove the six self-tapping screws from the frame
cover underneath the snow thrower.
Remove the klick pins which secure the wheels,
and remove the wheels from the axle.
15
Page 16
• Using a wrench to hold the shaft, loosen, but do not
completely remove, the hex nut and bell washer on
left end of gear shaft. See Figure 20.
• Lightly tap the hex nut to dislodge the ball bearing
from the right side of frame. Remove the hex nut
and bell washer from left end of shaft.
• Slide the gear shaft to the right and slide the friction
wheel assembly from the shaft.
• Remove the four screws from the friction wheel
assembly. Remove the friction wheel rubber from
between the plates. See Figure 21.
Plates
Bearing
Screws
Hub
/
Friction Wheel Rubber
Figure 21
Reassemble new friction wheel rubber to the
friction wheel assembly, tightening the four screws
in rotation and with equal force.
Position the friction wheel assembly up onto the pin
of the shift rod assembly, and slide the shaft
through the assembly. Reassemble the wheels and
the frame cover.
SECTION8: OFF-SEASONSTORAGE
WARNING: Never store engine with fuel in
tank indoors or in poorly ventilated areas,
where fuel fumes may reach an open flame,
spark or pilot light as on a furnace, water
heater, clothes dryer or other gas appliance.
• If unit is to be stored over 30 days, prepare engine
for storage as instructed in the engine manual.
• Remove all debris from the exterior of equipment.
• Follow lubrication recommendations on page 12.
• Always store the snow thrower in a clean, dry area.
NOTE: When storing any type of power equipment in
an unventilated or metal storage shed, care should be
taken to rust proof the equipment. Using a light oil or
silicone, coat the equipment, especially any chains,
springs, bearings and cables.
Engine
Refer to separate engine manual for all engine
maintenance procedures.
16
Page 17
SECTION9: TROUBLESHOOTING
Problem Cause
Engine fails to start. 1. Fuel tank empty, or stale fuel. 1.
2. Blocked fuel line. 2.
3. Choke net in ON position 3.
4. Faulty spark plug. 4.
5. Safety key not in ignition switch on engine. 5.
6. Spark plug wire disconnected. 6.
7. Primer button net being used properly. 7.
Engine runs erratic. 1. Unit running on CHOKE. 1.
2. Blocked fuel line or stale fuel. 2.
3. Water or dirt in fuel system. 3.
4. Carburetor out of adjustment. 4.
Loss of power. 1. Spark plug wire loose. 1.
2. Gas cap vent hole plugged. 2.
3. Exhaust port plugged. 3.
Engine overheats. 1. Carburetor not adjusted properly. 1.
Excessive vibration. 1. Loose parts or damaged auger. 1.
Unit fails 1. Traction control cable in need of adjustment. 1.
to propel itself.
2. Drive belt loose or damaged. 2.
Unit fails 1. Discharge chute clogged. 1.
to discharge snow.
2. Foreign object lodged in auger.
3. Auger control cable in need of adjustment.
4. Auger belt loose or damaged.
5. Shear bolt(s) sheared.
2.
3.
4.
5.
Remedy
Fill tank with fresh gasoline.
Clean the fuel line.
Move switch to ON position
Clean, adjust gap or replace.
Insert the key fully into the switch.
Connect spark plug wire.
Refer to the engine manual.
Move choke lever to OFF position.
Clean fuel line and fill tank with clean, fresh
gasoline.
Drain fuel tank and carburetor. Refill with
fresh fuel.
Refer to the engine manual.
Connect and tighten spark plug wire.
Remove ice and snow from gas cap. Be
certain vent hole is clear.
Refer to the engine manual.
Refer to the engine manual or have the
carburetor adjusted by an authorized
engine service dealer.
Stop engine immediately and disconnect
spark plug wire. Tighten all bolts and nuts. If
vibration continues, have unit serviced by
an authorized service dealer.
Adjust traction control cable. Refer to
Adjustments.
Replace drive belt.
Stop engine immediately and disconnect
spark plug wire. Clean discharge chute and
inside of auger housing.
Stop engine immediately and disconnect
spark plug wire. Remove object from auger.
Refer to Auger Control Test on Page 9.
Refer to Adjustments.
Replace shear bolt(s).
NOTE: For repairs beyond the minor adjustments listed above, contact an authorized Troy-Bilt service dealer.
17
Page 18
SECTION10: MODELS7524/ 8526 PARTSLIST
3
2
27
40
13
\
19
\
\
18
Page 19

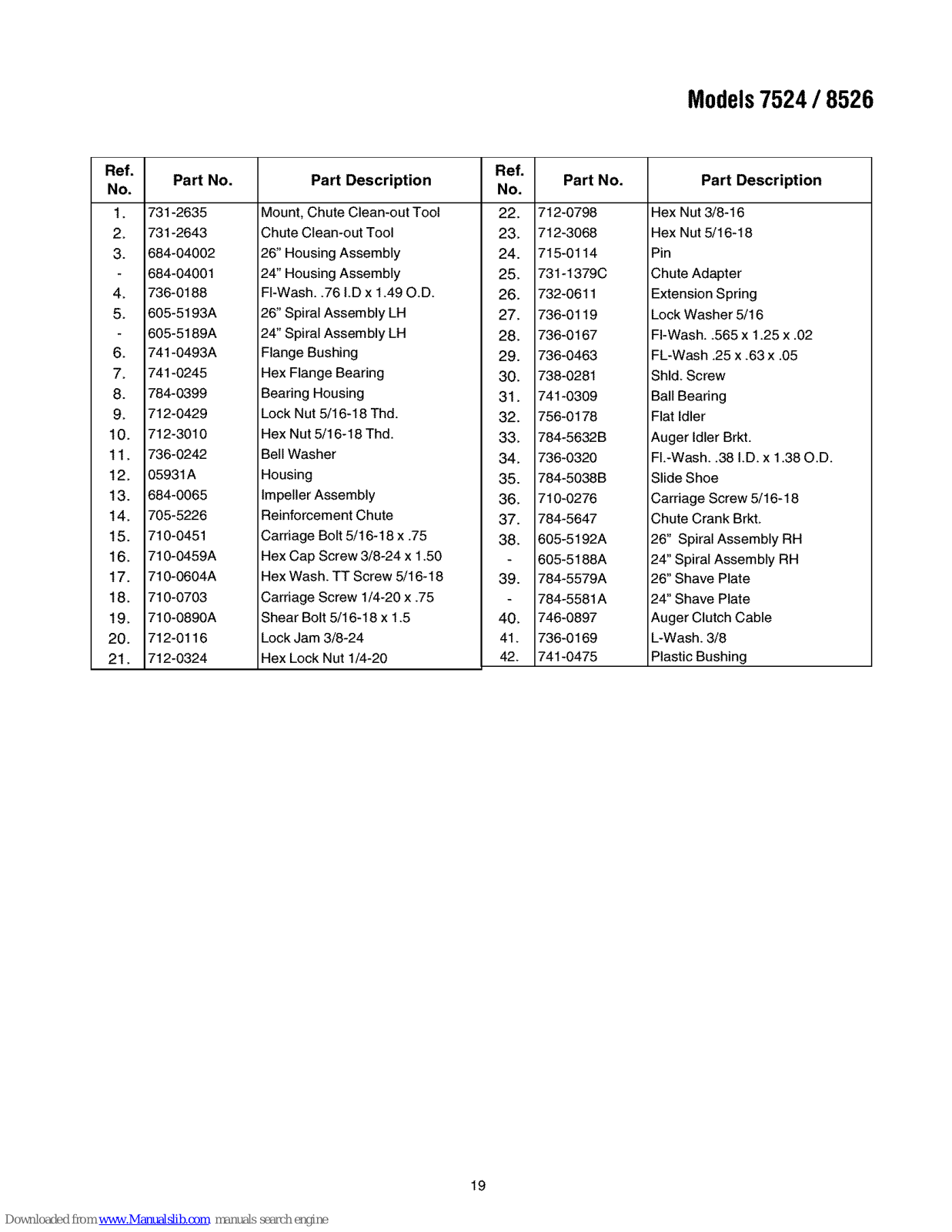

Models7524 / 8526
Ref.
No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Part No.
731-2635
731-2643
684-O4002
684-O4001
736-0188
605-5193A
605-5189A
741-0493A
741-0245
784-0399
712-0429
712-3010
736-0242
05931A
684-0066
705-5226
710-0451
710-0459A
710-0604A
710-0703
710-0890A
712-0116
712-0324
Part Description
Mount, Chute Clean-out Tool
Chute Clean-out Tool
26" Housing Assembly
24" Housing Assembly
FI-Wash..76 LD x 1.49 O.D.
26" Spiral Assembly LH
24" Spiral Assembly LH
Flange Bushing
Hex Flange Bearing
Bearing Housing
Lock Nut 5/16-18 Thd.
Hex Nut 5/16-18 Thd.
Bell Washer
Housing
Impeller Assembly
Reinforcement Chute
Carriage Bolt 5/16-18 x .75
Hex Cap Screw 3/8-24 x 1.50
Hex Wash. TT Screw 5/16-18
Carriage Screw 1/4-20 x .75
Shear Bolt 5/16-18 x 1.5
Lock Jam 3/8-24
Hex Lock Nut 1/4-20
Ref.
Part No.
No.
22. 712-0798
23. 712-3068
24. 715-0114
25. 731-1379C
26. 732-0611
27. 736-0119
28. 736-0167
29. 736-0463
30. 738-0281
31. 741-03O9
32. 756-0178
33. 784-5632B
34. 736-0320
35. 784-5038B
36. 710-0276
37. 784-5647
38. 605-5192A
605-5188A
39. 784-5579A
784-5581A
40. 746-0897
41. 736-0169
42. 741-0475
Part Description
Hex Nut 3/8-16
Hex Nut 5/16-18
Pin
Chute Adapter
Extension Spring
Lock Washer 5/16
FI-Wash..565 x 1.25 x .02
FL-Wash .25 x .63 x .05
Shld. Screw
Ball Bearing
Flat Idler
Auger Idler Brkt.
FL-Wash..38 I.D. x 1.38 O.D.
Slide Shoe
Carriage Screw 5/16-18
Chute Crank Brkt.
26" Spiral Assembly RH
24" Spiral Assembly RH
26" Shave Plate
24" Shave Plate
Auger Clutch Cable
L-Wash. 3/8
Plastic Bushing
19
Page 20

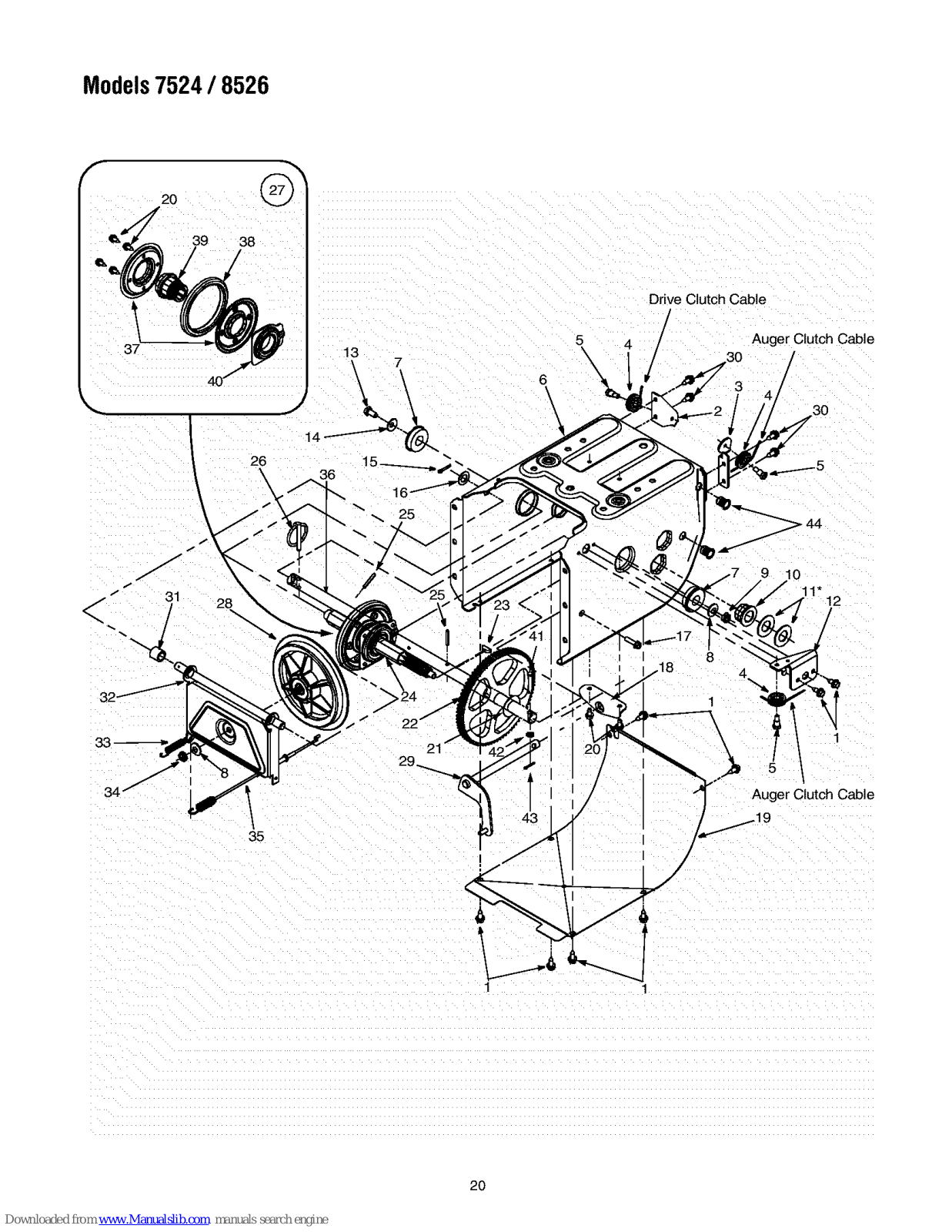

Models7524 / 8526
20
37
38
/
/
13
\ 7
5 4
6
\
Drive Clutch Cable
/
/
Auger Clutch Cable
/
30
28
9 10
11"
• 12
/
/
35
1
1
1
20
Page 21
Models7524 / 8526
Ref.
Part No.
No.
1 710-1652
2 784-5688
3 784-5687A
4 756-0625
5 738-0924
6 784-5630B
7 741-0563
8 736-0105
9 712-0116
10 741-0598
11 736-0188
12 784-5689A
13 710-0538
14 736-0242
15 714-0474
16 736-0160
17 710-0809
18 784-5590
19 784-5638
20 710-1652
21 736-0351
22 717-1445
23 714-0126
Ref.
Part Description No. Part No.
Self-tapping Screw, 1/4-20 x .625 24 717-1444
Drive Cable Guide Bracket 25 715-0249
Auger Clutch Cable Bracket 26 714-0143
Cable Roller 27 684-0042C
Hex Screw 1/4-28 28 656-0012A
Frame Assembly 29 684-0013B
Ball Bearing 30 710-0599
Bell Washer 31 748-0190
Lock Jam Nut 32 684-0021
Hex Flange Bearing 33 732-0264
Flat Washer1" 34 712-0711
Front Support Guide Bracket 35 746-0898B
Lock Hex Screw 36 738-0869
Bell Washer .340 ID x .872 OD 738-0830
Cotter Pin 37 790-00010
Flat Washer .536 ID x .930 OD 790-00011
Self-tapping Screw, 1/4-20 x 1.25 38 735-0243B
Frame Shift Bracket 39 718-0301A
Frame Cover 40 618-0063A
Hex Washer TT Screw 1/4-20 41 711-1364
Flat Washer .760 ID x .50 OD 42 736-0142
Gear 43 714-0507
Key 44 712-0703A
Part Description
7-Tooth Shaft
Roll Pin
Klik Pin
Friction Wheel Assembly
Friction Disc Wheel
Wheel Shift Rod Assembly
Self-tapping Screw, 1/4-20 x .5
Spacer
Friction Wheel Bracket Assembly
Extension Spring
Jam Nut 3/8-24
Drive Cable
Axle 13" Wheels
Axle 16" Wheels
Friction Plate
Friction Plate w/Extrusion
Friction Wheel Rubber
Friction Wheel Hub
Friction Wheel Bearing
Clevis Pin, 1/4 x 1.3725
Flat Washer, .281 x .5 x .063
Cotter Pin, .75
Insert Nut, 5/16-18
1"Use more than one washer on either side, only if necessary to reduce axle-play.
/
16" Wheels
•13" Wheels
3
WHEEL CHART
MODEL WHEEL REF. NO. 1 REF. NO. 2 REF. NO. 3
NUMBER SIZE SPACER WHEEL COMP. WHEEL COMP.
7524 13 x 5 731-04044 634-04012 634-04011
8526 16 x 4.8 731-04043 634-04014 634-04013
* A wheel assembly includes one tire, one air valve, one painted rim and two sleeve bearings
21
Page 22
Models7524/ 8526
13
13
\
22
Page 23
Models7524 / 8526
Ref.
No.
1. 731-04067
2. 731-04059
3. 710-1003
4. 725-1672
5. 747-1136
6. 725-1658
7. 629-0059
8. 726-0100
9. 720-0201A
10. 747-0737
11. 684-0053B
12. 736-0185
13. 714-0104
14. 741-0475
15. 705-5266
16. 736-0270
17. 712-0287
18. 736-0275
19. 736-0119
20. 710-0643
21. 710-0788
22. 684-0008A
23. 747-0621
24. 736-0451
25. 720-0284
26. 710-0449
27. 750-0963
28. 711-0677
29. 710-0458
30. 736-0242
31. 712-3068
32. 720-0232
33. 710-3015
34. 714-0145
35. 712-0116
36. 732-0193
37. 736-0105
38. 710-0459A
39. 749-0951
40. 749-0953A
41. 749-0952A
42. 712-0271
43. 710-1880
44. 747-0620A
45. 720-0274
Part No. Part Description
Handle Panel (8526)
Handle Panel (7524)
Special B Screw*
Lens Assembly*
Lamp Retainer*
Halogen Lamp*
Lamp Wire Harness*
Push Cap
Chute Crank Knob
Upper Chute Crank
Chute Crank Assembly, Lower
FI-Wash..375 I.D. x .738 O.D.
Hairpin Clip
Plastic Bushing
2 pc. Chute Crank Brkt.
Bell Washer
Hex Nut 1/4-20 Thd.
Fl-Wash..344 I.D. x .688 O.D.
L-Wash. 5/16
Hex Hal.Cap Scr. 5/16-18 Thd.
TT-Tap Screw 1/4-20 Thd.
Shift Arm Assembly
Lower Shift Rod
Saddle Washer .320 I.D. x .93 O.D.
Knob
Carriage Screw 5/16-18, Gr. 5
Clutch Rod Connector
Ferrule
Carriage Bolt
Bell Washer
Hex L-Nut 5/16-18 Thd.
Shift Knob
Hex Hd. Cap Screw 1/4-20
Click Pin
Jam L-Nut 3/8-24 Thd.
Compression Spring
Spring Wash..401 I.D. x .870 O.D.
Hex Heal. Cap Screw 3/8-24 Thd.
Lower Handle
Upper Handle, LH
Upper Handle, RH
Hex Sems Nut
Hex Patch Screw 5/16-18 Thd.
Upper Shift Rod
Foam Grip
* Model 8526 only
23
Page 24

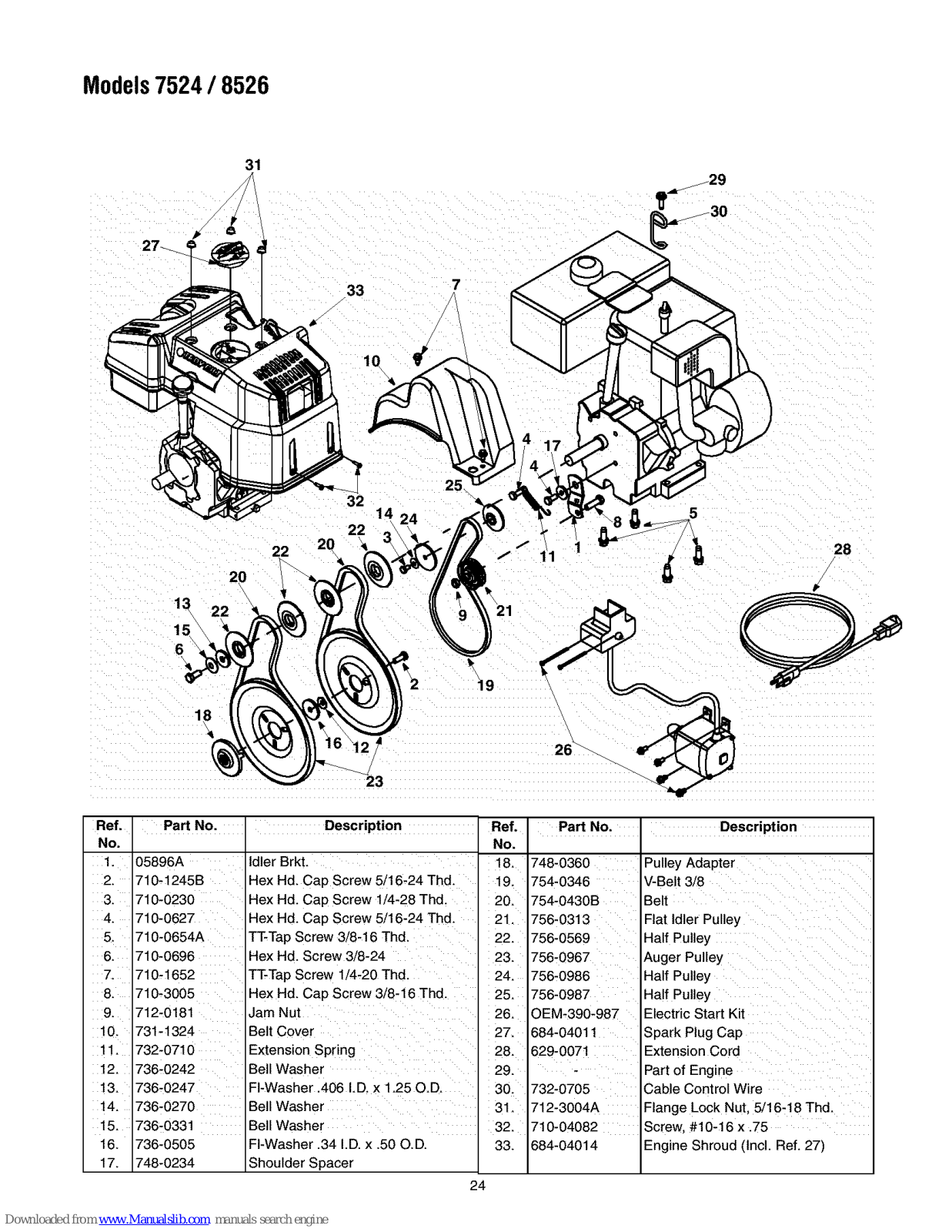

Models7524 / 8526
13
31
33
22
22
14 24
7
28
23
Ref.
No.
1. 05896A
2. 710-1245B
3. 710-0230
4. 710-0627
5. 710-0654A
6. 710-0696
7. 710,1652
8. 710-3005
9. 712-0181
10. 731- 1324
11. 732-0710
12. 736-0242
13. 736,0247
14. 736-0270
15. 736-0331
16. 736-0505
17. 748-0234
Part No. Description Ref. Part No. Description
748-0360
754-0346
754-0430B
756-0313
756-0569
756-0967
Pulley Adapter
V-Belt 3/8
Belt
Flat idler Pulley
Half Pulley
Auger Pulley
Half Pulley
Half Pulley
Electric Start Kit
Spark Plug Cap
Extension Cord
Part of Engine
Cable Control Wire
Flange Lock Nut, 5/16-18 Thd.
Screw, #10-16 x .75
Engine Shroud (Incl. Ref. 27)
NO,
Idler BrkL 18.
Hex Hd. Cap Screw 5/16-24 Thd. 19.
Hex Hd. Cap Screw 1/4-28 Thd. 20=
Hex Hd. Cap Screw 5/16-24 Th& 21.
TT-Tap Screw 3/8-16 Thd. 22.
Hex Hd. Screw 3/8-24 , 23=
TT-Tap Screw 1/4,20 Thd. 24. 756-0986
Hex Hd. Cap Screw 3/8-i6 Thd. 25. 756-0987
Jam Nut 26. OEM-390-987
Belt Cover 27. 684-04011
Extension Spring 28. 629-0071
Bell Washer 29. -
Fl-Washer .406 I.D. x 1.25 O.D. 30. 732-0705
BellWasher 31. 712-3004A
Bell Washer 32. 710-04082
FI-Washer.34 I.D. x .50 O.D. 33. 684-04014
Shoulder Spacer
24
Page 25

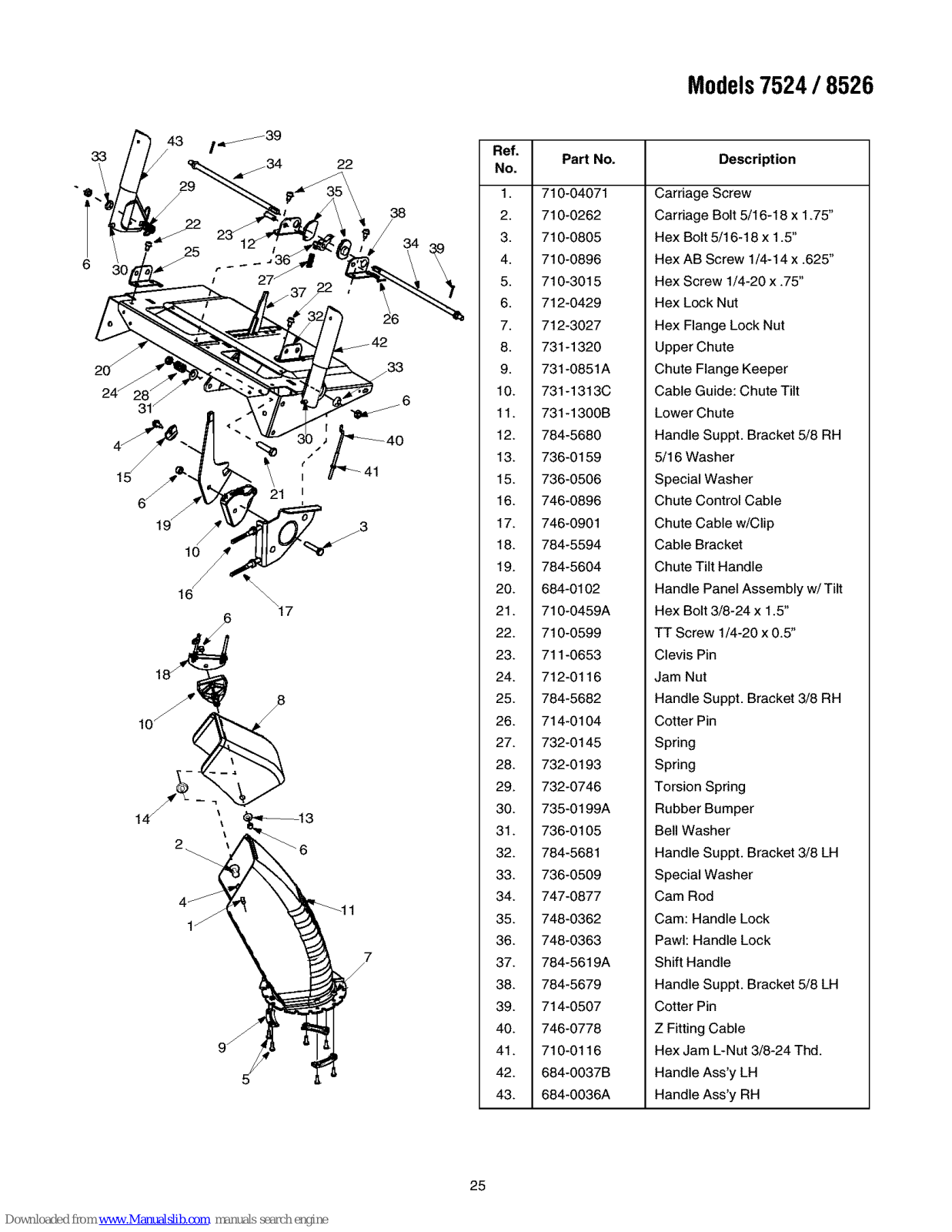

Models7524 / 8526
&3
\
6
15
j3
10
1_ _11
7
/
Ref.
No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
Part No. Description
710-04071
710-0262
710-0805
710-0896
710-3015
712-0429
712-3027
731-1320
731-0851A
731-1313C
731-1300B
784-5680
736-0159
736-0506
746-0896
746-0901
784-5594
784-5604
684-0102
710-0459A
710-0599
711-0653
712-0116
784-5682
714-0104
732-0145
732-0193
732-0746
735-0199A
736-0105
784-5681
736-0509
747-0877
748-0362
748-0363
784-5619A
784-5679
714-0507
746-0778
710-0116
684-0037B
684-0036A
Carriage Screw
Carriage Bolt 5/16-18 x 1.75"
Hex Bolt 5/16-18 x 1.5"
Hex AB Screw 1/4-14 x .625"
Hex Screw 1/4-20 x .75"
Hex Lock Nut
Hex Flange Lock Nut
Upper Chute
Chute Flange Keeper
Cable Guide: Chute Tilt
Lower Chute
Handle Suppt. Bracket 5/8 RH
5/16 Washer
Special Washer
Chute Control Cable
Chute Cable w/Clip
Cable Bracket
Chute Tilt Handle
Handle Panel Assembly w/Tilt
Hex Bolt 3/8-24 x 1.5"
TT Screw 1/4-20 x 0.5"
Clevis Pin
Jam Nut
Handle Suppt. Bracket 3/8 RH
Cotter Pin
Spring
Spring
Torsion Spring
Rubber Bumper
Bell Washer
Handle Suppt. Bracket 3/8 LH
Special Washer
Cam Rod
Cam: Handle Lock
Pawl: Handle Lock
Shift Handle
Handle Suppt. Bracket 5/8 LH
Cotter Pin
Z Fitting Cable
Hex Jam L-Nut 3/8-24 Thd.
Handle Ass'y LH
Handle Ass'y RH
25
Page 26
Model7524
\
13
18
10
\
9
14
17
15
13
12
\
7
4
/
Ref.
No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
Part No. Description
618-0414A
618-0123
618-0418
710-0642
711-0908A
714-0161
715-0143
717-0526
717-0528
718-0186
721-0325
721-0327
736-0351
736-0369
736-0445
737-3000
741-0662
741-0663
Auger Gearbox Ass'y Comp.
Housing Assembly, RH
Housing Assembly, LH
Screw, 1/4-20 x .75
24" Auger Axle
Hi-Pro Key
Spirol Pin
Worm Shaft .75 O.D.
Worm Gear 20T
Thrust .75 I.D. x .415 O.D.
Plug 1/4 x .437
Oil Seal .75 I.D. x 1.73 O.D.
FI-Wash..760 I.D. x 1.50.D.
FI-Wash..508 I.D. x 1.00.D.
FI-Wash..76 I.D. x 1.50 O.D.
Lube Fitting 3/16 Drive
Flange Bearing
Flange Bearing
26
Page 27

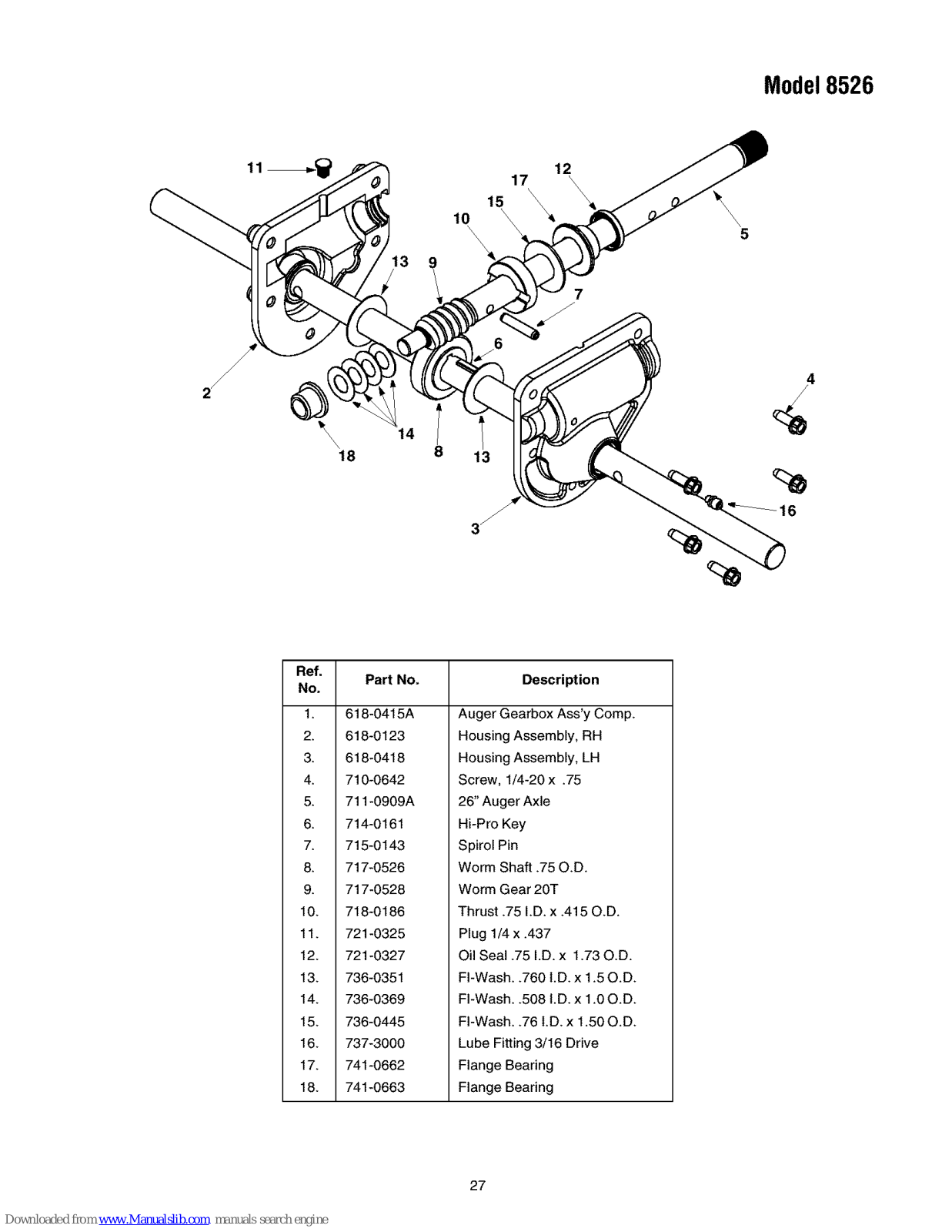

Model8526
\
13
18
10
\
9
14
17
15
13
12
\
7
4
/
Ref.
No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
Part No. Description
618-0415A
618-0123
618-0418
710-0642
711-0909A
714-0161
715-0143
717-0526
717-0528
718-0186
721-0325
721-0327
736-0351
736-0369
736-0445
737-3000
741-0662
741-0663
Auger Gearbox Ass'y Comp.
Housing Assembly, RH
Housing Assembly, LH
Screw, 1/4-20 x .75
26" Auger Axle
Hi-Pro Key
Spirol Pin
Worm Shaft .75 O.D.
Worm Gear 20T
Thrust .75 I.D. x .415 O.D.
Plug 1/4 x .437
Oil Seal .75 I.D. x 1.73 O.D.
FI-Wash..760 I.D. x 1.50.D.
FI-Wash..508 I.D. x 1.00.D.
FI-Wash..76 I.D. x 1.50 O.D.
Lube Fitting 3/16 Drive
Flange Bearing
Flange Bearing
27
Page 28
MANUFACTURER'S LIMITED WARRANTY FOR:
O TRO_ B_ILT'__
The limited warranty set fodh below is given by Troy-Bilt LLC
with respect to new merchandise purchased and used in the
United States, its possessions and territories.
Troy-Bilt LLC warrants this product against defects for a
period of two (2) years commencing on the date of original
purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or
workmanship. This limited warranty shall only apply if this
product has been operated and maintained in accordance
with the Operator's Manual furnished with the product, and
has net been subject to misuse, abuse, commercial use,
neglect, accident, improper maintenance, alteration,
vandalism, theft, fire, water, or damage because of other peril
or natural disaster. Damage resulting from the installation or
use of any accessory or attachment not approved by Trey-Bilt
LLC for use with the product(s) covered by this manual will
void your warranty as to any resulting damage.
Normal wear parts or components thereof are subject to
separate terms as follows: All normal wear parts or
component failures will be covered on the product for aperiod
of 90 days regardless of cause. After 90 days, but within the
two year period, normal wear part failures will be covered
ONLY IF caused by defects in materials or workmanship of
OTHER component parts. Normal wear parts and
components include, but are net limited to: batteries, belts,
blades, blade adapters, grass bags, rider deck wheels, seats,
snow thrower skid shoes, shave plates, auger spiral rubber,
and tires.
HOW TO OBTAIN SERVICE: Warranty service is available,
WiTH PROOF OF PURCHASE, through your local authorized
service dealer. To locate the dealer in your area, check your
Yellow Pages, or contact Troy-Bilt LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-866-840-6483 or 1-
330-558-7220, or log on to our Web site at www.troybilt.cem.
This limited warranty does net provide coverage in the
following cases:
a. The engine or component parts thereof. These items
carry a separate manufacturer's warranty. Refer to
applicable manufacturer's warranty for terms and
conditions.
b. Log splitter pumps, valves, and cylinders have a sepa-
rate one year warranty.
c. Routine maintenance items such as lubricants, filters,
blade sharpening, tune-ups, brake adjustments, clutch
adjustments, deck adjustments, and normal
deterioration of the exterior finish due to use or
d. Troy-Bilt LLC does net extend any warranty for
products sold or exported outside of the United States,
its possessions and territories, except those sold
through Troy-Bilt LLC's authorized channels of export
distribution.
e. Parts that are net genuine Troy-Bilt parts are net
covered by this warranty.
f. Service completed by someone other than an
authorized service dealer is net covered by this
warranty.
g. Transportation charges and service calls are not
covered.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty, whether written or oral, except as
mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product,
shall bind Troy-Bilt LLC. During the period of the
warranty, the exclusive remedy is repair or replacement
of the product as set forth above.
The provisions as set forth in this warranty provide the
sole and exclusive remedy arising from the sale. Troy-Bilt
LLC shall not be liable for incidental or consequential
loss or damage including, without limitation, expenses
incurred for substitute or replacement lawn care services
or for rental expenses to temporarily replace a warranted
product.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty.
You assume the risk and liability for loss, damage, or injury to
you and your property aed/or to others and their property
arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased
as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This
limited warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
exposure.
Troy-Bilt LLC,P.O.BOX361131CLEVELAND,OHIO44136-0019; Phone:1-866-840-6483,1-330-558-7220
Loading...
