INTRODUCTION
Copy the serial number
here:
THANK YOU
Thank you for buying this quality product. This modern
outdoor power tool will provide many hours of useful
service. You will find it to be a great labor-saving device.
This operator’s manual provides you with easy-tounderstand operating instructions. Read the whole
manual and follow all the instructions to keep your new
outdoor power tool in top operating condition.
PRODUCT REFERENCES, ILLUSTRATIONS
AND SPECIFICATIONS
All information, illustrations, and specifications in this
manual are based on the latest product information
available at the time of printing. We reserve the right to
make changes at any time without notice.
Copyright© 2003 MTD SOUTHWEST INC, All Rights
Reserved.
SERVICE INFORMATION
Service on this unit both within and after the warranty
period should be performed only by an authorized and
approved service dealer.
For service call 1-800-520-5520 to obtain a list of
authorized service dealers near you. For more details
about your unit, visit our website at www.troybilt.com.
DO NOT RETURN THE UNIT TO THE RETAILER.
PROOF OF PURCHASE WILL BE REQUIRED FOR
WARRANTY SERVICE.
Before beginning, locate the unit’s model plate. It lists
the model and serial numbers of your unit. Refer to the
sample plate below and copy the information for future
reference.
3
RULES FOR SAFE OPERATION
READ ALL INSTRUCTIONS
BEFORE OPERATING
• Read the instructions carefully. Be familiar with the
controls and proper use of the unit.
• Do not operate this unit when tired, ill, or under the
influence of alcohol, drugs, or medication.
• Children and teens under the age of 15 must not use
the unit, except for teens guided by an adult.
• All guards and safety attachments must be installed
properly before operating the unit.
• Inspect the unit before use. Replace damaged parts.
Check for fuel leaks. Make sure all fasteners are in
place and secure. Replace parts that are cracked,
chipped, or damaged in any way. Do not operate the
unit with loose or damaged parts.
• Carefully inspect the area before starting the unit.
Remove all debris and hard or sharp objects such as
glass, wire, etc.
• Be aware of the risk of injury to the head, hands and
feet.
• Clear the area of children, bystanders, and pets. At a
minimum, keep all children, bystanders, and pets
outside a 50 feet (15 m.) radius; there still may be a
risk to bystanders from thrown objects. Bystanders
should be encouraged to wear eye protection. If you
are approached, stop the unit immediately.
• Squeeze the throttle control and check that it returns
automatically to the idle position. Make all adjustments
or repairs before using unit.
SAFETY WARNINGS FOR GAS UNITS
• Store fuel only in containers specifically designed and
approved for the storage of such materials.
• Avoid creating a source of ignition for spilled fuel. Do
not start the engine until fuel vapors dissipate.
SYMBOL MEANING
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols,
and their explanations, deserve your careful attention
and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions or
warnings they give are not substitutes for proper
accident prevention measures.
NOTE: Advises you of information or instructions vital to
the operation or maintenance of the equipment.
SYMBOL MEANING
When using the unit,
you must follow the
safety rules. Please read these instructions
before operating the unit in order to ensure
the safety of the operator and any bystanders.
Please keep these instructions for later use.
WARNING:
• IMPORTANT SAFETY INSTRUCTIONS •
Failure to obey a
safety warning can
result in injury to yourself and others.
Always follow the safety precautions to
reduce the risk of fire, electric shock and
personal injury.
WARNING:
Failure to obey a
safety warning will
result in serious injury to yourself or to
others. Always follow the safety precautions
to reduce the risk of fire, electric shock and
personal injury.
DANGER:
Failure to obey a
safety warning may
result in property damage or personal injury
to yourself or to others. Always follow the
safety precautions to reduce the risk of fire,
electric shock and personal injury.
CAUTION:
Indicates
danger,
warning or caution. Attention is required in
order to avoid serious personal injury. May
be used in conjunction with other symbols
or pictographs.
SAFETY ALERT:
Gasoline is highly
flammable, and its
vapors can explode if ignited. Take the
following precautions:
WARNING:
Read the Operator’s Manual(s) and follow all
warnings and safety instructions.
Failure to do so can result in serious injury to the
operator and/or bystanders.
FOR QUESTIONS, CALL 1-800-520-5520.
4
• Do not touch the engine or muffler. These parts get
extremely hot from operation. They remain hot for a
short time after you turn off the unit.
• Do not operate the engine faster than the speed
needed to cultivate. Do not run the engine at high
speed when you are not cultivating.
• Always stop the engine when cultivating is delayed or
when walking from one cultivating location to another.
• If you strike or become entangled with a foreign
object, stop the engine immediately and check for
damage. Do not operate before repairing damage. Do
not operate the unit with loose or damaged parts.
• Stop and switch the engine to off for maintenance,
repair, or to install or remove the tines.
Use only original equipment manufacturer
replacement parts and accessories for this unit. These
are available from your authorized service dealer. Use
of any unauthorized parts or accessories could lead to
serious injury to the user, or damage to the unit, and
void your warranty.
• Keep unit clean of vegetation and other materials.
They may become lodged between the tines and
guard.
•To reduce fire hazard, replace faulty muffler and spark
arrestor, keep the engine and muffler free from grass,
leaves, excessive grease or carbon build up.
OTHER SAFETY WARNINGS
• Never store the unit, with fuel in the tank, inside a
building where fumes may reach an open flame or
spark.
• Allow the engine to cool before storing or transporting.
Be sure to secure the unit while transporting.
• Store the unit in a dry area, locked up or up high
to prevent unauthorized use or damage, out of the
reach of children.
• Never douse or squirt the unit with water or any other
liquid. Keep handles dry, clean and free from debris.
Clean after each use. See the Cleaning and Storage
instructions.
• Keep these instructions. Refer to them often and use
them to instruct other users. If you loan someone this
unit, also loan them these instructions.
SAVE THESE
INSTRUCTIONS
• Always stop the engine and allow it to cool before filling
the fuel tank. Never remove the cap of the fuel tank, or
add fuel, when the engine is hot. Never operate the unit
without the fuel cap securely in place. Loosen the fuel
tank cap slowly to relieve any pressure in the tank.
• Add fuel in a clean, well-ventilated outdoor area where
there are no sparks or flames. Slowly remove the fuel
cap only after stopping engine. Do not smoke while
fueling or mixing fuel. Wipe up any spilled fuel from the
unit immediately. Always wipe unit dry before using.
• Move the unit at least 30 feet (9.1 m) from the fueling
source and site before starting the engine. Do not
smoke or allow sparks and open flames near the area
while adding fuel or operating the unit.
WHILE OPERATING
• Never start or run the unit inside a closed room or
building. Breathing exhaust fumes can kill. Operate
this unit only in a well ventilated outdoor area.
• Wear safety glasses or goggles that are marked as
meeting ANSI Z87.1-1989 standards. Also wear
ear/hearing protection when operating this unit. Wear
a face or dust mask if the operation is dusty. Long
sleeve shirts are recommended.
• Wear heavy, long pants, boots and gloves. Do not
wear loose clothing, jewelry, short pants, sandals or
go barefoot. Secure hair above shoulder level.
• This unit has a clutch. The tines remains stationary
when the engine is idling. If it does not, have the unit
adjusted by an authorized service technician.
• Be sure the tines are not in contact with anything
before starting the unit.
• Use the unit only in daylight or good artificial light.
• Avoid accidental starting. The operator and unit must
be in a stable position while starting. See
Starting/Stopping Instructions.
• Use the right tool. Only use this tool for the purpose
intended.
• Use extreme caution when reversing or pulling the unit
towards you.
• Do not overreach. Always keep proper footing and
balance. Take extra care when working on steep
slopes or inclines.
• Always hold the unit with both hands when operating.
Keep a firm grip on the grips.
• Keep hands, face, and feet at a distance from all
moving parts. Do not touch or try to stop the tines
when they are rotating.
RULES FOR SAFE OPERATION
5
SAFETY AND INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and pictographs that may appear on this product.
Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.
RULES FOR SAFE OPERATION
SYMBOL MEANING
• SAFETY ALERT SYMBOL
Indicates danger, warning, or
caution. May be used in conjunction
with other symbols or pictographs.
• WARNING - READ OPERATOR'S
MANUAL
Read the Operator’s Manual(s) and
follow all warnings and safety
instructions. Failure to do so can
result in serious injury to the
operator and/or bystanders.
• WEAR EYE AND HEARING
PROTECTION
WARNING:Thrown
objects and loud noise can cause
severe eye injury and hearing loss.
Wear eye protection meeting ANSI
Z87.1-1989 standards and ear
protection when operating this unit.
Use a full face shield when needed.
• KEEP BYSTANDERS AWAY
WARNING:Keep all
bystanders, especially children and
pets, at least 50 feet (15 m.) from the
operating area.
• UNLEADED FUEL
Always use clean, fresh unleaded fuel.
• OIL
Refer to operator's manual for the
proper type of oil.
SYMBOL MEANING
• THROWN OBJECTS AND
ROTATING CUTTER CAN CAUSE
SEVERE INJURY
WARNING:Do not
operate without the proper guards
in place. Keep away from the
rotating tines.
•ON/OFF STOP CONTROL
ON / START / RUN
•ON/OFF STOP CONTROL
OFF or STOP
• HOT SURFACE WARNING
Do not touch a hot muffler or
cylinder. You may get burned. These
parts get extremely hot from
operation. When turned off they
remain hot for a short time.
• GARDEN CULTIVATORS –
ROTATING TINES CAN CAUSE
SEVERE INJURY
WARNING:Stop the
engine and allow the tines to stop
before installing or removing tines,
or before cleaning or performing any
maintenance. Keep hands and feet
away from rotating tines.
6
KNOW YOUR UNIT
APPLICATION
Use this unit for cultivating sod and light to medium soil.
Also for cultivating in garden areas, around trees, etc.
Tine GuardTine05 526523.06 216.91255 526523.06 216..798 2Fc7 l17 c17869 172.351 455.149 v172.414 456.796 175.138 458.253 y181.092 461.863 l179.275 489.394 l173.554 486.562 l170.521 484.992 169.951 487.145 v169.634 488.286 172.748 489.888 y171.767 503.877 l171.576 506.168 171.413 507.951 91 234.973 458.16176.15150424.455.149 v34.9851950424.uQ1 952504S1 48629/F1 1 5.00175.772 46d
7
ASSEMBLY INSTRUCTIONS
ADJUSTING TINE DEPTH
To adjust the wheel support bracket proceed as follows:
1. Stop the engine and disconnect the spark plug to
avoid accidental starting.
2. Remove cotter pin from the clevis pin and slide pin
out of tailpiece bracket (Fig. 3).
3. Slide the wheel support bracket up or down in the
tailpiece, aligning the holes to the desire height.
4. Place the clevis pin through the hole and secure with
a cotter pin.
8
OIL AND FUEL INFORMATION
RECOMMENDED OIL TYPE
Using the proper type and weight of oil in
the crankcase is extremely important.
Check the oil before each use and change
the oil regularly. Using incorrect or dirty oil can cause
premature engine wear and failure.
Use a high-quality SAE 30 weight oil of API (American
Petroleum Institute) service class SF, SG, SH.
ADDING OIL TO CRANKCASE: INITIAL USE
NOTE: This unit is shipped without oil. In order to avoid
damage to the unit, put oil in the crankcase
before attempting to start unit.
Your unit is supplied with one 3.4 fluid oz. (100 ml.)
bottle of SAE 30 SF, SG, SH oil (Fig. 5).
NOTE: Save the bottle to measure the correct amount
for future oil changes. See Changing the Oil.
NOTE:
Your new 4-Cycle cultivator is shipped for
operation in conditions above 40°F (4°C). For
cold weather operation, where temperatures
plummet below 40°F (4°C), use a high-quality
SAE 10W30 weight oil of API (American
Petroleum Institute) service class SF, SG, SH.
1. Unscrew the oil bottle top and remove the paper seal
covering the opening. Replace the top and cut the
tip off the funnel spout (Fig. 5).
2. Place the unit on a flat level surface with the
cultivator in a horizontal position (Fig. 6).
3. Remove the oil plug / dipstick from the crankcase
(Fig. 7).
4. Pour the entire bottle of oil into the oil fill hole
(Fig. 8).
NOTE: Never add oil to the fuel or fuel tank.
5. Remove the tag from oil fill plug / dipstick.
6. Wipe up any oil that may have spilled and reinstall
the oil fill plug / dipstick.
The importance of checking and maintaining the proper
oil level in the crankcase cannot be overemphasized.
Check oil before each use and change as specified in
the Maintenance Schedule.
Fig. 5
Fig. 7
Funnel Spout
Fig. 8
Oil Fill
9
Add fuel in a clean,
well ventilated
outdoor area. Wipe up any spilled fuel
immediately. Avoid creating a source of
ignition for spilt fuel. Do not start the engine
until fuel vapors dissipate.
WARNING:
Gasoline is
extremely
flammable. Ignited Vapors may explode.
Always stop the engine and allow it to cool
before filling the fuel tank. Do not smoke
while filling the tank. Keep sparks and open
flames at a distance from the area.
WARNING:
Remove fuel cap
slowly to avoid injury
from fuel spray. Never operate the unit
without the fuel cap securely in place
.
WARNING:
RECOMMENDED FUEL TYPE
Old fuel is the primary reason for improper
unit performance. Be sure to use fresh,
clean, unleaded gasoline.
NOTE: This is a four cycle engine. In order to avoid
damage to the unit, do not mix oil with gasoline.
Definition of Blended Fuels
Today's fuels are often a blend of gasoline and
oxygenates such as ethanol, methanol or MTBE (ether).
Alcohol-blended fuel absorbs water. As little as 1%
water in the fuel can make fuel form acids when stored.
When using alcohol-blended fuel, use fresh fuel that is
less than 60 days old.
Using Blended Fuels
If you choose to use a blended fuel, or if its use is
unavoidable, follow recommended precautions:
• Always use fresh unleaded gasoline
• Use the fuel additive STA-BIL
®
or an equivalent
• Drain tank and run the engine dry before storing unit
Using Fuel Additives
The use of fuel additives, such as STA-BIL®Gas
Stabilizer or an equivalent, will inhibit corrosion and
minimize the formation of gum deposits. Using a fuel
additive can keep fuel from forming harmful deposits in
the carburetor for up to six (6) months. Add 0.8 oz.
(23 ml.) of fuel additive per gallon of fuel according to the
instructions on the container. NEVER add fuel additives
directly to the unit's gas tank.
OIL AND FUEL INFORMATION
FUELING THE UNIT
1. Remove fuel cap. Remove the tag from the fuel tank
neck.
NOTE: Fill or add fuel to the tank only when the
cultivator is in a horizontal position (Fig. 9).
2. Place spout of gas container into the fill hole on the
fuel tank and fill tank.
NOTE: Do not overfill tank.
3. Wipe up any gasoline that may have spilled.
4. Reinstall the fuel cap.
5. Move the unit at least 30 ft. (9.1 m) from the fueling
source and site before starting the engine.
NOTE: Dispose of the old gasoline in accordance to
Federal, State and Local regulations.
10
STARTING/STOPPING INSTRUCTIONS
Starter Rope
Throttle
Control
ON (I)
OFF (O)
11
OPERATING INSTRUCTIONS
TRANSPORTING THE UNIT
1. Stop the engine.
2. Tilt the unit back until the tines clear the ground.
3. Push or pull the unit to the next location to be
cultivated.

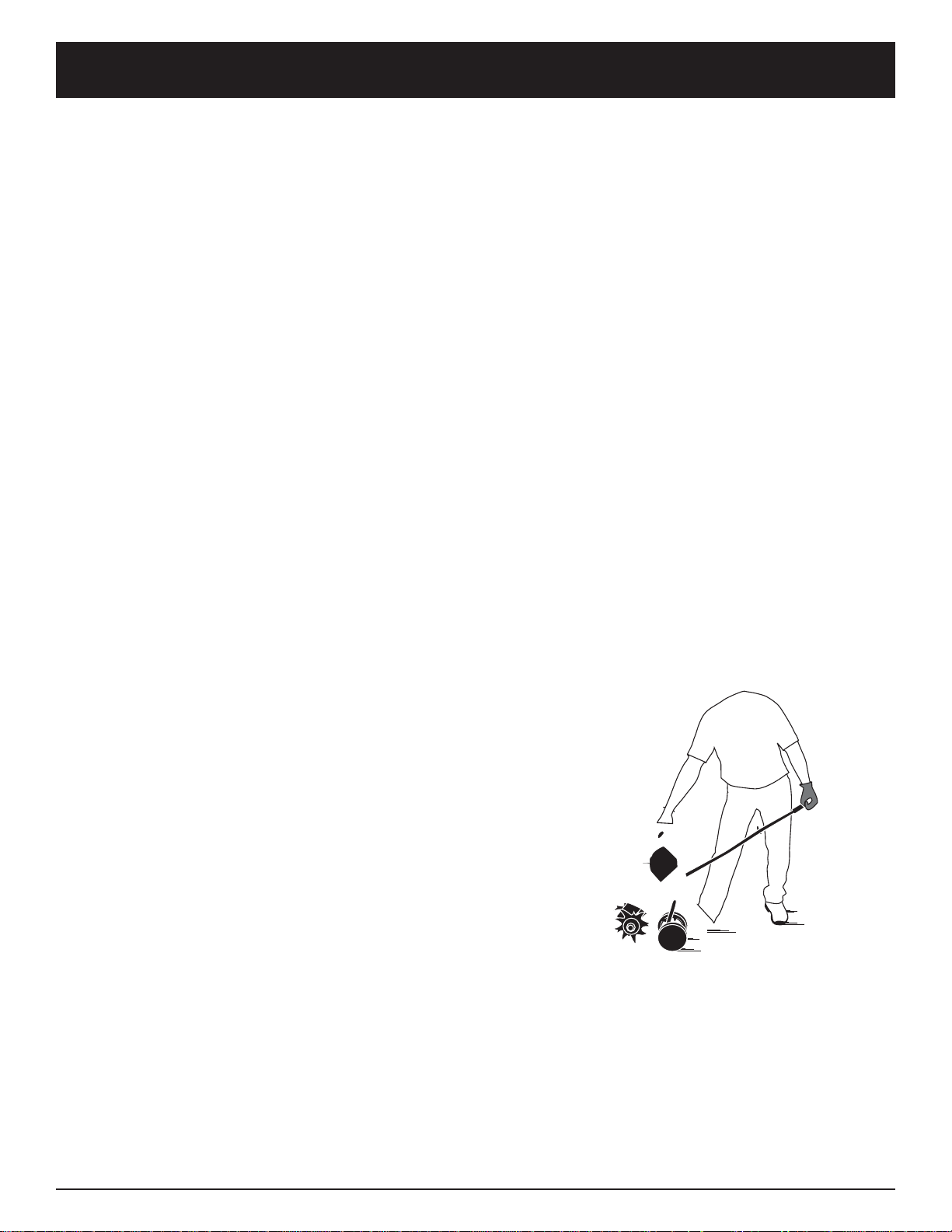

Fig. 14
OPERATING TIPS
1. Move the cultivator to the work area prior to starting
the engine. Transport the cultivator by pushing it on
wheels or carrying it by the handle center tube.
2. Start the unit by following the Starting Instructions.
3. With the engine running and the tines off the ground,
depress the throttle control to increase the engine
speed.
4. While holding the upper handle with both hands,
slowly lower the cultivator until the tines make
contact with the ground (Fig. 14).
5. As cultivating action begins, tilt the cultivator up
slightly using the handle so that the tines can
penetrate the ground.
6. Once the ground has been broken, continue at a
moderate pace until you are familiar with the controls
and the handling of the cultivator.
7. If the tines are digging too deep or not deep enough,
adjust the wheel bracket as described in Adjusting
Tine Depth.
To prevent serious
personal injury, use
extreme caution when reversing
or pulling the unit towards you.
WARNING:
To prevent serious
personal injury,
never pick-up or carry the unit while the
engine is running.
WARNING:
To prevent serious
personal injury,
always stop the engine when operation is
delayed or when transporting the unit from
one location to another
WARNING:
Dress properly to
reduce the risk of
injury when operating this unit. Do not
wear loose clothing or jewelry. Wear eye
and ear/hearing protection. Wear heavy
long pants, boots and gloves. Do not wear
short pants, sandals or operate barefoot.
WARNING:
12
MAINTENANCE AND REPAIR INSTRUCTIONS
Click Pin
“A” Tine
Fig. 15
TINE REMOVAL AND REPLACEMENT
All 4 tines should be replaced at the same time because
they will wear evenly through normal use. Work on one
side at a time.
1. Stop the unit and disconnect the spark plug wire.
NOTE: It may be necessary to lay the cultivator back in a
horizontal position on a flat level surface with the
upper handle touching the ground.
2. Remove the click pin from each end of the tine shaft.
Slide the tines off of the shaft (Fig. 15).
3. Clean and oil the shaft.
4. Slide on the new tines with the hubs facing out. The
four tines are market with the letters “A” and “B.”
“B” Tine
Hubs
To prevent serious
personal injury,
always wear heavy gloves when handling
the tines.
WARNING:
MAINTENANCE SCHEDULE
Perform these required maintenance procedures at the
frequency stated in the table. These procedures should
also be a part of any seasonal tune-up.
NOTE: Some maintenance procedures may require
special tools or skills. If you are unsure about
these procedures take your unit to any non-road
engine repair establishment, individual or
authorized service dealer.
NOTE: Maintenance, replacement, or repair of the
emission control devices and system may be
performed by any non-road engine repair
establishment, individual or authorized service
dealer.
FREQUENCY MAINTENANCE REQUIRED REFER TO
Before starting engine
Fill fuel tank with fresh fuel
Check oil
Page 9
Page 13
Every 10 hours Clean and re-oil air filter Page 14
First change at 10 hours
Every 25 hours thereafter
Every 25 hours
Change oil
Change oil
Clean spark arrestor
Page 13
Page 13
Page 17
10 hours on new engine
Every 25 hours
Every 25 hours
Check rocker arm to valve clearance and adjust
Check rocker arm to valve clearance and adjust
Check spark plug condition and gap
Page 15
Page 15
Page 17
To prevent serious
injury, never perform
maintenance or repairs with unit running.
Always service and repair a cool unit.
Disconnect the spark plug wire to ensure that
the unit cannot start.
WARNING:
5. Place one “A” tine and one “B” tine onto the shaft.
6. Secure the new tines to the shaft with click pins. It
may be necessary to wash the dirt off the tines and
shaft for ease of removal.
13
MAINTENANCE AND REPAIR INSTRUCTIONS
14
MAINTENANCE AND REPAIR INSTRUCTIONS
AIR FILTER MAINTENANCE
Cleaning the Air Filter
Clean and re-oil the air filter every 10 hours of operation.
It is an important item to maintain. Failure to maintain the
air filter will VOID the warranty.
1. Open the air filter cover. Push the tab on the left side
of the cover in, swing the air filter cover out and off
the air filter housing (Fig. 20).
2. Remove the air filter and the screen that sits
behind it (Fig. 20).
3. Wash the filter in detergent and water (Fig. 21). Rinse
the filter thoroughly and allow it to dry.
4. Apply enough clean SAE 30 motor oil to lightly coat
the filter (Fig. 22).
Fig. 21
5. Squeeze the filter to spread and remove excess oil
(Fig. 22).
6. Replace the filter and screen (Fig. 20).
NOTE: If the unit is operated without the air filter, you
will VOID the warranty.
7. Reinstall the air filter cover. Position the hooks on
the left side of the air filter cover into the slots at the
left side of the air filter housing.
8. Swing the cover to the right until the tab on the air
filter cover snaps into place in the slot on the right
side of the air filter housing (Fig. 20).
CARBURETOR ADJUSTMENT
The idle speed of the engine is adjustable. An idle
adjustment screw is reached though a hole in the top of
the engine cover (Fig. 23).
NOTE: Careless adjustments can seriously damage your
unit. An authorized service dealer should make
carburetor adjustments.
Check Fuel
Old fuel is usually the reason for improper unit
performance. Drain and refill the tank with fresh fuel prior
to making any adjustments. Refer to Oil and Fuel
Information.
Clean Air Filter
The condition of the air filter is important to the operation
of the unit. A dirty air filter will restrict air flow. This is
often mistaken for an out of adjustment carburetor.
Check the condition of the air filter before adjusting the
idle speed screw. Refer to Air Filter Maintenance.
Air Filter
Air Filter
Screen
Hooks
Slot
Air Filter Cover
Air Filter
Housing
Tab
Fig. 20
To avoid serious
personal injury,
always turn the unit off and allow it to cool
before you clean or service it.
WARNING:
Fig. 22
15
MAINTENANCE AND REPAIR INSTRUCTIONS
Idle Adjustment Screw
Adjust Idle Speed Screw
If, after checking the fuel and cleaning the air filter, the
engine still will not idle, adjust the idle speed screw as
follows:
1. Start the engine and let it run at a high idle for a minute
to warm up. Refer to Starting/Stopping Instructions.
NOTE: Ensure the tines are not in contact with the
ground when adjusting the idle.
2. Release the throttle trigger and let the engine idle. If the
engine stops, insert a small phillips or flat blade
screwdriver into the hole in the air filter/muffler cover
(Fig. 23). Turn the idle speed screw in, clockwise, 1/8
of a turn at a time (as needed) until the engine idles
smoothly.
NOTE: The tines should not rotate when the engine idles.
3. If the tines rotate when the engine idles, turn the idle
speed screw counterclockwise 1/8 of a turn at a time
(as needed), to reduce idle speed.
Checking the fuel, cleaning the air filter, and adjusting
the idle speed should solve most engine problems. If not
and all of the following are true:
• the engine will not idle
• the engine hesitates or stalls on acceleration
• there is a loss of engine power
Have the carburetor adjusted by an authorized service dealer.
Fig. 23
ROCKER ARM CLEARANCE
This requires disassembly of the engine. If you feel
unsure or unqualified to perform this, take the unit to an
authorized service center.
NOTE: Inspect the valve to rocker arm clearance with a
feeler gauge after the first 10 hours of operation
and then every 25 hours of operation thereafter.
• The engine must be cold when checking or adjusting
the valve clearance.
• This task should be performed inside, in a clean,
dust free area.
To adjust the rocker arm clearance:
1. Remove the two (2) screws on top of the engine cover
with a Flat-head or T-25 Torx screwdriver (Fig. 24).
This unit needs to
run during idle
speed adjustment. Wear protective clothing
and observe all safety instructions to
prevent serious personal injury.
WARNING:
Remove
Screws
Engine Cover
Fig. 24
Muffler
Top View Of The Engine
2. Remove the screw behind the engine cover (Fig. 25).
Screw
Fig. 25
16
3. Disconnect the spark plug wire.
4. Clean dirt from around the spark plug. Remove the
spark plug from the cylinder head by turning a 5/8 in.
socket counterclockwise.
5. Remove the engine cover.
NOTE: To ease engine cover removal, pull the starter
rope out a little to give some slack.
6. Clean dirt from around the rocker arm cover.
Remove the screw holding the rocker arm cover with
a large flat blade screwdriver or Torx T-25 bit
(Fig. 26). Remove the rocker arm cover and gasket.
Rocker Arm Cover
Fig. 26
Spark Plug Hole
7. Pull the starter rope slowly to bring the piston to the top
of its travel, (known as top dead center). Check that:
• The piston is at the top of its travel while looking in
the spark plug hole (Fig. 26).
• Both rocker arms move freely, both valves are closed
If these statements are not true, repeat this step.
8. Slide the feeler gauge between the rocker arm and
the valve return spring. Measure the clearance
between the valve stem and rocker arm (Fig. 27 & 28).
Measure both the intake and exhaust valves.
Adjusting Nuts
Feeler Gauge
Rocker Arms
Fig. 27
Fig. 28
9. If the clearance is not within specification:
a. Turn the adjusting nut using a 5/16 inch (8 mm)
wrench or nut driver (Fig. 28).
• To increase clearance, turn the adjusting nut
counterclockwise.
• To decrease clearance, turn the adjusting nut
clockwise.
b. Recheck both clearances, and adjust as necessary.
10. Reinstall the rocker arm cover using a new gasket.
Torque the screw to 20–30 in•lb (2.2–3.4 N•m).
11. Reinstall the engine cover. Check alignment of the
cover before tightening the screws. Tighten screws.
12. Check the spark plug and reinstall. See Replacing
the Spark Plug.
13. Replace the spark plug wire.
INTAKE
EXHAUST
MAINTENANCE AND REPAIR INSTRUCTIONS
The recommended clearance for the intake is .003 – .006
in. (.076 – 0.152 mm). The recommended clearance for
the exhaust is .013 – .016 in. (.330 – 0.406 mm).
Use a standard automotive feeler gauge at .005 and .015 in.
(0.127 and 0.381 mm). The feeler gauge should slide
between the rocker arm and valve stem with a slight amount
of resistance, without binding. Figure 27 shows how to
measure the intake clearance, while Figure 28 shows the
exhaust clearance.
Feeler Gauge
Exhaust
Adjusting Nut
Exhaust
Rocker Arm
Exhaust
Clearance:
.013–.016 in.
(.330–0.406 mm)
Exhaust Valve Stem
Intake Valve
Stem
Intake Clearance:
.003–.006 in.
(.076–0.152 mm)
17
0.025 in.
(0.655 mm.)
REPLACING THE SPARK PLUG
Use a replacement part number 180852 spark plug. The
correct air gap is 0.025 in. (0.655 mm.). Remove the plug
after every 25 hours of operation and check its
condition.
1. Stop the engine and allow it to cool. Grasp the plug
wire firmly and pull the cap from the spark plug.
2. Clean dirt from around the spark plug. Remove the
spark plug from the cylinder head by turning a 5/8 in.
socket counterclockwise.
3. Replace cracked, fouled or dirty spark plug. Set the air
gap at 0.025 in. (0.655 mm.) using a feeler gauge (Fig. 29).
Fig. 29
4. Install a correctly-gapped spark plug in the cylinder
head. Turn the 5/8 in. socket clockwise until snug.
If using a torque wrench torque to:
110-120 in.•lb. (12.3-13.5 N•m)
Do not over tighten.
Fig. 30
Muffler
Spark Arrestor Screen
Spark Arrestor Cover
Screw
Tab
Slot
SPARK ARRESTOR MAINTENANCE
1. Remove the muffler cover. See Rocker Arm Clearance.
2. With a flat blade screwdriver or Torx T-20 bit,
remove the screw attaching the spark arrestor cover
to the muffler (Fig. 30).
3. Pull the tab on the spark arrestor cover out of the
muffler. Remove the spark arrestor cover.
4. Remove the spark arrestor screen from the spark
arrestor cover.
5. Clean the spark arrestor screen with a wire brush or
replace it.
6. Reinstall the spark arrestor screen, spark arrestor
cover and screw.
MAINTENANCE AND REPAIR INSTRUCTIONS
Do not sand blast,
scrape or clean
electrodes. Grit in the engine could damage
the cylinder.
WARNING:
18
MAINTENANCE AND REPAIR INSTRUCTIONS
CLEANING THE UNIT
• Use a small brush to clean off the outside of the unit
and to keep the air vents free of obstructions.
• Do not use strong detergents or petroleum based
cleaners, such as kerosene. Some household
cleaners contain aromatic oils such as pine and
lemon that can damage the plastic housings or
handles. Wipe off any moisture with a soft cloth.
STORAGE
• Never store the unit with fuel in the tank where
fumes may reach an open flame or spark.
• Allow the engine to cool before storing.
• Store the unit in a locked up area to prevent
unauthorized use or damage.
• Store the unit in a dry, well-ventilated area. Do not
store next to corrosive material like fertilizer.
• Store the unit out of the reach of children.
LONG TERM STORAGE
If the unit will be stored for an extended time:
1. Drain all gasoline from the gas tank into a container.
Do not use gas that has been stored for more than
60 days. Dispose of the old gasoline in accordance
with Federal, State and Local regulations.
2. Start the engine and allow it to run until it stalls. This
ensures that all gasoline has been drained from the
carburetor.
3. Allow the engine to cool. Remove the spark plug and
put 1 oz. (30 ml) of high quality motor oil into the
cylinder. Pull the starter rope slowly to distribute the
oil. Reinstall the spark plug.
NOTE: Remove the spark plug and drain all of the oil
from the cylinder before attempting to start the
unit after storage.
4. Change the oil, referring to the Changing the Oil
section. Dispose of the old oil in accordance with
Federal, State and Local regulations.
5. Thoroughly clean the unit and inspect for any loose
or damaged parts. Repair or replace damaged parts
and tighten loose screws, nuts or bolts.
6. To take up less storage area, loosen the handlebar
knobs and fold the handlebar down. The unit is
ready for storage.
TRANSPORTING
• Allow the engine to cool before transporting.
• Secure the unit while transporting.
• Drain the fuel tank before transporting.
• Tighten fuel cap before transporting.
To avoid serious
personal injury,
always turn the unit off and allow it to cool
before you clean or perform any
maintenance on it.
WARNING:
19
TROUBLESHOOTING
If further assistance is required, contact your authorized service dealer.
CAUSE ACTION
Empty fuel tank Fill fuel tank with new fuel
Primer bulb wasn't pressed enough Press primer bulb fully and slowly 10 times
Old fuel Drain gas tank and add fresh fuel
Fouled spark plug Replace or clean the spark plug
Plugged spark arrestor Clean or replace spark arrestor
ENGINE WILL NOT START
ENGINE WILL NOT IDLE
ENGINE WILL NOT ACCELERATE
CAUSE ACTION
Air filter is plugged Replace or clean the air filter
Old fuel Drain gas tank and add fresh fuel
Improper carburetor adjustment Adjust carburetor
CAUSE ACTION
Old fuel Drain gas tank and add fresh fuel
Improper carburetor adjustment Take to an authorized service dealer for adjustment
Tines bound with grass Stop the engine and clean the tines
Dirty air filter Clean or replace the air filter
Plugged spark arrestor Clean or replace spark arrestor
When it is above 40°F outside, & the Cold Weather Start
Lever is incorrectly in the CLOSED position
When it is below 40°F outside, & the Cold Weather Start
Lever is incorrectly in the OPEN position
Flip the Cold Weather Start Lever to OPEN
Flip the Cold Weather Start Lever to CLOSED and
follow the Starting Instructions
20
SPECIFICATIONS
ENGINE*
*All specifications are based on the latest product information available at the time of printing. We reserve the right to
make changes at any time without notice.
Engine Type.......................................................................................................................................... Air-Cooled, 4-Cycle
Displacement......................................................................................................................................... 1.6 cu. in. (26.2 cc)
Idle Speed RPM ........................................................................................................................................ 3,200-3,600 rpm
Operating RPM.......................................................................................................................................... 7,200-8,800 rpm
Clutch Type ......................................................................................................................................................... Centrifugal
Ignition Type.......................................................................................................................................................... Electronic
On/Off Stop Control....................................................................................................................................... Rocker Switch
Valve clearance (intake) ........................................................................................................ .003–.006 in. (.076–.152 mm)
Valve clearance (exhaust) ..................................................................................................... .013–.016 in. (.330–.406 mm)
Spark Plug Gap....................................................................................................................... 0.025 inch (0.655 mm)
Lubrication........................................................................................................................................................... SAE 30 Oil
Crankcase Oil Capacity................................................................................................................................ 3.4 oz (100 ml)
Fuel....................................................................................................................................................................... Unleaded
Carburetor....................................................................................................................................... Diaphragm, All-Position
Starter............................................................................................................................................................... Auto Rewind
Muffler..................................................................................................................................................... Baffled with Guard
Throttle............................................................................................................................................................ Spring Return
Fuel Tank Capacity........................................................................................................................................ 15 oz (444 ml)
CULTIVATOR*
Cultivating Path Width (Maximum) ....................................................................................................... 9 inches (22.86 cm)
Cultivating Depth (Maximum) ............................................................................................................... 6 inches (15.24 cm)
Approximate Weight (no fuel) ...................................................................................................................... 25 lb. (11.5 kg)
21
California / EPA Emission Control Warranty Statement
Your Warranty Rights and Obligations
The California Air Resources Board, EPA (Environmental Protection Agency), and Troy-Bilt LLC are pleased to explain
the emission Control System Warranty on your 2000 and later small off-road engine. In California and the 49 states, new
small off-road engines must be designed, built and equipped to meet the state’s stringent anti-smog standards. Troy-Bilt
must warrant the emission control system on your small off-road engine for the periods of time listed below provided
there has been no abuse, neglect or improper maintenance of your small off-road engine.
Your Emission control system may include parts such as the carburetor or fuel-injection system, the ignition system, and
catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies.
Where a warrantable condition exists, Troy-Bilt will repair your small off-road engine at no cost to you including
diagnosis, parts and labor.
The 2000 and later small off-road engines are warranted for two years. If any emission-related part on your engine is
defective, the part will be repaired or replaced by Sears.
Owner’s Warranty Responsibilities
• As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your
operator’s manual. Troy-Bilt recommends that you retain all receipts covering maintenance on your small off-road
engine, but Troy-Bilt cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of
all scheduled maintenance.
• As the small off-road engine owner, you should however be aware that Troy-Bilt may deny you warranty coverage if your
small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
• You are responsible for presenting your small off-road engine to a Troy-Bilt authorized service center as soon as
problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should call 1-800-520-5520.
Manufacturer’s Warranty Coverage
• The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.
• The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in
material and workmanship which cause the failure of a warranted part for a period of two years.
• Repair and replacement of warranted part will be performed at no charge to the owner at an authorized Troy-Bilt
service center. For the nearest location please contact Troy-Bilt at: 1-800-520-5520.
• Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled only for
regular inspection to the effect of “Repair or Replace as Necessary” is warranted for the period. Any warranted part
which is scheduled for replacement as required maintenance will be warranted for the period of time up to the first
scheduled replacement point for that part.
• The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective.
If the diagnostic work is performed at an authorized Troy-Bilt Service Center.
• The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still
under warranty.
• Failures caused by abuse, neglect or improper maintenance are not covered under warranty.
• The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to
cover failures of warranted parts caused by the use of add-on or modified parts.
• In order to file a claim, go to your nearest authorized Troy-Bilt Service Center. Warranty service or repairs will be
provided at all authorized Troy-Bilt Service Centers.
• Any manufacturer approved replacement p[art may be used in the performance of any warranty maintenance or repair
of emission related parts and will be provided without charge to the owner . Any replacement part that is equivalent in
performance or durability may be used in non-warranty maintenance or repair and will not reduce the warranty
obligations of the manufacturer.
• The following components are included in the emission related warranty of the engine, air filter, carburetor, primer, fuel
lines, fuel pick up/fuel filter, ignition module, spark plug and muffler.
22
MANUFACTURER’S LIMITED WARRANTY FOR:
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty or guaranty, whether written or oral,
except as mentioned above, given by any person or
entity, including a dealer or retailer, with respect to any
product shall bind Troy-Bilt LLC During the period of
the Warranty, the exclusive remedy is repair or
replacement of the product as set forth above. (Some
states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to
you.)
The provisions as set forth in this Warranty provide the
sole and exclusive remedy arising from the sales. TroyBilt LLC shall not be liable for incidental or
consequential loss or damages including, without
limitation, expenses incurred for substitute or
replacement lawn care services, for transportation or
for related expenses, or for rental expenses to
temporarily replace a warranted product. (Some states
do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.)
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold.
Alteration of the safety features of the product shall void
this Warranty. You assume the risk and liability for loss,
damage, or injury to you and your property and/or to
others and their property arising out of the use or misuse
or inability to use the product.
This limited warranty shall not extend to anyone other than
the original purchaser, original lessee or the person for
whom it was purchased as a gift.
How State Law Relates to this Warranty: This warranty
gives you specific legal rights, and you may also have
other rights which vary from state to state.
To locate your nearest service dealer dial
1-800-520-5520.
Troy-Bilt LLC
P.O. Box 361131
Cleveland, OH 44136-0019
The limited warranty set forth below is given by Troy-Bilt
LLC with respect to new merchandise purchased and used
in the United States, its possessions and territories.
Troy-Bilt LLC warrants this product against defects in
material and workmanship for a period of two (2) years
commencing on the date of original purchase and will, at its
option, repair or replace, free of charge, any part found to
be defective in material or workmanship. This limited
warranty shall only apply if this product has been operated
and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to
misuse, abuse, commercial use, neglect, accident,
improper maintenance, alteration, vandalism, theft, fire,
water or damage because of other peril or natural disaster.
Damage resulting from the installation or use of any
accessory or attachment not approved by Troy-Bilt LLC for
use with the product(s) covered by this manual will void
your warranty as to any resulting damage. This warranty is
limited to ninety (90) days from the date of original retail
purchase for any Troy-Bilt product that is used for rental or
commercial purposes, or any other income-producing
purpose.
HOW TO OBTAIN SERVICE: Warranty service is
available, WITH PROOF OF PURCHASE THROUGH
YOUR LOCAL AUTHORIZED SERVICE DEALER. To locate
the dealer in your area, visit our website at www.troybilt.com,
check for a listing in the Yellow Pages, call 1-800-520-
5520 or write to
P.O. Box 361131, Cleveland, OH 44136-
0019
.
This limited warranty does not provide coverage in
the following cases:
A. Tune-ups - Spark Plugs, Carburetor Adjustments,
Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting
Line, Inner Reels, Starter Pulley, Starter Ropes, Drive
Belts
C. Troy-Bilt LLC does not extend any warranty for
products sold or exported outside of the United
States of America, its possessions and territories,
except those sold through Troy-Bilt’s authorized
channels of export distribution.
Troy-Bilt LLC reserves the right to change or improve the
design of any Troy-Bilt Product without assuming any
obligation to modify any product previously manufactured.
Loading...
