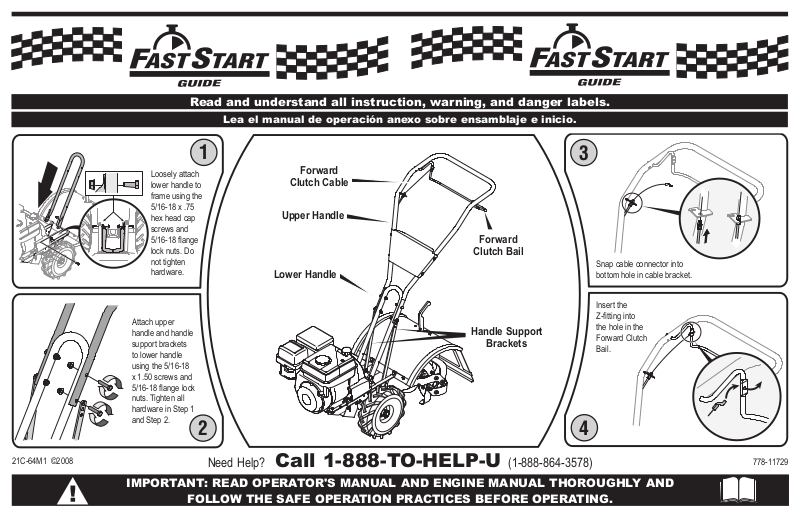

Troy-Bilt 21C-64M1 Fast Start Manual

Read and understand all instruction, warning, and danger labels.

Lea el manual de operación anexo sobre ensamblaje e inicio.

Loosely attach
lower handle to
frame using the
5/16-18 x .75
hex head cap
screws and

5/16-18 ange

lock nuts. Do
not tighten
hardware.

Attach upper
handle and handle
support brackets
to lower handle
using the 5/16-18
x 1.50 screws and

5/16-18 ange lock

nuts. Tighten all
hardware in Step 1
and Step 2.

1

Forward

Clutch Cable

Upper Handle

Lower Handle

Forward

Clutch Bail

Handle Support

Brackets

3

Snap cable connector into
bottom hole in cable bracket.

Insert the

Z-tting into

the hole in the
Forward Clutch
Bail.

21C-64M1 ©2008

2

4

Need Help? Call 1-888-TO-HELP-U (1-888-864-3578)

IMPORTANT: READ OPERATOR'S MANUAL AND ENGINE MANUAL THOROUGHLY AND

FOLLOW THE SAFE OPERATION PRACTICES BEFORE OPERATING.

778-11729

Read and understand all instruction, warning, and danger labels.

Lea el manual de operación anexo sobre ensamblaje e inicio.

Fill engine with entire contents of oil bottle supplied.

Do not overll.

Fill tank with gas until fuel reaches the fuel level

indicator. Do not overll.

5

6

Throttle

Choke

Starter Rope

Need Help?

Call 1-888-TO-HELP-U

(1-888-864-3578)

Oil

Gas

7

Move choke control to
full choke position.

Move throttle control
to rabbit (fast)
position.

Pull starter rope
with quick, full arm
stroke. It may take
more than one pull
to start cold engine.
Once started,
slowly move choke
control to off (run)
position.

8

IMPORTANT: READ OPERATOR'S MANUAL AND ENGINE MANUAL THOROUGHLY AND

FOLLOW THE SAFE OPERATION PRACTICES BEFORE OPERATING.
