TABLE OF CONTENTS
CUSTOMER MESSAGE Inside Front Cover
SAFETY PRECAUTIONS 3
92-0675 Rev. 970314

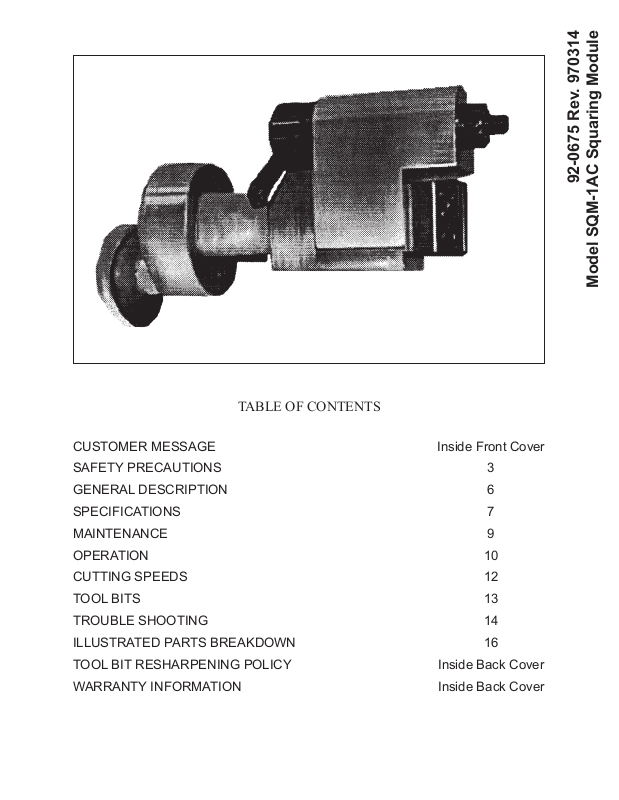

Model SQM-1AC Squaring Module
GENERAL DESCRIPTION 6
SPECIFICATIONS 7
MAINTENANCE 9
OPERATION 10
CUTTING SPEEDS 12
TOOL BITS 13
TROUBLE SHOOTING 14

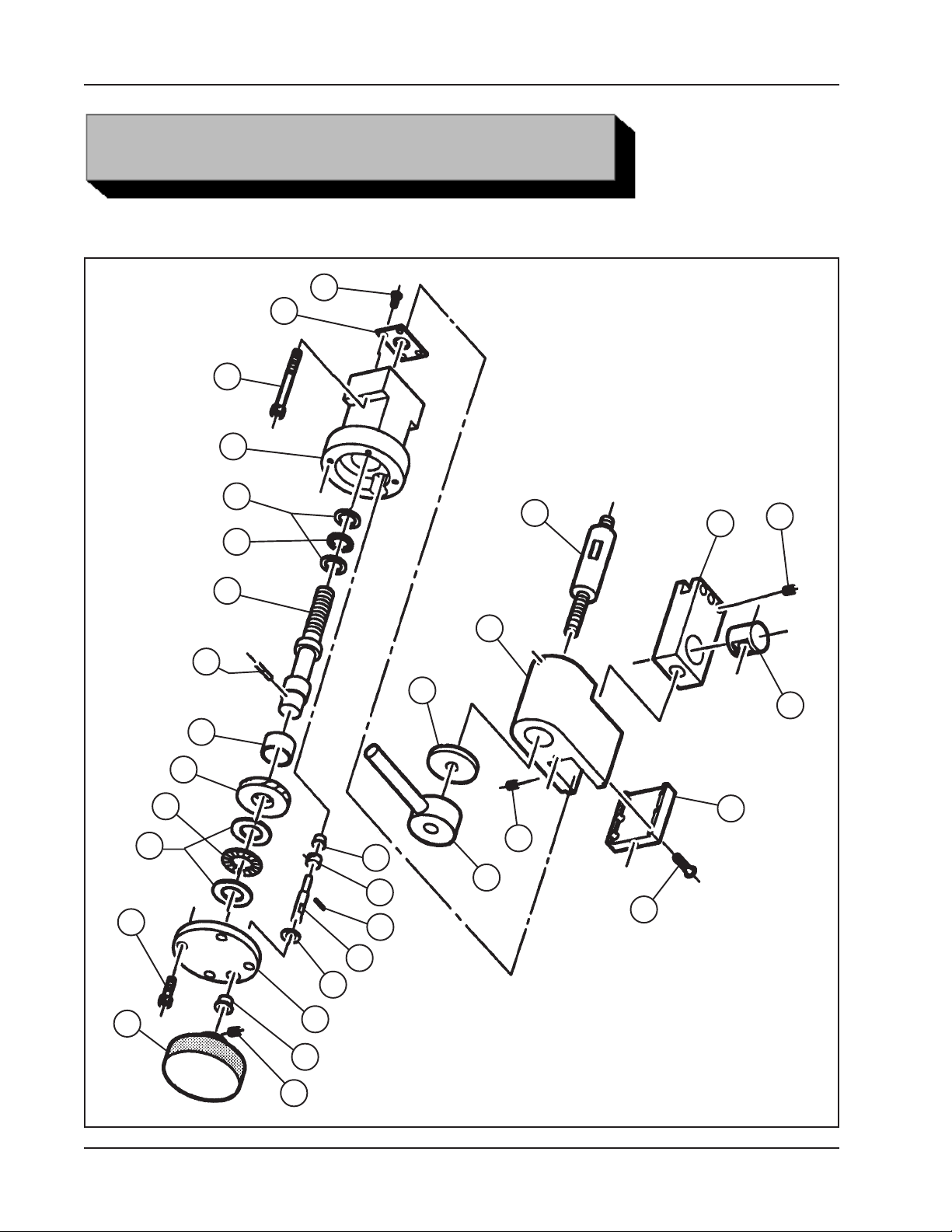

ILLUSTRATED PARTS BREAKDOWN 16
TOOL BIT RESHARPENING POLICY Inside Back Cover
WARRANTY INFORMATION Inside Back Cover
Page 2
Copyright 2006
Proprietary property of TRI TOOL Inc.
No reproduction, use, or duplication of the information
shown hereon is permitted without the express written
consent of TRI TOOL Inc.
Page 3
SAFETY PRECAUTIONS
IN GENERAL
When using rotating head cutting equipment, basic safety precautions should always
be followed to reduce the risk of personal injury.
Operate this tool only in accordance with specific operating instructions.
Do not override the deadman switch on the power unit. Locking down, ob-
WARNING:
DRESS CONSIDERATIONS
structing, or in any way defeating the deadman switch on the power drive unit
may result in serious injury.
Model SQM-1AC Squaring Module
Use standard safety equipment. Hard hats, safety shoes, safety harnesses, protective clothes, and other safety devices should always be used when appropriate.
Use safety glasses. Do not operate cutting tools without eye protection.
Dress properly. Do not wear loose clothing or jewelry. They can be caught in rotating and moving parts. Avoid slippery floors or wear nonskid footwear. If you have
long hair, wear protective hair covering to contain it.
WORK AREA
Keep the work area clean. Cluttered work areas and benches invite injuries.
Consider the work area environment. Keep the area well lit. Keep electrical cords,
cables, rags, rigging straps, and etc. clear of rotating equipment. Do not use powercutting tools in the presence of flammable liquids and gasses.
Keep visitors away. Do not let visitors or untrained personnel at or near operating
tools. Enforce eye protection requirements for all observers.
Do not over reach. Keep proper footing at all times.
Stay alert. Watch what you are doing. Use common sense. Do not operate tools
when you are tired.
92-0675 : Rev. 970314
3
Page 4
TRI TOOL INC.
TOOL CARE
Maintain tools with care. Keep tools in good operating condition. Sharp tool bits
perform better and safer than dull tool bits. Well maintained tools function properly
when needed.
Check for damaged parts. If a tool has malfunctioned, been dropped or hit, it must
be checked for damage. Run no-load tests and feed function checks. Do a complete visual inspection.
Electric motors. Use only with proper AC voltage power sources and observe all
normal electric shock hazard procedures.
Do not abuse power and control cords. Pulling or running over cords and cables
can result in electrical shock hazards and malfunctions. Keep control and power
cords out of all cutting fluids and water.
Hydraulic drives. Observe proper procedures for electrically driven power sources.
Avoid damage to hydraulic lines. Keep quick-disconnects clean. Grit contamination
causes malfunctions.
Air tools. Check the exhaust muffler. Broken or damaged mufflers can restrict air
flow or cause excessive noise. Use air motors only with a filtered, lubricated and
regulated air supply. Dirty air, low-pressure air or over pressure air will cause malfunctions, including delayed starting.
AREA EQUIPMENT
Secure work. Whenever possible use clamps, vises, chains and straps to secure
pipe.
Make sure the tool is secured; it is safer to have both hands free to operate the tool.
TOOL USE
Use the right tool and tool bit for the job. Do not use a tool, which is incorrect for the
job you are doing.
Keep the tool bits fully engaged in the tool bit holders. Loose bits are a safety hazard.
4
92-0675 : Rev. 970314
Page 5
Model SQM-1AC Squaring Module
Disconnect power supply during setup and maintenance. Use all ‘Stop’ or Shut off’
features available when changing or adjusting tool bits, maintaining the tool, or when
the tool is not in use.
Remove adjusting keys and wrenches before applying power to the equipment.
Develop a habit of checking the tool before turning it on to make sure that all keys
and wrenches have been removed.
Do not force tools. Tools and tool bits function better and safer when used at the
feed and speed rate for which they were designed.
Do not reach into rotating equipment. Do not reach into the rotating head stock to
clear chips, to make adjustments, or to check surface finish. A machine designed to
cut steel will not stop for a hand or an arm.
Handle chips with care. Chips have very sharp edges and are hot. Do not try to pull
chips apart with your hands; they are very tough.
Avoid unintentional starts. Do not carry or handle tools with your hand on the operating switches or levers. Do not lay the tool down in a manner that will start the
drive. Do not allow the tool to flip around or move when adjusting or changing tool
bits.
Store idle tools properly. Disconnect tools from the power source and store in a safe
place. Remove tool bits for safe handling of the tool.
92-0675 : Rev. 970314
5
Page 6
TRI TOOL INC.
GENERAL DESCRIPTION

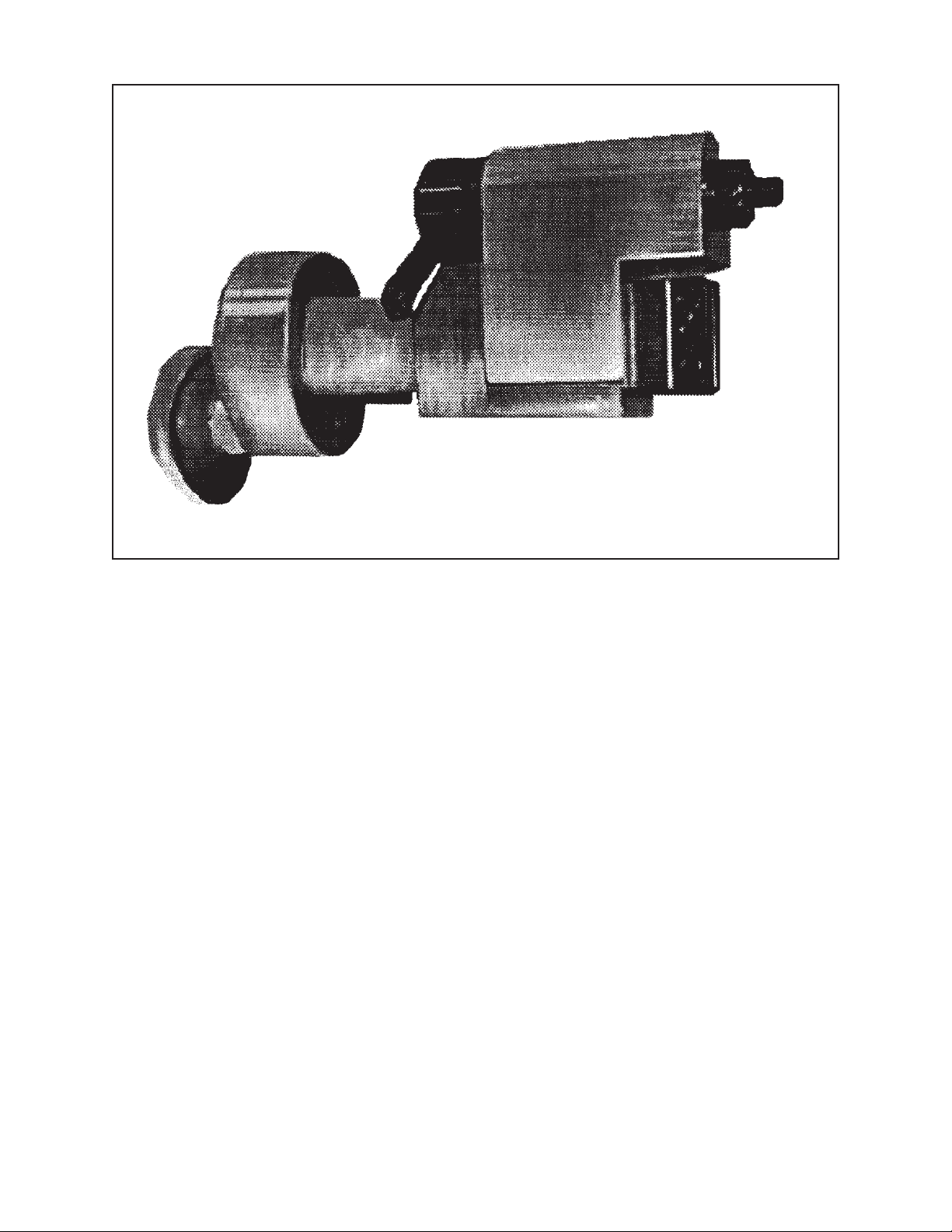

The SQM-1AC Squaring Module mounts on the Model 572AC SEVERMASTERTM.
The mount incorporates a pivot post to allow the SQM-1AC to be “parked” over the
cutting face during a sever operation.
After a sever is complete, the SQM-1AC may be pivoted into position for performing
a burr free end squaring operation.
A manual feed with a helical gear reduction allows the operator to control the depth
of the cut to the end squaring operation.
The SQM-1AC covers the full range of the Model 572AC SEVERMASTERTM.
6
92-0675 : Rev. 970314
Page 7
Model SQM-1AC Squaring Module
SPECIFICATIONS
Basic tube or pipe size: .250” through 2.00” diameter
(6.4 mm through 50.8 mm diameter)
.065” (1.65 mm) wall maximum.
Clearances: Rotating parts diameter is the same as the Model 572AC.
Length is 7.06” (179.3 mm) from the face of the Model 572AC.
Axial feed length: .69” (17.5 mm)
Axial feed rate: .005” (.13 mm) per revolution at full speed.

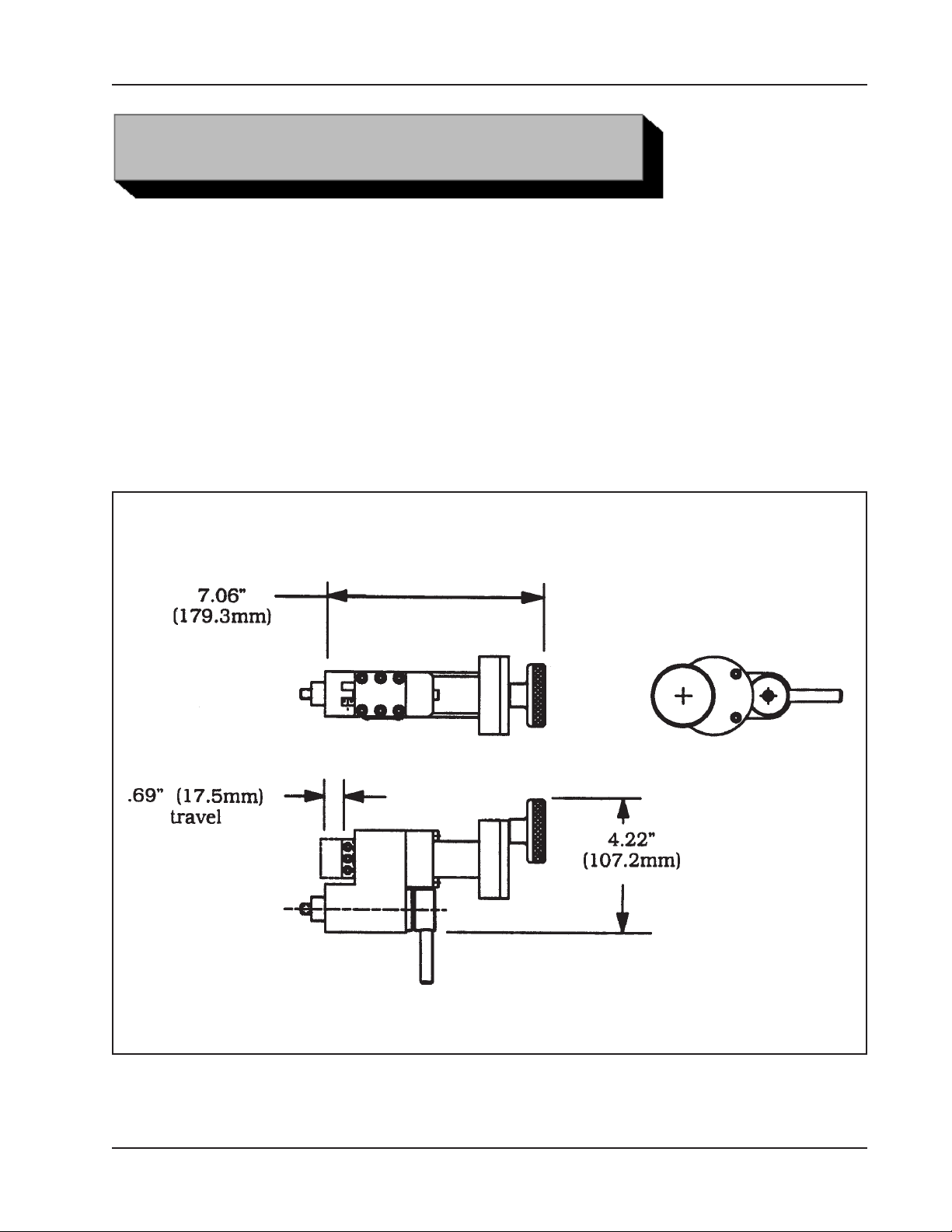

Envelope, Model SQM-1AC, Squaring Module
92-0675 : Rev. 970314
7
Page 8
TRI TOOL INC.
MACHINE FEATURES
The SQM-1AC Squaring Module can be mounted directly to the Headstock of
the Model 572AC SEVERMASTERTM.
Manual axial feed.
No loose pieces.
No reset of the Model 572AC after severing and/or beveling pipe.
Spare parts and standard tool bits are available from stock.
Engineering design services for custom tool bits and special function modifications
are available from the factory.
All TRI TOOL Inc. and allied equipment products are subject to design
improvements and specification changes at any time with no obligation to units
already sold.
Warranty (limited), parts and/or equipment are warranted against defects in material
and workmanship for a period of one year from the date of purchase.
Full details supplied on request and/or tools.
Filter, regulator, lubricator (FRL) is required to protect the warranty on air products.
8
92-0675 : Rev. 970314
Page 9
GENERAL
All components should be cleaned and coated with a light film of oil prior to use.
Use a clean, non-detergent oil, preferably SAE 10 (90 SSU) or lighter.
Model SQM-1AC Squaring Module
MAINTENANCE

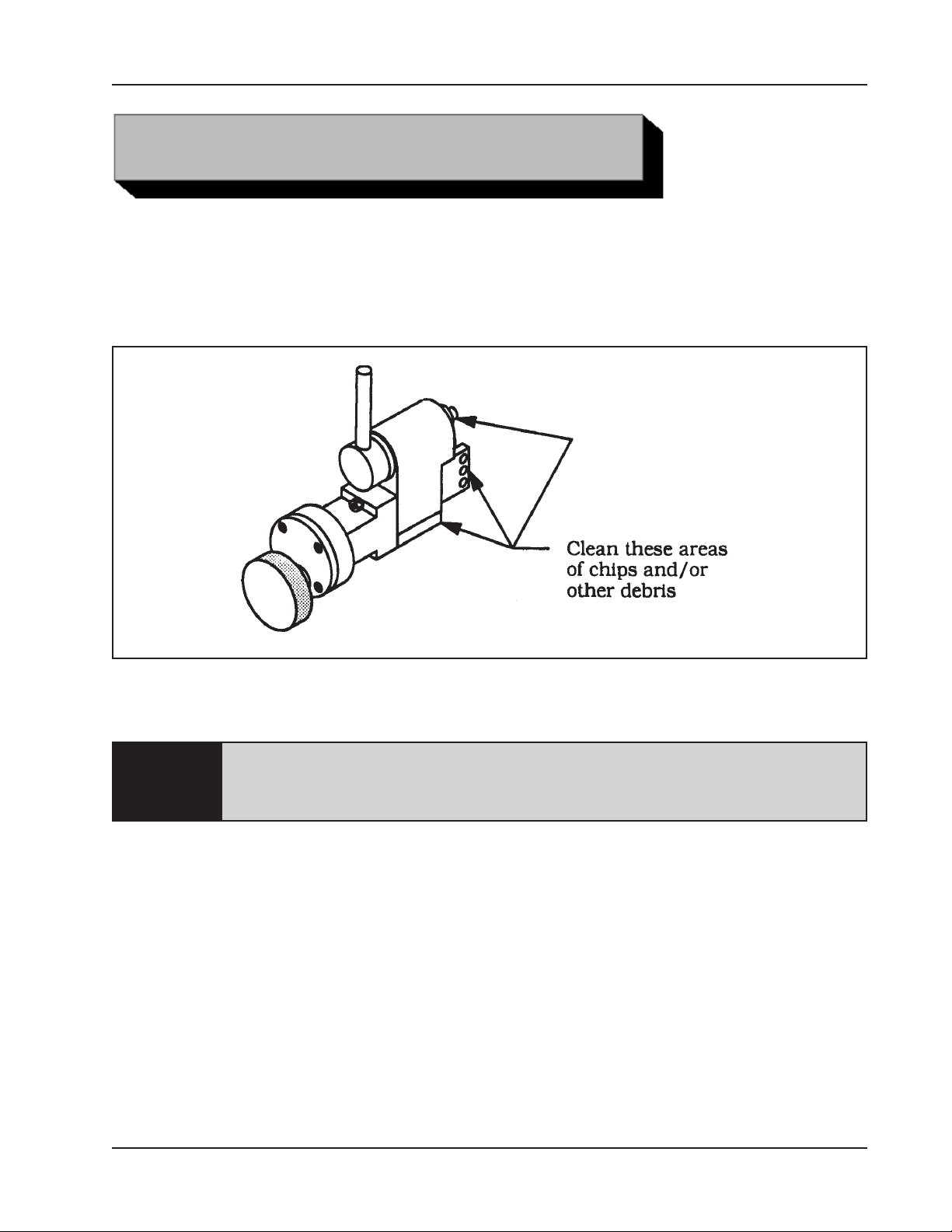

If the Model SQM-1AC is operated in such a manner that it collects debris while
cutting, it should be cleaned after each cutting operation.
Tool life may be severely shortened, unless chips and/or other debris that
WARNING:
RECOMMENDED MAINTENANCE SCHEDULE
Daily maintenance when the unit is in operation includes wiping the unit down and
spraying it with a rust preventative under severe humidity conditions.
Visually inspect for loose screws, missing screws, damage, etc.
If the Model SQM-1AC is to be stored or if it will remain out of service for a
significant period of time (30 days or more), it should be thoroughly cleaned,
lubricated and sprayed with a rust preventative prior to storage.
have been deposited on the cutting head during the machining operation are
removed.
92-0675 : Rev. 970314
9
Page 10
TRI TOOL INC.
OPERATION
PREPARE THE MACHINE
Read the operating instructions carefully before attempting to operate the Model
SQM-1AC Squaring Module.
Refer to the Operator’s Manual for operating instructions for the Model 572AC
SEVERMASTERTM.
The use of dull or improperly designed tool bits or tool bits not manufactured
WARNING:

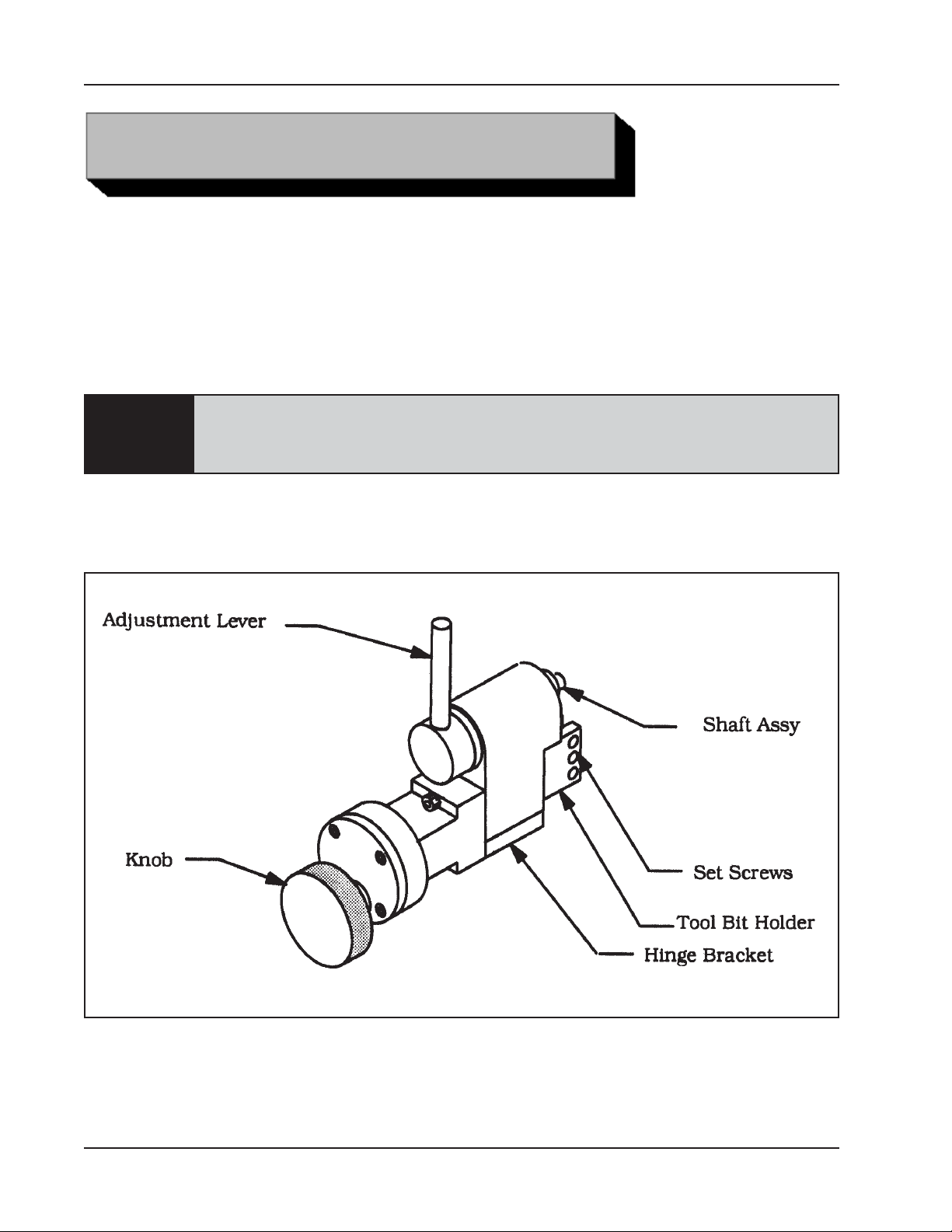

Remove the shaft assembly by rotating the adjustment lever.
by TRI TOOL Inc. may result in poor performance and may constitute abuse
of this machine and therefore voids the TRI TOOL Inc. factory warranty.
Tighten the shaft assembly onto the face of the Model 572AC.
10
Mount the Squaring Module onto the shaft assembly and tighten the adjustment
lever.
Loosen the (3) three set screws to let the tool bit slide.
92-0675 : Rev. 970314
Page 11
Model SQM-1AC Squaring Module
Slide the tool bit into the desired position for the diameter of the pipe or tube to be
machined.
Tighten the (3) three set screws to secure the tool bit.
Turn the Model 572AC on and let it rotate slowly while ensuring that the tool bit is
not making contact with the end of the pipe.
Bring the motor up to speed.
Turn the feed knob to feed the tool bit into the end of the pipe.
After the face of the pipe has been machined let the tool bit make three more
rotations to clean up the face.
Back the tool bit off of the pipe by turning the Feed Knob.
WARNING:
Turn off the motor.

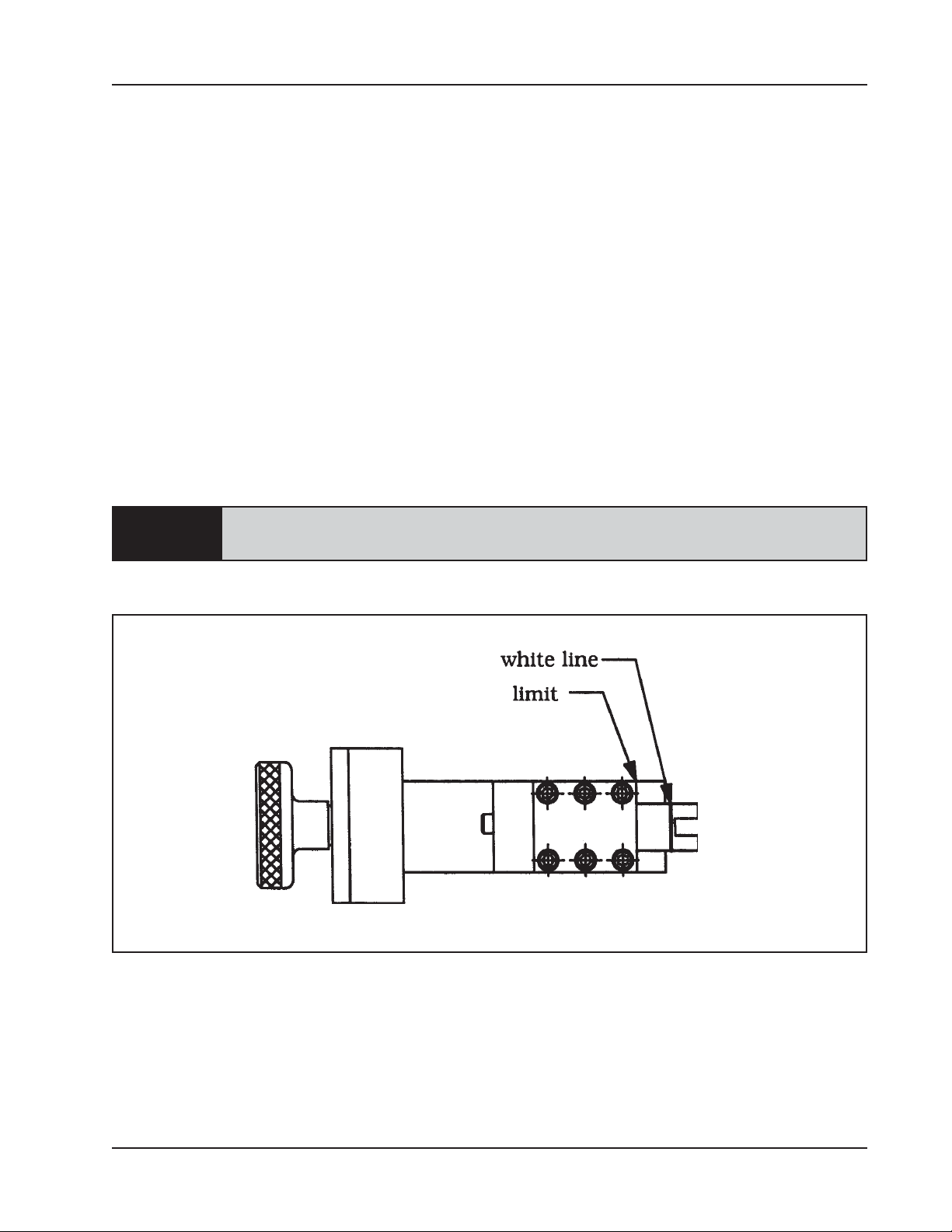

Damage to the gear box will occur if the white line on the tool holder is
retracted beyond where it can be seen.
92-0675 : Rev. 970314
11
Page 12
TRI TOOL INC.
(
)
(
)
(
)
CUTTING SPEEDS
Cutting Speeds (approximate)
Mean Cutting
Diameter
.25" 6.4 mm 254 318 382
.50" 12.7 mm 127 159 191
1.00" 25.1 mm 64 80 95
1.50" 38.1 mm 42 53 64
2.00" 50.8 mm 32 40 48
Use 200 surface inches per minute (5080 surface millimeters per minute) for:
Stainless steels in general when no coolant is allowed, all heavy wall tube and some
of the chrome/molybdenum steels.
Use 250 surface inches per minute (6350 surface millimeters per minute) for:
Mild steels and some thin wall stainless steels when coolants are permitted and
applied.
RPM for
200 in/min
5080 mm/min
RPM for
250 in/min
6350 mm/min
RPM for
300 in/min
7620 mm/min
12
Use 300 surface inches per minute (7620 surface millimeters per minute) for:
Aluminum and thin-wall mild steel tube with coolants.
92-0675 : Rev. 970314
Page 13
TOOL BITS
Squaring Tool Bits
Model SQM-1AC Squaring Module
Range
.250" thru 1.625" OD
(6.4 mm thru 41.3 mm OD)
1.00" thru 2.00" OD
(25.4 mm thru 50.8 mm OD)
*M42
Max Wall
Thickness
.065"
1.65 mm
.065"
1.65 mm
Pipe or Tube
Material
CS, SS 99-1479
SS (316L) 99-2490
CS, SS
SS (316L)
Tool Bit
Height
.750"
(19.1 mm)
.750"
(19.1 mm)
Squaring
Tool Bit P/N
99-1445
99-1331*
99-1506
99-3650*
DURABIT1
92-0675 : Rev. 970314
13
Page 14
TRI TOOL INC.
TROUBLE SHOOTING
Problem: The Tool Bit Chatters
Probable causes:
The tool bit is loose or overextended.
The tool bit is damaged.
The tool holder is too loose in the slides.
The cutting speed is too fast.
The clamping pads are loose on the pipe or tube.
Cutting fluid is required.
The main bearing pre-load is loose.
Problem: There is excessive Tool Bit wear
Probable causes:
The pipe or tube material is too hard or abrasive.
The cutting speed is too fast.
Cutting fluid is required.
A dull Tool Bit is causing surface hardening conditions (Stainless pipe or tubing).
There is scale or other foreign matter on the pipe or tube, which is dulling the tool bit
at the start of the cut.
The tool bit is incorrect for the material being cut.
Problem: The surface finish is rough
Probable causes:
The tool bit is dull, chipped, etc.
Metal build-up on the cutting edge of the tool bit is creating a false cutting edge.
Cutting fluid is required.
The cutting speed is incorrect.
Problem: The tool holder is not feeding
Probable causes:
The feed pin is broken or out of position.
The feed sprocket shear pin is broken.
The feed screw is stripped.
The feed nut is stripped.
The slide rails are too tight.
14
92-0675 : Rev. 970314
Page 15
Model SQM-1AC Squaring Module
Problem: There is a loss of air power
Probable causes:
The air supply pressure is too low.
The air filter is plugged.
The air line size is insufficient.
The air line is too long
.
Problem: There is a loss of hydraulic power
Probable causes:
The hydraulic supply pressure is too low.
The hydraulic filter is plugged.
The hydraulic line size is insufficient.
The hydraulic line is too long.
Problem: The tool bit will not reach the work
Probable causes:
Incorrect tool blocks are installed for the size of the pipe or tube being worked on.
Incorrect tool bit is installed.
Problem: The hydraulic motor will not start
Probable causes:
The hydraulic power supply is shut off.
The hydraulic motor is damaged and will not run free.
92-0675 : Rev. 970314
15
Page 16
TRI TOOL INC.
ILLUSTRATED PARTS BREAKDOWN
SQUARING MODULE ASSEMBLY
14
5
13
2
19
7
1
32
16
11
27
20
18
31
9
22
28
25
8
17
29
26
24
12
10
3
21
6
4
23
16
30
15
92-0675 : Rev. 970314
Page 17
Model SQM-1AC Squaring Module
Parts List, Squaring Module Assembly (P/N 82-0119)
Item Part
No. No. Description Qty
1. 14-0080 SHAFT ASSY, PIVOT 1
2. 19-0669 HOUSING, GEAR 1
3. 20-0564 SHAFT, DRIVE 1
4. 24-1080 PLATE, COVER 1
5. 24-1083 PLATE, RETAINING 1
6. 24-1269 PLATE, COVER 1
7. 29-0068 BEARING, THRUST 1
8. 29-0150 BEARING, THRUST 1
9. 32-0220 PIN, DOWEL, 1/8 DIA X 3/8" 1
10. 32-0250 PIN, DOWEL, 1/16 DIA X 1/2" 1
11. 33-0019 SCREW, CAP, #8-32 X 3/8" 4
12. 33-0029 SCREW, CAP, #10-24 X 5/8" 6
13. 33-0033 SCREW, CAP, #10-24 X 1 1/4" 2
14. 33-0269 SCREW, BUTTON, #6-32 X 3/8" 4
15. 33-0488 SCREW, SET, #10-24 X 1/4", CUP PT 1
16. 33-0499 SCREW, SET, 1/4-20 X 1/4", CUP PT 3
17. 33-1735 SCREW, SET, BRASS TIP, 3/8-16 X 1/4" 1
18. 33-1854 SCREW, FEED, 3/8-40, LH 1
19. 34-0107 WASHER, THRUST 2
20. 34-0192 WASHER, THRUST 2
21. 34-0279 WASHER, THRUST 1
22. 34-0257 WASHER, THRUST 1
23. 35-0400 NUT, FEED 1
24. 39-0733 GEAR, HELICAL, 24DP, 8T 1
25. 39-0734 GEAR, HELICAL, 24DP, 36T 1
26. 41-0139 LEVER ASSY, ADJUSTMENT 1
27. 42-0100 KNOB, FEED 1
28. 45-0223 BUSHING, BRONZE 1
29. 45-0224 BUSHING, FLANGED, BRONZE 1
30. 45-0225 BUSHING, FLANGED, BRONZE 1
31. 47-1124 BRACKET, HINGE 1
32. 49-0215 HOLDER, TOOL 1
NOT SHOWN:
36-0008 WRENCH, L, 3/16", HEX 1
36-0018 WRENCH, T, 1/8", HEX 1
36-0230 WRENCH, COMBINATION, 5/8" 1
92-0675 : Rev. 970314
17
Loading...
