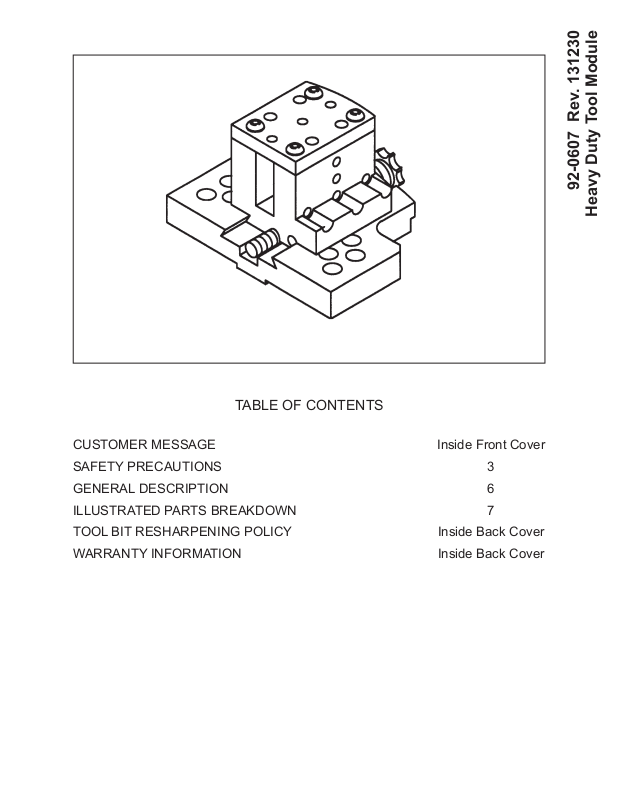

TABLE OF CONTENTS
CUSTOMER MESSAGE Inside Front Cover
SAFETY PRECAUTIONS 3
92-0607 Rev. 131230

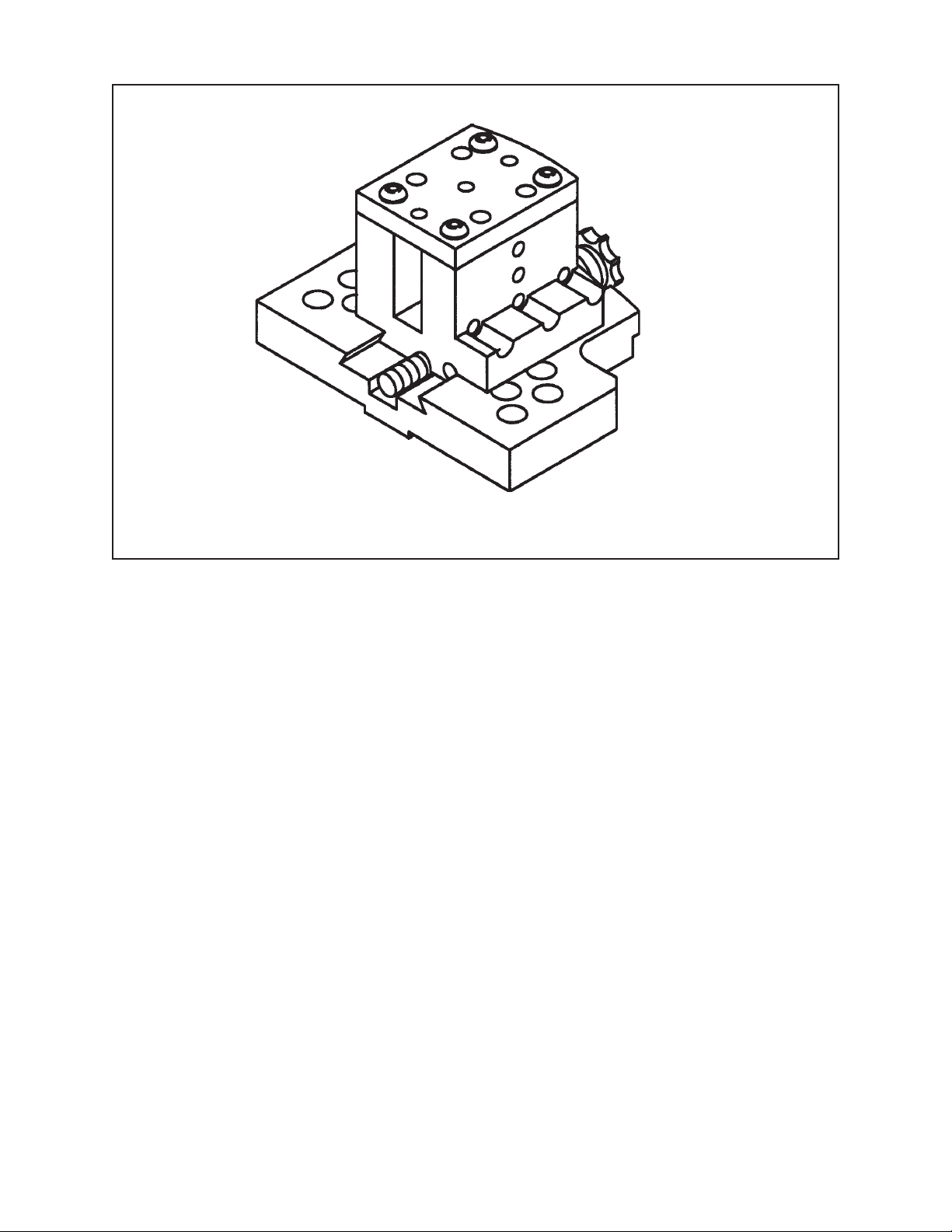

Heavy Duty Tool Module
GENERAL DESCRIPTION 6
ILLUSTRATED PARTS BREAKDOWN 7
TOOL BIT RESHARPENING POLICY Inside Back Cover
WARRANTY INFORMATION Inside Back Cover
Page 2
Copyright 2013
Proprietary property of TRI TOOL Inc.
No reproduction, use, or duplication of the information
shown hereon is permitted without the express written
consent of TRI TOOL Inc.
Page 3
SAFETY PRECAUTIONS
IN GENERAL
When using rotating head cutting equipment, basic safety precautions should always
be followed to reduce the risk of personal injury.
Operate this tool only in accordance with specic operating instructions.
Do not override the deadman switch on the power unit. Locking down, ob-
WARNING:
DRESS CONSIDERATIONS
structing, or in any way defeating the deadman switch on the power drive unit
may result in serious injury.
Heavy Duty Tool Module
Use standard safety equipment. Hard hats, safety shoes, safety harnesses, protective clothes, and other safety devices should always be used when appropriate.
Use safety glasses. Do not operate cutting tools without eye protection.
Dress properly. Do not wear loose clothing or jewelry. They can be caught in rotat-
ing and moving parts. Avoid slippery oors or wear nonskid footwear. If you have
long hair, wear protective hair covering to contain it.
WORK AREA
Keep the work area clean. Consider the work area environment. Keep the area
well lit. Keep electrical cords, cables, rags, rigging straps, and etc. clear of rotating
equipment. Do not use power-cutting tools in the presence of ammable liquids and
gasses.
Keep visitors away. Do not let visitors or untrained personnel at or near operating
tools. Enforce eye protection requirements for all observers.
Do not over reach. Keep proper footing at all times.
Stay alert. Watch what you are doing. Use common sense. Do not operate tools
when you are tired.
92-0607 Rev. 131230
3
Page 4
TRI TOOL INC.
TOOL CARE
Maintain tools with care. Keep tools in good operating condition. Sharp tool bits
perform better and safer than dull tool bits. Well maintained tools function properly
when needed.
Check for damaged parts. If a tool has malfunctioned, been dropped or hit, it
must be checked for damage. Run no-load tests and feed function checks. Do a
complete visual inspection.
Electric motors. Use only with proper AC voltage power sources and observe all
normal electric shock hazard procedures.
Do not abuse power and control cords. Pulling or running over cords and cables can
result in electrical shock hazards and malfunctions. Keep control and power cords
out of all cutting uids and water.
Hydraulic drives. Observe proper procedures for electrically driven power sources.
Avoid damage to hydraulic lines. Keep quick-disconnects clean. Grit contamination
causes malfunctions.
Air tools. Check the exhaust mufer. Broken or damaged mufers can restrict
air ow or cause excessive noise. Use air motors only with a ltered, lubricated
and regulated air supply. Dirty air, low-pressure air or over pressure air will cause
malfunctions, including delayed starting.
AREA EQUIPMENT
Secure work. Whenever possible use clamps, vises, chains and straps to secure
pipe.
Make sure the tool is secured; it is safer to have both hands free to operate the tool.
TOOL USE
Use the right tool and tool bit for the job. Do not use a tool, which is incorrect for the
job you are doing.
Keep the tool bits fully engaged in the tool bit holders. Loose bits are a safety
hazard.
4
92-0607 Rev. 131230
Page 5
Heavy Duty Tool Module
Disconnect power supply during setup and maintenance. Use all ‘Stop’ or Shut off’
features available when changing or adjusting tool bits, maintaining the tool, or when
the tool is not in use.
Remove adjusting keys and wrenches before applying power to the equipment.
Develop a habit of checking the tool before turning it on to make sure that all keys
and wrenches have been removed.
Do not force tools. Tools and tool bits function better and safer when used at the
feed and speed rate for which they were designed.
Do not reach into rotating equipment. Do not reach into the rotating head stock to
clear chips, to make adjustments, or to check surface nish. A machine designed to
cut steel will not stop for a hand or an arm.
Handle chips with care. Chips have very sharp edges and are hot. Do not try to pull
chips apart with our hands; they are very tough.
Avoid unintentional starts. Do not carry or handle tools with your hand on the
operating switches or levers. Do not lay the tool down in a manner that will start the
drive. Do not allow the tool to ip around or move when adjusting or changing tool
bits.
Store idle tools properly. Disconnect tools from the power source and store in a safe
place. Remove tool bits for safe handling of the tool.
92-0607 Rev. 131230
5
Page 6
TRI TOOL INC.
GENERAL DESCRIPTION
The Heavy Duty Tool Module is an accessory for use with the 600SB’s.
6
92-0607 Rev. 131230
Page 7

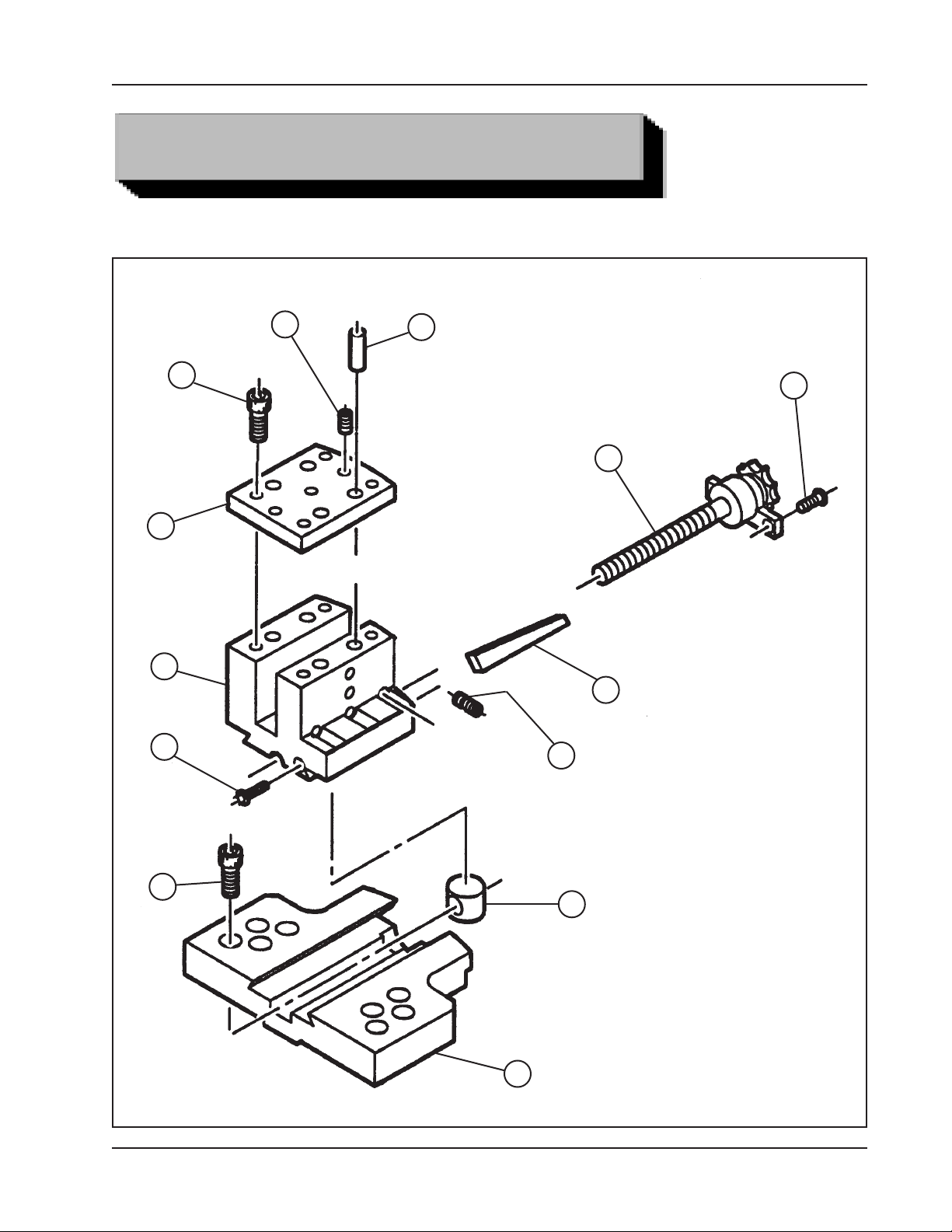

ILLUSTRATED PARTS BREAKDOWN
HEAVY DUTY BLOCK ASSEMBLY (P/N 08-0367)
Heavy Duty Tool Module
1
12
8
6
5
2
4
10
13
7
3
92-0607 Rev. 131230
9
11
7
Page 8
TRI TOOL INC.
Parts List, Block Assy, Heavy Duty (P/N 08-0367)
Item Part
No. No. Description Qty
1 24-0314 PLATE, TOP 1
2 32-0105 PIN, DOWEL, 3/8 DIA X 1 4
3 33-0070 SCREW, CAP, 3/8-16 X 7/8, ZP 4
4 33-0286 SCREW, BUTTON, 1/4-20 X 5/8 2
5 33-0054 SCREW, CAP, 5/16-18 X 3/4, ZP 4
6 33-0529 SCREW, SET, 3/8-16 X 1/2, CUP PT 3
7 33-0531 SCREW, SET, 3/8-16 X 3/4, CUP PT 5
8 33-0955 SCREW, GIB 1
9 35-0056 NUT, SLIDE, 3/8-40 X 3/4 1
10 38-0048 SPROCKET ASSY 1
29-0068 BEARING, THRUST 2
32-0126 PIN, GROOVE 1
33-1216 SCREW, LEAD 1
34-0107 WASHER, THRUST 4
38-0023 SPROCKET 1
43-0181 COVER, BEARING 1
47-0213 BRACKET, SPROCKET 1
11 47-0510 BRACKET, TOOL MODULE 1
12 48-0162 BLOCK, TOOL 1
13 66-0153 GIB, TAPERED 1
8
92-0607 Rev. 131230
Page 9
Heavy Duty Tool Module

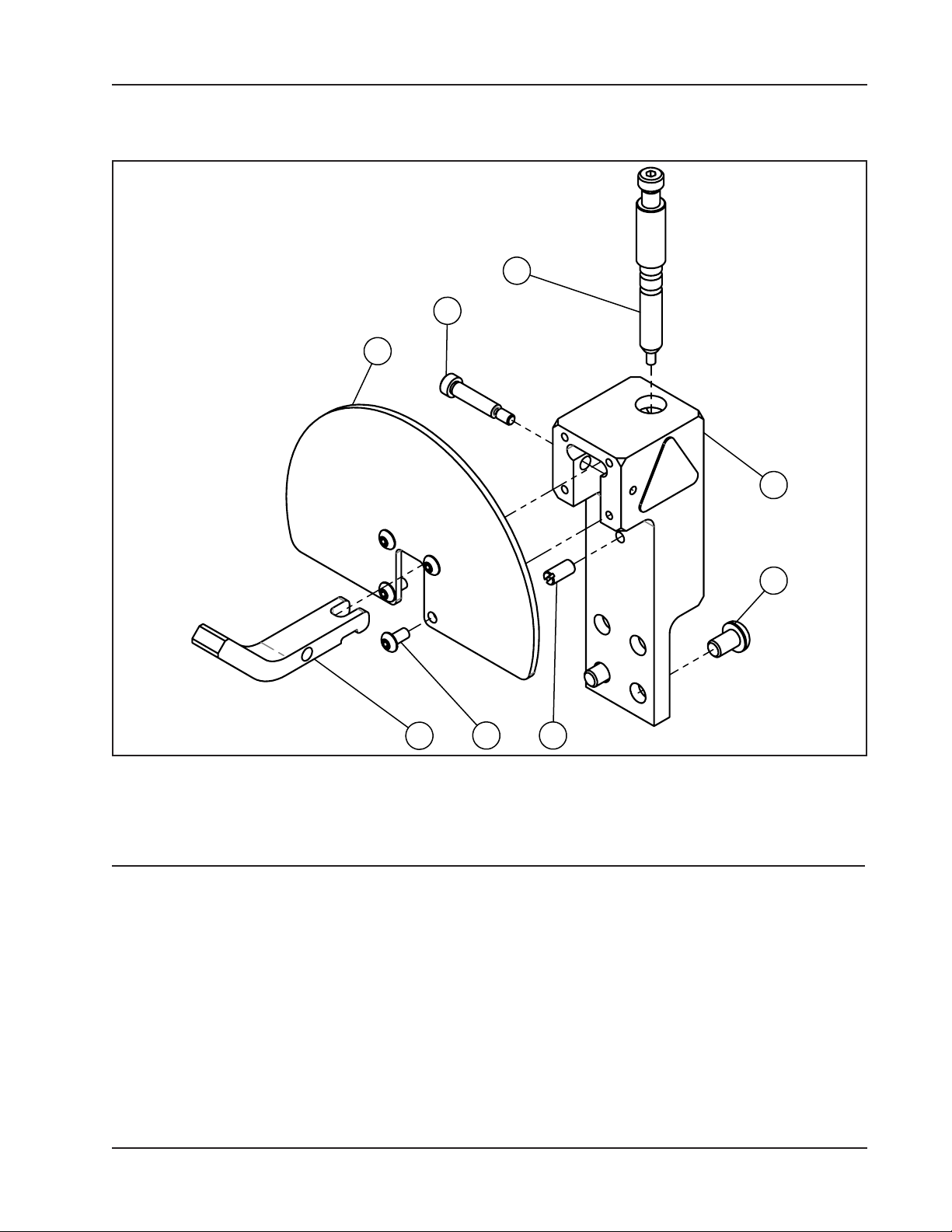

TRIPP BRKT ASSY, HD SEVER (P/N 47-2508)
1
7
2
9
6
8
5 3
Parts List, Tripp Bracket Assy, HD Sever Lever (P/N 47-2508)
Item Part
No. No. Description Qty
1 14-0138 SHAFT ASSY,TRIPPER,SB 1
2 24-3901 GUARD,TRIPPER,SB 1
3 30-0125 PLUNGER,BALL,1/4-20 X 17/32 1
4 30-5686 BLOCK,TRIPPER,SUB-ASSY 1
5 33-0278 LABEL,HAND CRUSH/TRIANGLE 4
6 33-0291 SCREW,BUTTON,5/16-18 X 1/2 2
7 33-1303 SCREW,SHLDR,1/4 X 1 1
8 41-0246 LEVER HANDLE,TRIPPER,SB 1
9 47-2509 BLOCK,TRIPPER,EXT,HD SEVER 1
92-0607 Rev. 131230
9
