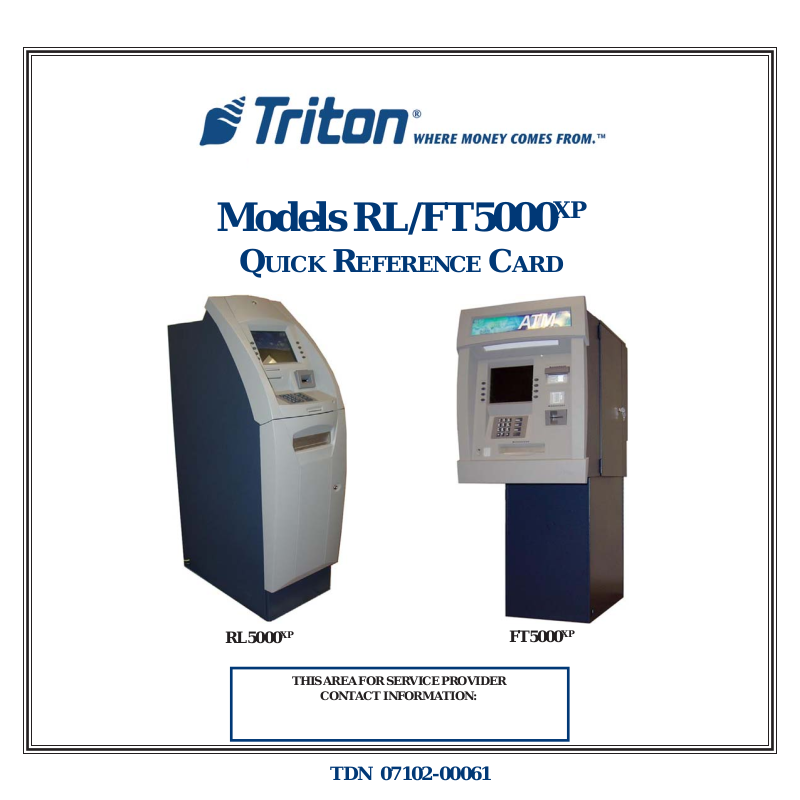

Triton FT5000XP Quick Reference Guide

Models RL/FT5000

QUICK REFERENCE CARD

XP

RL5000

XP

THIS AREA FOR SER VICE PROVIDER

CONTACT INFORMATION:

TDN 07102-00061

FT5000

XP

MANAGEMENT FUNCTIONS

ACCESS INSTRUCTIONS

1. A T A TM WELCOME SCREEN, PRESS AND HOLD DOWN <CTRL> KEY (LOWER-RIGHT CORNER OF KEYP AD), PRESS <1> KEY,
THEN RELEASE BOTH KEYS. THE SECURITY LOGIN SCREEN WILL BE DISPLA YED.

2. ENTER THE 2-DIGIT USER ID. PRESS <ENTER> KEY . ENTER THE USER PASSWORD AND PRESS <ENTER> KEY . THE MAIN
MENU IS DISPLA YED.

REST AR T / SHUTDOWN TERMINAL

RESET AT M: FOLLOW ACCESS INSTRUCTIONS T O ENTER MANAGEMENT FUNC­TIONS. SELECT SYSTEM P ARAMETERS, THEN RESTAR T TERMINAL.

SHUTDOWN ATM: FOLLOW ACCESS INSTRUCTIONS TO ENTER MANAGEMENT
FUNCTIONS. SELECT SYSTEM P ARAMETERS, THEN SHUTDOWN TERMINAL.

TERMINAL SETTLEMENT FUNCTIONS

VIEW / CLEAR ATM SETTLEMENT TOT ALS

THE VIEW ATM SETTLEMENT TOT ALS FUNCTION DISPLA YS THE TOTAL NUMBER
OF CAPTURED CARDS AND DISPENSED CURRENCY WITH THE ST ART AND END
DA TES. THE START DA TE IS THE LAST A TM SETTLEMENT RESET DA Y AND THE END
DA TE IS THE CURRENT DA TE. THE SETTLEMENT TOT ALS ARE NOT CLEARED.

THE CLEAR ATM SETTLEMENT TOT ALS FUNCTION RESETS ALL THE ATM SETTLE­MENT TOT ALS TO ZERO (0) AND RESETS THE START DATE TO THE CURRENT DA TE/
TIME.

¾¾

¾ GO TO MAIN MENU FUNCTIONS USING ACCESS INSTRUCTIONS. SELECT TERMINAL SETTLEMENT FUNCTIONS . CHOOSE

¾¾

VIEW ATM SETTLEMENT TOTALS . SELECT PRINT OPTION TO PRINT A RECEIPT . CHOOSE CLEAR ATM SETTLEMENT
TOTALS TO RESET THE ST ART DA TE/TIME.

2

REPLENISH CASSETTE(S)

THE REPLENISH CASSETTE(S) FUNCTION ALLOWS USER TO UNLOCK/LOCK THE
CASSETTE(S) FOR CURRENCY REPLENISHMENT .

¾¾

¾ GO TO MAIN MENU FUNCTIONS USING ACCESS INSTRUCTIONS. SELECT TER-

¾¾

MINAL SETTLEMENT FUNCTIONS. CHOOSE REPLENISH CASSETTE(S).

¾¾

¾ A SCREEN W ARNING APPEARS THA T

¾¾

THE TIMEOUT FUNCTION NORMALL Y
ASSOCIATED WITH MANAGEMENT
FUNCTIONS IS DISABLED. PRESS <1>
TO CONTINUE.

¾¾

¾ W AIT FOR ALL CASSETTES T O BE UNLOCKED. A SCREEN WILL BE DISPLA YED

¾¾

THA T ALL CASSETTES HA VE BEEN UNLOCKED.

< FOLLOW THE CASSETTE REPLENISHMENT PROCEDURES >

¾¾

¾ PRESS <1> TO RELOCK THE CASSETTES AND RETURN TO TERMINAL SETTLE-

¾¾

MENT FUNCTIONS.

ELECTRONIC JOURNAL

DISPLA Y LAST X RECORDS

THE DISPLAY LAST X RECORDS FUNCTION IS USED T O DISPLAY AND PRINT
RECORDS FROM AN ELECTRONIC JOURNAL EITHER BEFORE OR AFTER THEY HA VE
BEEN AUDITED. RECORDS PRINTED OUT USING THIS COMMAND ARE NOT MARKED
IN ANY W A Y . THIS FUNCTION WILL NOT AFFECT THE OPERATION OF ANY OTHER
JOURNAL FUNCTIONS.

¾¾

¾ GO TO MAIN MENU FUNCTIONS USING ACCESS INSTRUCTIONS. SELECT ELEC-

¾¾

TRONIC JOURNAL. CHOOSE DISPLA Y LAST X RECORDS. PRESS NUMBER <1>
TO HIGHLIGHT THE NUMBER OF RECORDS TO DISPLA Y .

ENTER AN AMOUNT ( #), THEN PRESS <ENTER>.

¾¾

¾ PRESS NUMBER <2>, PERFORM QUERY , TO DISPLA Y THE

¾¾

RECORDS. SELECT PRINT OPTION T O PRINT THE REPORT .

3

REPLENISHING CASSETTE(S)

STEP

1

2

3

ACTION STEP

UNLOCK/OPEN CABINET .
GRASP THE CASSETTE
HANDLE WITH ONE HAND
WHILE HOLDING THE
MECHANISM WITH THE
OTHER.
PULL THE CASSETTE OUT
SLIGHTLY, THEN PLACE
ONE HAND UNDERNEA TH
AS YOU SLIDE IT OUT.

PLACE CASSETTE ON A LEVEL SURFACE. INSER T THE
KEY INTO THE CASSETTE LOCK AND TURN CLOCK­WISE. PRESS GREEN RELEASE BUTTON TO RAISE LID.

MOVE THE PUSHER PLA TE TOWARDS THE CASSETTE
HANDLE PLA TE SHOULD ST A Y IN PLACE. LOAD CUR­RENCY USING 1" - 2" STACKS OF CURRENCY.

ACTION

EXTEND THE “PAWLS”

5

FULLY (INSERT) ON THE
PUSHER PLATE.

CLOSE THE CASSETTE

6

LID TO ITS LOCKED PO­SITION. THE GREEN RE­LEASE BUTTON SHOULD
“POP” OUT . TURN THE KEY
COUNTERCLOCKWISE
TO LOCK THE CASSETTE.
SLIDE CASSETTE INTO
ITS SLOT IN THE MECHA­NISM.

REMOVE REJECT VAULT FROM MECHANISM. PLACE

7

ON LEVEL SURFACE. INSERT THE KEY INTO THE
VAULT LOCK AND TURN CLOCKWISE. PRESS THE
GREEN RELEASE BUTTON TO RAISE LID.

LEVEL NOTE PILE BY HAND. MOVE THE PUSHER PLA TE

4

AGAINST THE NOTES WITH ENOUGH PRESSURE TO
HOLD THE NOTES BEFORE CLOSING THE LID.

REMOVE ANY REJECTED NOTES - BOTH SINGLE AND

8

BUNDLED NOTE AREAS. FOLLOW THE LOCKING
PROCEDURES FROM STEP 6 AND SLIDE REJECT
V AULT BACK INTO THE MECHANISM.

Single Note Reject Area

Bundled Note Reject Area

4

REPLACING RECEIPT PRINTER PAPER (RLXP)

STEP ACTION

1

4

CUT REMAINING PAPER TO

ALLOW REMOV AL.

REMOVE OLD PAPER ROLL. PLACE

SPINDLE IN NEW P APER ROLL.

STEP

2

5

ACTION

PRESS FEED BUTTON TO CLEAR

P APER FROM PAPER P A TH.

Paper feed

button

PLACE NEW P APER ROLL ON

BRACKET. MAKE SURE P APER

FEEDS FROM TOP!

STEP

3

6

ACTION

LIFT SPINDLE TO REMOVE P APER

ROLL AND SPINDLE.

FEED END OF P APER OVER THE

BAR INTO FEED SLOT .

7

PAPER WILL FEED AUTOMA TI-

CALL Y INT O PRINTER.

8

(PRINTER SERVICE P ANEL)

PULL RELEASE PIN AND ROT A TE

FORWARD.

9

(PRINTER SERVICE P ANEL)

PRINTER ASSEMBL Y OPENED.

5

REPLACING RECEIPT PRINTER PAPER (FTXP)

STEP ACTION

1

4

CUT REMAINING PAPER TO

ALLOW REMOV AL.

REMOVE OLD PAPER ROLL. PLACE

SPINDLE IN NEW P APER ROLL.

STEP

2

5

ACTION

PRESS FEED BUTTON TO CLEAR

P APER FROM PAPER P A TH.

Paper feed

button

PLACE NEW P APER ROLL ON

BRACKET. MAKE SURE P APER

FEEDS FROM BOTTOM!

STEP

3

6

ACTION

LIFT SPINDLE TO REMOVE P APER

ROLL AND SPINDLE.

FEED END OF P APER INTO FEED

SLOT.

7

PAPER WILL FEED AUTOMA TI-

CALL Y INT O PRINTER.

8

(PRINTER SERVICE P ANEL)

GRASP HANDLE AND PULL UP .

9

(PRINTER SERVICE P ANEL)

ROT ATE PRINTER ASSEMBL Y

DOWN.

6
