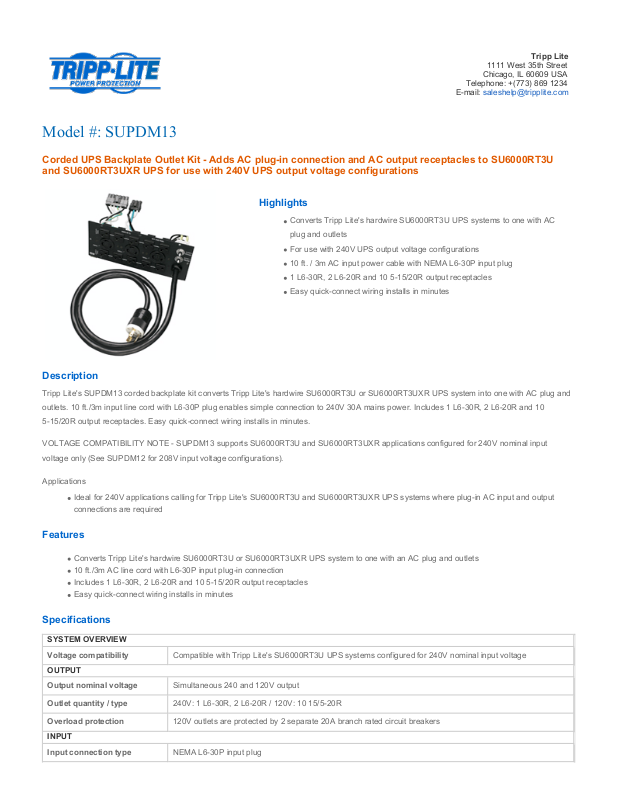

Tripp Lite SUPDM13 User Manual
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: saleshelp@tripplite.com
Model #: SUPDM13
Corded UPS Backplate Outlet Kit - Adds AC plug-in connection and AC output receptacles to SU6000RT3U
and SU6000RT3UXR UPS for use with 240V UPS output voltage configurations
Highlights
Converts Tripp Lite's hardwire SU6000RT3U UPS systems to one with AC
plug and outlets
For use with 240V UPS output voltage configurations
10 ft. / 3m AC input power cable with NEMA L6-30P input plug
1 L6-30R, 2 L6-20R and 10 5-15/20R output receptacles
Easy quick-connect wiring installs in minutes
Description
Tripp Lite's SUPDM13 corded backplate kit converts Tripp Lite's hardwire SU6000RT3U or SU6000RT3UXR UPS system into one with AC plug and
outlets. 10 ft./3m input line cord with L6-30P plug enables simple connection to 240V 30A mains power. Includes 1 L6-30R, 2 L6-20R and 10
5-15/20R output receptacles. Easy quick-connect wiring installs in minutes.
VOLTAGE COMPATIBILITY NOTE - SUPDM13 supports SU6000RT3U and SU6000RT3UXR applications configured for 240V nominal input
voltage only (See SUPDM12 for 208V input voltage configurations).
Applications
Ideal for 240V applications calling for Tripp Lite's SU6000RT3U and SU6000RT3UXR UPS systems where plug-in AC input and output
connections are required
Features
Converts Tripp Lite's hardwire SU6000RT3U or SU6000RT3UXR UPS system to one with an AC plug and outlets
10 ft./3m AC line cord with L6-30P input plug-in connection
Includes 1 L6-30R, 2 L6-20R and 10 5-15/20R output receptacles
Easy quick-connect wiring installs in minutes
Specifications
SYSTEM OVERVIEW
Voltage compatibility Compatible with Tripp Lite's SU6000RT3U UPS systems configured for 240V nominal input voltage
OUTPUT
Output nominal voltage Simultaneous 240 and 120V output
Outlet quantity / type 240V: 1 L6-30R, 2 L6-20R / 120V: 10 15/5-20R
Overload protection 120V outlets are protected by 2 separate 20A branch rated circuit breakers
INPUT
Input connection type NEMA L6-30P input plug
Input cord length 10 ft. / 3m
Recommended Electrical
Service
30A 240V
PHYSICAL
Shipping weight (lbs) 6.6
Shipping weight (kg) 3
Shipping Dimensions
(HWD/in)
5.5 x 9 x 14.25
Shipping Dimensions
(HWD/cm)
14 x 22.9 x 36.2
Unit weight (lbs) 6
Unit weight (kg) 2.8
Unit Dimensions (HWD/in) 2.5 x 5 x 11
Unit Dimensions (HWD/cm) 6.4 x 12.7 x 28
Material of construction Steel
WARRANTY
Product Warranty Period 2 years
