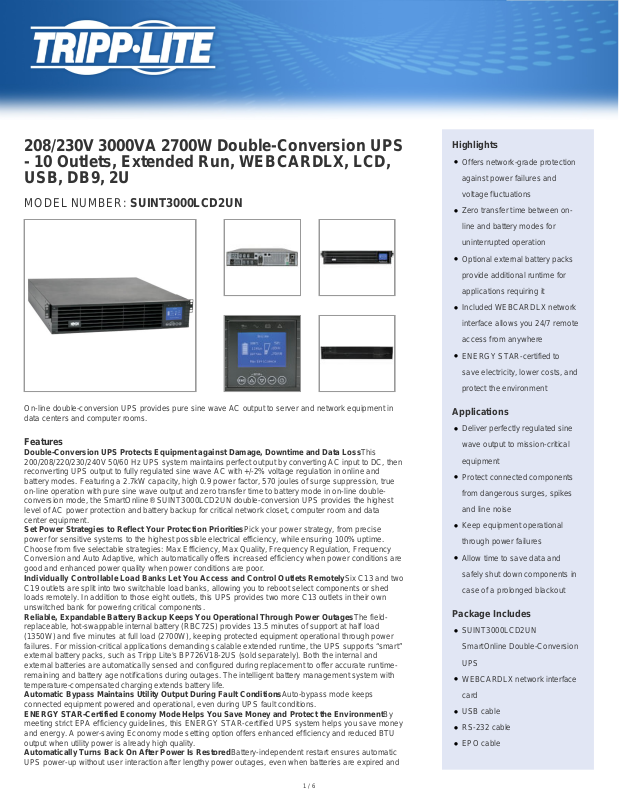

Page 1
208/230V 3000VA 2700W Double-Conversion UPS
- 10 Outlets, Extended Run, WEBCARDLX, LCD,
USB, DB9, 2U
MODEL NUMBER: SUINT3000LCD2UN
Highlights
●
Offers network-grade protection
against power failures and
voltage fluctuations
●
Zero transfer time between online and battery modes for
uninterrupted operation
●
Optional external battery packs
provide additional runtime for
applications requiring it
●
Included WEBCARDLX network
interface allows you 24/7 remote
access from anywhere
●
ENERGY STAR-certified to
save electricity, lower costs, and
protect the environment
On-line double-conversion UPS provides pure sine wave AC output to server and network equipment in
data centers and computer rooms.
Features
Double-Conversion UPS Protects Equipment against Damage, Downtime and Data LossThis
200/208/220/230/240V 50/60 Hz UPS system maintains perfect output by converting AC input to DC, then
reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and
battery modes. Featuring a 2.7kW capacity, high 0.9 power factor, 570 joules of surge suppression, true
on-line operation with pure sine wave output and zero transfer time to battery mode in on-line doubleconversion mode, the SmartOnline® SUINT3000LCD2UN double-conversion UPS provides the highest
level of AC power protection and battery backup for critical network closet, computer room and data
center equipment.
Set Power Strategies to Reflect Your Protection PrioritiesPick your power strategy, from precise
power for sensitive systems to the highest possible electrical efficiency, while ensuring 100% uptime.
Choose from five selectable strategies: Max Efficiency, Max Quality, Frequency Regulation, Frequency
Conversion and Auto Adaptive, which automatically offers increased efficiency when power conditions are
good and enhanced power quality when power conditions are poor.
Individually Controllable Load Banks Let You Access and Control Outlets RemotelySix C13 and two
C19 outlets are split into two switchable load banks, allowing you to reboot select components or shed
loads remotely. In addition to those eight outlets, this UPS provides two more C13 outlets in their own
unswitched bank for powering critical components.
Reliable, Expandable Battery Backup Keeps You Operational Through Power OutagesThe fieldreplaceable, hot-swappable internal battery (RBC72S) provides 13.5 minutes of support at half load
(1350W) and five minutes at full load (2700W), keeping protected equipment operational through power
failures. For mission-critical applications demanding scalable extended runtime, the UPS supports “smart”
external battery packs, such as Tripp Lite's BP726V18-2US (sold separately). Both the internal and
external batteries are automatically sensed and configured during replacement to offer accurate runtimeremaining and battery age notifications during outages. The intelligent battery management system with
temperature-compensated charging extends battery life.
Automatic Bypass Maintains Utility Output During Fault ConditionsAuto-bypass mode keeps
connected equipment powered and operational, even during UPS fault conditions.
ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the EnvironmentBy
meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money
and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU
output when utility power is already high quality.
Automatically Turns Back On After Power Is RestoredBattery-independent restart ensures automatic
UPS power-up without user interaction after lengthy power outages, even when batteries are expired and
Applications
●
Deliver perfectly regulated sine
wave output to mission-critical
equipment
●
Protect connected components
from dangerous surges, spikes
and line noise
●
Keep equipment operational
through power failures
●
Allow time to save data and
safely shut down components in
case of a prolonged blackout
Package Includes
●
SUINT3000LCD2UN
SmartOnline Double-Conversion
UPS
●
WEBCARDLX network interface
card
●
USB cable
●
RS-232 cable
●
EPO cable
1 / 6
Page 2
require replacement.
Intuitive Front-Panel Interface for Convenient UPS Operation and MonitoringThe front-panel LCD
screen reports UPS operating mode, detailed UPS status and site-power information, as well as a variety
of advanced UPS setup and configuration options. LEDs indicate AC input/output, battery and fault status.
Advanced Communications Ports Allow for Automatic Saves and ShutdownsRS-232 and HIDcompliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software
to enable safe unattended file saves and system shutdown in case of a prolonged power failure. An EPO
port connects the UPS to a contact closure switch to enable emergency inverter shutdown. Cables are
included.
WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and ControlThe
SUINT3000LCD2UN includes the Java-free HTML5-based WEBCARDLX that enables full remote access
for site power and UPS status monitoring, configuration, control and email notifications via secure web
browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an
Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime.
WEBCARDLX allows you to use the Auto Probe feature, which can prevent costly service calls by
automatically rebooting non-responsive network devices.
Versatile Installation OptionsHardware is included for mounting the UPS system in 2U of space in an
EIA-standard 19-inch 4-post rack. Use the optional 2POSTRMKITWM (sold separately) for 2-post rack
mounting or the optional 2-9USTAND (sold separately) for mounting in an upright tower position. The C20
power inlet accepts a variety of user-supplied input cords.
Specifications
OVERVIEW
UPC Code 037332253583
UPS Type On-Line
●
C19-to-C20 power cable
●
(2) C13-to-C14 power cables
●
4-post rack-mounting hardware
●
Owner’s manual
INPUT
Rated input current (Maximum Load) 14.97A
Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
UPS Input Connection Type C20 inlet
Input Phase Single-Phase
OUTPUT
Output Volt Amp Capacity (VA) 3000
Output kVA Capacity (kVA) 3
Output Watt Capacity (Watts) 2700
Output kW Capacity (kW) 2.7
Output Capacity Details DE-RATING INFORMATION: Max output in Frequency Conversion mode is reduced to 1890 watts for
Power Factor 0.9
Crest Factor 3:1
Nominal Voltage Details Nominal output voltage is user configured on first power-on
208/220/230/240V output voltages; Max output is reduced to 2160W at 200V output voltage in all operating modes
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for
30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are
WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits).
2 / 6
Page 3
Frequency Compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Frequency Compatibility Details Output frequency matches input nominal on startup; Output capacity de-rates by 30% during frequency conversion
operation
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation
(Economy Line Mode)
Output Voltage Regulation (Battery
Mode)
+/- 2%
+/- 10%
+/- 2%
Included Output Power Cables Includes 2 C13 to C14 and 1 C19 to C20 power cables
Load Management Receptacles Two switchable 4 outlet load banks (3 C13 and 1 C19 per bank)
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery
Mode)
Nominal Output Voltage(s)
Supported
Pure Sine wave
200V; 208V; 220V; 230V; 240V
Output Receptacles (8) C13; (2) C19
Individually Controllable Load Banks Yes
BATTERY
Full Load Runtime (min.) 5 min. (2700w)
Half Load Runtime (min.) 13.5 min. (1350w)
Expandable Battery Runtime Supports extended runtime with optional external battery packs
External Battery Pack Compatibility <a class="productLink" href="// External-72V-2U-RackTower-Battery-Pack-for-Select-Tripp-
Lite-UPS-Systems~BP72V15-2U">BP72V15-2U</a> (limit 1); <a class="productLink"
href="// External-72V-3U-Rack-Tower-Battery-Pack-Select-Tripp-Lite-UPS-systems~BP72V28RT3U">BP72V28RT-3U</a> (multi-pack compatible); <a class="productLink"
href="// External-72V-2U-Rack-Tower-Battery-Pack-for-Tripp-Lite-UPS-Systems~BP72V18-
2US">BP72V18-2US</a> (multi-pack compatible)
DC System Voltage (VDC) 72
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
3.0 hours from 10% to 90% (typical, full load discharge)
<a class="productLink" href="// Replacement-Battery-Cartridge-72V-Tripp-Lite-SmartOnline-
UPS-Systems~RBC72S">RBC72S</a>
Battery Access Front panel battery access door
Battery Replacement Description Hot-swappable, replaceable batteries
Expandable Runtime Yes
VOLTAGE REGULATION
Voltage Regulation Description Online, double-conversion power conditioning
Overvoltage Correction 2% output voltage regulation during overvoltages to 288
Undervoltage Correction 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)
3 / 6
Page 4
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display Interactive front-panel LCD interface reports UPS operating mode, detailed UPS status and site-power information;
LCD interface also enables a variety of advanced UPS setup and configuration options
Switches 5 front panel switches: On/Off, Up, Down and Escape
Alarm Cancel Operation Power-fail alarm can be silenced by following on-screen prompts
Audible Alarm Audible alarm indicates power failure, low battery, overload and fault
LED Indicators 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red)
SURGE / NOISE SUPPRESSION
UPS Dataline Suppression Details Single line dialup / network dataline protection included
EMI / RFI AC Noise Suppression Yes
AC Suppression Joule Rating 570
AC Suppression Response Time Instantaneous
PHYSICAL
Cooling Method Fan
Included Mounting Accessory
Description
Installation Form Factors Supported
with Included Accessories
4 post installation accessories included
4 post 19 inch rackmount
Installation Form Factors Supported
with Optional Accessories
2 post rackmount ( <a class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-
Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> ); 2-4 post front rail
rackmount ( <a class="productLink" href="// Heavy-Duty-2-post-Front-Mounting-Ear-
Kit~UPSHDEARKIT">UPSHDEARKIT</a> ); Tower ( <a class="productLink"
href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-9USTAND">2-
9USTAND</a> )
Minimum Required Rack Depth with
External Battery Pack (cm)
Minimum Required Rack Depth with
External Battery Pack (in.)
Minimum Required Rack Depth
without External Battery Pack (cm)
Minimum Required Rack Depth
without External Battery Pack (in.)
77
30.25
70
27.75
Primary Form Factor Rackmount
Primary UPS Depth (mm) 616
Primary UPS Height (mm) 88
Primary UPS Width (mm) 438
Rack Height 2U
Shipping Dimensions (hwd / in.) 9.45 x 23.62 x 29.92
Shipping Weight (kg) 39.01
UPS Housing Material Metal
4 / 6
Page 5
UPS Power Module Dimensions
(hwd, in.)
3.46 x 17.24 x 24.25
UPS Power Module Weight (kg) 31.17
UPS Power Module Weight (lbs.) 68.72
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Relative Humidity 5 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 933
AC Economy Mode BTU / Hr. (Full
Load)
485
Battery Mode BTU / Hr. (Full Load) 1399
AC Mode Efficiency Rating (100%
Load)
AC Economy Mode Efficiency Rating
(100% Load)
>90%
>95%
Audible Noise <50dB at front side 1M
COMMUNICATIONS
Network Management Cards <a class="productLink" href="// SNMP-Web-Management-Accessory-Card-SmartPro-
SmartOnline-UPS-Systems~SNMPWEBCARD">SNMPWEBCARD</a> ; <a class="productLink"
href="// Web-Management-Accessory-Card~WEBCARDLX">WEBCARDLX</a>
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at
http:// poweralert
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Interface Contact closure; DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface;
USB (HID enabled)
LINE / BATTERY TRANSFER
Transfer Time No transfer time (0 ms.) in online, double-conversion mode; 4 ms. transfer time during economy mode operation
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
160V (100% load), 140V (66% load), 120V (33% load)
288V
SPECIAL FEATURES
Grounding Lug Back panel grounding lug included
Cold Start (Startup in Battery Mode
During a Power Failure)
Cold-start operation supported
High Availability UPS Features Automatic inverter bypass; Hot swappable batteries; Auto Probe Monitoring and Reboot (included); Zero transfer
time; On-Line/Double-Conversion
5 / 6
Page 6
Green Energy-Saving Features High efficiency economy mode operation; Individually controllable load banks
STANDARDS & COMPLIANCE
UPS Certifications CE; ENERGY STAR Qualified; Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to EAC
Certification Details Meets EMI approvals IEC62040-2:2006; FCC Part 15
WARRANTY
Product Warranty Period
(Worldwide)
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
(Belarus, Kazakhstan, Russia); Tested to SASO (Saudi Arabia); Tested to UL1778 (USA)
2-year limited warranty
$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime
Insurance</a>
© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies
6 / 6
Loading...
