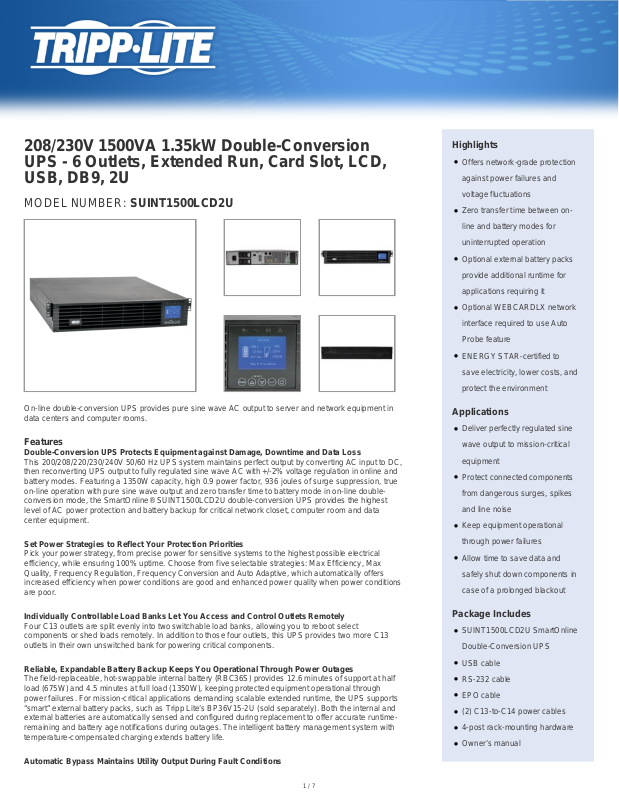

208/230V 1500VA 1.35kW Double-Conversion
UPS - 6 Outlets, Extended Run, Card Slot, LCD,
USB, DB9, 2U
MODEL NUMBER: SUINT1500LCD2U
Highlights
●
Offers network-grade protection
against power failures and
voltage fluctuations
●
Zero transfer time between online and battery modes for
uninterrupted operation
●
Optional external battery packs
provide additional runtime for
applications requiring it
●
Optional WEBCARDLX network
interface required to use Auto
Probe feature
●
ENERGY STAR-certified to
save electricity, lower costs, and
protect the environment
On-line double-conversion UPS provides pure sine wave AC output to server and network equipment in
data centers and computer rooms.
Features
Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
This 200/208/220/230/240V 50/60 Hz UPS system maintains perfect output by converting AC input to DC,
then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and
battery modes. Featuring a 1350W capacity, high 0.9 power factor, 936 joules of surge suppression, true
on-line operation with pure sine wave output and zero transfer time to battery mode in on-line doubleconversion mode, the SmartOnline® SUINT1500LCD2U double-conversion UPS provides the highest
level of AC power protection and battery backup for critical network closet, computer room and data
center equipment.
Set Power Strategies to Reflect Your Protection Priorities
Pick your power strategy, from precise power for sensitive systems to the highest possible electrical
efficiency, while ensuring 100% uptime. Choose from five selectable strategies: Max Efficiency, Max
Quality, Frequency Regulation, Frequency Conversion and Auto Adaptive, which automatically offers
increased efficiency when power conditions are good and enhanced power quality when power conditions
are poor.
Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Four C13 outlets are split evenly into two switchable load banks, allowing you to reboot select
components or shed loads remotely. In addition to those four outlets, this UPS provides two more C13
outlets in their own unswitched bank for powering critical components.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery (RBC36S) provides 12.6 minutes of support at half
load (675W) and 4.5 minutes at full load (1350W), keeping protected equipment operational through
power failures. For mission-critical applications demanding scalable extended runtime, the UPS supports
“smart” external battery packs, such as Tripp Lite’s BP36V15-2U (sold separately). Both the internal and
external batteries are automatically sensed and configured during replacement to offer accurate runtimeremaining and battery age notifications during outages. The intelligent battery management system with
temperature-compensated charging extends battery life.
Automatic Bypass Maintains Utility Output During Fault Conditions
Applications
●
Deliver perfectly regulated sine
wave output to mission-critical
equipment
●
Protect connected components
from dangerous surges, spikes
and line noise
●
Keep equipment operational
through power failures
●
Allow time to save data and
safely shut down components in
case of a prolonged blackout
Package Includes
●
SUINT1500LCD2U SmartOnline
Double-Conversion UPS
●
USB cable
●
RS-232 cable
●
EPO cable
●
(2) C13-to-C14 power cables
●
4-post rack-mounting hardware
●
Owner’s manual
1 / 7
Page 2
Auto-bypass mode keeps connected equipment powered and operational, even during UPS fault
conditions.
ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save
money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced
BTU output when utility power is already high quality.
Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power
outages, even when batteries are expired and require replacement.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD screen reports UPS operating mode, detailed UPS status and site-power information,
as well as a variety of advanced UPS setup and configuration options. LEDs indicate AC input/output,
battery and fault status.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite’s free downloadable
PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged
power failure. An EPO port connects the UPS to a contact closure switch to enable emergency inverter
shutdown. Cables are included.
Optional WEBCARDLX Network Interface Offers 24/7 Access
The SUINT1500LCD2U includes a slot for an optional Java-free HTML5-based WEBCARDLX (sold
separately) that enables full remote access for site power and UPS status monitoring, configuration,
control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps
auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent
accidental overloads, power loss and downtime. WEBCARDLX 15.5.2 or later is required to use the Auto
Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network
devices.
Versatile Installation Options
Hardware is included for mounting the UPS system in 2U of space in an EIA-standard 19-inch 4-post rack.
Use the optional 2POSTRMKITWM (sold separately) for 2-post rack mounting or the optional 2-9USTAND
(sold separately) for mounting in an upright tower position. The C14 power inlet accepts a variety of usersupplied input cords.
Specifications
OVERVIEW
UPC Code 037332248077
UPS Type On-Line
INPUT
Rated input current (Maximum Load) 7.49A
Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
UPS Input Connection Type C14 inlet
Input Phase Single-Phase
2 / 7
Page 3
OUTPUT
Output Volt Amp Capacity (VA) 1500
Output kVA Capacity (kVA) 1.5
Output Watt Capacity (Watts) 1350
Output kW Capacity (kW) 1.35
Output Capacity Details DE-RATING INFORMATION: Max output in Frequency Conversion mode is reduced to 945 watts for
208/220/230/240V output voltages; Max output is 1080W (756W in Frequency Conversion mode) at 200V output
voltage
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for
30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are
WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits).
Power Factor 0.9
Crest Factor 3:1
Nominal Voltage Details Nominal output voltage is user configured on first power-on
Frequency Compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Frequency Compatibility Details Output frequency matches input nominal on startup; Output capacity de-rates by 30% during frequency conversion
operation
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation
(Economy Line Mode)
Output Voltage Regulation (Battery
Mode)
+/- 2%
+/- 10%
+/- 2%
Included Output Power Cables Includes 2 C13 to C14 power cables
Load Management Receptacles Two switchable 2-outlet load banks
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery
Mode)
Nominal Output Voltage(s)
Supported
Pure Sine wave
200V; 208V; 220V; 230V; 240V
Output Receptacles (6) C13
Individually Controllable Load Banks Yes
BATTERY
Full Load Runtime (min.) 4.5 min. (1350w)
Half Load Runtime (min.) 12.6 min. (675w)
Expandable Battery Runtime Supports extended runtime with optional external battery packs
External Battery Pack Compatibility <a class="productLink" href="// External-36V-2U-Rack-Tower-Battery-Pack-for-select-Tripp-
Lite-UPS-Systems~BP36V15-2U">BP36V15-2U</a> (limit 1); <a class="productLink"
href="// external-36v-2u-rack-tower-battery-pack-select-tripp-lite-ups-systems~BP36V27-
2US">BP36V27-2US</a> (multi-pack compatible); <a class="productLink"
href="// External-36V-3U-Rack-Tower-Battery-Pack-select-Tripp-Lite-UPS-Systems~BP36V42-
3U">BP36V42-3U</a> (multi-pack compatible)
3 / 7
Page 4
DC System Voltage (VDC) 36
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Less than 5.8 hours from 10% to 90% (typical, full load discharge)
<a class="productLink" href="// UPS-Replacement-Battery-Cartridge-for-Tripp-Lite-
SUINT1500LCD2U-UPS-System-36V~RBC36S">RBC36S</a>
Battery Access Front panel battery access door
Battery Replacement Description Hot-swappable, replaceable batteries
Expandable Runtime Yes
VOLTAGE REGULATION
Voltage Regulation Description Online, double-conversion power conditioning
Overvoltage Correction 2% output voltage regulation during overvoltages to 288V
Undervoltage Correction 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display Interactive front-panel LCD interface reports UPS operating mode, detailed UPS status and site-power information;
LCD interface also enables a variety of advanced UPS setup and configuration options
Switches 5 front panel switches: On/Off, Up, Down and Escape
Alarm Cancel Operation Power-fail alarm can be silenced by following on-screen prompts
Audible Alarm Audible alarm indicates power failure, low battery, overload and fault
LED Indicators 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red)
SURGE / NOISE SUPPRESSION
UPS Dataline Suppression Details Single line dialup / network dataline protection included
EMI / RFI AC Noise Suppression Yes
AC Suppression Joule Rating 936
AC Suppression Response Time Instantaneous
PHYSICAL
Cooling Method Fan
Included Mounting Accessory
Description
Installation Form Factors Supported
with Included Accessories
Installation Form Factors Supported
with Optional Accessories
Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to
914mm)
4 post 19 inch rackmount
2 post rackmount ( <a class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-
Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> ); 2-4 post front rail
rackmount ( <a class="productLink" href="// Heavy-Duty-2-post-Front-Mounting-Ear-
Kit~UPSHDEARKIT">UPSHDEARKIT</a> ); 4 post rackmount short-depth ( <a class="productLink"
href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-Wall-Mount-
Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> ); Tower ( <a class="productLink"
href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-9USTAND">2-
9USTAND</a> ); Wallmount ( <a class="productLink" href="// 2-Post-Rack-Mount-
Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> )
4 / 7
Page 5
Minimum Required Rack Depth with
External Battery Pack (cm)
42
Minimum Required Rack Depth with
External Battery Pack (in.)
Minimum Required Rack Depth
without External Battery Pack (cm)
Minimum Required Rack Depth
without External Battery Pack (in.)
16.5
40
15.75
Optional Mounting Accessory Notes Optional <a class="productLink" href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-
Systems~2-9USTAND">2-9USTAND</a> enables upright tower UPS placement; <a
class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-
Systems~2POSTRMKITWM">2POSTRMKITWM</a> enables wall-mount and 2-post rackmount installation;
<a class="productLink" href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-
Wall-Mount-Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> enables installation in 4-post short-depth
racks from 14.5 to 23.5 inches (368 to 597mm); <a class="productLink" href="// Heavy-
Duty-2-post-Front-Mounting-Ear-Kit~UPSHDEARKIT">UPSHDEARKIT</a> enables installation in 2 or 4-post
racks using front vertical rails only, without rear support
Primary Form Factor Rackmount
Primary UPS Depth (mm) 496
Primary UPS Height (mm) 88
Primary UPS Width (mm) 438
Rack Height 2U
Shipping Dimensions (hwd / cm) 24.00 x 56.49 x 70.00
Shipping Dimensions (hwd / in.) 9.45 x 22.24 x 27.56
Shipping Weight (kg) 26.31
Shipping Weight (lbs.) 58.00
UPS Housing Material Metal
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Dimensions
(hwd, in.)
8.79 x 43.79 x 49.61
3.46 x 17.24 x 19.53
UPS Power Module Weight (kg) 20.36
UPS Power Module Weight (lbs.) 44.88
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Relative Humidity 5 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 330
AC Economy Mode BTU / Hr. (Full
Load)
142
Battery Mode BTU / Hr. (Full Load) 689
AC Mode Efficiency Rating (100%
Load)
>93%
5 / 7
Page 6
AC Economy Mode Efficiency Rating
(100% Load)
Audible Noise <45dB at front side 1M
Operating Elevation (m) Up to 3000m
COMMUNICATIONS
>97%
Network Management Cards <a class="productLink" href="// SNMP-Web-Management-Accessory-Card-SmartPro-
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Interface Contact closure; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
LINE / BATTERY TRANSFER
Transfer Time No transfer time (0 ms.) in online, double-conversion mode; 2-12 ms. transfer time during economy mode operation
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Grounding Lug Back panel grounding lug included
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features Automatic inverter bypass; Hot swappable batteries; Auto Probe Monitoring and Reboot (requires WEBCARDLX);
SmartOnline-UPS-Systems~SNMPWEBCARD">SNMPWEBCARD</a> ; <a class="productLink"
href="// Web-Management-Accessory-Card~WEBCARDLX">WEBCARDLX</a>
http:// poweralert
160V (100% load), 140V (66% load), 120V (33% load)
288V
Cold-start operation supported
Zero transfer time; On-Line/Double-Conversion
Green Energy-Saving Features High efficiency economy mode operation; Individually controllable load banks
STANDARDS & COMPLIANCE
UPS Certifications CE; ENERGY STAR Qualified; Tested to CSA (Canada); Tested to EAC (Belarus, Kazakhstan, Russia); Tested to
Certification Details IEC62040-1:2008+A1; UL1778 5th; Meets EMI approvals IEC62040-2:2006; FCC Part 15
WARRANTY
Product Warranty Period
(Worldwide)
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
SASO (Saudi Arabia); Tested to UL1778 (USA)
2-year limited warranty
$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime
Insurance</a>
© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
6 / 7
Page 7
https:// products/product-certification-agencies
7 / 7
Loading...
