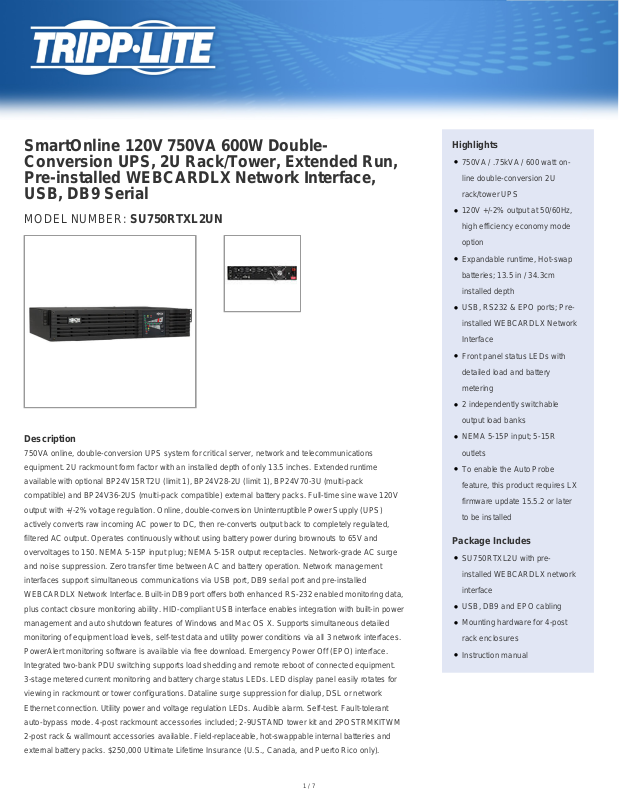

Tripp-Lite SU750RTXL2UN Data Sheet

SmartOnline 120V 750VA 600W Double­Conversion UPS, 2U Rack/Tower, Extended Run,
Pre-installed WEBCARDLX Network Interface,
USB, DB9 Serial

MODEL NUMBER: SU750RTXL2UN

Description

750VA online, double-conversion UPS system for critical server, network and telecommunications
equipment. 2U rackmount form factor with an installed depth of only 13.5 inches. Extended runtime
available with optional BP24V15RT2U (limit 1), BP24V28-2U (limit 1), BP24V70-3U (multi-pack
compatible) and BP24V36-2US (multi-pack compatible) external battery packs. Full-time sine wave 120V
output with +/-2% voltage regulation. Online, double-conversion Uninterruptible Power Supply (UPS)
actively converts raw incoming AC power to DC, then re-converts output back to completely regulated,
filtered AC output. Operates continuously without using battery power during brownouts to 65V and
overvoltages to 150. NEMA 5-15P input plug; NEMA 5-15R output receptacles. Network-grade AC surge
and noise suppression. Zero transfer time between AC and battery operation. Network management
interfaces support simultaneous communications via USB port, DB9 serial port and pre-installed
WEBCARDLX Network Interface. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data,
plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power
management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed
monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces.
PowerAlert monitoring software is available via free download. Emergency Power Off (EPO) interface.
Integrated two-bank PDU switching supports load shedding and remote reboot of connected equipment.
3-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for
viewing in rackmount or tower configurations. Dataline surge suppression for dialup, DSL or network
Ethernet connection. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Fault-tolerant
auto-bypass mode. 4-post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITWM
2-post rack & wallmount accessories available. Field-replaceable, hot-swappable internal batteries and
external battery packs. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).

Highlights

●

750VA / .75kVA / 600 watt on­line double-conversion 2U
rack/tower UPS

●

120V +/-2% output at 50/60Hz,
high efficiency economy mode
option

●

Expandable runtime, Hot-swap
batteries; 13.5 in / 34.3cm
installed depth

●

USB, RS232 & EPO ports; Pre­installed WEBCARDLX Network
Interface

●

Front panel status LEDs with
detailed load and battery
metering

●

2 independently switchable
output load banks

●

NEMA 5-15P input; 5-15R
outlets

●

To enable the Auto Probe
feature, this product requires LX
firmware update 15.5.2 or later
to be installed

Package Includes

●

SU750RTXL2U with pre­installed WEBCARDLX network
interface

●

USB, DB9 and EPO cabling

●

Mounting hardware for 4-post
rack enclosures

●

Instruction manual

1 / 7

Features

●

SmartOnline high-performance UPS system is ideal for critical voice, data, medical and industrial
network applications

●

True online, double-conversion UPS provides perfectly regulated sine wave output within 2% of 120V
under all usage conditions

●

Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer
time

●

Removes harmonic distortion, fast electrical impulses, frequency variations and other hard-to-solve
power problems not addressed by other UPS types

●

Corrects line voltage conditions as low as 65V and as high as 150V back to 120V (+/-2%) values

●

Standard internal battery set offers 11 min. runtime at half load (300W) and 6 min. at full load (600W)

●

Extended runtime available with optional BP24V15RT2U (limit 1), BP24V28-2U (limit 1), BP24V70-3U
(multi-pack compatible) and BP24V36-2US (multi-pack compatible) external battery packs

●

Intelligent battery management system extends battery life

●

Some external battery configurations require the use of Tripp Lite's External Battery Configuration
Software (see manual)

●

Compact rackmount form factor installs using only 2 rack spaces (2U) with a maximum installed depth
of only 13.5 inches

●

Ships with all mounting accessories for 4-post rackmount installation

●

Optional 2POSTRMKITWM enables 2-post rackmount or wallmount installation

●

Optional 2-9USTAND accessory enables small-footprint upright tower placement

●

Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions

●

Network interfaces support simultaneous communications via built-in USB, DB9 serial / contact-closure
and pre-installed WEBCARDLX network interface

●

HID-compliant USB interface enables integration with built-in power management and auto shutdown
features of Windows and Mac OS X

●

USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert
software, available via FREE download from poweralert

●

Built-in Emergency Power Off (EPO) interface with cable

●

NEMA 5-15P input plug/NEMA 5-15R output receptacles

●

Integrated 2-bank switched PDU enables remote outlet management for load shedding or remote reboot
of individual devices (each load bank consists of a single outlet)

●

Front panel LEDs offer current monitoring and battery charge level information

●

Single-line tel/DSL or network Ethernet line surge suppression

●

$250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

Specifications

2 / 7

OVERVIEW

UPC Code 037332190758
UPS Type On-Line

INPUT

Rated input current (Maximum Load) 8.6A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P
Input Circuit Breakers 15A
UPS Input Cord Length (ft.) 6
UPS Input Cord Length (m) 1.8
Recommended Electrical Service 15A 120V
Input Phase Single-Phase

OUTPUT

Output Volt Amp Capacity (VA) 750
Output kVA Capacity (kVA) 0.75
Output Watt Capacity (Watts) 600
Output Capacity Details OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150%

load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and
frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE

bypass limits)
Power Factor 0.8
Crest Factor 3:1
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
Output Voltage Regulation (Line

Mode)
Output Voltage Regulation (Battery

Mode)

+/- 2%

+/- 2%

Load Management Receptacles Two switchable single-outlet 5-15R load banks
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery

Mode)
Nominal Output Voltage(s)

Supported

Pure Sine wave

120V

Output Receptacles (6) 5-15R
Individually Controllable Load Banks Yes

3 / 7

BATTERY

Full Load Runtime (min.) 4 min. (600w)
Half Load Runtime (min.) 11 min. (300w)
Expandable Battery Runtime Extended runtime supported via optional external battery packs
External Battery Pack Compatibility  <a class="productLink" href="// External-24V-2U-Rack-Tower-Battery-Pack-for-select-Tripp-

Lite-UPS-Systems~BP24V15RT2U">BP24V15RT2U</a>  (limit 1);  <a class="productLink"

href="// External-24V-2U-Rack-Tower-Battery-Pack-select-Tripp-Lite-UPS-Systems~BP24V28-

2U">BP24V28-2U</a>  (limit 1);  <a class="productLink" href="// External-24V-3U-

Rack-Tower-Battery-Pack-select-Tripp-Lite-UPS-Systems~BP24V70-3U">BP24V70-3U</a>  (multi-pack

compatible);  <a class="productLink" href="// external-24v-2u-rack-mount-battery-pack-for-

tripp-lite-ups-systems-SMART750-SU750-SU1000-SUINT1000-and-more~BP24V36-2US">BP24V36-

2US</a>  (multi-pack compatible)
DC System Voltage (VDC) 24
Battery Recharge Rate (Included

Batteries)
Internal UPS Replacement Battery

Cartridge

Less than 6 hours from 10% to 80% (typical, full load discharge)

 <a class="productLink" href="// 2U-UPS-Replacement-24VDC-Battery-Cartridge-1-set-2-

select-Tripp-Lite-SmartPro-UPS~RBC92-2U">RBC92-2U</a>
Battery Access Front panel battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime Yes

VOLTAGE REGULATION

Voltage Regulation Description Online, double-conversion power conditioning
Overvoltage Correction 2% output voltage regulation during overvoltages to 150
Undervoltage Correction 2% output voltage regulation during undervoltages to 80
Severe Undervoltage Correction 2% output voltage regulation during undervoltages to 65 (under 70% load only)

USER INTERFACE, ALERTS & CONTROLS

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch
Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown

conditions
LED Indicators 14 LEDs indicate line power, online mode, bypass mode, on-battery, overload, battery low, replace battery and fault

status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower

formats

SURGE / NOISE SUPPRESSION

UPS AC Suppression Joule Rating 480
UPS AC Suppression Response

Time

Instantaneous

UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC Noise Suppression Yes

4 / 7

PHYSICAL

Cooling Method Fan
Included Mounting Accessory

Description
Installation Form Factors Supported

with Included Accessories
Installation Form Factors Supported

with Optional Accessories

Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to

914mm)

4 post 19 inch rackmount

2 post rackmount ( <a class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-

Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> ); 2-4 post front rail

rackmount ( <a class="productLink" href="// Heavy-Duty-2-post-Front-Mounting-Ear-

Kit~UPSHDEARKIT">UPSHDEARKIT</a> ); 4 post rackmount short-depth ( <a class="productLink"

href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-Wall-Mount-

Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> ); Tower ( <a class="productLink"

href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-9USTAND">2-

9USTAND</a> ); Wallmount ( <a class="productLink" href="// 2-Post-Rack-Mount-

Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> )
Minimum Required Rack Depth (cm) 41.91
Minimum Required Rack Depth

(inches)

16.5

Optional Mounting Accessory Notes Optional  <a class="productLink" href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-

Systems~2-9USTAND">2-9USTAND</a>  enables upright tower UPS placement;  <a

class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-

Systems~2POSTRMKITWM">2POSTRMKITWM</a>  enables wall-mount and 2-post rackmount installation;

 <a class="productLink" href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-

Wall-Mount-Racks~4POSTRAILKITWM">4POSTRAILKITWM</a>  enables installation in 4-post short-depth

racks from 14.5 to 23.5 inches (368 to 597mm);  <a class="productLink" href="// Heavy-

Duty-2-post-Front-Mounting-Ear-Kit~UPSHDEARKIT">UPSHDEARKIT</a>  enables installation in 2 or 4-post

racks using front vertical rails only, without rear support
Primary Form Factor Rackmount
Primary UPS Depth (mm) 343
Primary UPS Height (mm) 89
Primary UPS Width (mm) 445
Rack Height 2U
Shipping Dimensions (hwd / cm) 23.11 x 59.18 x 49.78
Shipping Dimensions (hwd / in.) 9.10 x 23.30 x 19.60
Shipping Weight (kg) 18.14
Shipping Weight (lbs.) 40.00
UPS Housing Material Steel
UPS Power Module Dimensions

(hwd, cm)
UPS Power Module Dimensions

(hwd, in.)

8.89 x 44.45 x 34.29

3.5 x 17.5 x 13.5

UPS Power Module Weight (kg) 13.15
UPS Power Module Weight (lbs.) 29

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

5 / 7

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 306
Battery Mode BTU / Hr. (Full Load) 333
AC Mode Efficiency Rating (100%

Load)
AC Economy Mode Efficiency Rating

(100% Load)

COMMUNICATIONS

Network Management Cards  <a class="productLink" href="// Web-Management-Accessory-

Network Monitoring Port Description Includes pre-installed WEBCARDLX; DB9 port supports RS232 and contact closure communications; Economy-

PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at

Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Interface Contact closure; DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface;

LINE / BATTERY TRANSFER

Transfer Time No transfer time (0 ms.) in online, double-conversion mode
Low Voltage Transfer to Battery

Power (Setpoint)

87%

97%

Card~WEBCARDLX">WEBCARDLX</a>

mode setting option is available using PowerAlert software and DB9 Serial cable connection OR installed Network

Management Card

http:// poweralert

USB (HID enabled)

80V (100% load), 65V ( <70% load)

High Voltage Transfer to Battery
Power (Setpoint)

SPECIAL FEATURES

Cold Start (Startup in Battery Mode
During a Power Failure)

High Availability UPS Features Automatic inverter bypass; Hot swappable batteries; Auto Probe Monitoring and Reboot (included); Zero transfer

STANDARDS & COMPLIANCE

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI)

WARRANTY

Product Warranty Period
(Worldwide)

Connected Equipment Insurance
(U.S., Canada & Puerto Rico)

150

Cold-start operation supported

time; On-Line/Double-Conversion

2-year limited warranty

$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime

Insurance</a>

© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does

6 / 7

not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies

7 / 7
