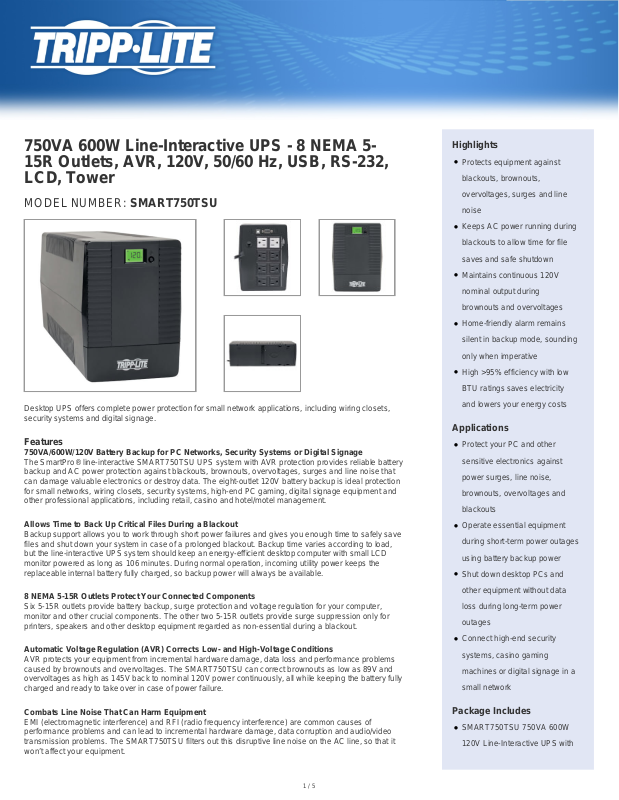

Tripp-Lite SMART750TSU Data Sheet

750VA 600W Line-Interactive UPS - 8 NEMA 5­15R Outlets, AVR, 120V, 50/60 Hz, USB, RS-232,
LCD, Tower

MODEL NUMBER: SMART750TSU

Desktop UPS offers complete power protection for small network applications, including wiring closets,
security systems and digital signage.

Features

750VA/600W/120V Battery Backup for PC Networks, Security Systems or Digital Signage

The SmartPro® line-interactive SMART750TSU UPS system with AVR protection provides reliable battery
backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that
can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection
for small networks, wiring closets, security systems, high-end PC gaming, digital signage equipment and
other professional applications, including retail, casino and hotel/motel management.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures and gives you enough time to safely save
files and shut down your system in case of a prolonged blackout. Backup time varies according to load,
but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD
monitor powered as long as 106 minutes. During normal operation, incoming utility power keeps the
replaceable internal battery fully charged, so backup power will always be available.

8 NEMA 5-15R Outlets Protect Your Connected Components

Six 5-15R outlets provide battery backup, surge protection and voltage regulation for your computer,
monitor and other crucial components. The other two 5-15R outlets provide surge suppression only for
printers, speakers and other desktop equipment regarded as non-essential during a blackout.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems
caused by brownouts and overvoltages. The SMART750TSU can correct brownouts as low as 89V and
overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully
charged and ready to take over in case of power failure.

Highlights

●

Protects equipment against
blackouts, brownouts,
overvoltages, surges and line
noise

●

Keeps AC power running during
blackouts to allow time for file
saves and safe shutdown

●

Maintains continuous 120V
nominal output during
brownouts and overvoltages

●

Home-friendly alarm remains
silent in backup mode, sounding
only when imperative

●

High >95% efficiency with low
BTU ratings saves electricity
and lowers your energy costs

Applications

●

Protect your PC and other
sensitive electronics against
power surges, line noise,
brownouts, overvoltages and
blackouts

●

Operate essential equipment
during short-term power outages
using battery backup power

●

Shut down desktop PCs and
other equipment without data
loss during long-term power
outages

●

Connect high-end security
systems, casino gaming
machines or digital signage in a
small network

Combats Line Noise That Can Harm Equipment

EMI (electromagnetic interference) and RFI (radio frequency interference) are common causes of
performance problems and can lead to incremental hardware damage, data corruption and audio/video
transmission problems. The SMART750TSU filters out this disruptive line noise on the AC line, so that it
won’t affect your equipment.

1 / 5

Package Includes

●

SMART750TSU 750VA 600W
120V Line-Interactive UPS with

Designed for High Efficiency to Help You Save Money and Protect the Environment

A >95% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

Home-Friendly Silent Alarm and LCD Touchscreen Keep You Informed 24/7

The UPS remains silent in both line and battery backup modes. The alarm sounds only to report low
battery, battery replace, overload and fault condition. The LCD touchscreen offers five screens of UPS
and site power information when the UPS is operating in either on-line or battery power mode. It displays
vital voltage, load and battery data, as well as critical fault status.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite’s free downloadable
PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged
power failure. Cables are included.

Compact Housing Compatible with Easy Desktop Installation

The space-saving ABS tower fits on a desktop, shelf or any other flat surface convenient to your
workstation or home theater. The five-foot power cord with NEMA 5-15P plug connects to any compatible
AC outlet.

Specifications

OVERVIEW

UPC Code 037332214225
UPS Type Line-Interactive

8 Outlets

●

USB cable

●

DB9 cable

●

Owner’s manual

INPUT

Rated input current (Maximum Load) 10A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P
UPS Input Connection Description 10A
UPS Input Cord Length (ft.) 5
UPS Input Cord Length (m) 1.5
Recommended Electrical Service 15A 120V
Input Phase Single-Phase

OUTPUT

Output Volt Amp Capacity (VA) 750
Output Watt Capacity (Watts) 600
Power Factor 0.8
Nominal Voltage Details 120v nominal output in battery mode
Frequency Compatibility 50 / 60 Hz
Output Voltage Regulation (Line

Mode)

120V (+6%/-12%)

2 / 5
