Owner’s Manual

Metered Rack PDUs

Low-Voltage Models: PDUMH15, PDUMH15S, PDUMH20

High-Voltage Models: PDUMH20HV, PDUMH30HV, PDUMH32HV

Español 9 • Français 17 • Русский 25 • Deutsch 33

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector— a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2019 Tripp Lite. All rights reserved.

1

21-03-396-933059.indb 1

4/1/2021 11:48:35 AM

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the installation, operation and storage of this product. Failure to heed these instructions may affect your warranty.

CAUTION Only those who are properly trained or qualified to use this device should do so. Anyone who is not trained or qualified should not use this device unless it is under the supervision of someone who is properly trained or qualified to do so.

Children must be supervised to ensure that they do not use the device as a toy.

Never use the device if the cord and plug are damaged; if it is not working properly, or if it has been dropped or damaged, take it to an authorized service center for inspection and repair.

If the power cord is damaged, it must be replaced by the manufacturer, its authorized service agent, or by qualified personnel in order to avoid a danger.

Important Warnings

The PDU provides the convenience of multiple outlets, but DOES NOT provide surge or line noise protection for connected equipment.

The PDU is designed for indoor use only, in a controlled environment, away from excess moisture, temperature extremes, conductive contaminants, dust or direct sunlight.

Keep indoor ambient temperature between 32°F and 122°F (0°C and 50°C).

The PDU must be installed by a qualified technician only.

Do not attempt to mount the PDU to an insecure or unstable surface.

Install in accordance with National Electrical Code standards. Be sure to use the proper overcurrent protection for the installation, in accordance with the plug/equipment rating.

Connect the PDU to an outlet that is in accordance with your local building codes and that is adequately protected against excess currents, short circuits and earth faults.

The electrical outlets supplying power to the equipment should be installed near the equipment and easily accessible.

Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that eliminate the connection to ground.

Be sure to provide a local disconnect device on any models that are permanently installed without a plug that is easily accessible.

Never attempt to install electrical equipment during a thunderstorm.

Individual equipment connected to the PDU should not draw more current than the individual PDU’s outlet’s rating.

The total load connected to the PDU must not exceed the maximum load rating for the PDU.

Do not attempt to modify the PDU, input plugs or power cables.

Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable parts inside.

Do not attempt to use the PDU if any part of it becomes damaged.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

2

21-03-396-933059.indb 2

4/1/2021 11:48:35 AM

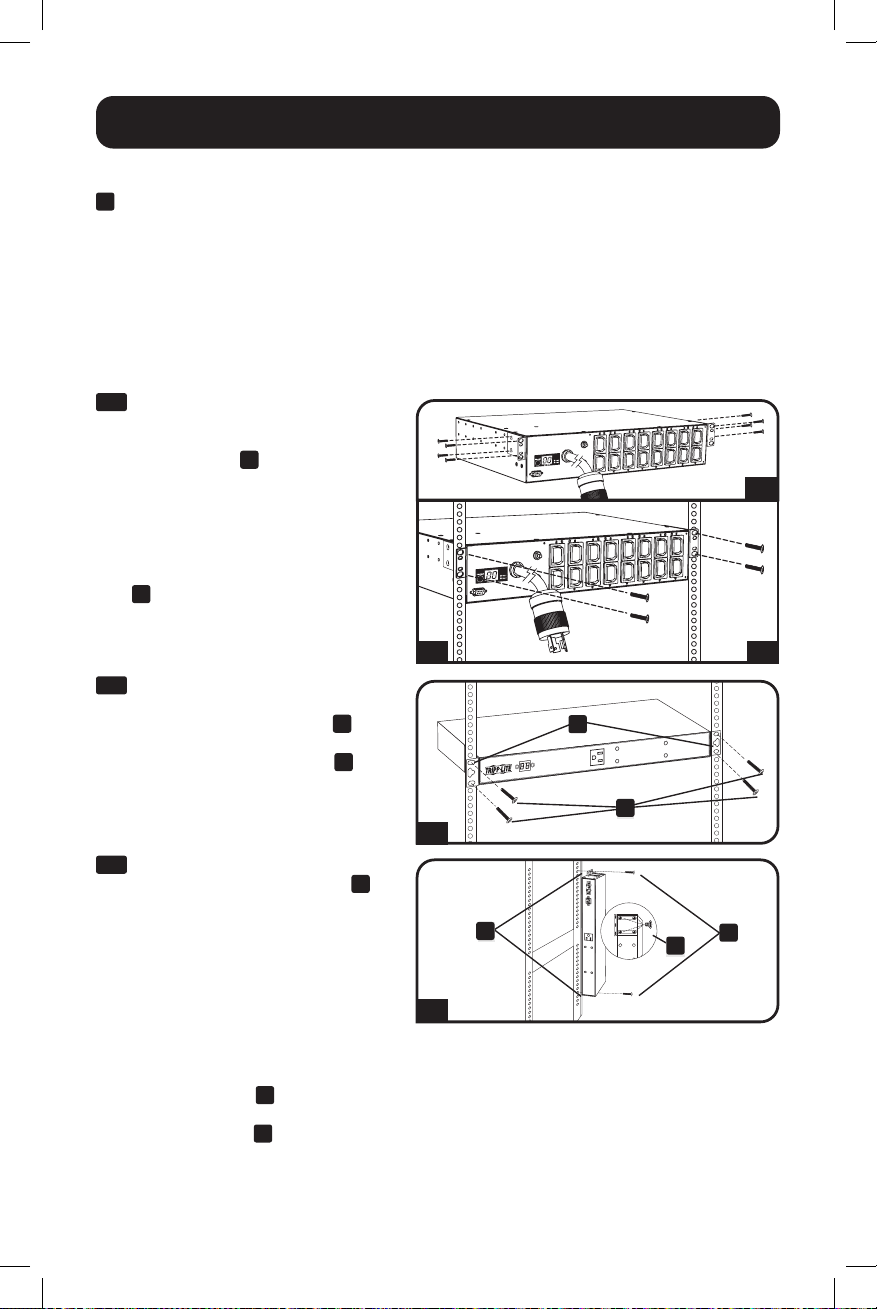

Installation

Note: The illustrations may differ somewhat from your PDU model.

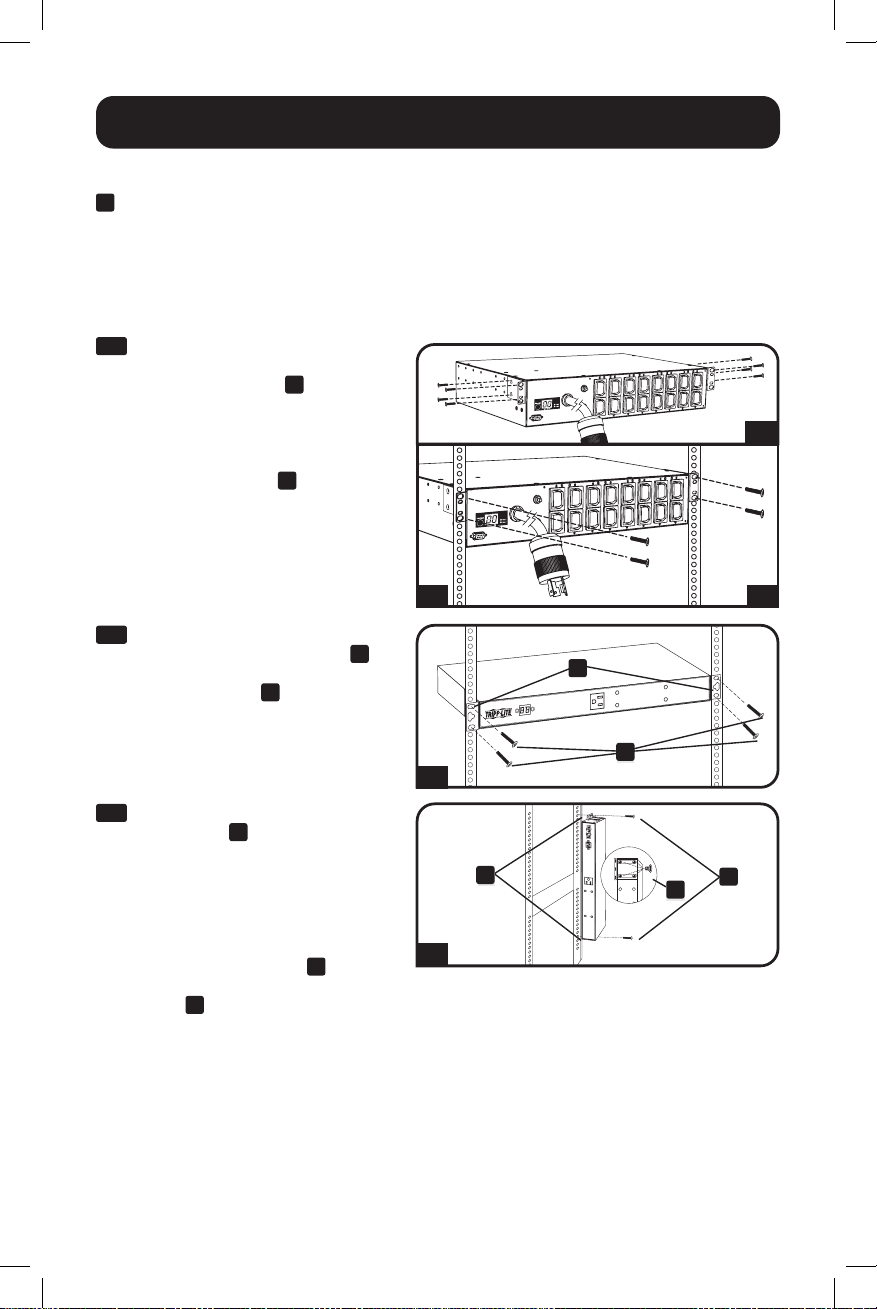

1Determine Installation Configuration. The PDUs covered by this owner’s manual support these installation configurations: 2U, 1U and 0U rackmount; wall-mount and under-counter. See below for installation configurations pertaining to your specific model. Choose a configuration and follow the installation instructions in the appropriate section of Step 1 before proceeding to Step 2.

Note: Regardless of installation configuration, the user must determine the fitness of hardware and procedures before mounting. The PDU and included hardware are designed for common rack and rack enclosure types and may not be appropriate for all applications. Exact mounting configurations may vary.

1-1

2U Rack Installation. Attach the





included brackets to the side of the





PDU with the included screws A . After





installing the brackets, position the





PDU in the rack and install four user-

A



supplied screws through the unit’s







brackets and into the rack rails B .





1-1

B

1-2

1U Rack Installation. Attach the PDU







to the rack by inserting four user-



B



supplied screws A

through the PDU





mounting brackets

B and into the







mounting holes of the rack rail as







shown.























A











1-2



1-3

0U Rack Installation. Part 1: Remove







the screws C attaching the mounting







brackets to the PDU, change the







orientation of the brackets as shown

B

A



and reattach the brackets. Use only



the screws supplied by the







C













manufacturer or their exact equivalent







(#6-32, 1/4” flat head). Part 2: Attach

1-3





the PDU vertically by inserting two or





more user-supplied screws

A

through







the PDU mounting brackets

B

and





into mounting points in the rack or rack enclosure.

3

21-03-396-933059.indb 3

4/1/2021 11:48:36 AM

Installation

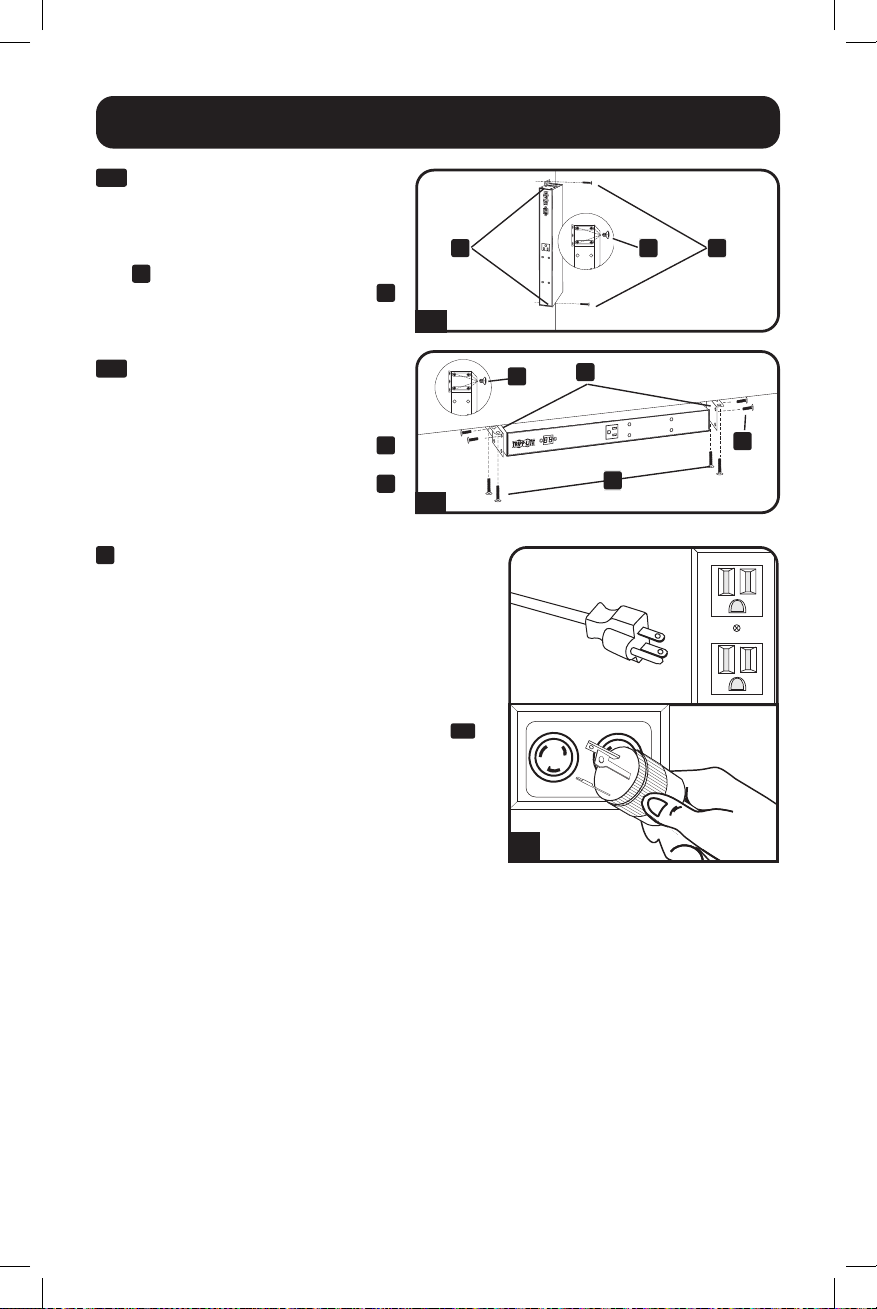

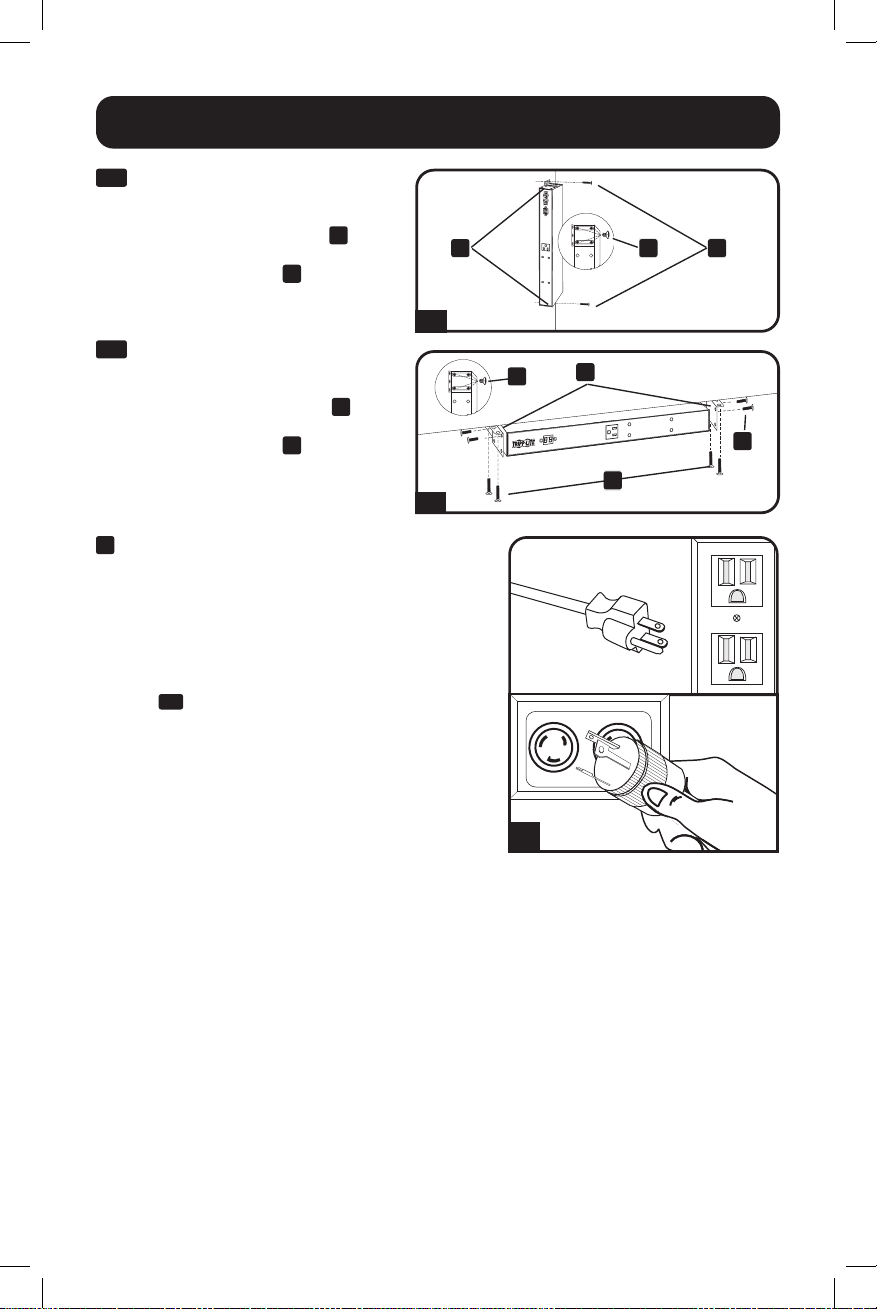

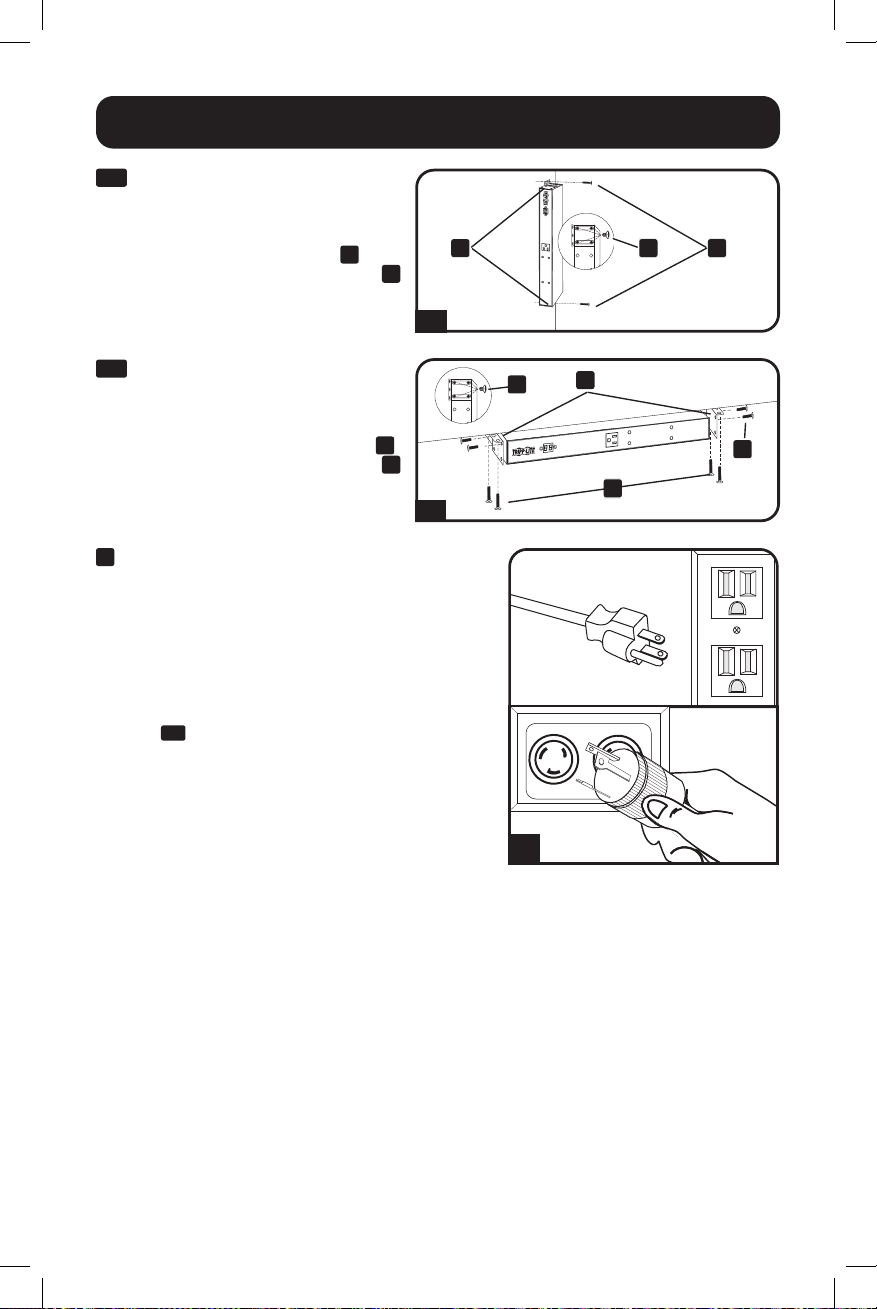

1-4 Wall Installation. After repeating Part

1 above, attach the PDU to a stable mounting surface by inserting two or more user-supplied screws A through the PDU mounting brackets B and into secure mounting points on the mounting surface.

B

C

A

1-4

1-5

Under-Counter Installation. After



B



repeating Part 1 above, attach the

C



PDU to a stable mounting surface by







inserting four user-supplied screws A







through the PDU mounting brackets



C



B and into secure mounting points on











the mounting surface.



A









1-5





2 Attach the input plug of the PDU to a grounded





outlet. Insert the plug directly into a grounded







outlet that does not share a circuit with a heavy





electrical load (such as an air conditioner or







refrigerator).







Note: Select models include an input plug adapter that





converts plug types for various applications. See 2-1

for





details.









2



4

21-03-396-933059.indb 4

4/1/2021 11:48:36 AM

Installation

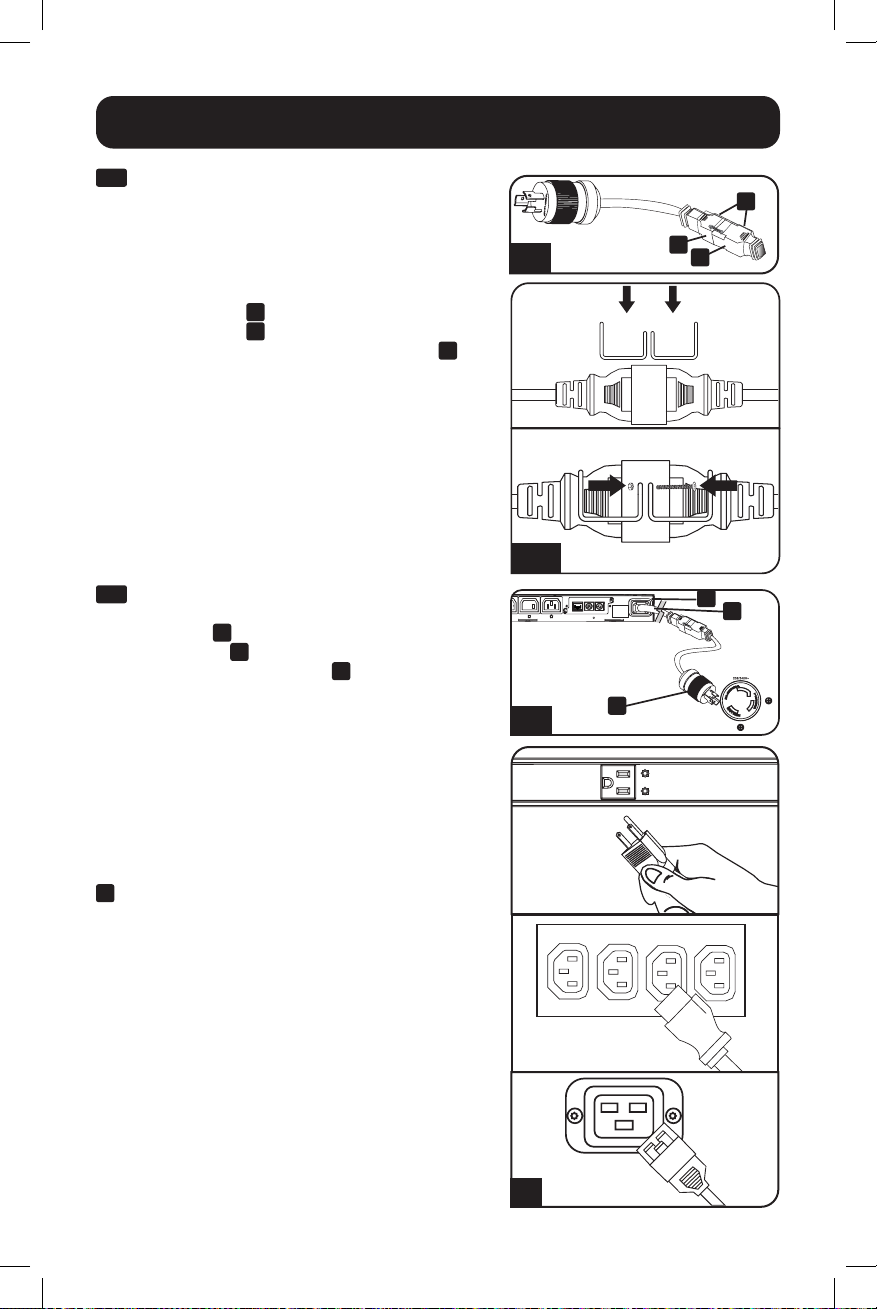

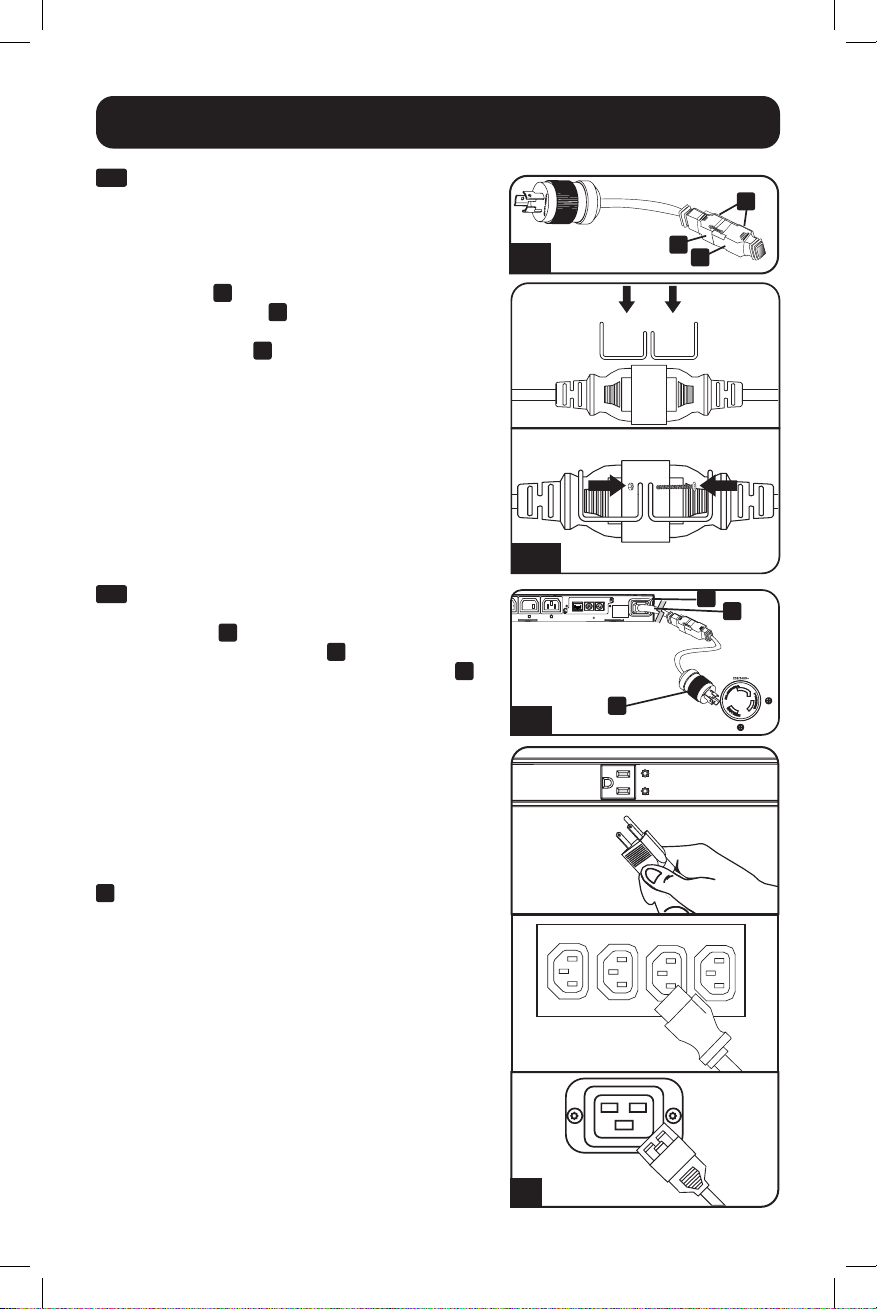

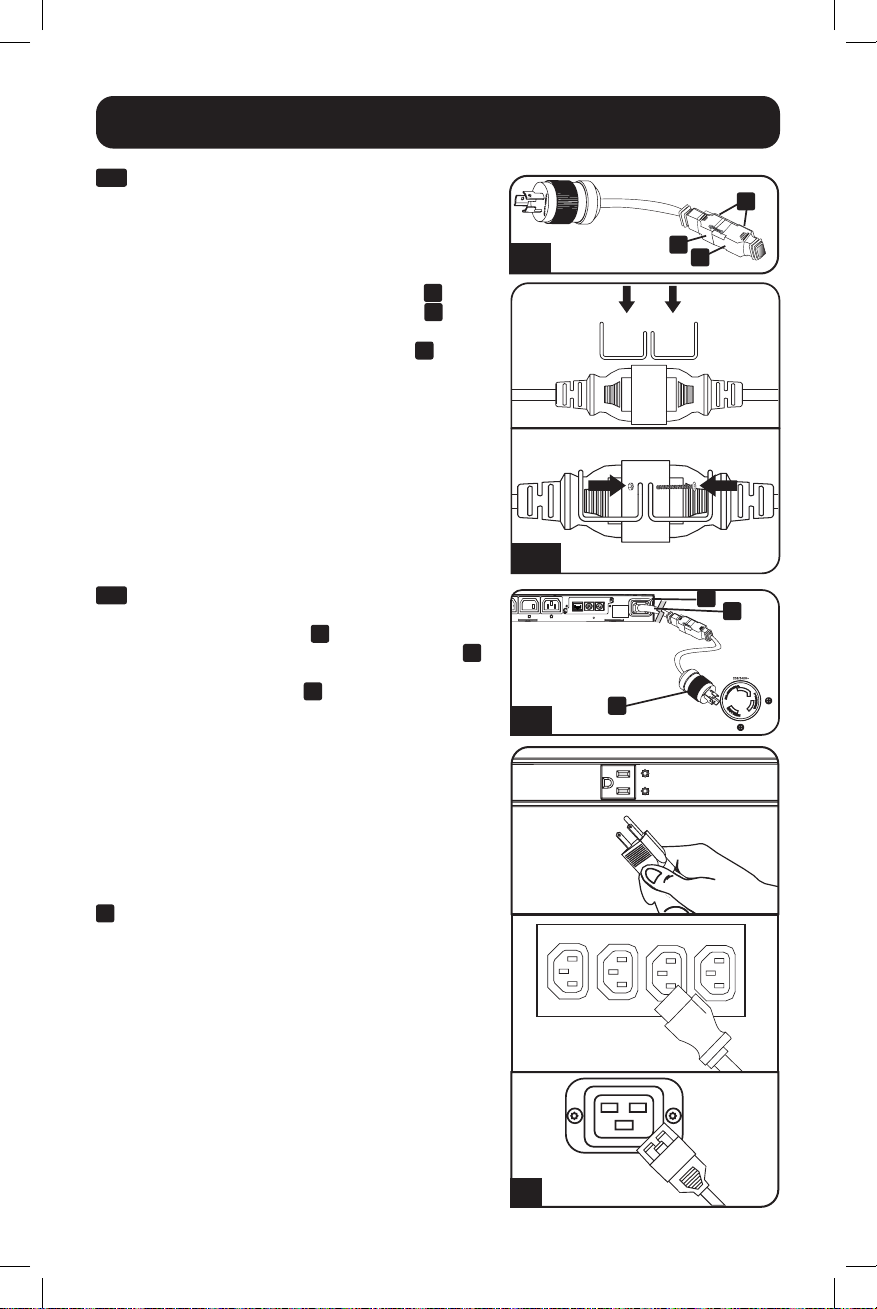

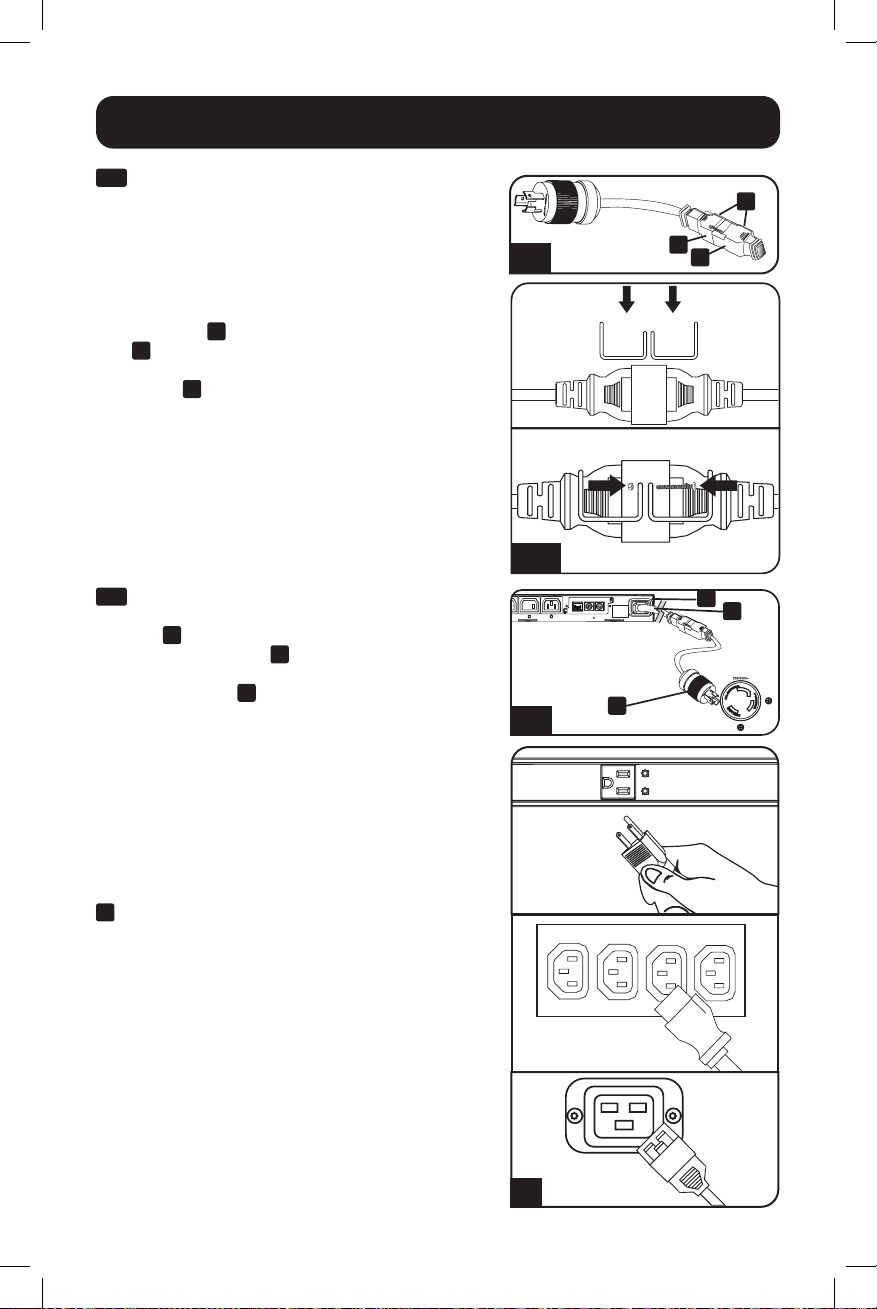

2-1 NEMA Adapter Connection (Optional - PDUMH20HV Only): The PDUMH20HV includes a plug adapter that adds a NEMA L6-20P plug to the input power cord. Use this adapter only if you will be connecting the PDUMH20HV to a NEMA L6-20R outlet. Insert the IEC 60320 C19 connector A of the adapter into the IEC 60320 C20 connector B of the input power cord. Secure the connection with the retention bracket C by using the included bolts to fasten the two halves of the bracket around the connection as shown.

Caution: To avoid the risk of electric shock, ensure that the Neutral (L2) conductor has been identified before connecting the PDU.

2-2 Input Power Cord Connection (PDUMH20HV Only): Insert the IEC 60320 C19 connector A of the input power cord into the IEC 60320 C20 inlet B of the PDU. Connect the other end of the input power cord C to a compatible source of AC power, such as a UPS system, PDU or utility outlet. The PDU should be provided with over-current protection. PDUMH20HV should be provided with a maximum 20A branch-rated over-current protection device.

Note: The AC power source should not share a circuit with a heavy electrical load (such as an air conditioner or refrigerator).

3Attach equipment to the PDU. Do not exceed the load rating of the PDU. The total electrical current used by the PDU will be displayed on the digital meter in amperes.

5



C

2-1

A B

2-1C

B

88 A

C

2-2 PDUMH20HV

3

21-03-396-933059.indb 5

4/1/2021 11:48:37 AM

Tripp Lite PDUMH15, PDUMH15S, PDUMH20, PDUMH20HV, PDUMH30HV User's Guide

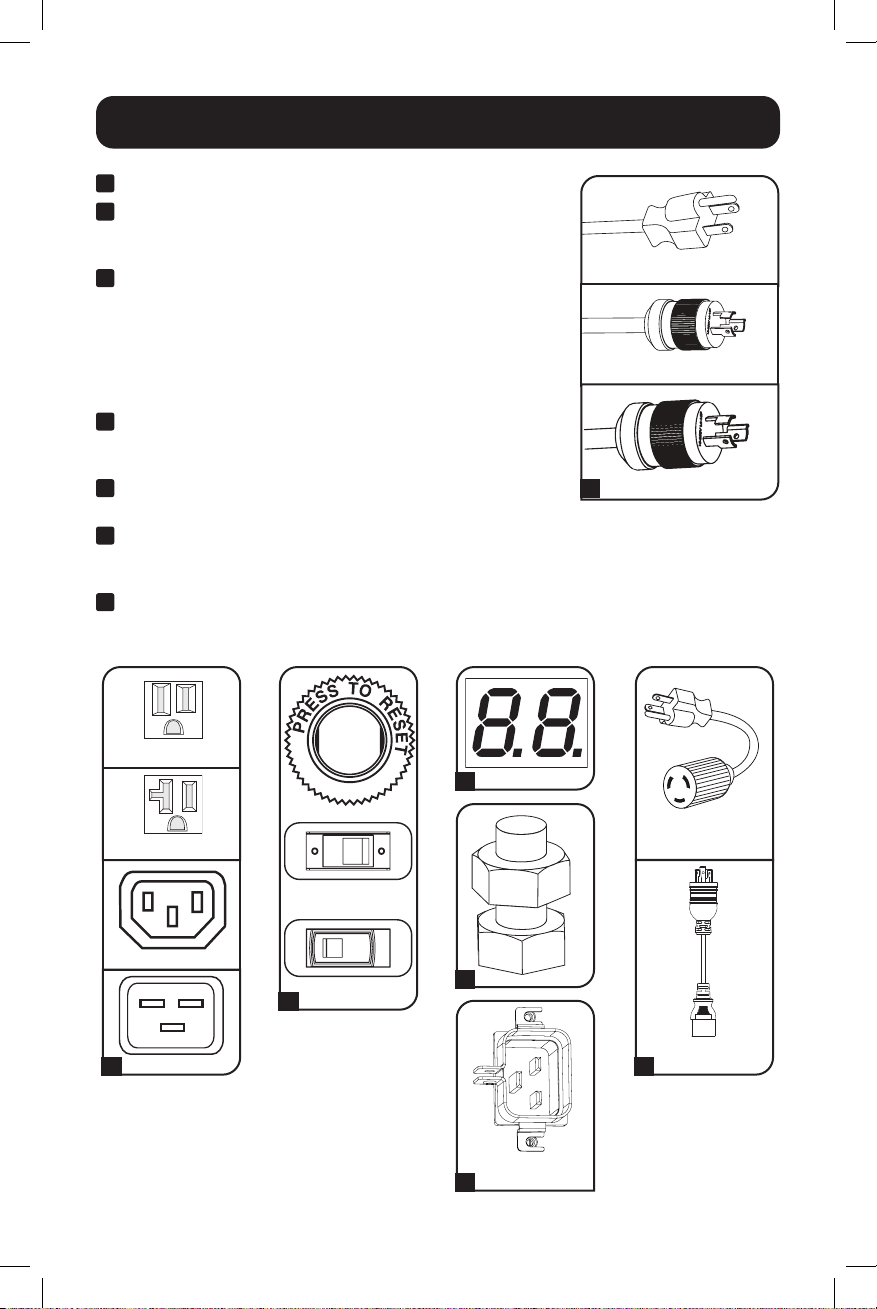

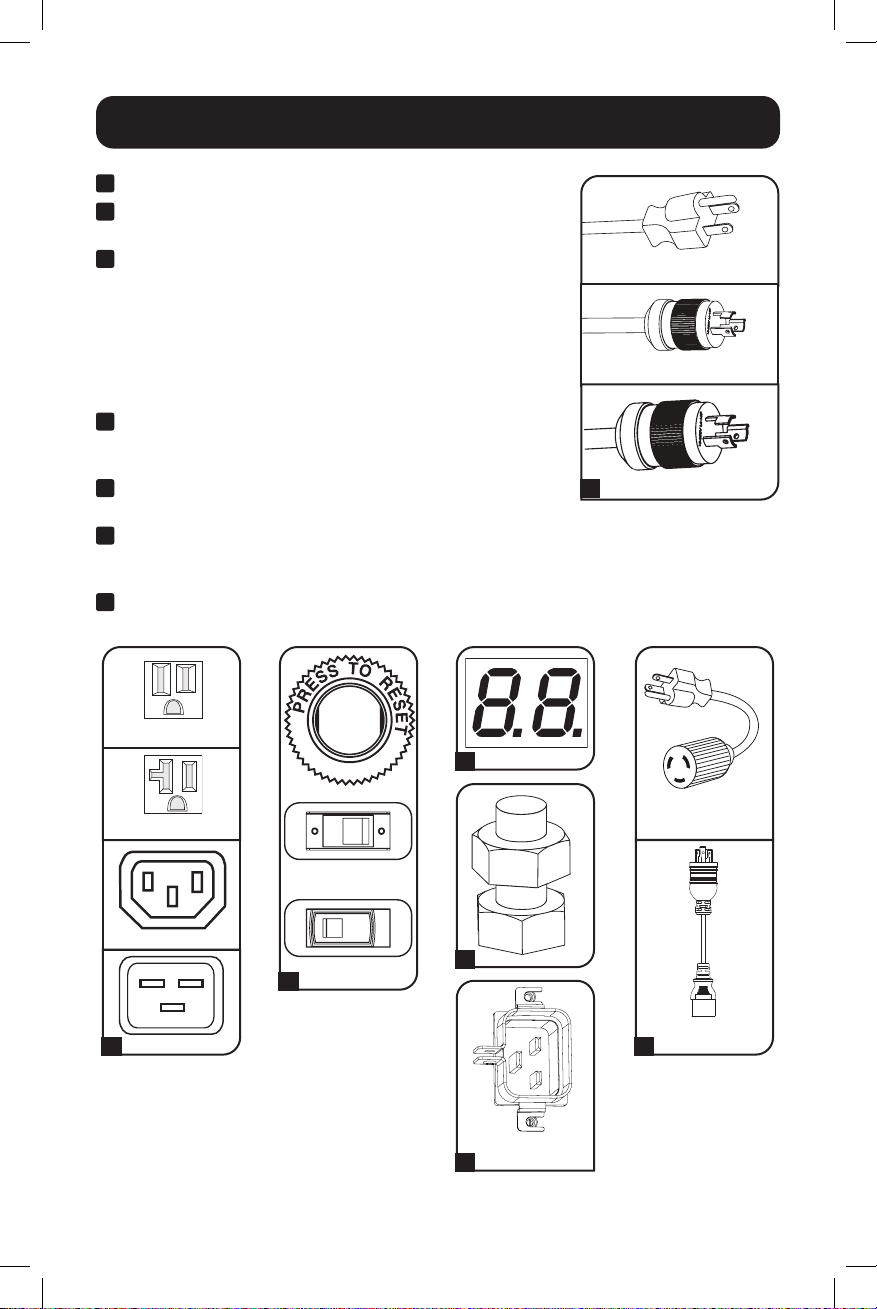

Features

1 Input Plug (Varies by Model)

2 Outlets (Vary by Model): During normal operation, the outlets distribute AC power to connected equipment.

3

Circuit Breaker: If the current drawn by the equipment

NEMA 5-15P



connected to the PDU exceeds the Maximum Load Rating,







the circuit breaker will trip to prevent possible damage.





When a circuit breaker trips, its plunger will pop up.





Disconnect excess equipment and allow the breaker to cool





at least one minute before depressing the plunger to reset

NEMA L5-20P



the breaker.

4

Ammeter: The total electrical current used by the PDU will





be displayed on the digital meter in amperes.



5

Grounding Lug: Use this screw to connect the PDU to





ground.



6 Power Inlet (Select Models): The IEC-320-C20 power

1 NEMA L6-20P/L6-30P



inlet connects to the included power cord or a compatible



user-supplied power cord. The inlet includes a bracket to



secure the cord connection.



7Input Plug Adapter (Select Models): Converts plug types for various applications.

NEMA 5-15R

NEMA 5-15/20R

IEC-320-C13

2 IEC-320-C19

4

NEMA 5-20P

NEMA L5-20R

Magnetic, 2-Pole Branch-Rated

Breaker (PDUMH30HV)

Thermal 2-Pole Breaker

5

(PDUMH32HV)

3

NEMA L6-20P 7 IEC-320-C19



IEC-320-



C20 INLET

6

6

21-03-396-933059.indb 6

4/1/2021 11:48:38 AM

Features

8

9

10

11

12

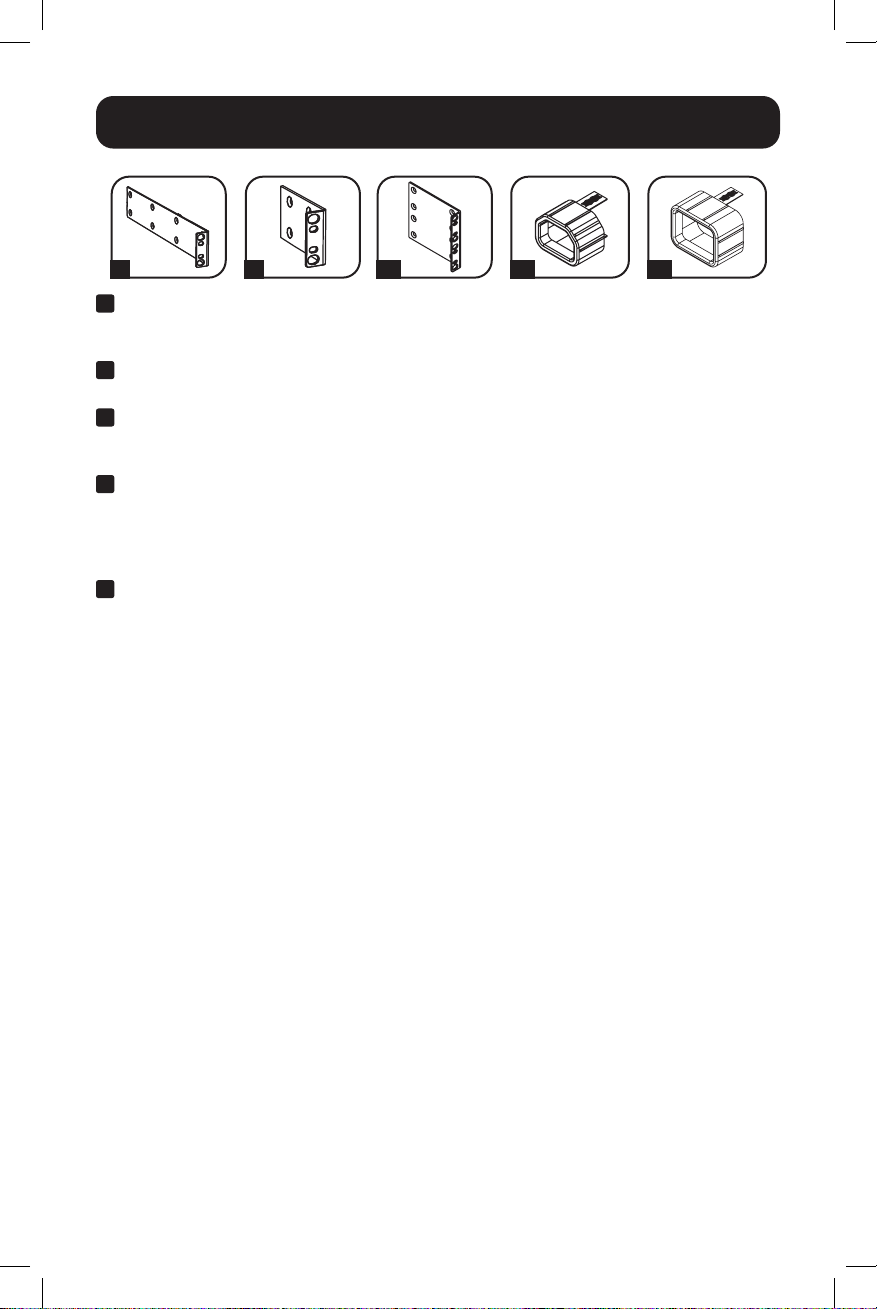

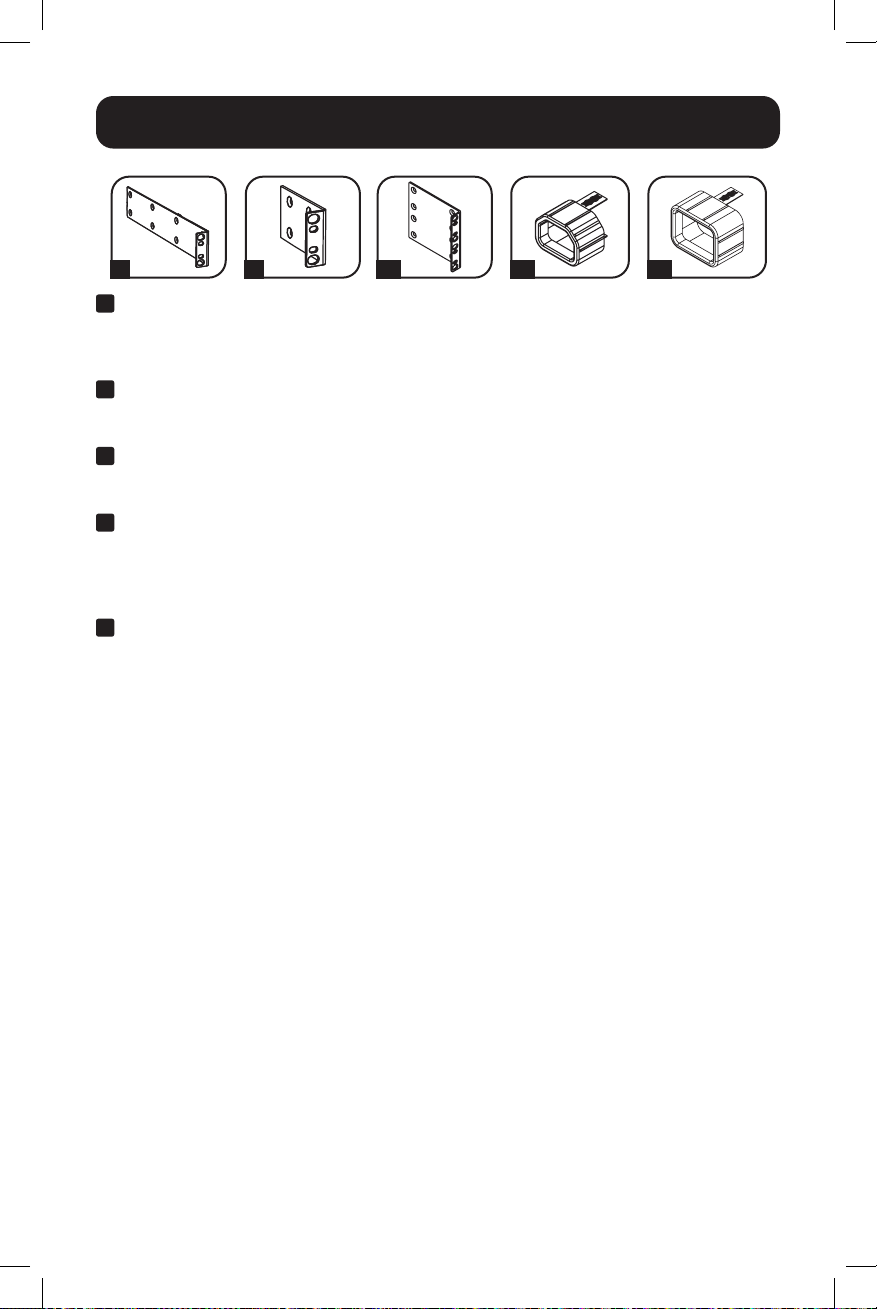

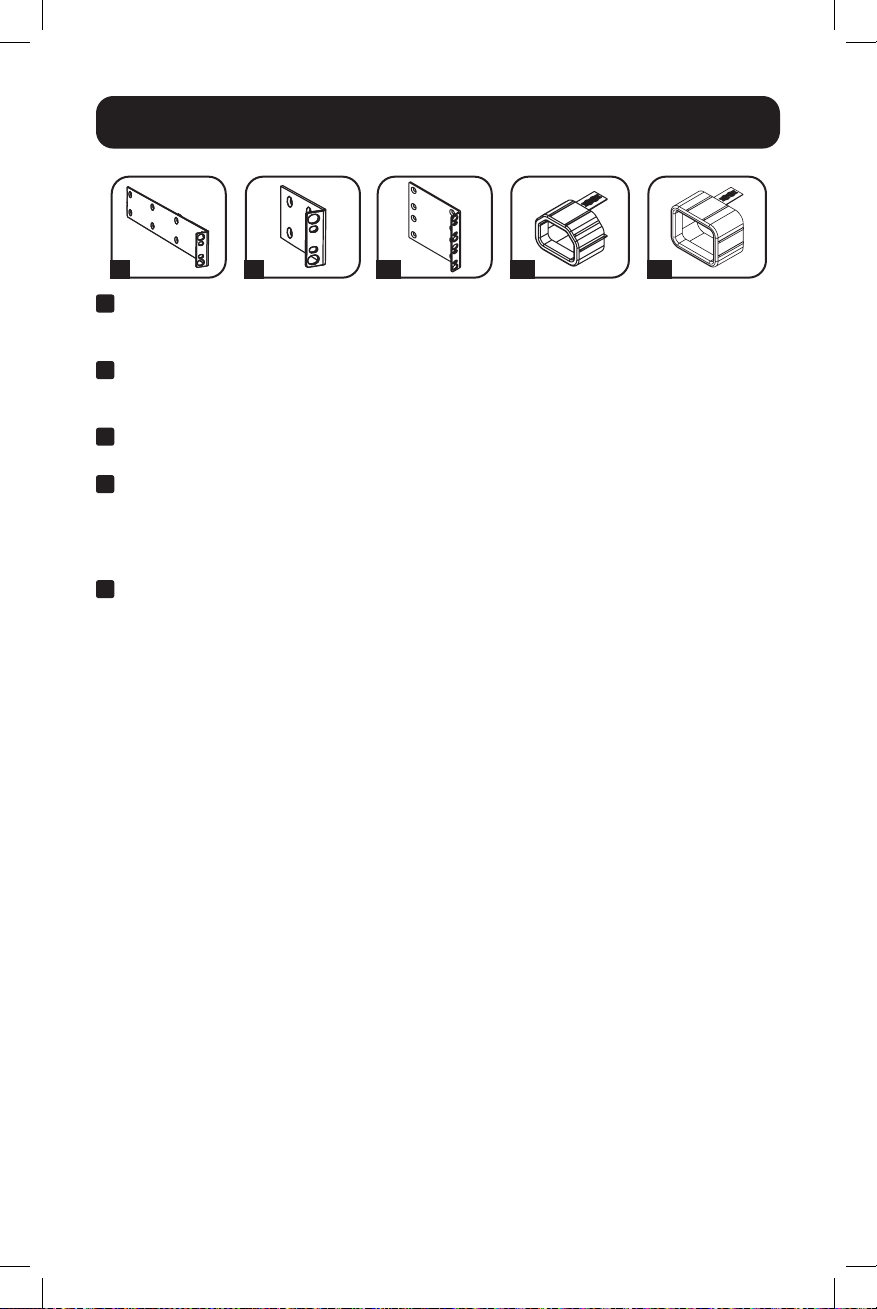

8Longer 1U Mounting Brackets: Use these brackets to mount the 1U PDU horizontally in a standard rack or rack enclosure. The mounting depth can be adjusted by attaching the brackets to different positions on the PDU.

9Shorter 0U Mounting Brackets: Use these brackets to mount the PDU in a 0U rack, wall or under-counter configuration for 1U PDU models.

102U Mounting Brackets: Use these brackets to mount the 2U PDU horizontally in a standard rack or rack enclosure, or in an under-counter configuration.

11C14 Plug-Lock Insert Sleeve (Optional): Use the included plastic sleeves to secure C13 power cords to C14 inlets. Fit the sleeve over the end of the cord, making sure the pull-tabs remain outside the cord and the fit is secure. To unplug equipment properly, grip both the cord and the insert’s tabs at the same time and pull.

12C20 Plug-Lock Insert Sleeve (Optional): Use the included plastic sleeves to secure C19 power cords to C20 inlets. Fit the sleeve over the end of the cord, making sure the pull-tabs remain outside the cord and the fit is secure. To unplug equipment properly, grip both the cord and the insert’s tabs at the same time and pull.

7

21-03-396-933059.indb 7

4/1/2021 11:48:38 AM

Warranty & Warranty Registration

2-YEAR LIMITED WARRANTY

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 2 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609 USA. Seller will pay return shipping charges. Visit www.tripplite.com/support before sending any equipment back for repair.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES,

INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

FCC Notice, Class A

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

The user must use shielded cables and connectors with this equipment. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always

refer to the series number. The series number should not be confused with the marking name or model number of the product.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when

customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

•Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

•Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

21-03-396 93-3059_revG

8

21-03-396-933059.indb 8

4/1/2021 11:48:38 AM

Manual del propietario

PDU para montaje en rack (bastidor) con amperímetro

Modelos de Bajo Voltaje: PDUMH15, PDUMH15S, PDUMH20 Modelos de Alta Tensión: PDUMH20HV, PDUMH30HV, PDUMH32HV

English 1 • Français 17 • Русский 25 • Deutsch 33

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

© 2019 Tripp Lite. Todos los derechos reservados.

9

21-03-396-933059.indb 9

4/1/2021 11:48:38 AM

Instrucciones de seguridad importantes

GUARDE ESTAS INSTRUCCIONES

Este manual contiene instrucciones y advertencias que deben seguirse durante la instalación, operación y almacenamiento de este producto. La falta de observar estas advertencias podría afectar su garantía.

PRECAUCION Este aparato no se destina para utilizarse por personas (incluyendo niños), cuyas capacidades fisicas, sensoriales o mentales sean diferentes o estén reducidas, o carezcan de experiencia o conocimiento, a menos que dichas personas reciban una supervisión o capacitación para el funcionamiento del aparato por una persona responsable de su seguridad.

Los ninos deben de supervisarse para asegurar que no empleen el aparato como juguete.

Nunca utilize el aparato si el cable y la clavija están dañados; si no funciona correctamente o si se ha caido o dañado, llévelo a un centro de servicio autorizado para que lo examinen y lo reparen.

Si el cordon de alimentación es dañado, éste debe sustituirse por el fabricante, por su agente de servicio autorizado o por personal calificado con el fin de evitar un peligro.

Advertencias importantes

El PDU proporciona la conveniencia de múltiples tomacorrientes, pero NO proporciona protección contra sobretensión o ruido en la línea para los equipos conectados.

El PDU está diseñada solo para uso en interiores en un entorno controlado lejos de humedad excesiva, temperaturas extremas, contaminantes conductivos, polvo o luz del sol directa.

Mantiene la temperatura ambiente interior entre 32°F y 104°F (0°C y 40°C).

El PDU debe ser instalado solamente por un técnico calificado.

No intente instalar el PDU en una superficie inestable o no segura.

Instale de acuerdo con los reglamentos eléctricos locales. Asegúrese de usar para la instalación la protección adecuada contra sobrecorriente, de acuerdo con la especificación de la clavija o del equipo.

Conecte el PDU a un tomacorriente que esté de acuerdo a los códigos locales de construcción y que esté correctamente protegido contra corrientes excesivas, cortocircuitos y fallas de conexión a tierra.

Los tomacorrientes eléctricos que suministran energía al equipo deben instalarse próximos al equipo y ser fácilmente accesibles.

No conecte El PDU a un toma corriente que no esté a tierra o cables de extensión o adaptadores que eliminen la conexión a tierra.

Asegúrese de proporcionar un dispositivo local de desconexión, que sea fácilmente accesible, en cualquier modelo que esté instalado permanentemente sin una clavija.

Nunca intente instalar equipos eléctricos durante una tormenta eléctrica.

El equipo individual conectado al PDU no debe consumir más corriente que la de la especificación de cada tomacorriente individual del PDU.

La carga total conectada al PDU no debe exceder la capacidad de carga máxima del PDU.

No intente modificar el PDU, las clavijas de entrada o los cables de alimentación.

No perfore ni intente abrir ninguna parte del gabinete del PDU. No tiene partes a las que el usuario pueda dar servicio.

No intente usar el PDU si se daña cualquier parte.

No se recomienda el uso de este equipo en aplicaciones de soporte de vida en donde la falla de este equipo pueda consecuentemente causar la falla del equipo de soporte de vida o afectar significativamente su seguridad o efectividad.

10

21-03-396-933059.indb 10

4/1/2021 11:48:38 AM

Instalación

Nota: Las ilustraciones pueden ser un poco diferentes a las de su modelo de PDU.

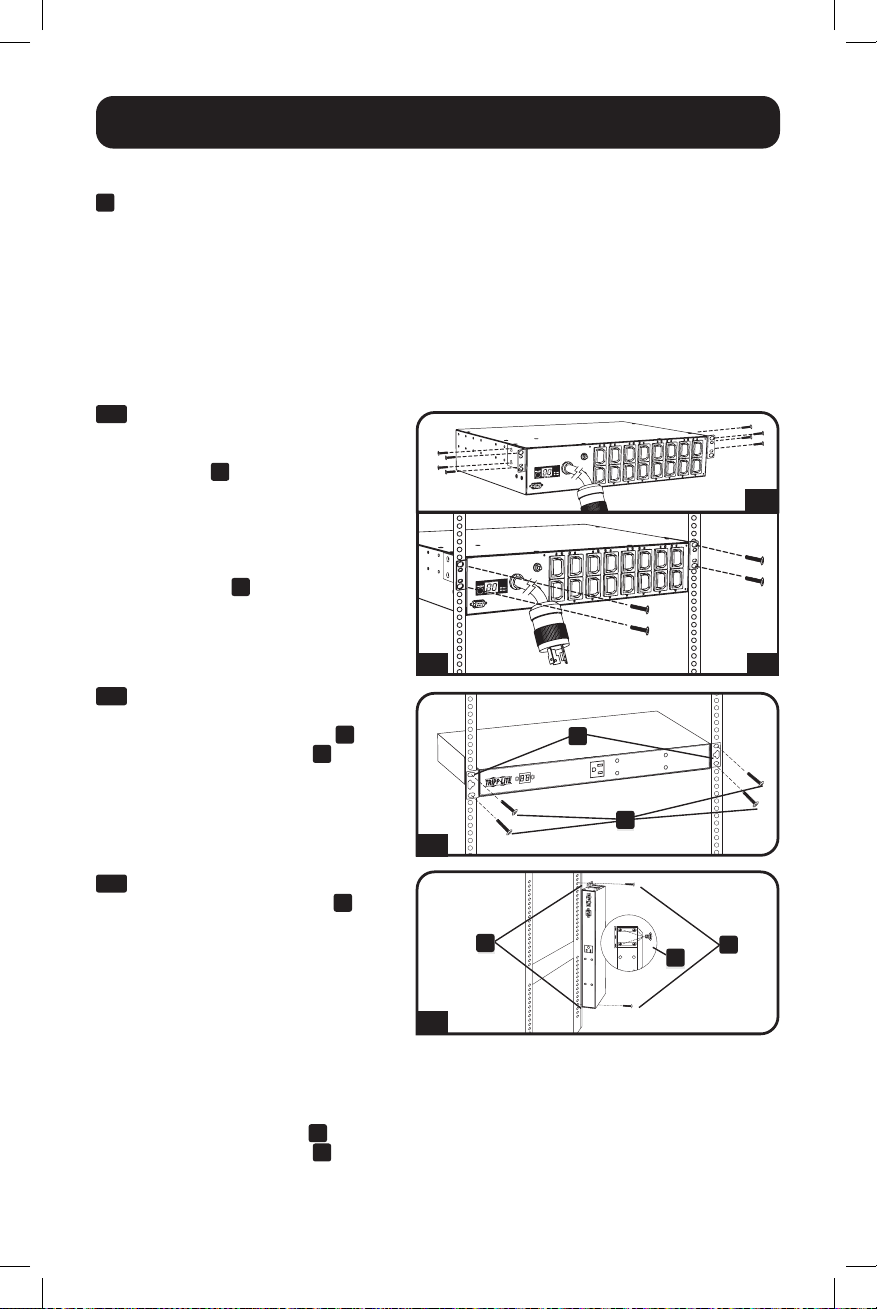

1Determine la configuración de la instalación. La PDU soporta cuatro configuraciones básicas de instalación: Bastidor de 1U, bastidor de 0U, de pared y debajo de mostrador. Elija una configuración y siga las instrucciones de instalación en la sección apropiada del Paso 1 antes de continuar al Paso 2.

Nota: Independientemente de la configuración, el usuario debe determinar la idoneidad de los materiales y accesorios así como de los procedimientos antes del montaje. La PDU y el material incluido están diseñados para racks (bastidores) y cajas de rack (bastidor) comunes, y pueden no ser apropiados para todas las aplicaciones.

1-1

Montaje en rack 2U: Ajuste los





soportes incluidos en los lados





laterales de la PDU con los tornillos





incluidos A . Después de instalar los





soportes, coloque la PDU en el rack e

A



instale cuatro tornillos suministrados







por el usuario a través de los soportes





de la unidad y dentro de los rieles del





rack B .





1-1

B

1-2

Instalación en bastidor de 1U. Fije







la PDU al bastidor insertando cuatro



B



tornillos suministrados por el usuario











A a través de los soportes de







montaje B

de la PDU en los agujeros







de montaje del riel del bastidor como







se muestra.





A







1-2



1-3

Instalación en bastidor de 0U. Parte







1: Retire los tornillos C que fijan los







soportes de montaje a la PDU, cambie







la orientación de los soportes como se

B

A



muestra y fíjelos nuevamente. Use





C



solo los tornillos incluidos o sus











equivalentes exactos (#6-32, 1/4” de







cabeza plana). Parte 2: Fije la PDU

1-3





verticalmente insertando dos o más











tornillos suministrados por el usuario







A a través de los soportes de







montaje B

de la PDU en los puntos





de montaje en el bastidor o la caja del bastidor.

11

21-03-396-933059.indb 11

4/1/2021 11:48:39 AM

Instalación

1-4 Instalación en la pared. Después de

repetir la Parte 1 anterior, fije el PDU







en una superficie estable para su







instalación insertando dos o más

B

C

A

tornillos suministrados por el usuario







A a través de los soportes de







instalación del PDU B en los puntos







seguros para su instalación en la

1-4





superficie de instalación.











1-5

Instalación debajo de mostrador.



C

B



Después de repetir la Parte 1 anterior,











fije el PDU en una superficie estable









para su instalación insertando quatro









tornillos suministrados por el usuario





C



A a través de los soportes de









instalación del PDU B en los puntos





A



seguros para su instalación en la

1-5







superficie de instalación.













2 Conecte el enchufe de entrada de la PDU a un







contacto conectado a tierra. Inserte el enchufe







directamente en una toma de corriente alterna







conectada a tierra que no comparta el circuito con







alguna carga eléctrica pesada (como un aire







acondicionado o una refrigeradora).









Nota: Modelos selectos incluye un adaptador de clavija







que convierte tipos de enchufes para varias aplicaciones.







Ver 2-1 para detalles.













2



12

21-03-396-933059.indb 12

4/1/2021 11:48:39 AM

Loading...
+ 28 hidden pages
